IslandPath Analysis: Haemophilus influenzae 86-028NP

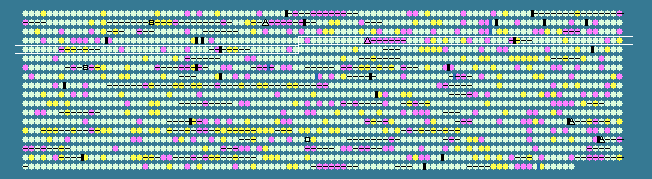

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
347	 40.46	0	391802..393064	+	420	68248897	rho	NTHI0405	-	transcription termination factor Rho
348	 33.48	-1	393118..393810	-	230	68248898	pilD	NTHI0406	-	putative type 4 prepilin-like protein specific leader peptidase
349	 35.87	0	393807..395027	-	406	68248899	pilC	NTHI0407	-	putative type IV pilin secretion protein
350	 39.21	0	395024..396418	-	464	68248900	pilB	NTHI0408	-	putative type IV pilin secretion protein
351	 37.56	0	396415..396864	-	149	68248901	pilA	NTHI0409	-	Type IV pilin subunit protein
352	 36.90	0	396979..397539	+	186	68248902	ampD	NTHI0411	-	N-acetyl-anhydromuranmyl-L-alanine amidase
353	 37.11	0	398161..399060	+	299	68248903	corC	NTHI0412	-	magnesium and cobalt efflux protein CorC
354	 36.07	0	399044..400612	+	522	68248904	lnt	NTHI0413	-	apolipoprotein N-acyltransferase
355	 39.43	0	400662..401399	+	245	68248905	-	NTHI0414	-	hypothetical protein
356	 38.86	0	401396..401956	+	186	68248906	-	NTHI0415	-	hypothetical protein
357	 40.24	0	401956..402375	+	139	68248907	ruvX	NTHI0416	-	Holliday junction resolvase-like protein
358	 34.41	-1	403545..404756	+	403	68248908	-	NTHI0419	-	prophage CP4-57-like integrase
359	 32.64	-1	404793..405227	-	144	68248909	-	NTHI0420	-	hypothetical protein
360	 30.97	-2	405340..405762	+	140	68248910	-	NTHI0421	-	hypothetical protein
361	 31.40	-1	405771..406544	+	257	68248911	-	NTHI0422	-	hypothetical protein
362	 26.56	-2	407079..407270	+	63	68248912	-	NTHI0423	-	hypothetical protein
363	 32.68	-1	407319..407471	+	50	68248913	-	NTHI0424	-	hypothetical protein
364	 30.30	-2	407638..408528	-	296	68248914	-	NTHI0425	-	hypothetical protein
365	 41.42	0	409189..410004	+	271	68248915	proC	NTHI0426	-	pyrroline-5-carboxylate reductase
366	 40.27	0	410004..411170	+	388	68248916	hcaT	NTHI0427	-	putative 3-phenylpropionic acid transporter
367	 41.50	0	411201..412094	+	297	68248917	xerD	NTHI0428	-	site-specific tyrosine recombinase XerD
368	 30.56	-2	412267..412554	+	95	68248918	-	NTHI0429	-	hypothetical protein
369	 42.16	+1	412606..413613	-	335	68248919	ruvB	NTHI0430	-	Holliday junction DNA helicase B
370	 37.89	0	413621..414235	-	204	68248920	ruvA	NTHI0431	-	Holliday junction DNA helicase motor protein
371	 41.88	0	414298..414870	-	190	68248921	ruvC	NTHI0432	-	Holliday junction resolvase
372	 41.57	0	414917..415657	-	246	68248922	-	NTHI0433	-	hypothetical protein
373	 36.29	0	415669..416142	-	157	68248923	ntpA	NTHI0434	-	dATP pyrophosphohydrolase
374	 41.88	0	416164..417930	-	588	68248924	aspS	NTHI0435	-	aspartyl-tRNA synthetase
375	 33.53	-1	418149..418667	+	172	68248925	-	NTHI0436	-	hypothetical protein
376	 40.08	0	418720..419445	+	241	68248926	-	NTHI0438	-	hypothetical protein
377	 40.51	0	419538..419774	+	78	68248927	-	NTHI0439	-	hypothetical protein
378	 33.58	-1	419771..420175	+	134	68248928	-	NTHI0440	-	nucleic acid-binding protein
379	 39.95	0	420242..420649	+	135	68248929	gloA	NTHI0441	-	lactoylglutathione lyase
380	 40.43	0	420723..421412	+	229	68248930	rnt	NTHI0442	-	ribonuclease T
381	 37.32	0	421726..423078	+	450	68248931	-	NTHI0443	-	hypothetical protein
382	 32.99	-1	423111..423698	+	195	68248932	-	NTHI0444	-	primosomal replication protein N
383	 41.98	+1	424049..424615	-	188	68248933	efp	NTHI0446	-	elongation factor P
384	 38.45	0	424653..425669	+	338	68248934	-	NTHI0447	-	lysine 2,3-aminomutase
385	 39.04	0	425768..427063	+	431	68248935	oapA	NTHI0448	-	opacity associated protein
386	 37.04	0	427122..427526	+	134	68248936	oapB	NTHI0449	-	opacity associated protein OapB
387	 41.49	0	427529..428239	+	236	68248937	recO	NTHI0450	-	DNA repair protein RecO
388	 38.34	0	428239..429555	+	438	68248938	rumA	NTHI0451	-	23S rRNA 5-methyluridine methyltransferase
389	 40.50	0	429633..431864	+	743	68248939	relA	NTHI0452	-	GTP pyrophosphokinase
390	 37.82	0	431879..432235	+	118	68248940	dgkA	NTHI0453	-	diacylglycerol kinase
391	 42.76	+1	432318..432911	+	197	68248941	mogA	NTHI0454	-	molybdenum cofactor biosynthesis protein
392	 41.59	0	432913..433251	+	112	68248942	glnB	NTHI0456	-	nitrogen regulatory protein P-II
393	 40.78	0	433251..434297	+	348	68248943	-	NTHI0457	-	hypothetical protein
394	 41.27	0	434339..436531	-	730	68248944	priA	NTHI0458	-	primosome assembly protein PriA
395	 38.60	0	436616..437356	+	246	68248945	trmB	NTHI0459	-	tRNA (guanine-N(7))-methyltransferase
396	 36.23	0	437441..437785	+	114	68248946	-	NTHI0460	-	hypothetical protein
397	 39.36	0	437991..438521	+	176	68248947	napF	NTHI0461	-	ferredoxin-type protein NapF
398	 34.75	-1	438514..438795	+	93	68248948	napD	NTHI0462	-	NapD
399	 41.50	0	438817..441315	+	832	68248949	napA	NTHI0463	-	nitrate reductase
400	 42.38	+1	441369..442208	+	279	68248950	napG	NTHI0464	-	quinol dehydrogenase periplasmic component
401	 41.78	0	442208..443071	+	287	68248951	napH	NTHI0465	-	quinol dehydrogenase membrane component
402	 40.62	0	443068..443520	+	150	68248952	napB	NTHI0466	-	diheme cytochrome C NapB
403	 39.14	0	443535..444137	+	200	68248953	napC	NTHI0467	-	cytochrome C-type protein NapC
404	 39.53	0	444297..444941	-	214	68248954	adk	NTHI0468	-	adenylate kinase
405	 38.73	0	445026..446303	-	425	68248955	lic3C	NTHI0469	-	putative integral membrane signal transducer protein
406	 38.74	0	446445..447461	-	338	68248956	galE	NTHI0471	-	UDP-glucose 4-epimerase
407	 27.10	-2	447634..448596	-	320	68248957	lic3A	NTHI0472	-	CMP-Neu5Ac--lipooligosaccharide alpha 2-3 sialyltransferase
408	 46.89	+2	448995..449717	+	240	68248958	-	NTHI0473	-	putative ABC-type nitrate/sulfonate/bicarbonate transport system, ATPase component
409	 46.07	+2	449714..450451	+	245	68248959	-	NTHI0474	-	putative ABC-type nitrate/sulfonate/bicarbonate transport system, permease component
410	 40.74	0	450473..451417	+	314	68248960	-	NTHI0475	-	putative ABC-type nitrate/sulfonate/bicarbonate transport systems, periplasmic component
411	 41.98	+1	451427..452074	+	215	68248961	-	NTHI0476	-	putative transcription activator
412	 36.03	0	452169..452984	-	271	68248962	hfeD	NTHI0477	-	putative ABC-type chelated iron transport system, permease component
413	 36.16	0	452977..453825	-	282	68248963	hfeC	NTHI0478	-	putative ABC-type chelated iron transport system, permease component
414	 38.00	0	453829..454749	-	306	68248964	hfeB	NTHI0479	-	putative ABC-type chelated iron transport system, ATPase component
415	 37.64	0	454749..455630	-	293	68248965	hfeA	NTHI0481	-	putative periplasmic chelated iron binding protein
416	 39.57	0	455936..456400	+	154	68248966	-	NTHI0482	-	hypothetical protein
417	 33.67	-1	456492..457370	-	292	68248967	pbpG	NTHI0483	-	penicillin-binding protein 7 homolog precursor
418	 39.22	0	457595..458767	+	390	68248968	-	NTHI0485	-	hypothetical protein
419	 35.19	0	458867..459406	+	179	68248969	-	NTHI0486	-	hypothetical protein
420	 38.38	0	459478..460389	+	303	68248970	-	NTHI0487	-	hypothetical protein
421	 41.64	0	460398..461504	+	368	68248971	ispG	NTHI0488	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
422	 39.47	0	461514..462785	+	423	68248972	hisS	NTHI0489	-	histidyl-tRNA synthetase
423	 37.07	0	462803..463417	+	204	68248973	-	NTHI0490	-	hypothetical protein
424	 31.28	-1	463468..463662	-	64	68248974	-	NTHI0491	-	hypothetical protein
425	 39.47	0	463662..464003	-	113	68248975	fdx	NTHI0492	-	ferredoxin, 2Fe-2S
426	 40.75	0	464043..465902	-	619	68248976	hscA	NTHI0493	-	chaperone protein HscA
427	 34.93	0	465921..466607	-	228	68248977	-	NTHI0494	-	hypothetical protein
428	 34.86	0	466658..467182	-	174	68248978	hscB	NTHI0495	-	co-chaperone HscB
429	 35.49	0	467195..467518	-	107	68248979	-	NTHI0496	-	hypothetical protein
430	 36.75	0	467576..467956	-	126	68248980	nifU	NTHI0497	-	scaffold protein
431	 38.33	0	468016..469236	-	406	68248981	nifS2	NTHI0498	-	cysteine desulfurase
432	 35.98	0	469297..469749	-	150	68248982	-	NTHI0499	-	hypothetical protein
433	 34.57	-1	469802..470527	-	241	68248983	-	NTHI0500	-	tRNA/rRNA methyltransferase
434	 39.83	0	470967..471428	-	153	68248984	pal	NTHI0501	-	outer membrane protein P6 precursor
435	 42.29	+1	471452..472735	-	427	68248985	tolB	NTHI0502	-	translocation protein TolB
436	 42.87	+1	472777..474003	-	408	68248986	tolA	NTHI0503	-	cell envelope integrity inner membrane protein TolA
437	 35.95	0	474019..474438	-	139	68248987	tolR	NTHI0504	-	colicin uptake protein TolR
438	 39.01	0	474509..475195	-	228	68248988	tolQ	NTHI0505	-	hypothetical protein
439	 39.66	0	475212..475622	-	136	68248989	-	NTHI0506	-	thioesterase
440	 36.97	0	475947..477869	+	640	68248990	dinG	NTHI0507	-	ATP-dependent helicase
441	 38.26	0	477882..478592	+	236	68248991	-	NTHI0508	-	hypothetical protein
442	 36.41	0	478617..479168	+	183	68248992	-	NTHI0509	-	starvation-inducible outer membrane lipoprotein
443	 38.96	0	479210..480898	+	562	68248993	lcfA	NTHI0510	-	long-chain-fatty-acid--CoA ligase
444	 36.83	0	480954..482096	+	380	68248994	rnd	NTHI0511	-	ribonuclease D
445	 29.48	-2	482139..484007	-	622	68248995	-	NTHI0512	-	acyltransferase
446	 40.84	0	484081..485172	-	363	68248996	-	NTHI0513	-	translation-associated GTPase
38.35	MEAN

3.58	STD DEV
