IslandPath Analysis: Haemophilus influenzae 86-028NP

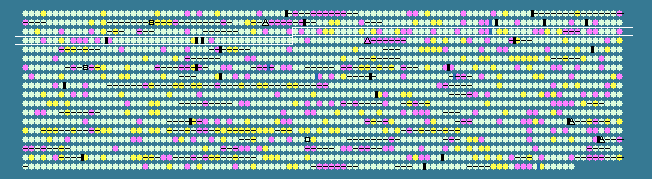

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
246	 38.29	0	267243..267767	-	174	68248796	fldA	NTHI0285	-	flavodoxin FldA
247	 32.41	-1	267864..268727	-	287	68248797	-	NTHI0286	-	esterase/lipase
248	 36.14	0	268717..269322	+	201	68248798	seqA	NTHI0289	-	replication initiation regulator SeqA
249	 35.98	0	269325..270683	+	452	68248799	menE	NTHI0290	-	O-succinylbenzoic acid--CoA ligase
250	 34.02	-1	270711..274049	+	1112	68248800	-	NTHI0291	-	potassium efflux protein KefA
251	 42.36	+1	274059..275132	+	357	68248801	aroC	NTHI0292	-	chorismate synthase
252	 43.21	+1	275305..276165	+	286	68248802	mepA	NTHI0294	-	penicillin-insensitive murein endopeptidase
253	 38.93	0	276183..276950	+	255	68248803	-	NTHI0295	-	hypothetical protein
254	 38.98	0	276997..277953	+	318	68248804	msbB	NTHI0296	-	lipid A biosynthesis (KDO)2-(lauroyl)-lipid IVA acyltransferase
255	 40.02	0	278080..279051	+	323	68248805	selD	NTHI0297	-	selenide, water dikinase
256	 41.31	0	279160..279510	-	116	68248806	rplS	NTHI0298	-	50S ribosomal protein L19
257	 44.40	+1	279547..280287	-	246	68248807	trmD	NTHI0299	-	tRNA (guanine-N(1)-)-methyltransferase
258	 36.36	0	280325..280852	-	175	68248808	rimM	NTHI0300	-	16S rRNA-processing protein
259	 44.18	+1	280897..281145	-	82	68248809	rpsP	NTHI0301	-	30S ribosomal protein S16
260	 31.30	-1	281425..282210	+	261	68248810	-	NTHI0302	-	hypothetical protein
261	 36.70	0	282233..284044	+	603	68248811	nadN	NTHI0303	-	NAD nucleotidase
262	 37.94	0	284329..284871	+	180	68248812	aroK	NTHI0305	-	shikimate kinase
263	 42.70	+1	284891..285979	+	362	68248813	aroB	NTHI0306	-	3-dehydroquinate synthase
264	 34.84	0	285981..286841	+	286	68248814	dam	NTHI0307	-	DNA adenine methylase
265	 25.00	-2	287806..287913	+	35	68248815	-	NTHI0307_1	-	hypothetical protein
266	 38.43	0	287932..288657	-	241	68248816	pgpB	NTHI0308	-	phosphatidylglycerophosphatase B
267	 38.37	0	288703..289377	+	224	68248817	ribA	NTHI0309	-	GTP cyclohydrolase II
268	 36.12	0	289693..291237	-	514	68248818	-	NTHI0310	-	putative ABC-type oligopeptide transport system, periplasmic component
269	 29.48	-2	291230..291592	-	120	68248819	-	NTHI0311	-	hypothetical protein
270	 40.66	0	291711..293756	+	681	68248820	prlC	NTHI0312	-	oligopeptidase A
271	 39.81	0	293988..295532	+	514	68248821	hsdM2	NTHI0314	-	putative type I restriction-modification system methyltransferase subunit
272	 35.04	0	295617..296789	+	390	68248822	hsdS2	NTHI0315	-	putative type I restriction-modification system specificity protein
273	 28.74	-2	296791..297945	+	384	68248823	prrC	NTHI0316	-	putative anticodon nuclease
274	 35.44	0	297948..298946	+	332	68248824	-	NTHI0317	-	DNA binding protein
275	 36.58	0	298957..302040	+	1027	68248825	hsdR2	NTHI0318	-	putative type I restriction-modification system
276	 37.94	0	302187..302816	-	209	68248826	-	NTHI0319	-	hypothetical protein
277	 34.09	-1	303030..304871	-	613	68248827	arcB	NTHI0321	-	aerobic respiration control sensor protein ArcB
278	 34.11	-1	304940..305584	-	214	68248828	-	NTHI0322	-	uracil-DNA glycosylase
279	 35.53	0	311636..312544	-	302	68248829	birA	NTHI0323	-	biotin--protein ligase
280	 42.60	+1	312671..314137	+	488	68248830	guaB	NTHI0324	-	inositol-5-monophosphate dehydrogenase
281	 43.51	+1	314247..315818	+	523	68248831	guaA	NTHI0326	-	bifunctional GMP synthase/glutamine amidotransferase protein
282	 36.88	0	315880..316782	-	300	68248832	-	NTHI0327	-	hypothetical protein
283	 35.90	0	316845..317351	+	168	68248833	-	NTHI0328	-	putative transcriptional regulator
284	 36.33	0	317390..318592	-	400	68248834	nhaA	NTHI0329	-	Na(+)/H(+) antiporter 1
285	 37.30	0	318780..320090	+	436	68248835	brnQ	NTHI0331	-	branched chain amino acid ABC transporter carrier protein
286	 33.55	-1	320198..320665	-	155	68248836	-	NTHI0332	-	hypothetical protein
287	 29.98	-2	320692..321138	-	148	68248837	-	NTHI0333	-	hypothetical protein
288	 42.44	+1	321411..323540	+	709	68248838	pnp	NTHI0334	-	polynucleotide phosphorylase/polyadenylase
289	 38.41	0	323622..324566	+	314	68248839	nlpL	NTHI0335	-	lipoprotein NlpI
290	 41.86	0	324686..326527	+	613	68248840	deaD	NTHI0337	-	cold-shock DEAD-box protein A-like protein
291	 34.70	-1	326705..328093	+	462	68248841	-	NTHI0338	-	putative soluble lytic transglycosylase fused to an ABC-type amino acid-binding protein
292	 28.10	-2	328098..328250	+	50	68248842	-	NTHI0339	-	hypothetical protein
293	 34.34	-1	328384..328680	-	98	68248843	-	NTHI0340	-	hypothetical protein
294	 37.62	0	328737..328946	-	69	68248844	-	NTHI0342	-	hypothetical protein
295	 33.90	-1	329014..329364	-	116	68248845	arsC	NTHI0343	-	putative arsenate reductase
296	 33.14	-1	329443..330492	+	349	68248846	perM	NTHI0344	-	putative permease PerM-like protein
297	 37.32	0	330606..331583	-	325	68248847	secF	NTHI0345	-	preprotein translocase subunit SecF
298	 38.57	0	331591..333441	-	616	68248848	secD	NTHI0346	-	preprotein translocase subunit SecD
299	 35.37	0	333511..333804	-	97	68248849	yajC	NTHI0347	-	preprotein translocase subunit YajC
300	 31.98	-1	333912..334133	-	73	68248850	-	NTHI0348	-	redox protein, regulator of disulfide bond formation
301	 36.61	0	334130..334648	-	172	68248851	-	NTHI0349	-	hypothetical protein
302	 41.69	0	334713..335861	-	382	68248852	tgt	NTHI0350	-	queuine tRNA-ribosyltransferase
303	 36.26	0	336206..337297	-	363	68248853	queA	NTHI0351	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
304	 33.78	-1	337421..337867	-	148	68248854	-	NTHI0353	-	hypothetical protein
305	 39.27	0	338010..342188	-	1392	68248855	hap	NTHI0354	-	adhesion and penetration protein Hap
306	 41.10	0	342506..345337	-	943	68248856	uvrA	NTHI0355	-	excinuclease ABC subunit A
307	 43.39	+1	345490..345996	+	168	68248857	ssb	NTHI0356	-	single-strand DNA-binding protein
308	 39.37	0	346174..346968	-	264	68248858	tonB	NTHI0358	-	TonB
309	 34.68	-1	346978..347421	-	147	68248859	exbD	NTHI0359	-	biopolymer transport protein
310	 33.77	-1	347425..347877	-	150	68248860	exbB	NTHI0360	-	transport protein ExbB
311	 34.40	-1	348046..348513	-	155	68248861	bcp	NTHI0361	-	thioredoxin-dependent thiol peroxidase
312	 38.24	0	348614..349510	+	298	68248862	dapA	NTHI0362	-	dihydrodipicolinate synthase
313	 33.65	-1	349621..350250	+	209	68248863	-	NTHI0363	-	lipoprotein
314	 36.11	0	350440..350763	+	107	68248864	-	NTHI0364	-	hypothetical protein
315	 24.07	-2	351477..352415	-	312	68248865	lgtC	NTHI0365	-	UDP-galactose--lipooligosaccharide galactosyltransferase
316	 39.12	0	352483..353070	-	195	68248866	orfM	NTHI0366	-	putative deoxyribonucleotide triphosphate pyrophosphatase
317	 38.15	0	353082..353807	-	241	68248867	kdkA	NTHI0367	-	3-deoxy-D-manno-octulosonic-acid kinase
318	 37.74	0	353884..354927	+	347	68248868	opsX	NTHI0368	-	ADP-heptose--lipooligosaccharide heptosyltransferase I
319	 38.45	0	355249..357378	+	709	68248869	hxuC	NTHI0369	-	heme-hemopexin utilization protein C
320	 36.98	0	357454..359151	+	565	68248870	hxuB	NTHI0370	-	heme/hemopexin-binding protein B
321	 35.18	0	359163..361928	+	921	68248871	hxuA	NTHI0371	-	heme/hemopexin-binding protein A
322	 36.97	0	362024..362380	-	118	68248872	folB	NTHI0372	-	dihydroneopterin aldolase
323	 39.83	0	362463..363062	+	199	68248873	-	NTHI0373	-	putative glycerol-3-phosphate acyltransferase PlsY
324	 37.56	0	363104..364807	+	567	68248874	narQ	NTHI0374	-	nitrate/nitrite sensor protein NarQ
325	 37.43	0	364817..365842	+	341	68248875	murB	NTHI0375	-	UDP-N-acetylenolpyruvoylglucosamine reductase
326	 40.07	0	365968..366813	+	281	68248876	rpoH	NTHI0376	-	RNA polymerase factor sigma-32
327	 39.56	0	367280..368146	-	288	68248877	djlA	NTHI0379	-	DNA-J like membrane chaperone protein
328	 41.59	0	368225..368866	-	213	68248878	pyrE	NTHI0380	-	orotate phosphoribosyltransferase
329	 43.24	+1	368890..369606	-	238	68248879	rph	NTHI0381	-	ribonuclease PH
330	 40.89	0	369907..371349	-	480	68248880	gltX	NTHI0382	-	glutamyl-tRNA synthetase
331	 36.17	0	372099..373754	+	551	68248881	lpt6	NTHI0383	-	PE-tn-6--lipooligosaccharide phosphorylethanolamine transferase
332	 33.83	-1	373772..374581	-	269	68248882	rbn	NTHI0384	-	ribonuclease BN
333	 37.65	0	374578..375063	-	161	68248883	-	NTHI0386	-	hypothetical protein
334	 35.90	0	375066..375728	-	220	68248884	-	NTHI0387	-	hypothetical protein
335	 41.37	0	375964..376722	+	252	161761279	udp	NTHI0389	-	uridine phosphorylase
336	 39.10	0	376948..378264	-	438	68248886	-	NTHI0390	-	metabolite transport protein
337	 35.89	0	378320..379063	-	247	68248887	-	NTHI0391	-	acyl-CoA thioester hydrolase YfbB
338	 41.30	0	379124..380830	-	568	68248888	menD	NTHI0392	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
339	 39.62	0	380846..382117	-	423	68248889	menF	NTHI0393	-	menaquinone-specific isochorismate synthase
340	 41.07	0	382274..383488	+	404	68248890	aspC3	NTHI0395	-	aminotransferase AlaT
341	 39.62	0	383605..384861	+	418	68248891	mtr	NTHI0396	-	tryptophan-specific transport protein
342	 41.81	0	384970..386337	-	455	68248892	sdaA	NTHI0397	-	L-serine dehydratase
343	 36.97	0	386372..387610	-	412	68248893	sdaC	NTHI0398	-	serine transporter
344	 41.08	0	387833..390001	-	722	68248894	-	NTHI0399	-	putative cation-transporting ATPase
345	 36.95	0	390841..391227	+	128	68248895	-	NTHI0403	-	heavy metal dependent transcriptional regulator
38.35	MEAN

3.58	STD DEV
