IslandPath Analysis: Haemophilus influenzae 86-028NP

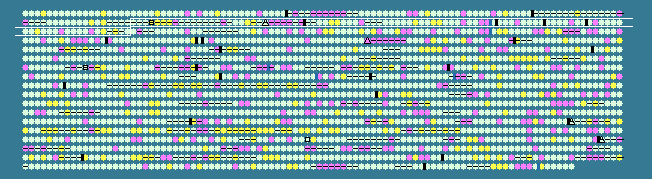

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
119	 35.49	0	122587..122910	+	107	68248670	-	NTHI0136	-	hypothetical protein
120	 40.09	0	122919..124412	+	497	68248671	-	NTHI0137	-	hypothetical protein
121	 38.79	0	124468..124797	-	109	68248672	-	NTHI0139	-	hypothetical protein
122	 51.60	+2	124955..127960	-	1001	68248673	tnpA	NTHI0141	-	transposon Tn3 transposase
123	 52.14	+2	126925..127041	+	38	68248674	-	NTHI0140	-	hypothetical protein
124	 51.18	+2	128088..128681	+	197	162960936	tnpR	NTHI0142	-	transposon Tn3 resolvase
125	 49.01	+2	128729..129589	+	286	162960937	-	NTHI2055	-	beta-lactamase TEM precursor
126	 26.67	-2	129813..129992	+	59	68248676	-	NTHI0143	-	hypothetical protein
127	 37.01	0	130037..130444	-	135	68248677	-	NTHI0144	-	hypothetical protein
128	 39.48	0	130460..132460	-	666	68248678	-	NTHI0145	-	hypothetical protein
129	 40.23	0	132475..133416	-	313	68248679	-	NTHI0146	-	hypothetical protein
130	 39.64	0	133413..133856	-	147	68248680	-	NTHI0147	-	hypothetical protein
131	 37.62	0	134168..134587	+	139	68248681	-	NTHI0148	-	hypothetical protein
132	 36.32	0	134672..134905	+	77	68248682	-	NTHI0149	-	hypothetical protein
133	 37.75	0	134908..135156	+	82	68248683	-	NTHI0150	-	hypothetical protein
134	 33.33	-1	135160..135318	+	52	68248684	-	NTHI0151	-	hypothetical protein
135	 38.26	0	135449..136402	+	317	68248685	traC	NTHI0152	-	putative antirestriction protein
136	 37.66	0	136506..137267	+	253	68248686	-	NTHI0153	-	type I restriction enzyme M subunit
137	 35.63	0	137493..138059	+	188	68248687	-	NTHI0154	-	hypothetical protein
138	 45.60	+2	138099..138473	+	124	68248688	-	NTHI0155	-	hypothetical protein
139	 44.54	+1	138463..139140	+	225	68248689	-	NTHI0156	-	hypothetical protein
140	 39.48	0	139118..139735	+	205	68248690	-	NTHI0157	-	hypothetical protein
141	 36.83	0	139999..140598	-	199	68248691	-	NTHI0158	-	resolvase/integrase-like protein
142	 34.38	-1	140613..140804	-	63	68248692	-	NTHI0159	-	hypothetical protein
143	 32.55	-1	141273..141527	-	84	68248693	-	NTHI0160	-	hypothetical protein
144	 30.11	-2	142718..143431	+	237	68248694	-	NTHI0161	-	hypothetical protein
145	 30.94	-2	144151..145404	+	417	68248695	-	NTHI0162	-	hypothetical protein
146	 35.16	0	145547..147463	+	638	68248696	-	NTHI0163	-	hypothetical protein
147	 29.89	-2	147524..148366	+	280	68248697	-	NTHI0164	-	putative site-specific recombinase
148	 39.51	0	149016..150293	-	425	68248698	thrC	NTHI0165	-	threonine synthase
149	 38.41	0	150336..151280	-	314	68248699	thrB	NTHI0166	-	homoserine kinase
150	 40.60	0	151293..153740	-	815	68248700	thrA	NTHI0167	-	bifunctional aspartokinase I/homeserine dehydrogenase I
151	 38.66	0	154064..154777	+	237	68248701	-	NTHI0168	-	hypothetical protein
152	 44.50	+1	154817..155953	-	378	68248702	grk	NTHI0169	-	glycerate kinase
153	 43.49	+1	155962..157221	-	419	68248703	-	NTHI0171	-	hypothetical protein
154	 37.76	0	157343..158449	-	368	68248704	-	NTHI0172	-	hypothetical protein
155	 36.45	0	158651..158971	-	106	68248705	-	NTHI0173	-	hypothetical protein
156	 37.30	0	159322..160077	-	251	68248706	-	NTHI0175	-	hypothetical protein
157	 32.62	-1	160278..160559	+	93	68248707	-	NTHI0176	-	hypothetical protein
158	 39.74	0	160711..161709	+	332	68248708	hitA	NTHI0177	-	iron-utilization periplasmic protein hFbpA
159	 39.78	0	161827..163347	+	506	68248709	hitB	NTHI0179	-	iron(III)-transport system permease protein hFbpB
160	 38.64	0	163349..164404	+	351	68248710	hitC	NTHI0180	-	iron-utilization ATP-binding protein hFbpC
161	 39.94	0	164439..165119	-	226	68248711	-	NTHI0181	-	putative D-alanyl-D-alanine carboxypeptidase
162	 41.09	0	165121..166254	-	377	68248712	dapE	NTHI0182	-	succinyl-diaminopimelate desuccinylase
163	 37.39	0	166282..166626	-	114	68248713	-	NTHI0184	-	hypothetical protein
164	 37.87	0	166705..168600	-	631	68248714	htpG	NTHI0185	-	heat shock protein 90
165	 39.29	0	168812..169651	+	279	68248715	-	NTHI0186	-	NIF3-like protein
166	 44.29	+1	169825..172197	+	790	68248716	hsdM1	NTHI0188	-	putative type I restriction-modification system, methyltransferase subunit
167	 35.96	0	172380..173789	+	469	68248717	-	NTHI0190	-	transcription regulator
168	 36.69	0	173961..175211	+	416	68248718	hsdS1	NTHI0192	-	putative type I site-specific restriction-modification system, S subunit
169	 44.00	+1	175311..178337	+	1008	68248719	hsdR1	NTHI0193	-	putative type I site-specific restriction-modification system, R subunit
170	 43.19	+1	178562..179941	-	459	68248720	ffh	NTHI0194	-	Signal recognition particle protein
171	 38.05	0	180192..181484	+	430	68248721	corB	NTHI0196	-	putative Mg2+ and Co2+ transporter
172	 40.73	0	181505..182383	+	292	68248722	-	NTHI0197	-	hypothetical protein
173	 38.12	0	182385..182864	+	159	68248723	-	NTHI0198	-	hypothetical protein
174	 30.12	-2	182954..183295	-	113	68248724	-	NTHI0199	-	hypothetical protein
175	 39.84	0	183462..184751	+	429	68248725	serS	NTHI0200	-	seryl-tRNA synthetase
176	 37.14	0	185086..185715	+	209	68248726	gst	NTHI0201	-	glutathione S-transferase
177	 28.28	-2	185727..186023	-	98	68248727	-	NTHI0201_1	-	hypothetical protein
178	 32.89	-1	186076..188313	+	745	68248728	hemR	NTHI0202	-	hemin receptor
179	 37.59	0	195361..197496	-	711	68248729	-	NTHI0203	-	23S rRNA m(2)G2445 methyltransferase
180	 38.47	0	197889..198998	+	369	68248730	mltA	NTHI0205	-	murein transglycosylase A
181	 41.25	0	198998..199768	+	256	68248731	-	NTHI0206	-	hypothetical protein
182	 36.93	0	199946..200947	+	333	68248732	znuA	NTHI0208	-	high-affinity zinc transporter periplasmic component
183	 34.71	-1	200997..201503	-	168	68248733	-	NTHI0209	-	hypothetical protein
184	 39.29	0	201616..202974	-	452	68248734	mpl	NTHI0210	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
185	 38.05	0	203359..204546	-	395	68248735	metC	NTHI0211	-	cystathionine beta-lyase
186	 39.08	0	204677..205285	+	202	68248736	tsaA	NTHI0212	-	peroxiredoxin
187	 37.10	0	205386..205943	+	185	68248737	pgsA	NTHI0213	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
188	 38.61	0	206507..207037	-	176	68248738	ppa	NTHI0214	-	inorganic pyrophosphatase
189	 41.38	0	207271..208587	+	438	68248739	-	NTHI0215	-	hypothetical protein
190	 38.01	0	208810..209451	+	213	68248740	udk	NTHI0218	-	uridine kinase
191	 40.99	0	209460..210047	+	195	68248741	dcd	NTHI0219	-	deoxycytidine triphosphate deaminase
192	 33.33	-1	210051..211226	+	391	68248742	-	NTHI0220	-	hypothetical protein
193	 38.63	0	211226..212434	+	402	68248743	-	NTHI0221	-	sugar efflux transporter
194	 39.87	0	212495..214009	-	504	68248744	engA	NTHI0222	-	GTP-binding protein EngA
195	 36.20	0	214691..215458	-	255	68248745	dnaQ	NTHI0223	-	DNA polymerase III subunit epsilon
196	 34.84	0	215519..215983	+	154	68248746	rnhA	NTHI0224	-	ribonuclease H
197	 36.43	0	216249..217346	+	365	68248747	ompP2	NTHI0225	-	Outer membrane protein P2 precursor
198	 38.92	0	217543..218688	-	381	68248748	nagA	NTHI0226	-	N-acetylglucosamine-6-phosphate deacetylase
199	 38.25	0	218825..219637	-	270	68248749	nagB	NTHI0227	-	glucosamine-6-phosphate deaminase
200	 38.21	0	219973..220854	-	293	68248750	nanA	NTHI0228	-	N-acetylneuraminate lyase
201	 37.25	0	220865..221731	-	288	68248751	-	NTHI0229	-	putative HTH-type transcriptional regulator
202	 39.98	0	221724..222626	-	300	68248752	nanK	NTHI0230	-	N-acetylmannosamine kinase
203	 42.50	+1	222671..223357	-	228	68248753	nanE	NTHI0231	-	N-acetylmannosamine-6-phosphate 2-epimerase
204	 36.36	0	223707..224696	+	329	68248754	-	NTHI0232	-	putative sialic acid transporter, TRAP-type C4-dicarboxylate transport system, periplasmic component
205	 37.01	0	224761..226611	+	616	68248755	siaT	NTHI0234	-	hypothetical protein
206	 40.35	0	226775..227914	+	379	68248756	-	NTHI0235	-	hypothetical protein
207	 34.02	-1	228076..228510	+	144	68248757	-	NTHI0236	-	putative protein-S-isoprenylcysteine methyltransferase
208	 38.29	0	228552..229439	-	295	68248758	hflC	NTHI0237	-	hypothetical protein
209	 40.88	0	229439..230671	-	410	68248759	hflK	NTHI0239	-	HflK
210	 35.31	0	230781..231488	-	235	68248760	-	NTHI0240	-	putative 4'-phosphopantetheinyl transferase
211	 39.56	0	231548..232879	-	443	68248761	dcuB2	NTHI0242	-	anaerobic C4-dicarboxylate transporter
212	 32.03	-1	233083..233313	-	76	68248762	acpP	NTHI0243	-	acyl carrier protein
213	 39.64	0	233573..234301	-	242	68248763	fabG	NTHI0244	-	3-ketoacyl-(acyl-carrier-protein) reductase
214	 42.17	+1	234318..235256	-	312	68248764	fabD	NTHI0245	-	acyl carrier protein S-malonyltransferase
215	 40.59	0	235756..236706	-	316	68248765	fabH	NTHI0247	-	3-oxoacyl-(acyl carrier protein) synthase III
216	 42.11	+1	236892..237062	-	56	68248766	rpmF	NTHI0248	-	50S ribosomal protein L32
217	 40.95	0	237085..237609	-	174	68248767	-	NTHI0249	-	hypothetical protein
218	 37.11	0	237766..238638	+	290	68248768	psd	NTHI0250	-	phosphatidylserine decarboxylase
38.35	MEAN

3.58	STD DEV
