IslandPath Analysis: Haemophilus influenzae 86-028NP

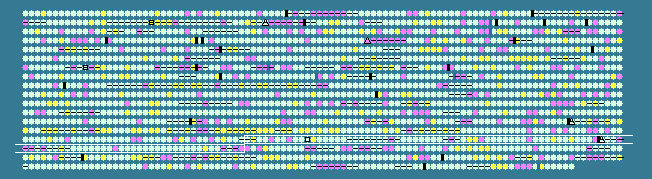

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1438	 38.38	0	1525148..1525345	+	65	161761264	rpmI	NTHI1642	-	50S ribosomal protein L35
1439	 42.94	+1	1525411..1525764	+	117	68249989	rplT	NTHI1643	-	50S ribosomal protein L20
1440	 35.70	0	1525877..1529512	+	1211	68249990	recB	NTHI1644	-	exodeoxyribonuclease V beta chain
1441	 38.85	0	1529512..1531434	+	640	68249991	recD	NTHI1646	-	exodeoxyribonuclease V alpha chain
1442	 33.56	-1	1531503..1531949	-	148	68249992	-	NTHI1647	-	hypothetical protein
1443	 37.04	0	1532046..1533851	+	601	68249993	lonB	NTHI1648	-	putative protease La
1444	 40.64	0	1534020..1534553	+	177	68249994	fabA	NTHI1649	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1445	 30.18	-2	1534789..1535517	+	242	68249995	-	NTHI1650	-	hypothetical protein
1446	 40.58	0	1535514..1535651	+	45	68249996	-	NTHI1651	-	hypothetical protein
1447	 38.89	0	1535787..1536056	+	89	68249997	rpsO	NTHI1652	-	30S ribosomal protein S15
1448	 35.48	0	1536128..1536499	-	123	68249998	-	NTHI1653	-	putative transposase-like protein
1449	 46.15	+2	1536496..1536612	-	38	68249999	-	NTHI1654	-	hypothetical protein
1450	 37.57	0	1536828..1538267	-	479	68250000	dacB	NTHI1655	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
1451	 37.53	0	1538431..1538907	+	158	68250001	greA	NTHI1658	-	transcription elongation factor GreA
1452	 38.67	0	1538946..1539245	-	99	68250002	-	NTHI1659	-	RNA-binding protein
1453	 40.16	0	1539372..1540001	+	209	68250003	rrmJ	NTHI1660	-	23S rRNA methyltransferase J
1454	 41.61	0	1540092..1541999	+	635	68250004	ftsH	NTHI1662	-	cell division protein FtsH homolog 1
1455	 39.35	0	1542111..1542941	+	276	68250005	folP	NTHI1663	-	dihydropteroate synthase
1456	 41.03	0	1542974..1544311	+	445	68250006	mrsA	NTHI1664	-	phosphomannomutase
1457	 34.95	0	1544370..1544864	+	164	68250007	sixA	NTHI1666	-	phosphohistidine phosphatase SixA-like protein
1458	 36.81	0	1545066..1545641	+	191	68250008	-	NTHI1667	-	hypothetical protein
1459	 38.83	0	1545719..1547083	-	454	68250009	-	NTHI1668	-	hypothetical protein
1460	 41.13	0	1547310..1547450	+	46	68250010	-	NTHI1669	-	hypothetical protein
1461	 35.29	0	1547444..1547596	+	50	68250011	-	NTHI1671	-	hypothetical protein
1462	 32.33	-1	1547905..1548501	+	198	68250012	-	NTHI1673	-	RNA polymerase sigma factor
1463	 37.36	0	1548511..1548684	+	57	68250013	-	NTHI1674	-	hypothetical protein
1464	 37.54	0	1548779..1549681	-	300	68250014	-	NTHI1675	-	hypothetical protein
1465	 37.48	0	1549817..1550878	+	353	68250015	msaB	NTHI1677	-	bifunctional methionine sulfoxide reductase A/B protein
1466	 36.92	0	1550890..1551531	+	213	68250016	-	NTHI1678	-	hypothetical protein
1467	 36.94	0	1551576..1552046	+	156	68250017	-	NTHI1679	-	hypothetical protein
1468	 36.42	0	1552228..1552551	-	107	68250018	-	NTHI1680	-	dsDNA-mimic protein
1469	 39.89	0	1552618..1553349	-	243	68250019	moeB	NTHI1681	-	molybdopterin biosynthesis protein MoeB
1470	 40.08	0	1553353..1554567	-	404	68250020	moeA	NTHI1682	-	molybdopterin biosynthesis protein MoeA
1471	 36.83	0	1554705..1555361	+	218	68250021	folE	NTHI1683	-	GTP cyclohydrolase I
1472	 31.17	-2	1555365..1555688	+	107	68250022	-	NTHI1684	-	hypothetical protein
1473	 35.25	0	1555791..1556519	+	242	68250023	bioD	NTHI1685	-	dithiobiotin synthetase
1474	 36.63	0	1556608..1557486	-	292	68250024	metF	NTHI1686	-	5,10-methylenetetrahydrofolate reductase
1475	 42.19	+1	1557949..1558377	+	142	68250025	rplM	NTHI1687	-	50S ribosomal protein L13
1476	 44.78	+1	1558394..1558786	+	130	68250026	rpsI	NTHI1688	-	30S ribosomal protein S9
1477	 34.59	-1	1558967..1559605	+	212	68250027	sspA	NTHI1689	-	stringent starvation protein A
1478	 36.87	0	1559605..1560057	+	150	68250028	sspB	NTHI1690	-	ClpXP protease specificity-enhancing factor
1479	 39.14	0	1560093..1561970	-	625	68250029	dxs	NTHI1691	-	1-deoxy-D-xylulose-5-phosphate synthase
1480	 38.27	0	1562012..1562902	-	296	68250030	ispA	NTHI1692	-	geranyltranstransferase
1481	 38.04	0	1562902..1563156	-	84	68250031	xseB	NTHI1693	-	exodeoxyribonuclease VII small subunit
1482	 37.24	0	1563315..1564772	+	485	68250032	thiI	NTHI1694	-	thiamine biosynthesis protein ThiI
1483	 38.63	0	1564787..1565107	+	106	68250033	-	NTHI1695	-	hypothetical protein
1484	 35.83	0	1565101..1565820	+	239	68250034	truC	NTHI1696	-	tRNA pseudouridine synthase C
1485	 32.08	-1	1565813..1565971	+	52	68250035	-	NTHI1697	-	hypothetical protein
1486	 36.07	0	1566120..1566338	+	72	68250036	cspD	NTHI1698	-	cold shock-like protein CspD
1487	 38.16	0	1566477..1566953	-	158	68250037	-	NTHI1699	-	hypothetical protein
1488	 38.26	0	1567012..1567965	+	317	68250038	usg	NTHI1700	-	aspartate-semialdehyde dehydrogenase
1489	 42.38	+1	1568109..1568915	-	268	68250039	trpA	NTHI1701	-	tryptophan synthase subunit alpha
1490	 41.79	0	1568915..1570108	-	397	68250040	trpB	NTHI1702	-	tryptophan synthase subunit beta
1491	 41.50	0	1570125..1570883	-	252	68250041	-	NTHI1703	-	oxidoreductase
1492	 44.15	+1	1571063..1572097	+	344	68250042	purM	NTHI1704	-	phosphoribosylaminoimidazole synthetase
1493	 40.53	0	1572152..1572790	+	212	68250043	purN	NTHI1706	-	phosphoribosylglycinamide formyltransferase
1494	 36.56	0	1572874..1573710	-	278	68250044	-	NTHI1707	-	ABC transporter periplasmic protein
1495	 36.13	0	1573908..1574837	-	309	161761263	uspE	NTHI1708	-	universal stress protein UspE
1496	 34.75	-1	1574959..1575732	-	257	68250046	fnr	NTHI1709	-	fumarate/nitrate reduction transcriptional regulator
1497	 39.22	0	1576350..1576706	+	118	68250047	-	NTHI1711	-	putative integrase/recombinase
1498	 39.74	0	1576591..1576980	-	129	68250048	-	NTHI1712	-	hypothetical protein
1499	 41.67	0	1577285..1577536	-	83	68250049	-	NTHI1713	-	phage anti-repressor protein
1500	 32.39	-1	1577874..1579145	-	423	68250050	-	NTHI1714	-	hypothetical protein
1501	 30.88	-2	1579746..1579949	+	67	68250051	-	NTHI1715	-	hypothetical protein
1502	 31.45	-1	1579927..1580085	-	52	68250052	-	NTHI1716	-	hypothetical protein
1503	 39.64	0	1580413..1580634	-	73	68250053	-	NTHI1717	-	hypothetical protein
1504	 30.95	-2	1581561..1581896	-	111	68250054	-	NTHI1718	-	hypothetical protein
1505	 35.28	0	1581899..1582978	-	359	68250055	-	NTHI1719	-	hypothetical protein
1506	 39.34	0	1583030..1583728	-	232	68250056	-	NTHI1720	-	transcriptional regulator
1507	 43.39	+1	1583839..1584027	+	62	68250057	-	NTHI1721	-	hypothetical protein
1508	 40.59	0	1584076..1584516	+	146	68250058	-	NTHI1722	-	hypothetical protein
1509	 41.33	0	1584565..1585239	+	224	68250059	-	NTHI1723	-	hypothetical protein
1510	 40.45	0	1585236..1585994	+	252	68250060	-	NTHI1724	-	hypothetical protein
1511	 41.74	0	1585979..1586620	+	213	68250061	-	NTHI1725	-	hypothetical protein
1512	 41.33	0	1586617..1586841	+	74	68250062	-	NTHI1726	-	hypothetical protein
1513	 41.01	0	1586878..1587294	+	138	68250063	ninB	NTHI1727	-	putative recombination protein NinB
1514	 36.41	0	1587562..1587951	+	129	68250064	ninG	NTHI1728_1	-	putative recombination protein NinG-like protein
1515	 35.71	0	1587971..1588600	+	209	68250065	-	NTHI1729	-	hypothetical protein
1516	 34.05	-1	1588724..1589002	+	92	68250066	-	NTHI1730	-	hypothetical protein
1517	 39.16	0	1589052..1590029	-	325	68250067	-	NTHI1731	-	hypothetical protein
1518	 40.59	0	1590258..1591043	+	261	68250068	-	NTHI1733	-	hypothetical protein
1519	 41.53	0	1591074..1591256	+	60	68250069	-	NTHI1734	-	hypothetical protein
1520	 36.41	0	1591380..1591736	+	118	68250070	-	NTHI1735	-	hypothetical protein
1521	 39.23	0	1591816..1592307	+	163	68250071	-	NTHI1736	-	hypothetical protein
1522	 38.27	0	1592300..1592623	+	107	68250072	-	NTHI1737	-	hypothetical protein
1523	 40.78	0	1592535..1592816	+	93	68250073	-	NTHI1738	-	hypothetical protein
1524	 38.35	0	1592818..1593096	-	92	68250074	-	NTHI1739	-	hypothetical protein
1525	 39.57	0	1593141..1593653	+	170	68250075	-	NTHI1740	-	hypothetical protein
1526	 41.37	0	1593640..1594983	+	447	68250076	-	NTHI1741	-	phage terminase large subunit
1527	 39.78	0	1594985..1596319	+	444	68250077	-	NTHI1742	-	hypothetical protein
1528	 40.36	0	1596348..1597529	+	393	68250078	traN	NTHI1743	-	uncharacterized protein, homolog of phage Mu protein gp30
1529	 38.42	0	1597675..1597851	+	58	68250079	-	NTHI1744	-	hypothetical protein
1530	 38.33	0	1598015..1599034	+	339	68250080	pyrD	NTHI1745	-	dihydroorotate dehydrogenase 2
1531	 42.42	+1	1599034..1599858	+	274	68250081	trpH	NTHI1746	-	TrpH
1532	 35.80	0	1599957..1600565	-	202	68250082	-	NTHI1748	-	hypothetical protein
1533	 39.07	0	1600693..1602087	-	464	68250083	fumC	NTHI1749	-	fumarate hydratase
1534	 30.67	-2	1602237..1603175	-	312	68250084	-	NTHI1750	-	glycosyl transferase family protein
1535	 36.78	0	1603831..1604265	+	144	68250085	holC	NTHI1753	-	DNA polymerase III subunit chi
1536	 33.92	-1	1604350..1604520	+	56	68250086	-	NTHI1754	-	hypothetical protein
1537	 32.27	-1	1604533..1604907	+	124	68250087	-	NTHI1755	-	hypothetical protein
38.35	MEAN

3.58	STD DEV
