IslandPath Analysis: Haemophilus influenzae 86-028NP

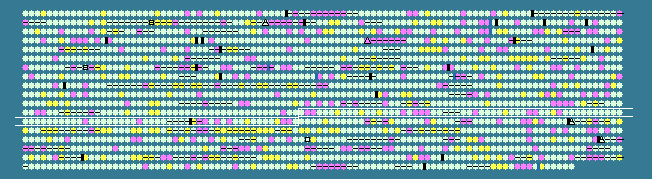

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1147	 40.08	0	1250778..1251503	-	241	68249697	-	NTHI1316	-	ABC transporter ATP-binding protein
1148	 33.72	-1	1251507..1252025	-	172	68249698	-	NTHI1317	-	hypothetical protein
1149	 34.15	-1	1252006..1252614	-	202	68249699	-	NTHI1318	-	hypothetical protein
1150	 35.75	0	1252664..1253200	-	178	68249700	-	NTHI1319	-	hypothetical protein
1151	 40.49	0	1253289..1254644	+	451	68249701	pmbA	NTHI1320	-	hypothetical protein
1152	 38.15	0	1255019..1255558	+	179	68249702	hpt	NTHI1321	-	hypoxanthine-guanine phosphoribosyltransferase
1153	 44.22	+1	1255864..1257186	+	440	68249703	-	NTHI1323	-	Na+/dicarboxylate symporter
1154	 41.03	0	1257286..1257753	-	155	68249704	nrdG	NTHI1324	-	anaerobic ribonucleotide reductase-activating protein
1155	 38.01	0	1258001..1259731	-	576	68249705	cydC	NTHI1325	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1156	 39.47	0	1259731..1261491	-	586	68249706	cydD	NTHI1326	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1157	 43.36	+1	1261563..1262519	-	318	68249707	trxB	NTHI1327	-	thioredoxin reductase
1158	 37.76	0	1262593..1263450	-	285	68249708	-	NTHI1328	-	thioredoxin domain-containing protein
1159	 37.76	0	1263529..1264500	-	323	68249709	hemH	NTHI1329	-	ferrochelatase
1160	 42.69	+1	1264497..1264913	-	138	68249710	-	NTHI1330	-	hypothetical protein
1161	 39.40	0	1264927..1268010	-	1027	68249711	-	NTHI1331	-	hypothetical protein
1162	 40.93	0	1268385..1269464	+	359	68249712	ompP5	NTHI1332	-	Outer membrane protein P5
1163	 36.36	0	1269576..1269938	+	120	68249713	-	NTHI1333	-	glutaredoxin-related protein
1164	 34.51	-1	1270015..1271115	-	366	68249714	-	NTHI1334	-	histidinol-phosphate aminotransferase
1165	 38.38	0	1271203..1272291	-	362	68249715	serC	NTHI1335	-	phosphoserine aminotransferase
1166	 32.75	-1	1272482..1272826	+	114	68249716	-	NTHI1336	-	hypothetical protein
1167	 32.45	-1	1272866..1273432	-	188	68249717	-	NTHI1337	-	hypothetical protein
1168	 34.55	-1	1273432..1274418	-	328	68249718	-	NTHI1338	-	para-aminobenzoate synthase component I
1169	 35.91	0	1274460..1275041	+	193	68249719	trpG2	NTHI1339	-	para-aminobenzoate synthase component II
1170	 39.91	0	1275126..1276280	+	384	68249720	metK	NTHI1340	-	S-adenosylmethionine synthetase
1171	 35.27	0	1276575..1277090	+	171	68249721	sprT	NTHI1341	-	hypothetical protein
1172	 37.82	0	1277141..1277653	+	170	68249722	opa	NTHI1342	-	opacity protein
1173	 40.85	0	1277689..1277994	-	101	68249723	-	NTHI1344	-	hypothetical protein
1174	 37.28	0	1278201..1278884	-	227	68249724	artM	NTHI1345	-	arginine transporter permease subunit ArtM
1175	 39.49	0	1278884..1279549	-	221	68249725	artQ	NTHI1346	-	arginine transporter permease subunit ArtQ
1176	 34.58	-1	1279553..1280272	-	239	68249726	artI	NTHI1347	-	arginine-binding periplasmic protein
1177	 39.21	0	1280290..1281021	-	243	68249727	artP	NTHI1348	-	arginine transporter ATP-binding subunit
1178	 37.26	0	1281147..1281731	-	194	68249728	gmhA	NTHI1350	-	phosphoheptose isomerase
1179	 35.30	0	1281831..1282745	+	304	68249729	ligA	NTHI1352	-	DNA ligase
1180	 39.23	0	1282774..1283757	-	327	68249730	dppF	NTHI1353	-	dipeptide transporter ATP-binding subunit
1181	 42.70	+1	1283760..1284752	-	330	68249731	dppD	NTHI1354	-	dipeptide transporter ATP-binding subunit
1182	 41.22	0	1284762..1285649	-	295	68249732	dppC	NTHI1355	-	dipeptide transport system permease protein
1183	 40.52	0	1285664..1286665	-	333	68249733	dppB	NTHI1357	-	dipeptide transport system permease protein
1184	 39.88	0	1286755..1288938	-	727	68249734	uvrD	NTHI1359	-	DNA-dependent helicase II
1185	 33.65	-1	1289545..1290180	-	211	68249735	-	NTHI1360	-	organic radical activating protein
1186	 33.33	-1	1290181..1290606	-	141	68249736	-	NTHI1361	-	6-pyruvoyl tetrahydrobiopterin synthase
1187	 37.28	0	1290599..1291282	-	227	68249737	-	NTHI1362	-	PP-loop superfamily ATPase
1188	 37.50	0	1291438..1291581	+	47	68249738	-	NTHI1363	-	hypothetical protein
1189	 43.22	+1	1291632..1292663	-	343	68249739	ilvE	NTHI1364	-	branched-chain amino acid aminotransferase
1190	 34.68	-1	1293138..1294031	+	297	68249740	gcvA	NTHI1365	-	DNA-binding transcriptional activator GcvA
1191	 38.74	0	1294024..1295115	+	363	68249741	-	NTHI1366	-	putative RNA 2'-O-ribose methyltransferase
1192	 41.28	0	1295151..1296320	+	389	68249742	sucC	NTHI1367	-	succinyl-CoA synthetase beta chain
1193	 41.27	0	1296320..1297201	+	293	68249743	sucD	NTHI1368	-	succinyl-CoA synthetase alpha chain
1194	 39.42	0	1297322..1297945	+	207	68249744	-	NTHI1369	-	hypothetical protein
1195	 41.71	0	1297993..1299066	+	357	68249745	rluB	NTHI1370	-	ribosomal large subunit pseudouridine synthase B
1196	 39.40	0	1299077..1300048	+	323	68249746	cysB	NTHI1371	-	transcriptional regulator CysB
1197	 38.73	0	1300107..1301051	-	314	68249747	-	NTHI1372	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1198	 38.69	0	1301182..1301685	+	167	68249748	-	NTHI1373	-	hypothetical protein
1199	 40.82	0	1301763..1303898	-	711	68249749	pta	NTHI1374	-	phosphate acetyltransferase
1200	 40.05	0	1303966..1305171	-	401	68249750	ackA	NTHI1375	-	acetate kinase
1201	 36.94	0	1305388..1305831	+	147	68249751	-	NTHI1376	-	hypothetical protein
1202	 37.20	0	1305918..1306409	+	163	68249752	cvpA	NTHI1377	-	colicin V production protein
1203	 39.86	0	1306420..1307937	+	505	68249753	purF	NTHI1378	-	amidophosphoribosyltransferase
1204	 38.16	0	1308002..1308892	-	296	68249754	sulA	NTHI1379	-	cell division inhibitor SulA
1205	 35.31	0	1308892..1309347	-	151	68249755	argR	NTHI1380	-	arginine repressor
1206	 40.49	0	1309554..1310489	+	311	68249756	mdh	NTHI1381	-	malate dehydrogenase
1207	 39.56	0	1310576..1312084	-	502	68249757	lysS	NTHI1382	-	lysyl-tRNA synthetase
1208	 41.43	0	1312196..1313047	-	283	68249758	prfB	NTHI1383	-	peptide chain release factor 2
1209	 35.65	0	1313427..1314116	+	229	68249759	dsbC	NTHI1384	-	thiol-disulfide interchange protein
1210	 39.81	0	1314404..1316131	+	575	68249760	recJ	NTHI1385	-	single-stranded-DNA-specific exonuclease RecJ
1211	 34.46	-1	1316124..1316831	+	235	68249761	-	NTHI1387	-	hypothetical protein
1212	 41.41	0	1316828..1317520	+	230	68249762	mtnA	NTHI1389	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
1213	 35.95	0	1317594..1320341	-	915	68249763	hup	NTHI1390	-	heme utilization protein
1214	 35.27	0	1320641..1322239	-	532	68249764	-	NTHI1391	-	putative L-lactate permease
1215	 37.91	0	1322643..1323647	-	334	68249765	fbp	NTHI1394	-	fructose-1,6-bisphosphatase
1216	 41.11	0	1323882..1324691	+	269	68249766	truA	NTHI1395	-	tRNA pseudouridine synthase A
1217	 38.15	0	1324784..1325800	-	338	68249767	sapZ	NTHI1396	-	hypothetical protein
1218	 35.93	0	1325812..1326621	-	269	68249768	sapF	NTHI1397	-	anti peptide resistance ABC transporter ATPase
1219	 36.38	0	1326621..1327670	-	349	68249769	sapD	NTHI1398	-	peptide ABC transporter ATP-binding protein
1220	 34.46	-1	1327674..1328561	-	295	68249770	sapC	NTHI1399	-	ABC transporter permease
1221	 35.20	0	1328551..1329516	-	321	68249771	sapB	NTHI1400	-	ABC transporter permease
1222	 35.40	0	1329516..1331210	-	564	68249772	sapA	NTHI1401	-	anti peptide resistance ABC transporter periplasmic protein
1223	 38.36	0	1331280..1332692	+	470	68249773	-	NTHI1402	-	ATPase
1224	 41.48	0	1332729..1335368	-	879	68249774	ppc	NTHI1403	-	phosphoenolpyruvate carboxylase
1225	 38.67	0	1335551..1336561	-	336	68249775	purR	NTHI1404	-	DNA-binding transcriptional repressor PurR
1226	 40.82	0	1336924..1337751	+	275	161761268	dapD	NTHI1406	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1227	 40.95	0	1337808..1339106	-	432	68249777	purA	NTHI1407	-	adenylosuccinate synthetase
1228	 37.98	0	1339235..1339600	-	121	68249778	-	NTHI1408	-	aspartokinase
1229	 43.75	+1	1340448..1340735	-	95	68249779	rplY	NTHI1410	-	50S ribosomal protein L25
1230	 34.09	-1	1340903..1341559	+	218	68249780	-	NTHI1412	-	uncharacterized membrane-associated protein
1231	 33.33	-1	1341606..1342022	-	138	68249781	-	NTHI1413	-	hypothetical protein
1232	 36.75	0	1342053..1342403	-	116	68249782	-	NTHI1414	-	YjgF family translation initiation inhibitor
1233	 34.87	0	1342515..1343231	+	238	68249783	-	NTHI1415	-	hypothetical protein
1234	 39.41	0	1343232..1343774	+	180	68249784	-	NTHI1416	-	hypothetical protein
1235	 33.99	-1	1343789..1344247	-	152	68249785	-	NTHI1417	-	HTH-type transcriptional regulator
1236	 36.11	0	1344286..1344969	+	227	68249786	-	NTHI1418	-	putative ABC-type Co2+ transport system, periplasmic component
1237	 40.29	0	1344982..1345470	+	162	68249787	-	NTHI1419	-	hypothetical protein
1238	 43.00	+1	1345470..1346090	+	206	68249788	cbiM	NTHI1420	-	cobalt transport protein CbiM
1239	 37.91	0	1346090..1346722	+	210	68249789	-	NTHI1421	-	cobalt ABC transporter permease
1240	 38.92	0	1346724..1347350	+	208	68249790	cbiO	NTHI1422	-	cobalt ABC transporter ATPase
1241	 40.05	0	1347457..1348647	-	396	68249791	aspC	NTHI1423	-	aromatic amino acid aminotransferase
1242	 38.75	0	1348787..1349875	-	362	68249792	purK	NTHI1424	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1243	 44.24	+1	1349945..1350439	-	164	68249793	purE	NTHI1425	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
1244	 33.73	-1	1350610..1350858	+	82	68249794	hicA	NTHI1426	-	HicA
1245	 33.04	-1	1350855..1351199	+	114	68249795	hicB	NTHI1427	-	HicB
1246	 37.93	0	1351243..1353852	+	869	68249796	pepN	NTHI1428	-	aminopeptidase N
38.35	MEAN

3.58	STD DEV
