IslandPath Analysis: Haemophilus influenzae 86-028NP

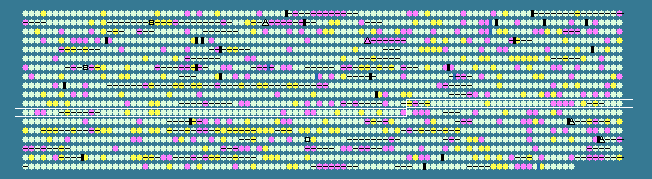

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.35 STD DEV: 3.58
Haemophilus influenzae 86-028NP, complete genome - 1..1914490
1792 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1065	 42.98	+1	1157070..1157411	+	113	68249615	-	NTHI1214	-	hypothetical protein
1066	 34.84	0	1157522..1158118	-	198	68249616	-	NTHI1215	-	hypothetical protein
1067	 38.41	0	1158124..1160289	-	721	68249617	res	NTHI1216	-	putative type III restriction-modification system HindVIP enzyme res
1068	 43.10	+1	1162596..1163189	-	197	68249618	rnhB	NTHI1219	-	ribonuclease HII
1069	 39.98	0	1163182..1164354	-	390	68249619	lpxB	NTHI1220	-	lipid-A-disaccharide synthase
1070	 41.32	0	1164421..1165209	-	262	68249620	lpxA	NTHI1222	-	UDP-N-acetylglucosamine acyltransferase
1071	 41.16	0	1165223..1165669	-	148	68249621	fabZ	NTHI1223	-	(3R)-hydroxymyristoyl-[acyl carrier protein] dehydratase
1072	 35.63	0	1165745..1167352	-	535	68249622	-	NTHI1224	-	PE--lipooligosaccharide phosphorylethanolamine transferase
1073	 41.18	0	1167445..1168158	+	237	68249623	pyrH	NTHI1225	-	uridylate kinase
1074	 36.54	0	1168397..1169362	-	321	68249624	nrfD	NTHI1226	-	NrfD, formate-dependent nitrite reductase, membrane component
1075	 41.74	0	1169359..1170036	-	225	68249625	nrfC	NTHI1227	-	NrfC, Fe-S-cluster-containing hydrogenase component 1
1076	 37.72	0	1170033..1170716	-	227	68249626	nrfB	NTHI1229	-	cytochrome c-type protein NrfB
1077	 40.01	0	1170760..1172376	-	538	68249627	nrfA	NTHI1230	-	cytochrome c nitrite reductase
1078	 42.25	+1	1172538..1176374	-	1278	161761270	hrpA	NTHI1231	-	ATP-dependent RNA helicase HrpA
1079	 37.87	0	1176443..1176817	-	124	68249629	-	NTHI1232	-	putative small membrane protein
1080	 37.75	0	1176818..1177270	-	150	68249630	-	NTHI1233	-	hypothetical protein
1081	 36.06	0	1177536..1178672	-	378	68249631	cyoB	NTHI1235	-	putative cytochrome oxidase subunit II
1082	 36.72	0	1178687..1180252	-	521	68249632	cyoA	NTHI1236	-	cytochrome oxidase subunit I
1083	 40.05	0	1180905..1182542	+	545	68249633	pyrG	NTHI1238	-	CTP synthetase
1084	 35.83	0	1182687..1183367	-	226	68249634	pnuC	NTHI1240	-	nicotinamide riboside transporter
1085	 37.86	0	1183549..1184322	-	257	68249635	-	NTHI1241	-	putative amino-acid ABC transporter ATP-binding protein
1086	 35.69	0	1184326..1185003	-	225	68249636	-	NTHI1242	-	amino-acid ABC transporter permease protein
1087	 35.92	0	1185026..1185799	-	257	68249637	-	NTHI1243	-	amino-acid ABC transporter binding protein
1088	 39.53	0	1186100..1187374	-	424	68249638	murA	NTHI1244	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1089	 34.11	-1	1187385..1187642	-	85	68249639	-	NTHI1245	-	BolA family transcriptional regulator
1090	 34.28	-1	1187663..1187980	-	105	68249640	-	NTHI1246	-	NTP binding protein, contains STAS domain
1091	 31.78	-1	1187991..1188635	-	214	68249641	-	NTHI1247	-	ABC transporter
1092	 34.13	-1	1188668..1189168	-	166	68249642	-	NTHI1248	-	ABC transporter periplasmic protein
1093	 39.95	0	1189178..1189963	-	261	68249643	-	NTHI1249	-	ABC transporter permease
1094	 41.89	0	1189960..1190754	-	264	68249644	-	NTHI1250	-	ABC transporter ATPase
1095	 39.51	0	1191160..1191807	-	215	68249645	sodA	NTHI1251	-	superoxide dismutase
1096	 41.94	+1	1192056..1192694	+	212	68249646	ccmA	NTHI1253	-	cytochrome c biogenesis protein CcmA
1097	 41.59	0	1192699..1193364	+	221	68249647	ccmB	NTHI1254	-	heme exporter protein B
1098	 41.03	0	1193425..1194165	+	246	68249648	ccmC	NTHI1255	-	heme exporter protein C
1099	 36.76	0	1194208..1194411	+	67	68249649	ccmD	NTHI1256	-	heme exporter protein D
1100	 41.57	0	1194408..1194929	+	173	68249650	ccmE	NTHI1257	-	cytochrome c-type biogenesis protein CcmE
1101	 41.35	0	1194926..1196872	+	648	68249651	ccmF	NTHI1258	-	cytochrome c-type biogenesis protein CcmF
1102	 35.35	0	1197015..1197560	+	181	68249652	dsbE	NTHI1259	-	thiol-disulfide interchange protein
1103	 31.30	-1	1199060..1199551	+	163	68249653	-	NTHI1262	-	hypothetical protein
1104	 31.39	-1	1199553..1199861	+	102	68249654	-	NTHI1263	-	hypothetical protein
1105	 40.64	0	1199866..1201878	-	670	161761269	ligA	NTHI1265	-	NAD-dependent DNA ligase LigA
1106	 37.99	0	1201990..1202976	-	328	68249656	zipA	NTHI1266	-	cell division protein ZipA
1107	 35.78	0	1203129..1203947	+	272	68249657	cysZ	NTHI1268	-	putative sulfate transport protein CysZ
1108	 43.11	+1	1204046..1204996	+	316	68249658	cysK	NTHI1269	-	cysteine synthase
1109	 41.79	0	1206577..1207617	-	346	68249659	rfaF	NTHI1272	-	ADP-heptose--lipooligosaccharide heptosyltransferase II
1110	 35.05	0	1207693..1208856	-	387	68249660	xylR	NTHI1273	-	xylose operon regulatory protein
1111	 35.82	0	1208968..1210374	-	468	68249661	-	NTHI1274	-	Na(+)/H(+) antiporter
1112	 27.11	-2	1210376..1211548	-	390	68249662	aspC2	NTHI1275	-	putative aspartate aminotransferase
1113	 36.29	0	1211761..1213080	+	439	68249663	xylA	NTHI1276	-	xylose isomerase
1114	 37.04	0	1213083..1214618	+	511	68249664	xylB	NTHI1277	-	xylulose kinase
1115	 40.02	0	1214669..1215595	-	308	68249665	rfaD	NTHI1278	-	ADP-L-glycero-D-mannoheptose-6-epimerase
1116	 37.70	0	1215648..1216151	-	167	68249666	-	NTHI1279	-	thioredoxin-like protein
1117	 38.69	0	1216262..1216933	+	223	68249667	deoC	NTHI1280	-	deoxyribose-phosphate aldolase
1118	 43.33	+1	1216967..1218496	-	509	68249668	comM	NTHI1282	-	competence protein ComM
1119	 40.13	0	1218611..1219228	-	205	68249669	engB	NTHI1283	-	GTPase EngB
1120	 36.75	0	1219321..1220199	+	292	68249670	-	NTHI1285	-	D-xylose transport permease protein
1121	 41.24	0	1220239..1221237	-	332	68249671	oppF	NTHI1286	-	oligopeptide transport ATP-binding protein
1122	 43.11	+1	1221234..1222205	-	323	68249672	oppD	NTHI1287	-	oligopeptide transporter ATP-binding component
1123	 43.70	+1	1222215..1223150	-	311	68249673	oppC	NTHI1288	-	oligopeptide transport system permease protein
1124	 41.48	0	1223160..1224080	-	306	68249674	oppB	NTHI1289	-	oligopeptide transporter permease
1125	 40.22	0	1224161..1225786	-	541	68249675	oppA	NTHI1292	-	periplasmic oligopeptide-binding protein
1126	 38.57	0	1226081..1227034	+	317	68249676	talB	NTHI1293	-	transaldolase B
1127	 38.08	0	1228095..1229696	+	533	68249677	-	NTHI1295	-	carbon starvation protein, membrane protein
1128	 41.67	0	1229898..1230353	+	151	68249678	mraZ	NTHI1296	-	cell division protein MraZ
1129	 37.47	0	1230384..1231349	+	321	68249679	mraW	NTHI1297	-	S-adenosyl-methyltransferase MraW
1130	 34.88	0	1231352..1231675	+	107	68249680	ftsL	NTHI1298	-	cell division protein FtsL
1131	 38.95	0	1231688..1233520	+	610	68249681	ftsI	NTHI1299	-	peptidoglycan synthetase FtsI
1132	 38.99	0	1233530..1234996	+	488	68249682	murE	NTHI1300	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1133	 37.12	0	1235010..1236383	+	457	68249683	murF	NTHI1301	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1134	 39.61	0	1236377..1237459	+	360	68249684	mraY	NTHI1302	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1135	 38.81	0	1237571..1238884	+	437	68249685	murD	NTHI1303	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1136	 34.94	0	1238907..1240091	+	394	68249686	ftsW	NTHI1304	-	cell division protein FtsW
1137	 38.83	0	1240103..1241158	+	351	68249687	murG	NTHI1305	-	N-acetylglucosaminyl transferase
1138	 40.97	0	1241296..1242723	+	475	68249688	murC	NTHI1307	-	UDP-N-acetylmuramate--L-alanine ligase
1139	 39.20	0	1242792..1243712	+	306	68249689	ddl	NTHI1308	-	D-alanine--D-alanine ligase
1140	 35.29	0	1243712..1244476	+	254	68249690	ftsQ	NTHI1309	-	cell division protein FtsQ
1141	 39.05	0	1244495..1245772	+	425	68249691	ftsA	NTHI1310	-	cell division protein FtsA
1142	 41.55	0	1245856..1247121	+	421	68249692	ftsZ	NTHI1311	-	cell division protein FtsZ
1143	 36.60	0	1247160..1248077	+	305	68249693	lpxC	NTHI1312	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1144	 33.94	-1	1248204..1249361	+	385	68249694	pheA	NTHI1313	-	P-protein
1145	 37.18	0	1249406..1250263	-	285	68249695	-	NTHI1314	-	hypothetical protein
1146	 35.76	0	1250281..1250775	-	164	68249696	ptsN	NTHI1315	-	nitrogen regulatory IIA protein
1147	 40.08	0	1250778..1251503	-	241	68249697	-	NTHI1316	-	ABC transporter ATP-binding protein
1148	 33.72	-1	1251507..1252025	-	172	68249698	-	NTHI1317	-	hypothetical protein
1149	 34.15	-1	1252006..1252614	-	202	68249699	-	NTHI1318	-	hypothetical protein
1150	 35.75	0	1252664..1253200	-	178	68249700	-	NTHI1319	-	hypothetical protein
1151	 40.49	0	1253289..1254644	+	451	68249701	pmbA	NTHI1320	-	hypothetical protein
1152	 38.15	0	1255019..1255558	+	179	68249702	hpt	NTHI1321	-	hypoxanthine-guanine phosphoribosyltransferase
1153	 44.22	+1	1255864..1257186	+	440	68249703	-	NTHI1323	-	Na+/dicarboxylate symporter
1154	 41.03	0	1257286..1257753	-	155	68249704	nrdG	NTHI1324	-	anaerobic ribonucleotide reductase-activating protein
1155	 38.01	0	1258001..1259731	-	576	68249705	cydC	NTHI1325	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1156	 39.47	0	1259731..1261491	-	586	68249706	cydD	NTHI1326	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
1157	 43.36	+1	1261563..1262519	-	318	68249707	trxB	NTHI1327	-	thioredoxin reductase
1158	 37.76	0	1262593..1263450	-	285	68249708	-	NTHI1328	-	thioredoxin domain-containing protein
1159	 37.76	0	1263529..1264500	-	323	68249709	hemH	NTHI1329	-	ferrochelatase
1160	 42.69	+1	1264497..1264913	-	138	68249710	-	NTHI1330	-	hypothetical protein
1161	 39.40	0	1264927..1268010	-	1027	68249711	-	NTHI1331	-	hypothetical protein
1162	 40.93	0	1268385..1269464	+	359	68249712	ompP5	NTHI1332	-	Outer membrane protein P5
1163	 36.36	0	1269576..1269938	+	120	68249713	-	NTHI1333	-	glutaredoxin-related protein
1164	 34.51	-1	1270015..1271115	-	366	68249714	-	NTHI1334	-	histidinol-phosphate aminotransferase
38.35	MEAN

3.58	STD DEV
