IslandPathversion 1.0

IslandPath Analysis: Hahella chejuensis KCTC 2396

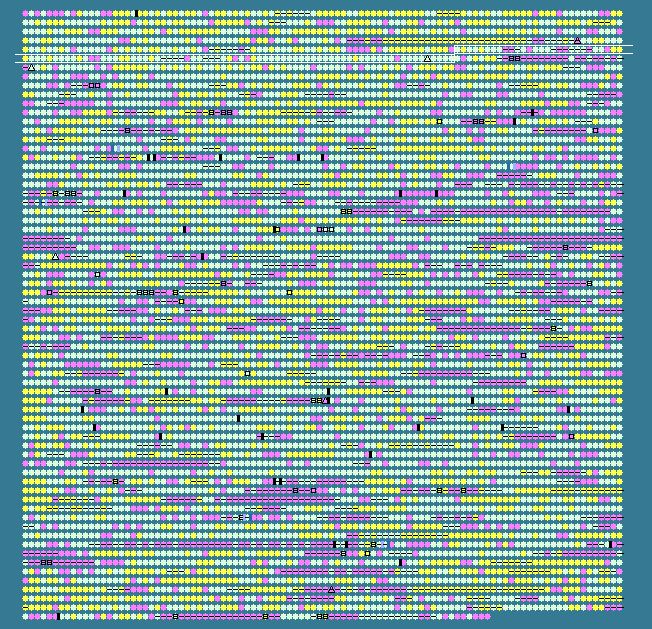

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
473	 56.07	0	501904..502809	+	301	83643386	-	HCH_00489	-	esterase/lipase
474	 57.47	0	502955..503617	+	220	83643387	-	HCH_00490	-	2OG-Fe(II) oxygenase superfamily protein
475	 55.35	0	503671..504165	-	164	83643388	-	HCH_00491	-	glutathione peroxidase
476	 56.45	0	504162..504866	-	234	83643389	-	HCH_00492	-	hypothetical protein
477	 57.42	0	504879..505289	-	136	83643390	-	HCH_00493	-	CoA-binding protein
478	 55.02	0	505362..507842	-	826	83643391	-	HCH_00494	-	signal transduction protein
479	 53.67	0	507959..508981	-	340	83643392	panE1	HCH_00495	-	2-dehydropantoate 2-reductase
480	 51.85	0	509010..509117	+	35	83643393	-	HCH_00496	-	hypothetical protein
481	 44.13	-1	509525..509737	-	70	83643394	-	HCH_00497	-	hypothetical protein
482	 43.59	-1	510170..510286	+	38	83643395	-	HCH_00499	-	hypothetical protein
483	 51.84	0	510218..511114	-	298	83643396	-	HCH_00498	-	methyl-accepting chemotaxis protein
484	 55.25	0	511265..512482	-	405	83643397	-	HCH_00500	-	response regulator
485	 49.25	0	512676..513140	+	154	83643398	-	HCH_00501	-	transcriptional regulator
486	 51.78	0	513209..513940	-	243	83643399	-	HCH_00502	-	hypothetical protein
487	 54.01	0	514326..515660	+	444	83643400	-	HCH_00503	-	hypothetical protein
488	 51.60	0	515756..516877	+	373	83643401	-	HCH_00504	-	response regulator
489	 55.60	0	516884..518239	-	451	83643402	-	HCH_00505	-	cytochrome c peroxidase
490	 49.63	0	518650..518919	+	89	83643403	-	HCH_00506	-	hypothetical protein
491	 46.95	-1	519099..519377	+	92	83643404	-	HCH_00507	-	protein-tyrosine-phosphatase
492	 50.96	0	519389..519649	+	86	83643405	-	HCH_00508	-	transcriptional regulator
493	 52.62	0	519780..520256	+	158	83643406	-	HCH_00509	-	protein-tyrosine-phosphatase
494	 51.37	0	520257..521276	+	339	83643407	-	HCH_00510	-	arsenite efflux pump ACR3 and related permease
495	 45.75	-1	522056..522925	-	289	83643408	-	HCH_00511	-	hypothetical protein
496	 51.44	0	523551..525422	+	623	83643409	-	HCH_00513	-	methyl-accepting chemotaxis protein
497	 53.46	0	525501..525659	+	52	83643410	-	HCH_00514	-	hypothetical protein
498	 41.84	-2	526203..526484	+	93	83643411	-	HCH_00515	-	hypothetical protein
499	 58.08	0	526547..527431	-	294	83643412	-	HCH_00516	-	transcriptional regulator
500	 57.48	0	527600..528535	+	311	83643413	-	HCH_00518	-	esterase/lipase
501	 58.02	0	528749..528910	+	53	83643414	-	HCH_00519	-	hypothetical protein
502	 55.68	0	528870..530717	+	615	83643415	-	HCH_00521	-	ABC-type transport system involved in Fe-S cluster assembly, permease and ATPase components
503	 52.07	0	530699..531205	-	168	83643416	-	HCH_00520	-	hypothetical protein
504	 52.01	0	531475..532470	+	331	83643417	-	HCH_00522	-	sulfurtransferase
505	 59.29	+1	532522..532860	-	112	83643418	-	HCH_00523	-	hypothetical protein
506	 54.55	0	532864..533829	-	321	83643419	-	HCH_00524	-	DnaJ-class molecular chaperone
507	 55.87	0	533997..534839	+	280	83643420	-	HCH_00525	-	external DNA catabolism protein
508	 54.18	0	534948..535676	+	242	83643421	-	HCH_00526	-	short chain dehydrogenase
509	 54.32	0	535712..536278	+	188	83643422	folE	HCH_00527	-	GTP cyclohydrolase I
510	 58.74	0	536333..537379	-	348	83643423	-	HCH_00528	-	deacylase
511	 53.65	0	537435..538118	-	227	83643424	-	HCH_00529	-	periplasmic/secreted protein
512	 44.09	-1	538655..538747	+	30	83643425	-	HCH_00531	-	hypothetical protein
513	 45.45	-1	538658..538756	-	32	83643426	-	HCH_00530	-	hypothetical protein
514	 54.99	0	538780..539781	+	333	83643427	-	HCH_00532	-	AraC-type DNA-binding domain-containing protein
515	 54.98	0	539805..540728	-	307	83643428	-	HCH_00533	-	hypothetical protein
516	 55.78	0	540860..542605	-	581	83643429	-	HCH_00534	-	Poly(3-hydroxyalkanoate) synthetase
517	 59.09	+1	542775..543566	-	263	83643430	-	HCH_00535	-	ABC-type Mn2+/Zn2+ transport system, permease components
518	 58.33	0	543559..544326	-	255	83643431	-	HCH_00536	-	ABC-type Mn/Zn transport system, ATPase component
519	 56.65	0	544323..544811	-	162	83643432	-	HCH_00537	-	Fe2+/Zn2+ uptake regulation protein
520	 53.82	0	545176..546405	+	409	83643433	malE	HCH_00538	-	maltose ABC transporter periplasmic protein
521	 53.72	0	546455..546925	-	156	83643434	-	HCH_00539	-	CheW-like domain-containing protein
522	 59.41	+1	547062..548108	-	348	83643435	-	HCH_00540	-	chemotaxis response regulator
523	 56.85	0	548113..556293	-	2726	83643436	-	HCH_00541	-	chemotaxis protein histidine kinase-like kinase
524	 52.01	0	556305..557198	-	297	83643437	-	HCH_00542	-	methylase of chemotaxis methyl-accepting protein
525	 54.52	0	557263..559329	-	688	83643438	-	HCH_00543	-	methyl-accepting chemotaxis protein
526	 53.96	0	559407..559949	-	180	83643439	-	HCH_00544	-	chemotaxis signal transduction protein
527	 53.72	0	559968..560330	-	120	83643440	-	HCH_00545	-	FOG: CheY-like receiver
528	 47.80	0	560390..560776	-	128	83643441	-	HCH_00546	-	FOG: CheY-like receiver
529	 53.15	0	561158..562126	+	322	83643442	gshB	HCH_00547	-	glutathione synthetase
530	 55.31	0	562199..563026	+	275	83643443	-	HCH_00548	-	periplasmic protein TonB, links inner and outer membranes
531	 53.76	0	563121..563678	+	185	83643444	-	HCH_00550	-	putative transcriptional regulator
532	 55.97	0	563722..564198	+	158	83643445	-	HCH_00551	-	endonuclease
533	 56.78	0	564182..564697	+	171	83643446	-	HCH_00552	-	pyrimidine operon attenuation protein/uracil phosphoribosyltransferase
534	 53.73	0	564757..565761	+	334	83643447	pyrB	HCH_00553	-	aspartate carbamoyltransferase catalytic subunit
535	 57.56	0	565758..567053	+	431	83643448	-	HCH_00554	-	dihydroorotase-like protein
536	 48.46	0	567129..567518	+	129	83643449	-	HCH_00555	-	HHH motif-containing protein
537	 50.72	0	567630..567905	-	91	83643450	-	HCH_00556	-	nucleoid DNA-binding protein
538	 44.05	-1	568053..568220	+	55	83643451	-	HCH_00557	-	hypothetical protein
539	 57.43	0	568247..569329	+	360	83643452	-	HCH_00558	-	hypothetical protein
540	 54.80	0	569393..570412	+	339	83643453	-	HCH_00559	-	hypothetical protein
541	 55.62	0	570500..572590	+	696	83643454	-	HCH_00560	-	membrane protein, transporter-related
542	 55.79	0	572668..574203	-	511	83643455	pckA	HCH_00561	-	phosphoenolpyruvate carboxykinase
543	 56.18	0	574434..575291	-	285	83643456	-	HCH_00562	-	disulfide bond chaperones of the HSP33 family
544	 55.56	0	575322..575735	-	137	83643457	-	HCH_00563	-	ribosome-associated heat shock protein implicated in the recycling of the 50S subunit S4-like protein
545	 50.59	0	575749..576426	-	225	83643458	-	HCH_00564	-	HAD superfamily hydrolase
546	 54.44	0	576542..577375	+	277	83643459	cysQ	HCH_00565	-	3'(2'),5'-bisphosphate nucleotidase
547	 54.49	0	577467..577811	-	114	83643460	-	HCH_00566	-	hypothetical protein
548	 54.90	0	578015..578830	-	271	83643461	mutM1	HCH_00567	-	formamidopyrimidine-DNA glycosylase
549	 52.68	0	579135..580328	+	397	83643462	-	HCH_00568	-	Fatty-acid desaturase
550	 54.45	0	580477..582105	+	542	83643463	-	HCH_00570	-	hypothetical protein
551	 54.55	0	582169..582762	-	197	83643464	-	HCH_00571	-	N6-adenine-specific methylase
552	 55.97	0	582946..584076	+	376	83643465	ftsY	HCH_00572	-	signal recognition particle-docking protein FtsY
553	 55.01	0	584121..584798	+	225	83643466	-	HCH_00573	-	ATPase involved in cell division
554	 55.46	0	584832..585866	+	344	83643467	-	HCH_00574	-	cell division protein
555	 50.41	0	586107..586961	+	284	83643468	rpoH	HCH_00575	-	RNA polymerase factor sigma-32
556	 57.58	0	587049..587939	+	296	83643469	-	HCH_00576	-	3-hydroxyisobutyrate dehydrogenase and related beta-hydroxyacid dehydrogenase
557	 52.34	0	587932..588699	+	255	83643470	gip	HCH_00577	-	hydroxypyruvate isomerase
558	 56.51	0	588833..589639	+	268	83643471	djlA	HCH_00578	-	DNA-J like membrane chaperone protein
559	 52.72	0	589711..590391	+	226	83643472	-	HCH_00579	-	response regulator
560	 56.77	0	590357..591811	+	484	83643473	-	HCH_00580	-	Signal transduction histidine kinase
561	 50.84	0	591875..592171	-	98	83643474	-	HCH_00581	-	hypothetical protein
562	 52.82	0	592306..592962	-	218	83643475	-	HCH_00582	-	transcriptional regulator
563	 39.58	-2	593146..593337	-	63	83643476	-	HCH_00583	-	hypothetical protein
564	 52.74	0	593499..593936	+	145	83643477	-	HCH_00584	-	hypothetical protein
565	 51.98	0	593966..594469	+	167	83643478	greB	HCH_00585	-	transcription elongation factor GreB
566	 53.48	0	594497..595459	+	320	83643479	-	HCH_00586	-	hypothetical protein
567	 50.67	0	595565..595939	+	124	83643480	-	HCH_00587	-	hypothetical protein
568	 50.94	0	595961..596278	-	105	83643481	-	HCH_00588	-	integrase
569	 50.88	0	596474..596815	-	113	83643482	-	HCH_00589	-	Acyl-CoA-binding protein
570	 52.17	0	596876..597358	+	160	83643483	-	HCH_00590	-	hypothetical protein
571	 56.19	0	597600..599345	+	581	83643484	-	HCH_00591	-	ABC-type multidrug transport system, ATPase and permease components
572	 52.88	0	599386..599697	+	103	83643485	-	HCH_00592	-	hypothetical protein
53.37	MEAN

5.65	STD DEV
