IslandPathversion 1.0

IslandPath Analysis: Hahella chejuensis KCTC 2396

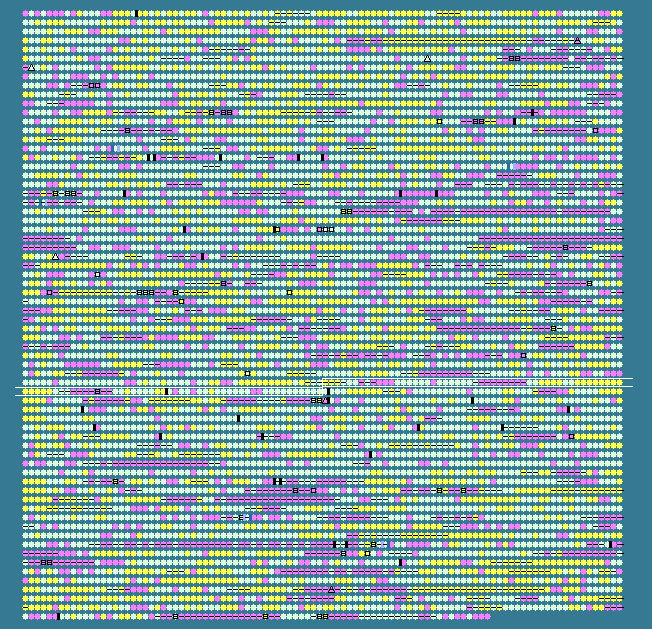

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4151	 60.19	+1	4512457..4513089	-	210	83647064	ccmB	HCH_04368	-	heme exporter protein CcmB
4152	 58.18	0	4513140..4513775	-	211	83647065	ccmA	HCH_04369	-	cytochrome c biogenesis protein CcmA
4153	 59.97	+1	4514031..4515419	+	462	83647066	-	HCH_04370	-	hypothetical protein
4154	 55.56	0	4515416..4515766	+	116	83647067	-	HCH_04371	-	flagellar protein FhlB cytoplasmic domain-containing protein
4155	 52.04	0	4516028..4516321	+	97	83647068	-	HCH_04373	-	hypothetical protein
4156	 53.77	0	4516559..4517062	+	167	83647069	-	HCH_04374	-	DNA-binding ferritin-like protein
4157	 47.62	-1	4517271..4517375	+	34	83647070	-	HCH_04375	-	hypothetical protein
4158	 53.57	0	4517431..4518354	+	307	83647071	-	HCH_04376	-	small-conductance mechanosensitive channel
4159	 42.56	-1	4518420..4518755	-	111	83647072	-	HCH_04377	-	hypothetical protein
4160	 40.90	-2	4518775..4519197	-	140	83647073	-	HCH_04378	-	hypothetical protein
4161	 48.46	0	4519242..4520120	-	292	83647074	-	HCH_04379	-	amino acid ABC transporter periplasmic protein
4162	 38.64	-2	4520264..4520395	+	43	83647075	-	HCH_04380	-	hypothetical protein
4163	 51.80	0	4520526..4521164	+	212	83647076	-	HCH_04381	-	periplasmic or secreted lipoprotein
4164	 51.94	0	4521289..4522218	-	309	83647077	-	HCH_04382	-	hypothetical protein
4165	 55.14	0	4522203..4523885	-	560	83647078	-	HCH_04383	-	hypothetical protein
4166	 54.71	0	4524002..4524829	-	275	83647079	-	HCH_04384	-	phosphohydrolase
4167	 55.52	0	4524836..4525813	-	325	83647080	-	HCH_04385	-	sphingosine kinase and enzyme related to diacylglycerol kinase
4168	 50.98	0	4526038..4526241	-	67	83647081	-	HCH_04386	-	hypothetical protein
4169	 48.54	0	4526325..4526495	-	56	83647082	-	HCH_04387	-	protein of unknown fuction (DUF1328)
4170	 51.48	0	4526911..4527687	-	258	83647083	-	HCH_04388	-	flavodoxin reductase (ferredoxin-NADPH reductase) family protein 1
4171	 55.78	0	4527803..4528684	+	293	83647084	-	HCH_04389	-	transcriptional regulator
4172	 53.22	0	4528702..4529214	-	170	83647085	-	HCH_04390	-	acetyltransferase
4173	 54.89	0	4529334..4529783	-	149	83647086	-	HCH_04391	-	hypothetical protein
4174	 52.60	0	4529785..4530651	-	288	83647087	-	HCH_04392	-	hypothetical protein
4175	 56.31	0	4530854..4531819	+	321	83647088	-	HCH_04393	-	hypothetical protein
4176	 50.46	0	4531816..4532358	-	180	83647089	-	HCH_04394	-	hypothetical protein
4177	 47.47	-1	4532335..4532433	+	32	83647090	-	HCH_04395	-	hypothetical protein
4178	 34.91	-2	4532511..4532828	-	105	83647091	-	HCH_04396	-	hypothetical protein
4179	 44.79	-1	4532874..4533065	-	63	83647092	-	HCH_04397	-	hypothetical protein
4180	 48.26	0	4533105..4533305	+	66	83647093	-	HCH_04398	-	hypothetical protein
4181	 47.50	-1	4533376..4533495	+	39	83647094	-	HCH_04400	-	hypothetical protein
4182	 40.13	-2	4533467..4534216	-	249	83647095	-	HCH_04399	-	hypothetical protein
4183	 43.61	-1	4534224..4535975	-	583	83647096	-	HCH_04401	-	hypothetical protein
4184	 48.92	0	4535972..4536946	-	324	83647097	-	HCH_04402	-	hypothetical protein
4185	 53.54	0	4537228..4538088	-	286	83647098	-	HCH_04403	-	Zn-dependent hydrolase
4186	 56.74	0	4538303..4538584	+	93	83647099	-	HCH_04404	-	parvulin-like peptidyl-prolyl isomerase
4187	 57.87	0	4538746..4540530	+	594	83647100	-	HCH_04405	-	ABC-type multidrug transport system, ATPase and permease components
4188	 58.02	0	4540542..4540946	-	134	83647101	-	HCH_04406	-	hypothetical protein
4189	 59.22	+1	4541228..4542502	+	424	83647102	-	HCH_04407	-	O-acetylhomoserine sulfhydrylase
4190	 59.99	+1	4542698..4544554	-	618	83647103	norD	HCH_04408	-	nitric oxide reductase activation protein
4191	 55.56	0	4544565..4545950	-	461	83647104	norB	HCH_04410	-	nitric oxide reductase large subunit
4192	 55.78	0	4545975..4546415	-	146	83647105	-	HCH_04411	-	cytochrome c, mono- and diheme variants
4193	 60.89	+1	4546396..4546845	-	149	83647106	-	HCH_04412	-	hypothetical protein
4194	 62.43	+1	4546512..4546865	-	117	83647107	-	HCH_04413	-	hypothetical protein
4195	 60.63	+1	4546894..4547688	-	264	83647108	-	HCH_04414	-	MoxR-like ATPase
4196	 58.25	0	4547890..4548198	+	102	83647109	-	HCH_04415	-	cytochrome c553
4197	 58.21	0	4548323..4550107	+	594	83647110	-	HCH_04416	-	cytochrome c, mono- and diheme variants
4198	 59.14	+1	4550162..4550533	+	123	83647111	-	HCH_04417	-	cytochrome c, mono- and diheme variants
4199	 57.69	0	4550530..4551777	+	415	83647112	-	HCH_04418	-	hypothetical protein
4200	 58.38	0	4551774..4552280	+	168	83647113	-	HCH_04419	-	transcriptional regulator
4201	 58.70	0	4552308..4552859	+	183	83647114	-	HCH_04420	-	transcriptional regulator
4202	 58.43	0	4552841..4553350	+	169	83647115	-	HCH_04421	-	transcriptional regulator
4203	 60.49	+1	4553325..4553858	+	177	83647116	-	HCH_04422	-	transcriptional regulator
4204	 60.33	+1	4553879..4555015	+	378	83647117	-	HCH_04423	-	Fe-S oxidoreductase
4205	 56.88	0	4555034..4556545	+	503	83647118	-	HCH_04424	-	cytochrome c, mono- and diheme variants
4206	 51.14	0	4556578..4557015	-	145	83647119	-	HCH_04425	-	hypothetical protein
4207	 52.46	0	4557286..4557651	+	121	83647120	-	HCH_04426	-	mannose-6-phosphate isomerase
4208	 55.37	0	4557710..4558594	+	294	83647121	-	HCH_04427	-	hypothetical protein
4209	 46.67	-1	4558617..4558976	-	119	83647122	-	HCH_04428	-	hypothetical protein
4210	 42.42	-1	4558912..4559043	+	43	83647123	-	HCH_04430	-	hypothetical protein
4211	 32.79	-2	4559006..4559374	-	122	83647124	-	HCH_04429	-	hypothetical protein
4212	 38.65	-2	4559424..4560194	-	256	83647125	-	HCH_04431	-	hypothetical protein
4213	 46.92	-1	4560424..4560813	-	129	83647126	-	HCH_04432	-	transposase
4214	 45.43	-1	4561320..4562030	-	236	83647127	-	HCH_04433	-	restriction endonuclease
4215	 41.41	-2	4562061..4562159	+	32	83647128	-	HCH_04434	-	hypothetical protein
4216	 52.53	0	4562221..4562871	-	216	83647129	-	HCH_04435	-	hypothetical protein
4217	 54.32	0	4562890..4563051	-	53	83647130	-	HCH_04436	-	hypothetical protein
4218	 57.74	0	4563048..4565477	-	809	83647131	fadE	HCH_04437	-	acyl-CoA dehydrogenase
4219	 55.43	0	4565798..4566589	+	263	83647132	-	HCH_04438	-	alpha/beta superfamily hydrolase/acyltransferase
4220	 56.05	0	4566678..4567883	-	401	83647133	-	HCH_04439	-	QXW lectin repeat-containing protein
4221	 50.83	0	4568511..4568750	+	79	83647134	-	HCH_04440	-	hypothetical protein
4222	 54.61	0	4568794..4570269	-	491	83647135	-	HCH_04441	-	QXW lectin repeat-containing protein
4223	 57.21	0	4570350..4571174	-	274	83647136	-	HCH_04442	-	hypothetical protein
4224	 57.78	0	4571535..4571669	-	44	83647137	-	HCH_04443	-	hypothetical protein
4225	 51.24	0	4572695..4573906	+	403	83647138	-	HCH_04444	-	signal transduction protein
4226	 42.71	-1	4573929..4574024	-	31	83647139	-	HCH_04445	-	hypothetical protein
4227	 52.62	0	4573996..4574778	+	260	83647140	-	HCH_04446	-	Mg-dependent DNase
4228	 56.53	0	4574825..4575199	-	124	83647141	-	HCH_04447	-	hypothetical protein
4229	 36.84	-2	4575237..4575350	-	37	83647142	-	HCH_04448	-	hypothetical protein
4230	 53.66	0	4575432..4577852	+	806	83647143	-	HCH_04449	-	signal transduction protein
4231	 56.18	0	4577979..4579160	+	393	83647144	ackA	HCH_04450	-	acetate kinase
4232	 57.17	0	4579211..4581358	+	715	83647145	pta	HCH_04451	-	phosphate acetyltransferase
4233	 54.90	0	4581407..4582825	-	472	83647146	engA	HCH_04452	-	GTP-binding protein EngA
4234	 53.59	0	4582899..4584053	-	384	83647147	-	HCH_04453	-	WD-40 repeat-containing protein
4235	 52.75	0	4584061..4584714	-	217	83647148	-	HCH_04454	-	hypothetical protein
4236	 53.18	0	4584752..4586026	-	424	83647149	hisS	HCH_04455	-	histidyl-tRNA synthetase
4237	 52.38	0	4586145..4587257	-	370	83647150	ispG	HCH_04456	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
4238	 55.09	0	4587270..4588262	-	330	83647151	-	HCH_04457	-	hypothetical protein
4239	 46.70	-1	4588264..4588809	-	181	83647152	-	HCH_04458	-	Tfp pilus assembly protein PilF
4240	 48.90	0	4589152..4590288	-	378	83647153	-	HCH_04459	-	Fe-S-cluster redox protein
4241	 52.45	0	4590359..4590787	-	142	83647154	ndk	HCH_04460	-	nucleoside diphosphate kinase
4242	 53.55	0	4591037..4592218	-	393	83647155	-	HCH_04461	-	cysteine sulfinate desulfinase/cysteine desulfurase
4243	 54.79	0	4592293..4592772	-	159	83647156	iscR	HCH_04462	-	iron-sulfur cluster assembly transcription factor IscR
4244	 54.72	0	4592851..4593612	-	253	83647157	cysE	HCH_04463	-	serine O-acetyltransferase
4245	 52.20	0	4593625..4594398	-	257	83647158	-	HCH_04464	-	rRNA methylase
4246	 51.25	0	4594617..4595414	+	265	83647159	-	HCH_04465	-	fructose-1 6-bisphosphatase
4247	 50.32	0	4595526..4596449	-	307	83647160	secF	HCH_04466	-	preprotein translocase subunit SecF
4248	 52.87	0	4596462..4598324	-	620	83647161	secD	HCH_04467	-	preprotein translocase subunit SecD
4249	 52.30	0	4598435..4598803	-	122	83647162	yajC	HCH_04468	-	preprotein translocase, YajC subunit
4250	 54.70	0	4598840..4599967	-	375	83647163	tgt	HCH_04469	-	queuine tRNA-ribosyltransferase
53.37	MEAN

5.65	STD DEV
