IslandPath Analysis: Hahella chejuensis KCTC 2396

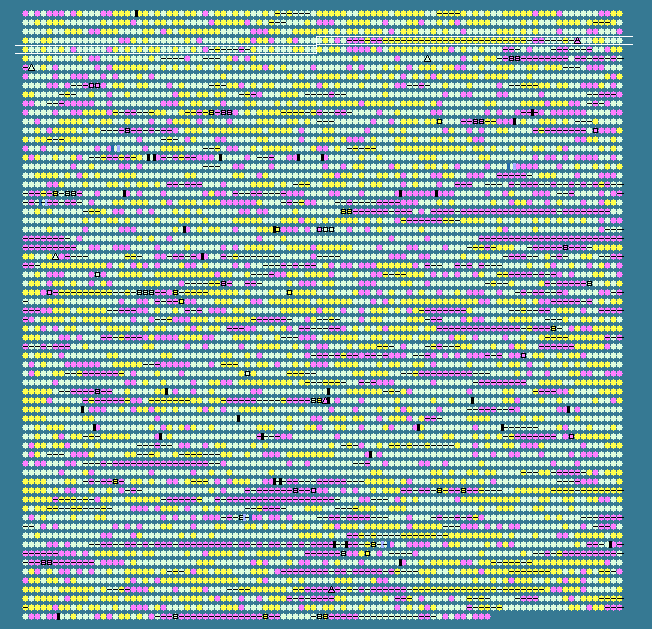

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
350	 55.66	0	379489..380451	+	320	83643263	-	HCH_00361	-	uncharacterized low-complexity protein
351	 58.47	0	380549..381463	+	304	83643264	-	HCH_00362	-	hypothetical protein
352	 54.38	0	381489..382025	-	178	83643265	-	HCH_00363	-	restriction endonuclease
353	 47.44	-1	382129..382284	+	51	83643266	-	HCH_00364	-	hypothetical protein
354	 53.46	0	382347..383141	+	264	83643267	-	HCH_00365	-	hypothetical protein
355	 34.41	-2	383125..383310	+	61	83643268	-	HCH_00366	-	hypothetical protein
356	 36.86	-2	383596..384984	+	462	83643269	-	HCH_00368	-	response regulator
357	 46.83	-1	385262..385387	-	41	83643270	-	HCH_00369	-	hypothetical protein
358	 58.05	0	385309..385575	-	88	83643271	-	HCH_00370	-	hypothetical protein
359	 29.97	-2	385752..386078	+	108	83643272	-	HCH_00371	-	hypothetical protein
360	 28.12	-2	386005..386100	+	31	83643273	-	HCH_00372	-	hypothetical protein
361	 62.34	+1	386106..387191	-	361	83643274	-	HCH_00373	-	hypothetical protein
362	 59.38	+1	387167..387880	-	237	83643275	-	HCH_00374	-	hypothetical protein
363	 61.11	+1	387877..388398	-	173	83643276	-	HCH_00375	-	nucleoid DNA-binding protein
364	 64.67	+1	388395..389294	-	299	83643277	-	HCH_00376	-	phage protein
365	 64.04	+1	389294..389635	-	113	83643278	-	HCH_00377	-	hypothetical protein
366	 61.65	+1	389652..391466	-	604	83643279	-	HCH_00378	-	hypothetical protein
367	 63.15	+1	391480..392076	-	198	83643280	-	HCH_00379	-	phage protein
368	 61.79	+1	392073..393242	-	389	83643281	-	HCH_00380	-	uncharacterized phage Mu protein gp47-like protein
369	 56.92	0	393239..393556	-	105	83643282	-	HCH_00381	-	phage protein
370	 64.99	+2	393560..395584	-	674	83643283	-	HCH_00382	-	phage protein
371	 60.00	+1	395768..396052	-	94	83643284	-	HCH_00383	-	phage protein
372	 58.87	0	396024..396254	-	76	83643285	-	HCH_00384	-	hypothetical protein
373	 61.25	+1	396258..396737	-	159	83643286	-	HCH_00385	-	hypothetical protein
374	 59.52	+1	396734..397321	-	195	83643287	-	HCH_00386	-	hypothetical protein
375	 63.71	+1	397318..397554	-	78	83643288	-	HCH_00387	-	DnaK suppressor protein
376	 59.21	+1	397558..398013	-	151	83643289	-	HCH_00388	-	phage protein
377	 62.23	+1	398032..399135	-	367	83643290	-	HCH_00389	-	phage protein
378	 64.71	+2	399138..399800	-	220	83643291	-	HCH_00390	-	phage protein
379	 66.05	+2	399775..400263	-	162	83643292	-	HCH_00391	-	hypothetical protein
380	 61.72	+1	400263..400727	-	154	83643293	-	HCH_00392	-	phage head completeion protein
381	 61.97	+1	400827..401528	-	233	83643294	-	HCH_00393	-	phage small terminate subunit
382	 59.54	+1	401532..402569	-	345	83643295	-	HCH_00394	-	P2 family phage major capsid protein
383	 60.78	+1	402595..403410	-	271	83643296	-	HCH_00395	-	flagellar biosynthesis/type III secretory pathway protein
384	 56.99	0	403570..405315	+	581	83643297	-	HCH_00396	-	Mu-like prophage FluMu protein gp28
385	 52.99	0	405330..406316	+	328	83643298	-	HCH_00397	-	PBSX family phage portal protein
386	 49.24	0	406381..406644	+	87	83643299	-	HCH_00398	-	hypothetical protein
387	 42.20	-1	407179..407979	-	266	83643300	-	HCH_00399	-	hypothetical protein
388	 50.07	0	407973..409346	-	457	83643301	-	HCH_00400	-	hypothetical protein
389	 52.85	0	409542..410120	-	192	83643302	-	HCH_00401	-	putative exonuclease
390	 52.91	0	410185..410373	-	62	83643303	-	HCH_00402	-	hypothetical protein
391	 58.56	0	410521..411075	-	184	83643304	-	HCH_00403	-	hypothetical protein
392	 53.71	0	411533..414187	-	884	83643305	-	HCH_00404	-	hypothetical protein
393	 43.03	-1	414977..415987	+	336	83643306	-	HCH_00405	-	integrase
394	 56.04	0	416063..417172	+	369	83643307	-	HCH_00406	-	hypothetical protein
395	 56.80	0	417263..418093	+	276	83643308	-	HCH_00407	-	hypothetical protein
396	 57.86	0	418099..418518	+	139	83643309	-	HCH_00408	-	protein chain release factor B
397	 58.48	0	418598..420514	-	638	83643310	-	HCH_00409	-	5'-nucleotidase/2',3'-cyclic phosphodiesterase and related esterases
398	 53.23	0	420648..421436	-	262	83643311	-	HCH_00410	-	amino acid ABC transporter periplasmic protein
399	 55.11	0	421856..422227	+	123	83643312	-	HCH_00412	-	hypothetical protein
400	 52.87	0	422312..422782	+	156	83643313	-	HCH_00413	-	hypothetical protein
401	 62.48	+1	422825..423325	+	166	83643314	-	HCH_00414	-	protein-tyrosine phosphatase
402	 55.11	0	423541..424665	+	374	83643315	-	HCH_00415	-	TRAP-type mannitol/chloroaromatic compound transport system, periplasmic component
403	 54.58	0	424826..425371	+	181	83643316	-	HCH_00416	-	TRAP-type mannitol/chloroaromatic compound transport system, small permease component
404	 58.20	0	425368..426654	+	428	83643317	-	HCH_00417	-	TRAP-type mannitol/chloroaromatic compound transport system, large permease component
405	 55.33	0	426716..428056	+	446	83643318	-	HCH_00418	-	Signal transduction histidine kinase
406	 54.49	0	428067..428690	+	207	83643319	-	HCH_00419	-	response regulator
407	 57.20	0	428738..429223	+	161	83643320	-	HCH_00420	-	cell wall-associated hydrolase (invasion-associated protein)
408	 50.00	0	429326..429661	+	111	83643321	-	HCH_00421	-	protein tyrosine phosphatase
409	 49.85	0	429741..430067	+	108	83643322	-	HCH_00422	-	hypothetical protein
410	 56.00	0	430217..431032	+	271	83643323	-	HCH_00423	-	hypothetical protein
411	 56.25	0	431729..432352	+	207	83643324	-	HCH_00424	-	putative threonine efflux protein
412	 52.22	0	432365..432883	+	172	83643325	-	HCH_00425	-	alkylated DNA repair protein
413	 53.90	0	432895..433599	+	234	83643326	-	HCH_00426	-	uncharacterized Fe-S protein
414	 56.41	0	433740..434363	+	207	83643327	-	HCH_00427	-	hypothetical protein
415	 49.53	0	434320..434850	+	176	83643328	-	HCH_00428	-	hypothetical protein
416	 61.62	+1	434908..439248	-	1446	83643329	-	HCH_00429	-	cation transport ATPase
417	 56.03	0	439351..440046	-	231	83643330	-	HCH_00430	-	hypothetical protein
418	 57.97	0	440351..441799	-	482	83643331	pyk	HCH_00431	-	pyruvate kinase
419	 53.43	0	441825..442829	-	334	83643332	gap2	HCH_00432	-	glyceraldehyde-3-phosphate dehydrogenase, type I
420	 58.77	0	443052..444875	+	607	83643333	edd	HCH_00433	-	phosphogluconate dehydratase
421	 55.52	0	444868..445836	+	322	83643334	glk	HCH_00434	-	glucokinase
422	 59.44	+1	445836..446720	+	294	83643335	-	HCH_00435	-	oxidoreductase
423	 58.77	0	446753..447094	-	113	83643336	-	HCH_00436	-	hypothetical protein
424	 55.41	0	447079..447771	-	230	83643337	-	HCH_00437	-	aspartate racemase
425	 50.77	0	447904..448293	-	129	83643338	-	HCH_00438	-	hypothetical protein
426	 59.88	+1	448498..450618	-	706	83643339	malS	HCH_00439	-	periplasmic alpha-amylase precursor
427	 54.77	0	450877..452070	+	397	83643340	malE	HCH_00440	-	maltose ABC transporter periplasmic protein
428	 56.22	0	452211..453761	+	516	83643341	malF	HCH_00441	-	maltose transporter membrane protein
429	 58.47	0	453772..454662	+	296	83643342	malG	HCH_00442	-	maltose transporter permease
430	 53.17	0	454819..455307	+	162	83643343	-	HCH_00443	-	hypothetical protein
431	 48.75	0	455565..455843	+	92	83643344	-	HCH_00444	-	RNA-binding protein
432	 54.17	0	455897..456040	-	47	83643345	-	HCH_00445	-	hypothetical protein
433	 59.55	+1	456108..456641	-	177	83643346	-	HCH_00446	-	NTPase
434	 55.86	0	456780..457103	+	107	83643347	-	HCH_00447	-	DnaK suppressor protein
435	 54.28	0	457128..458354	-	408	83643348	-	HCH_00448	-	FOG: CheY-like receiver
436	 54.30	0	458559..459722	+	387	83643349	-	HCH_00449	-	methyl-accepting chemotaxis protein
437	 49.50	0	459798..460100	+	100	83643350	-	HCH_00450	-	anti-anti-sigma regulatory factor
438	 56.63	0	460130..461812	+	560	83643351	-	HCH_00451	-	Serine phosphatase RsbU, regulator of sigma subunit
439	 57.30	0	461840..462586	-	248	83643352	-	HCH_00452	-	uncharacterized flavoprotein
440	 55.94	0	462686..463459	-	257	83643353	-	HCH_00453	-	methyl-accepting chemotaxis protein
441	 54.27	0	463623..463985	+	120	83643354	-	HCH_00454	-	FOG: CheY-like receiver
442	 57.28	0	464014..466101	+	695	83643355	-	HCH_00455	-	chemotaxis protein histidine kinase-like kinase
443	 54.71	0	466085..466594	+	169	83643356	-	HCH_00456	-	chemotaxis signal transduction protein
444	 56.76	0	466640..468961	+	773	83643357	-	HCH_00457	-	methyl-accepting chemotaxis protein
445	 56.11	0	469054..471384	+	776	83643358	-	HCH_00458	-	methyl-accepting chemotaxis protein
446	 56.98	0	471384..471899	+	171	83643359	-	HCH_00459	-	chemotaxis signal transduction protein
447	 58.33	0	471896..472195	+	99	83643360	-	HCH_00460	-	hypothetical protein
448	 52.77	0	472209..473057	+	282	83643361	-	HCH_00461	-	methylase of chemotaxis methyl-accepting protein
449	 54.56	0	473059..473694	+	211	83643362	-	HCH_00462	-	chemoreceptor glutamine deamidase CheD
53.37	MEAN

5.65	STD DEV
