IslandPath Analysis: Hahella chejuensis KCTC 2396

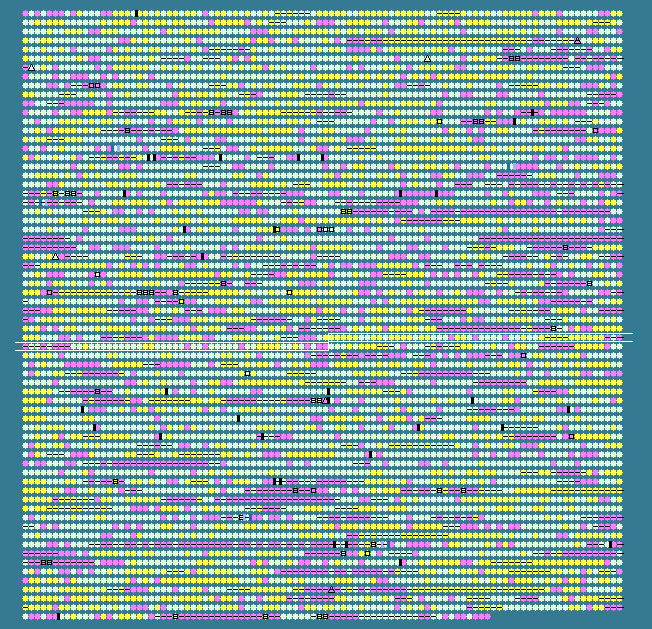

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3652	 59.78	+1	3985876..3988299	-	807	83646565	-	HCH_03847	-	chemotaxis protein histidine kinase-like kinase
3653	 57.10	0	3988478..3990223	-	581	83646566	-	HCH_03848	-	methyl-accepting chemotaxis protein
3654	 57.21	0	3990227..3990829	-	200	83646567	-	HCH_03849	-	chemotaxis signal transduction protein
3655	 60.15	+1	3990880..3992475	-	531	83646568	-	HCH_03850	-	methylase of chemotaxis methyl-accepting protein
3656	 59.87	+1	3992450..3992920	-	156	83646569	-	HCH_03851	-	chemotaxis signal transduction protein
3657	 56.11	0	3993187..3993792	-	201	83646570	-	HCH_03852	-	phosphatase
3658	 52.85	0	3993847..3994179	-	110	83646571	-	HCH_03853	-	hypothetical protein
3659	 58.33	0	3994218..3995633	-	471	83646572	-	HCH_03855	-	GTPase
3660	 60.44	+1	3995626..3997071	-	481	83646573	-	HCH_03856	-	hypothetical protein
3661	 54.52	0	3997474..3998346	+	290	83646574	-	HCH_03857	-	hypothetical protein
3662	 61.36	+1	3998343..3999473	-	376	83646575	gcvT	HCH_03858	-	glycine cleavage system T protein
3663	 59.86	+1	3999563..4000942	-	459	83646576	sdaA	HCH_03859	-	L-serine ammonia-lyase
3664	 57.61	0	4001017..4002297	-	426	83646577	-	HCH_03860	-	glycine/serine hydroxymethyltransferase
3665	 59.63	+1	4002370..4005252	-	960	83646578	gcvP	HCH_03861	-	glycine dehydrogenase
3666	 53.87	0	4005257..4005631	-	124	83646579	gcvH1	HCH_03862	-	glycine cleavage system H protein
3667	 59.26	+1	4005832..4006722	+	296	83646580	-	HCH_03863	-	transcriptional regulator
3668	 60.38	+1	4006855..4007427	+	190	83646581	-	HCH_03864	-	hypothetical protein
3669	 55.47	0	4007614..4010355	-	913	83646582	-	HCH_03865	-	FOG EAL domain-containing protein
3670	 54.39	0	4010629..4011255	+	208	83646583	-	HCH_03866	-	hypothetical protein
3671	 56.42	0	4011281..4013506	-	741	83646584	-	HCH_03867	-	TPR repeat-containing protein
3672	 43.48	-1	4013575..4013712	+	45	83646585	-	HCH_03868	-	hypothetical protein
3673	 58.66	0	4013918..4015390	+	490	83646586	-	HCH_03869	-	hypothetical protein
3674	 57.08	0	4015434..4016633	+	399	83646587	-	HCH_03870	-	hypothetical protein
3675	 56.57	0	4016751..4017800	-	349	83646588	-	HCH_03871	-	AraC-type DNA-binding domain-containing protein
3676	 42.63	-1	4018074..4018385	-	103	83646589	-	HCH_03872	-	hypothetical protein
3677	 56.07	0	4018575..4020206	+	543	83646590	-	HCH_03873	-	ABC transporter ATPase
3678	 54.12	0	4020275..4021039	-	254	83646591	-	HCH_03874	-	SAM-dependent methyltransferase
3679	 53.04	0	4021089..4021499	+	136	83646592	-	HCH_03875	-	hypothetical protein
3680	 54.30	0	4021674..4023137	+	487	83646593	-	HCH_03876	-	hypothetical protein
3681	 39.68	-2	4023276..4023401	-	41	83646594	-	HCH_03877	-	hypothetical protein
3682	 52.65	0	4023508..4024092	+	194	83646595	-	HCH_03878	-	hypothetical protein
3683	 54.49	0	4024259..4024759	-	166	83646596	-	HCH_03879	-	hypothetical protein
3684	 57.14	0	4024707..4024832	-	41	83646597	-	HCH_03880	-	hypothetical protein
3685	 54.95	0	4024837..4025391	-	184	83646598	-	HCH_03881	-	acetyltransferase
3686	 53.69	0	4025501..4025947	-	148	83646599	-	HCH_03882	-	hypothetical protein
3687	 61.29	+1	4026056..4027858	-	600	83646600	-	HCH_03884	-	hypothetical protein
3688	 64.24	+1	4027839..4029116	-	425	83646601	-	HCH_03885	-	hypothetical protein
3689	 57.09	0	4029218..4029979	-	253	83646602	-	HCH_03886	-	hypothetical protein
3690	 59.34	+1	4029960..4030505	+	181	83646603	-	HCH_03889	-	hypothetical protein
3691	 60.00	+1	4029966..4030340	-	124	83646604	-	HCH_03887	-	hypothetical protein
3692	 58.08	0	4030353..4030550	-	65	83646605	-	HCH_03888	-	hypothetical protein
3693	 63.41	+1	4030547..4032664	-	705	83646606	-	HCH_03890	-	hypothetical protein
3694	 59.34	+1	4032668..4033786	-	372	83646607	-	HCH_03891	-	hypothetical protein
3695	 58.27	0	4033813..4035015	-	400	83646608	-	HCH_03892	-	hypothetical protein
3696	 58.63	0	4035037..4035621	-	194	83646609	-	HCH_03893	-	hypothetical protein
3697	 58.79	0	4035608..4036927	-	439	83646610	-	HCH_03894	-	subtilisin-like serine protease
3698	 47.92	0	4037377..4037520	-	47	83646611	-	HCH_03895	-	hypothetical protein
3699	 51.21	0	4037519..4037848	+	109	83646612	-	HCH_03896	-	hypothetical protein
3700	 39.45	-2	4038240..4039154	+	304	83646613	-	HCH_03899	-	hypothetical protein
3701	 37.16	-2	4039715..4040602	+	295	83646614	-	HCH_03900	-	ankyrin repeat-containing protein
3702	 52.20	0	4041138..4042070	-	310	83646615	-	HCH_03901	-	transcriptional regulator
3703	 53.93	0	4042172..4043011	+	279	83646616	-	HCH_03902	-	hypothetical protein
3704	 37.46	-2	4044058..4044978	+	306	83646617	-	HCH_03903	-	ankyrin repeat-containing protein
3705	 53.91	0	4045826..4052113	+	2095	83646618	-	HCH_03906	-	RTX toxins and related Ca2+-binding protein
3706	 39.60	-2	4052330..4052935	-	201	83646619	-	HCH_03907	-	hypothetical protein
3707	 39.10	-2	4053362..4054366	-	334	83646620	-	HCH_03908	-	hypothetical protein
3708	 48.31	0	4054694..4055047	-	117	83646621	-	HCH_03909	-	hypothetical protein
3709	 56.60	0	4055237..4055842	-	201	83646622	-	HCH_03910	-	putative threonine efflux protein
3710	 55.71	0	4055900..4056328	-	142	83646623	-	HCH_03911	-	hypothetical protein
3711	 59.44	+1	4056438..4057337	+	299	83646624	-	HCH_03912	-	transcriptional regulator
3712	 52.41	0	4057488..4058027	+	179	83646625	aroQ1	HCH_03913	-	chorismate mutase
3713	 55.43	0	4058090..4059949	-	619	83646626	-	HCH_03914	-	endoglucanase
3714	 52.05	0	4059864..4060034	-	56	83646627	-	HCH_03915	-	hypothetical protein
3715	 52.17	0	4060270..4060545	-	91	83646628	-	HCH_03916	-	hypothetical protein
3716	 50.47	0	4060669..4060989	-	106	83646629	-	HCH_03918	-	hypothetical protein
3717	 56.39	0	4061092..4062006	-	304	83646630	-	HCH_03919	-	endonuclease
3718	 54.79	0	4062030..4062290	+	86	83646631	-	HCH_03920	-	hypothetical protein
3719	 52.46	0	4062418..4063536	+	372	83646632	-	HCH_03921	-	hypothetical protein
3720	 56.50	0	4063702..4065954	+	750	83646633	-	HCH_03922	-	Outer membrane receptor protein, mostly Fe transport
3721	 58.54	0	4065969..4066916	+	315	83646634	-	HCH_03923	-	ABC-type uncharacterized transport system, periplasmic component
3722	 57.02	0	4066913..4068892	+	659	83646635	-	HCH_03924	-	Signal transduction histidine kinase
3723	 55.61	0	4068916..4070262	-	448	83646636	gor	HCH_03925	-	glutathione-disulfide reductase
3724	 53.75	0	4070321..4070947	-	208	83646637	-	HCH_03926	-	histone acetyltransferase HPA2-like acetyltransferase
3725	 50.00	0	4071201..4071308	-	35	83646638	-	HCH_03927	-	hypothetical protein
3726	 55.62	0	4071327..4071851	-	174	83646639	gspM	HCH_03928	-	Type II secretory pathway, component PulM
3727	 56.43	0	4071855..4073144	-	429	83646640	gspL	HCH_03929	-	Type II secretory pathway, component PulL
3728	 49.42	0	4073211..4074248	-	345	83646641	gspK	HCH_03930	-	Type II secretory pathway, component PulK
3729	 52.97	0	4074241..4075065	-	274	83646642	gspJ	HCH_03931	-	general secretion pathway protein J
3730	 53.14	0	4075065..4075478	-	137	83646643	gspI	HCH_03932	-	general secretion pathway protein I
3731	 47.93	0	4075462..4076016	-	184	83646644	gspH	HCH_03933	-	general secretion pathway protein H
3732	 50.89	0	4076062..4076511	-	149	83646645	gspG	HCH_03935	-	general secretion pathway protein G
3733	 55.01	0	4076553..4077779	-	408	83646646	gspF	HCH_03936	-	general secretion pathway protein F
3734	 52.86	0	4077864..4079420	-	518	83646647	gspE	HCH_03937	-	Type II secretory pathway, ATPase PulE/Tfp pilus assembly pathway, ATPase PilB
3735	 56.28	0	4079728..4080603	+	291	83646648	-	HCH_03938	-	hypothetical protein
3736	 53.15	0	4080908..4081573	+	221	83646649	-	HCH_03939	-	periplasmic protein
3737	 49.65	0	4081626..4081766	-	46	83646650	-	HCH_03940	-	hypothetical protein
3738	 51.82	0	4081831..4082214	+	127	83646651	-	HCH_03942	-	transcriptional regulator
3739	 51.22	0	4082184..4082306	-	40	83646652	-	HCH_03941	-	hypothetical protein
3740	 58.80	0	4082308..4083477	+	389	83646653	-	HCH_03943	-	Acyl-CoA dehydrogenase
3741	 58.40	0	4083539..4085146	+	535	83646654	-	HCH_03944	-	Acetyl-CoA carboxylase, carboxyltransferase component (subunit alpha and beta)
3742	 59.85	+1	4085212..4086018	+	268	83646655	-	HCH_03945	-	enoyl-CoA hydratase/carnithine racemase
3743	 58.25	0	4086011..4088005	+	664	83646656	-	HCH_03946	-	Acetyl/propionyl-CoA carboxylase, alpha subunit
3744	 56.48	0	4088007..4088948	+	313	83646657	-	HCH_03947	-	isopropylmalate/homocitrate/citramalate synthases
3745	 56.11	0	4088968..4090956	+	662	83646658	-	HCH_03948	-	acetoacetyl-CoA synthetase
3746	 57.01	0	4091016..4091957	-	313	83646659	-	HCH_03949	-	electron transfer flavoprotein subunit alpha
3747	 54.00	0	4091959..4092708	-	249	83646660	-	HCH_03950	-	electron transfer flavoprotein subunit beta
3748	 44.74	-1	4093142..4093255	-	37	83646661	-	HCH_03952	-	hypothetical protein
3749	 56.12	0	4093338..4094996	+	552	83646662	-	HCH_03954	-	dehydrogenase
3750	 49.35	0	4094981..4095211	-	76	83646663	-	HCH_03953	-	hypothetical protein
3751	 48.25	0	4095554..4095667	+	37	83646664	-	HCH_03955	-	hypothetical protein
53.37	MEAN

5.65	STD DEV
