IslandPathversion 1.0

IslandPath Analysis: Hahella chejuensis KCTC 2396

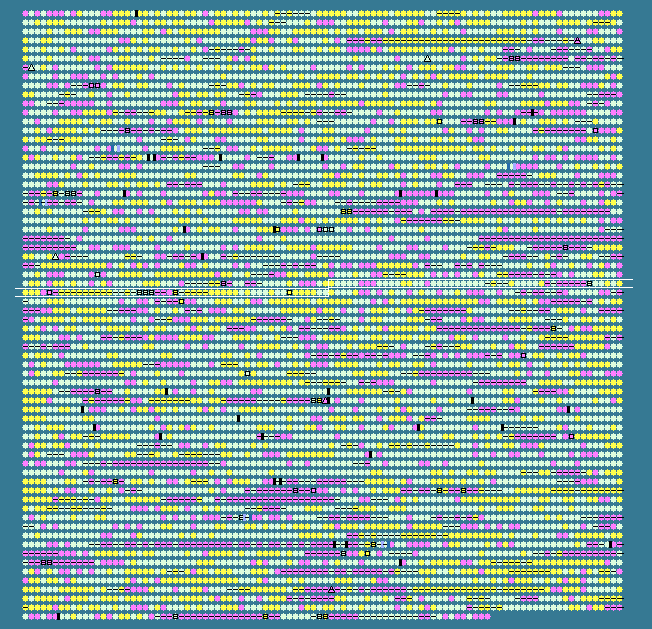

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3052	 58.33	0	3314031..3315086	-	351	83645965	-	HCH_03214	-	multidrug resistance efflux pump
3053	 55.70	0	3315114..3315569	-	151	83645966	-	HCH_03215	-	transcriptional regulator
3054	 52.56	0	3315814..3316359	+	181	83645967	-	HCH_03216	-	hypothetical protein
3055	 55.80	0	3316648..3317475	+	275	83645968	-	HCH_03217	-	mitomycin antibiotics/polyketide fumonisin biosynthesis protein
3056	 56.18	0	3317631..3322883	+	1750	83645969	-	HCH_03218	-	superfamily I DNA/RNA helicase
3057	 41.13	-2	3323435..3324088	+	217	83645970	-	HCH_03219	-	hypothetical protein
3058	 45.10	-1	3324069..3324221	+	50	83645971	-	HCH_03220	-	hypothetical protein
3059	 41.81	-2	3324344..3324874	+	176	83645972	-	HCH_03221	-	hypothetical protein
3060	 55.71	0	3325615..3327384	-	589	83645973	-	HCH_03222	-	hemopexin repeat-containing protein
3061	 56.84	0	3327891..3328643	-	250	83645974	-	HCH_03223	-	hypothetical protein
3062	 53.37	0	3328628..3329221	-	197	83645975	-	HCH_03224	-	DNA-directed RNA polymerase specialized sigma subunit sigma24-like protein
3063	 55.79	0	3329295..3329579	+	94	83645976	-	HCH_03226	-	hypothetical protein
3064	 60.39	+1	3329504..3329710	-	68	83645977	-	HCH_03225	-	hypothetical protein
3065	 59.01	0	3329973..3330938	-	321	83645978	-	HCH_03227	-	hemolysin-type calcium-binding repeat-containing protein
3066	 54.59	0	3330990..3331883	-	297	83645979	-	HCH_03229	-	hemolysin-type calcium-binding repeat-containing protein
3067	 56.28	0	3332139..3332687	-	182	83645980	-	HCH_03230	-	hypothetical protein
3068	 44.12	-1	3332708..3332911	+	67	83645981	-	HCH_03231	-	hypothetical protein
3069	 51.71	0	3332989..3333456	+	155	83645982	-	HCH_03232	-	hypothetical protein
3070	 50.29	0	3333507..3334196	+	229	83645983	-	HCH_03233	-	hypothetical protein
3071	 52.43	0	3334483..3335100	+	205	83645984	-	HCH_03234	-	transcriptional regulator
3072	 50.69	0	3335104..3335391	+	95	83645985	-	HCH_03235	-	hypothetical protein
3073	 53.23	0	3335436..3336038	+	200	83645986	-	HCH_03236	-	3-methyladenine DNA glycosylase
3074	 52.26	0	3336189..3337097	-	302	83645987	-	HCH_03237	-	transcriptional regulator
3075	 51.60	0	3337176..3337799	+	207	83645988	-	HCH_03238	-	SAM-dependent methyltransferase
3076	 53.15	0	3338121..3339119	+	332	83645989	-	HCH_03239	-	hypothetical protein
3077	 55.92	0	3339322..3341043	+	573	83645990	-	HCH_03240	-	putative type III secretion protein YscC
3078	 55.83	0	3341059..3341178	+	39	83645991	-	HCH_03241	-	hypothetical protein
3079	 60.10	+1	3341175..3342515	+	446	83645992	-	HCH_03242	-	putative type III export protein YscD
3080	 52.33	0	3342512..3342790	+	92	83645993	-	HCH_03243	-	hypothetical protein
3081	 52.89	0	3342774..3342998	+	74	83645994	-	HCH_03244	-	hypothetical protein
3082	 61.28	+1	3343007..3343396	+	129	83645995	-	HCH_03245	-	hypothetical protein
3083	 55.31	0	3343399..3343812	+	137	83645996	-	HCH_03246	-	hypothetical protein
3084	 56.77	0	3343815..3344612	+	265	83645997	-	HCH_03247	-	Type III secretory pathway, lipoprotein EscJ
3085	 56.18	0	3344644..3345339	+	231	83645998	-	HCH_03248	-	hypothetical protein
3086	 54.44	0	3345318..3345947	+	209	83645999	-	HCH_03249	-	flagellar biosynthesis/type III secretory pathway protein
3087	 58.16	0	3346238..3350398	+	1386	83646000	-	HCH_03251	-	Rhs family protein
3088	 32.24	-2	3350388..3351026	+	212	83646001	-	HCH_03252	-	hypothetical protein
3089	 50.89	0	3351251..3351922	+	223	83646002	-	HCH_03253	-	Rhs family protein
3090	 32.53	-2	3352199..3352570	+	123	83646003	-	HCH_03254	-	hypothetical protein
3091	 40.17	-2	3352576..3353058	+	160	83646004	-	HCH_03255	-	hypothetical protein
3092	 33.59	-2	3353067..3353459	+	130	83646005	-	HCH_03256	-	hypothetical protein
3093	 41.05	-2	3353817..3354140	+	107	83646006	-	HCH_03257	-	hypothetical protein
3094	 36.69	-2	3354207..3354623	+	138	83646007	-	HCH_03258	-	hypothetical protein
3095	 53.33	0	3354658..3355692	+	344	83646008	-	HCH_03259	-	transposase
3096	 53.56	0	3356886..3357923	-	345	83646009	-	HCH_03260	-	Type III secretory pathway, component EscU
3097	 54.71	0	3357989..3358774	-	261	83646010	-	HCH_03261	-	Type III secretory pathway, component EscT
3098	 60.37	+1	3358811..3359080	-	89	83646011	-	HCH_03262	-	Type III secretory pathway, component EscS
3099	 53.55	0	3359148..3359795	-	215	83646012	-	HCH_03263	-	type III secretion system protein
3100	 58.21	0	3359782..3360975	-	397	83646013	-	HCH_03264	-	flagellar motor switch/type III secretory pathway protein
3101	 59.39	+1	3360972..3361589	-	205	83646014	-	HCH_03266	-	hypothetical protein
3102	 58.09	0	3361586..3362098	-	170	83646015	-	HCH_03267	-	hypothetical protein
3103	 62.66	+1	3362112..3363458	-	448	83646016	-	HCH_03268	-	type III secretion system ATPase
3104	 39.62	-2	3363622..3365292	-	556	83646017	-	HCH_03269	-	ATPase
3105	 48.78	0	3365588..3366118	+	176	83646018	-	HCH_03270	-	transposase
3106	 49.75	0	3366413..3366814	+	133	83646019	-	HCH_03272	-	mannose-6-phosphate isomerase
3107	 58.30	0	3367207..3369297	-	696	83646020	-	HCH_03273	-	Type III secretory pathway, component EscV
3108	 60.95	+1	3369294..3369713	-	139	83646021	-	HCH_03274	-	TPR repeat-containing protein
3109	 62.94	+1	3369674..3370075	-	133	83646022	-	HCH_03275	-	hypothetical protein
3110	 58.99	0	3370087..3370464	-	125	83646023	-	HCH_03276	-	YopN chaperone SycN-like protein
3111	 58.64	0	3370514..3371647	-	377	83646024	-	HCH_03277	-	type II secretion target YopN-like protein
3112	 61.14	+1	3371895..3373052	-	385	83646025	-	HCH_03278	-	hypothetical protein
3113	 62.06	+1	3373110..3374237	-	375	83646026	-	HCH_03279	-	hypothetical protein
3114	 59.54	+1	3374234..3374794	-	186	83646027	-	HCH_03281	-	TPR repeat-containing protein
3115	 60.27	+1	3374813..3375109	-	98	83646028	-	HCH_03282	-	hypothetical protein
3116	 53.37	0	3375331..3375894	-	187	83646029	-	HCH_03283	-	hypothetical protein
3117	 54.99	0	3375364..3376074	+	236	83646030	-	HCH_03284	-	hypothetical protein
3118	 59.68	+1	3376227..3378917	+	896	83646031	-	HCH_03285	-	LuxR family regulatory protein
3119	 55.30	0	3379014..3379409	+	131	83646032	-	HCH_03286	-	hypothetical protein
3120	 54.71	0	3379599..3380150	+	183	83646033	-	HCH_03287	-	transposase
3121	 50.82	0	3380147..3380632	+	161	83646034	-	HCH_03288	-	transposase
3122	 54.40	0	3380702..3381190	+	162	83646035	-	HCH_03289	-	IS116/IS110/IS902 family transposase
3123	 48.74	0	3381515..3382663	+	382	83646036	-	HCH_03291	-	hypothetical protein
3124	 43.82	-1	3382660..3383412	+	250	83646037	-	HCH_03292	-	hypothetical protein
3125	 35.48	-2	3383524..3384081	-	185	83646038	-	HCH_03293	-	hypothetical protein
3126	 60.55	+1	3384623..3385276	-	217	83646039	-	HCH_03294	-	transposase
3127	 53.85	0	3385338..3385454	-	38	83646040	-	HCH_03295	-	hypothetical protein
3128	 59.40	+1	3385931..3387169	+	412	83646041	-	HCH_03296	-	ABC-type sugar transport system, periplasmic component
3129	 58.71	0	3387255..3388121	+	288	83646042	-	HCH_03297	-	ABC-type sugar transport system, permease components
3130	 57.16	0	3388118..3389011	+	297	83646043	-	HCH_03298	-	ABC-type sugar transport system, permease component
3131	 59.25	+1	3389023..3390141	+	372	83646044	-	HCH_03299	-	ABC-type sugar transport system, ATPase components
3132	 63.10	+1	3390131..3390943	+	270	83646045	-	HCH_03300	-	beta-lactamase superfamily hydrolase
3133	 62.74	+1	3390924..3391712	+	262	83646046	-	HCH_03301	-	fructose-1 6-bisphosphatase
3134	 60.83	+1	3391712..3392704	+	330	83646047	-	HCH_03302	-	transcriptional regulator
3135	 57.58	0	3392770..3394254	-	494	83646048	-	HCH_03303	-	QXW lectin repeat-containing protein
3136	 59.38	+1	3394324..3394419	-	31	83646049	-	HCH_03304	-	hypothetical protein
3137	 56.38	0	3395235..3397052	-	605	83646050	-	HCH_03305	-	TPR repeat-containing protein
3138	 58.04	0	3397170..3398201	-	343	83646051	-	HCH_03306	-	hypothetical protein
3139	 51.61	0	3398617..3398802	+	61	83646052	-	HCH_03307	-	hypothetical protein
3140	 56.41	0	3398799..3399344	-	181	83646053	-	HCH_03308	-	hypothetical protein
3141	 50.22	0	3399495..3399944	+	149	83646054	-	HCH_03309	-	hypothetical protein
3142	 60.57	+1	3400342..3401013	-	223	83646055	-	HCH_03310	-	siderophore-interacting protein
3143	 55.19	0	3401125..3401577	-	150	83646056	-	HCH_03311	-	transcriptional regulator
3144	 52.68	0	3401695..3402495	-	266	83646057	-	HCH_03312	-	amino acid ABC transporter periplasmic protein
3145	 60.88	+1	3402653..3404638	-	661	83646058	-	HCH_03313	-	transposase
3146	 57.71	0	3404702..3405817	-	371	83646059	-	HCH_03314	-	VWA_CoxE family protein
3147	 59.86	+1	3405807..3408143	-	778	83646060	-	HCH_03315	-	4-aminobutyrate aminotransferase and related aminotransferase
3148	 59.63	+1	3408143..3409237	-	364	83646061	-	HCH_03316	-	MoxR-like ATPase
3149	 57.22	0	3409234..3412281	-	1015	83646062	-	HCH_03317	-	hypothetical protein
3150	 53.13	0	3412577..3413071	+	164	83646063	-	HCH_03318	-	hypothetical protein
3151	 52.95	0	3413090..3414241	+	383	83646064	-	HCH_03319	-	hypothetical protein
53.37	MEAN

5.65	STD DEV
