IslandPath Analysis: Hahella chejuensis KCTC 2396

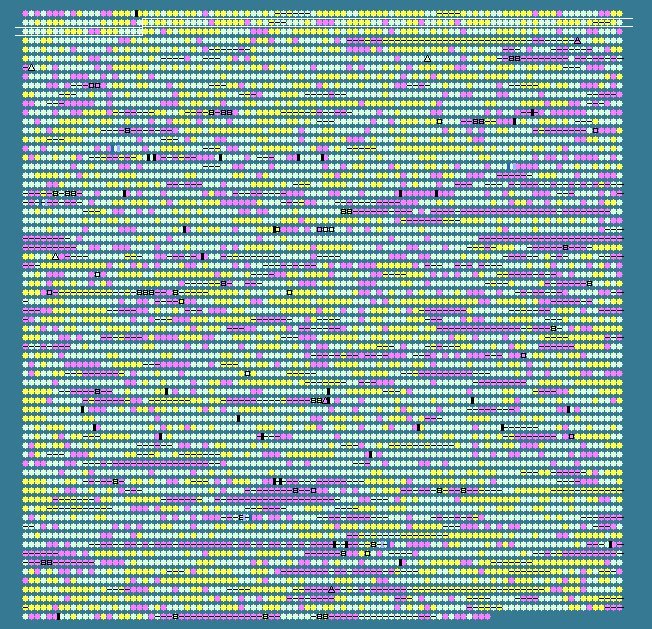

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
121	 58.09	0	137248..138867	+	539	83643034	-	HCH_00124	-	endonuclease I
122	 53.82	0	139045..139737	+	230	83643035	-	HCH_00125	-	hypothetical protein
123	 61.11	+1	139758..140549	-	263	83643036	-	HCH_00126	-	short-chain alcohol dehydrogenase-like protein
124	 57.05	0	140589..141212	-	207	83643037	-	HCH_00127	-	putative threonine efflux protein
125	 51.28	0	141349..142089	+	246	83643038	-	HCH_00128	-	hypothetical protein
126	 59.36	+1	142086..142646	-	186	83643039	-	HCH_00129	-	RNA:NAD 2'-phosphotransferase
127	 58.44	0	142666..143394	-	242	83643040	pdxJ	HCH_00130	-	pyridoxal phosphate biosynthetic protein PdxJ
128	 53.38	0	143564..145324	+	586	83643041	-	HCH_00132	-	hypothetical protein
129	 53.94	0	145345..147120	+	591	83643042	-	HCH_00133	-	hypothetical protein
130	 52.01	0	147260..149026	+	588	83643043	-	HCH_00134	-	hypothetical protein
131	 56.36	0	149237..150109	-	290	83643044	-	HCH_00135	-	hypothetical protein
132	 35.00	-2	150238..150357	+	39	83643045	-	HCH_00136	-	hypothetical protein
133	 57.64	0	150709..152625	+	638	83643046	thiC	HCH_00137	-	thiamine biosynthesis protein ThiC
134	 62.54	+1	152630..153694	+	354	83643047	thiO	HCH_00138	-	thiamine biosynthesis protein ThiO
135	 61.43	+1	153684..153893	+	69	83643048	thiS	HCH_00139	-	thiamine biosynthesis protein ThiS
136	 60.58	+1	153941..154729	+	262	83643049	thiG	HCH_00140	-	thiazole synthase
137	 60.11	+1	154722..156185	+	487	83643050	thiE	HCH_00141	-	thiamine monophosphate synthase
138	 42.59	-1	156341..156448	-	35	83643051	-	HCH_00142	-	hypothetical protein
139	 52.76	0	156463..157260	+	265	83643052	-	HCH_00143	-	amino acid ABC transporter periplasmic protein
140	 59.80	+1	157296..159158	-	620	83643053	-	HCH_00144	-	ABC-type multidrug transport system, ATPase and permease components
141	 55.70	0	159404..160078	-	224	83643054	-	HCH_00145	-	hypothetical protein
142	 58.95	0	160242..161498	-	418	83643055	-	HCH_00146	-	hypothetical protein
143	 56.74	0	161766..162188	-	140	83643056	-	HCH_00147	-	hypothetical protein
144	 54.95	0	162466..163122	+	218	83643057	-	HCH_00148	-	hypothetical protein
145	 53.75	0	163258..163590	-	110	83643058	-	HCH_00149	-	hypothetical protein
146	 55.70	0	163913..164386	+	157	83643059	-	HCH_00150	-	thioesterase
147	 55.64	0	164406..164822	-	138	83643060	-	HCH_00151	-	CBS domain-containing protein
148	 56.90	0	164848..166290	-	480	83643061	-	HCH_00152	-	dihydrolipoamide dehydrogenase
149	 53.61	0	166383..167117	-	244	83643062	-	HCH_00153	-	peroxiredoxin
150	 43.75	-1	167251..167346	+	31	83643063	-	HCH_00154	-	hypothetical protein
151	 47.99	0	167453..167725	-	90	83643064	-	HCH_00155	-	RNA-binding protein
152	 39.86	-2	168073..168210	+	45	83643065	-	HCH_00156	-	hypothetical protein
153	 56.74	0	168389..170533	+	714	83643066	-	HCH_00157	-	QXW lectin repeat-containing protein
154	 56.35	0	170675..172486	+	603	83643067	recQ	HCH_00158	-	ATP-dependent DNA helicase RecQ
155	 61.09	+1	172492..173226	-	244	83643068	-	HCH_00159	-	ABC-type proline/glycine betaine transport system, permease component
156	 57.40	0	173226..174293	-	355	83643069	-	HCH_00160	-	ABC-type proline/glycine betaine transport system, ATPase components
157	 58.73	0	174290..175411	-	373	83643070	-	HCH_00161	-	ABC-type proline/glycine betaine transport system, permease component
158	 57.14	0	175474..176397	-	307	83643071	-	HCH_00162	-	periplasmic glycine betaine/choline-binding (lipo)protein of an ABC-type transport system (osmoprotectant binding protein)
159	 53.33	0	177443..177787	+	114	83643072	-	HCH_00163	-	hypothetical protein
160	 51.90	0	177859..178596	+	245	83643073	-	HCH_00164	-	uncharacterized protein conserved in bacteria containing a divergent form of TPR repeats
161	 48.87	0	178606..178959	+	117	83643074	-	HCH_00165	-	hypothetical protein
162	 55.19	0	178998..179999	-	333	83643075	-	HCH_00166	-	RNA 3'-terminal-phosphate cyclase
163	 55.29	0	180049..181287	-	412	83643076	-	HCH_00167	-	hypothetical protein
164	 55.72	0	181489..183078	-	529	83643077	-	HCH_00168	-	sigma54-dependent transcription regulator RtcR
165	 58.90	0	183256..184620	-	454	83643078	-	HCH_00169	-	Na+/alanine symporter
166	 57.55	0	184845..186095	-	416	83643079	-	HCH_00170	-	D-amino acid dehydrogenase small subunit
167	 35.33	-2	186285..186434	-	49	83643080	-	HCH_00171	-	hypothetical protein
168	 53.57	0	186595..187350	+	251	83643081	-	HCH_00172	-	nucleotidyltransferase
169	 56.06	0	187497..188420	+	307	83643082	-	HCH_00173	-	GGDEF domain-containing protein
170	 58.53	0	188552..189190	+	212	83643083	-	HCH_00174	-	protocatechuate 3,4-dioxygenase beta subunit
171	 55.76	0	189298..190095	+	265	83643084	-	HCH_00176	-	amidohydrolase
172	 57.29	0	190098..191750	-	550	83643085	-	HCH_00177	-	QXW lectin repeat-containing protein
173	 47.22	-1	192122..192409	+	95	83643086	-	HCH_00178	-	hypothetical protein
174	 51.93	0	192521..193273	-	250	83643087	-	HCH_00179	-	HTH domain-containing protein
175	 61.58	+1	193393..194553	-	386	83643088	-	HCH_00180	-	hypothetical protein
176	 57.05	0	194555..195667	-	370	83643089	-	HCH_00181	-	periplasmic lipoprotein
177	 59.32	+1	195679..197202	-	507	83643090	-	HCH_00182	-	thiol oxidoreductase
178	 60.29	+1	197292..198671	-	459	83643091	-	HCH_00183	-	uncharacterized iron-regulated protein
179	 52.13	0	198895..199527	+	210	83643092	-	HCH_00185	-	hypothetical protein
180	 56.48	0	199544..200122	-	192	83643093	-	HCH_00186	-	hypothetical protein
181	 53.80	0	200173..200514	-	113	83643094	-	HCH_00187	-	hypothetical protein
182	 54.27	0	200618..200980	-	120	83643095	-	HCH_00188	-	translation initiation factor Sui1
183	 56.64	0	201024..202040	-	338	83643096	-	HCH_00189	-	hydrolase of the alpha/beta-hydrolase fold
184	 60.71	+1	202132..203559	-	475	83643097	-	HCH_00190	-	GntR family transcriptional regulator
185	 54.82	0	203759..203986	+	75	83643098	-	HCH_00191	-	hypothetical protein
186	 58.37	0	204183..204797	+	204	83643099	-	HCH_00192	-	putative threonine efflux protein
187	 54.52	0	204928..205248	+	106	83643100	-	HCH_00193	-	hypothetical protein
188	 56.33	0	205288..206022	+	244	83643101	-	HCH_00194	-	transcriptional regulator
189	 55.64	0	206019..206435	+	138	83643102	-	HCH_00195	-	hypothetical protein
190	 59.30	+1	206439..207008	+	189	83643103	tehB	HCH_00196	-	SAM-dependent methyltransferase
191	 59.02	0	207084..208508	-	474	83643104	-	HCH_00197	-	hypothetical protein
192	 57.12	0	208633..209208	+	191	83643105	-	HCH_00198	-	hypothetical protein
193	 58.23	0	209227..210909	-	560	83643106	-	HCH_00199	-	alpha-glucosidase
194	 55.15	0	211238..211645	+	135	83643107	-	HCH_00200	-	hypothetical protein
195	 57.85	0	211759..213039	+	426	83643108	-	HCH_00201	-	ABC-type sugar transport system, periplasmic component
196	 59.15	+1	213099..214016	+	305	83643109	-	HCH_00203	-	ABC-type sugar transport system, permease components
197	 58.87	0	214018..214863	+	281	83643110	-	HCH_00204	-	ABC-type sugar transport system, permease component
198	 57.79	0	214918..216540	+	540	83643111	-	HCH_00205	-	alpha-glucosidase
199	 59.57	+1	216614..217642	+	342	83643112	-	HCH_00206	-	ABC-type sugar transport system, ATPase components
200	 56.82	0	217682..218524	+	280	83643113	-	HCH_00207	-	AraC-type DNA-binding domain-containing protein
201	 52.88	0	218599..218910	+	103	83643114	-	HCH_00208	-	hypothetical protein
202	 56.84	0	218907..220433	-	508	83643115	-	HCH_00209	-	Signal transduction histidine kinase
203	 56.44	0	220462..221625	-	387	83643116	-	HCH_00210	-	ABC-type sugar transport system, periplasmic component
204	 51.93	0	221738..222307	-	189	83643117	-	HCH_00211	-	elongation factor P
205	 58.86	0	222445..224289	+	614	83643118	-	HCH_00212	-	carbamoyl transferase
206	 54.14	0	224282..224704	+	140	83643119	-	HCH_00213	-	hypothetical protein
207	 51.63	0	224704..224856	+	50	83643120	-	HCH_00214	-	hypothetical protein
208	 58.45	0	224901..225740	-	279	83643121	-	HCH_00215	-	Pirin-related protein
209	 58.64	0	225872..226768	+	298	83643122	-	HCH_00217	-	transcriptional regulator
210	 59.53	+1	226828..228285	+	485	83643123	pepD	HCH_00218	-	putative aminoacyl-histidine dipeptidase PepD
211	 55.03	0	228374..228820	-	148	83643124	-	HCH_00219	-	CBS domain-containing protein
212	 47.06	-1	229039..229140	-	33	83643125	-	HCH_00220	-	hypothetical protein
213	 47.75	0	229046..229156	-	36	83643126	-	HCH_00221	-	hypothetical protein
214	 61.04	+1	229223..231160	-	645	83643127	recD	HCH_00222	-	exodeoxyribonuclease V, alpha subunit
215	 59.53	+1	231157..234702	-	1181	83643128	recB	HCH_00223	-	exodeoxyribonuclease V, beta subunit
216	 61.73	+1	234699..237920	-	1073	83643129	recC	HCH_00224	-	exodeoxyribonuclease V, gamma subunit
217	 56.10	0	238391..241372	+	993	83643130	-	HCH_00225	-	carboxypeptidase
218	 54.98	0	241820..242683	+	287	83643131	-	HCH_00226	-	nucleoside-binding outer membrane protein
219	 52.38	0	242703..242828	-	41	83643132	-	HCH_00227	-	hypothetical protein
220	 56.24	0	242812..243300	+	162	83643133	-	HCH_00228	-	histone acetyltransferase HPA2-like acetyltransferase
53.37	MEAN

5.65	STD DEV
