IslandPath Analysis: Hahella chejuensis KCTC 2396

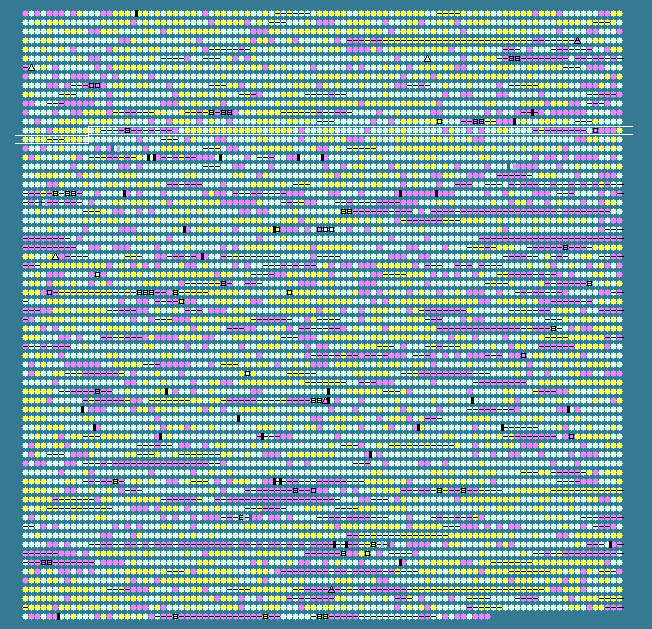

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 53.37 STD DEV: 5.65
Hahella chejuensis KCTC 2396, complete genome - 1..7215267
6778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1312	 53.41	0	1379535..1379783	-	82	83644225	-	HCH_01372	-	hypothetical protein
1313	 60.40	+1	1379957..1381552	+	531	83644226	-	HCH_01373	-	anaerobic nitric oxide reductase transcription regulator
1314	 54.05	0	1381678..1382208	+	176	83644227	-	HCH_01374	-	hypothetical protein
1315	 52.49	0	1382296..1383057	+	253	83644228	-	HCH_01375	-	amino acid ABC transporter periplasmic protein
1316	 53.82	0	1383361..1383687	+	108	83644229	-	HCH_01376	-	hypothetical protein
1317	 41.00	-2	1384048..1384308	-	86	83644230	-	HCH_01377	-	hypothetical protein
1318	 47.76	0	1384779..1385492	-	237	83644231	-	HCH_01378	-	transposase
1319	 35.29	-2	1385760..1385912	-	50	83644232	-	HCH_01379	-	hypothetical protein
1320	 42.50	-1	1386066..1386785	-	239	83644233	-	HCH_01380	-	Rhs family protein
1321	 56.46	0	1386798..1386944	-	48	83644234	-	HCH_01381	-	hypothetical protein
1322	 46.51	-1	1386927..1387055	+	42	83644235	-	HCH_01382	-	hypothetical protein
1323	 53.49	0	1387559..1391854	-	1431	83644236	-	HCH_01383	-	Rhs family protein
1324	 47.68	-1	1391978..1393078	-	366	83644237	-	HCH_01384	-	hypothetical protein
1325	 40.80	-2	1393071..1394195	-	374	83644238	-	HCH_01385	-	hypothetical protein
1326	 45.12	-1	1394604..1395044	+	146	83644239	-	HCH_01386	-	histone acetyltransferase HPA2-like acetyltransferase
1327	 52.14	0	1395064..1395531	+	155	83644240	-	HCH_01387	-	hypothetical protein
1328	 59.15	+1	1395579..1396376	-	265	83644241	ribB	HCH_01388	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
1329	 58.33	0	1396657..1396932	-	91	83644242	-	HCH_01389	-	hypothetical protein
1330	 57.51	0	1397099..1398517	+	472	83644243	-	HCH_01390	-	Signal transduction histidine kinase
1331	 56.48	0	1398489..1399028	+	179	83644244	-	HCH_01391	-	response regulator
1332	 60.64	+1	1399308..1400219	-	303	83644245	-	HCH_01392	-	uncharacterized enzyme involved in pigment biosynthesis
1333	 59.91	+1	1400216..1401310	-	364	83644246	-	HCH_01393	-	ribokinase family sugar kinase
1334	 62.96	+1	1401385..1403352	-	655	83644247	-	HCH_01394	-	iron-hydroxamate transporter permease subunit
1335	 60.19	+1	1403400..1404356	-	318	83644248	-	HCH_01395	-	ABC-type Fe3+-citrate transport system, periplasmic component
1336	 60.85	+1	1404411..1405184	-	257	83644249	-	HCH_01396	-	ABC-type cobalamin/Fe3+-siderophores transport system, ATPase components
1337	 61.05	+1	1405171..1405953	-	260	83644250	-	HCH_01397	-	hypothetical protein
1338	 56.86	0	1406201..1408453	+	750	83644251	-	HCH_01398	-	Outer membrane receptor for ferric coprogen and ferric-rhodotorulic acid
1339	 58.64	0	1408697..1410502	-	601	83644252	-	HCH_01399	-	thiamine pyrophosphate-requiring enzyme
1340	 58.27	0	1410705..1411097	-	130	83644253	-	HCH_01400	-	hypothetical protein
1341	 55.69	0	1411094..1411603	-	169	83644254	-	HCH_01401	-	hypothetical protein
1342	 57.41	0	1411610..1412344	-	244	83644255	-	HCH_01402	-	hypothetical protein
1343	 57.33	0	1412435..1413484	+	349	83644256	-	HCH_01403	-	hypothetical protein
1344	 57.83	0	1413592..1414134	+	180	83644257	-	HCH_01404	-	phosphatase
1345	 57.38	0	1414237..1414785	+	182	83644258	-	HCH_01405	-	flavoprotein
1346	 52.09	0	1414789..1415337	-	182	83644259	-	HCH_01406	-	hypothetical protein
1347	 48.85	0	1415489..1415881	-	130	83644260	-	HCH_01407	-	hypothetical protein
1348	 54.55	0	1415937..1416398	-	153	83644261	-	HCH_01408	-	hypothetical protein
1349	 55.12	0	1416463..1416999	-	178	83644262	-	HCH_01409	-	metal-sulfur cluster biosynthetic protein
1350	 56.01	0	1417005..1417370	-	121	83644263	-	HCH_01411	-	hypothetical protein
1351	 58.19	0	1417384..1418622	-	412	83644264	csdB	HCH_01412	-	selenocysteine lyase
1352	 57.05	0	1418619..1419938	-	439	83644265	sufD	HCH_01413	-	FeS assembly protein SufD
1353	 55.47	0	1419950..1420708	-	252	83644266	sufC	HCH_01414	-	FeS assembly ATPase SufC
1354	 51.75	0	1420756..1420869	+	37	83644267	-	HCH_01415	-	hypothetical protein
1355	 55.14	0	1420866..1422314	-	482	83644268	sufB	HCH_01416	-	cysteine desulfurase activator complex subunit SufB
1356	 55.62	0	1422613..1423092	+	159	83644269	-	HCH_01417	-	transcriptional regulator
1357	 52.05	0	1423444..1423785	+	113	83644270	-	HCH_01419	-	hypothetical protein
1358	 40.31	-2	1423763..1423891	-	42	83644271	-	HCH_01418	-	hypothetical protein
1359	 56.29	0	1423885..1424838	+	317	83644272	-	HCH_01420	-	hypothetical protein
1360	 51.35	0	1424904..1425386	-	160	83644273	slpA	HCH_01421	-	FKBP-type peptidyl-prolyl cis-trans isomerases 2
1361	 53.08	0	1425463..1425933	-	156	83644274	-	HCH_01422	-	hypothetical protein
1362	 58.01	0	1425969..1426904	-	311	83644275	-	HCH_01423	-	hypothetical protein
1363	 55.19	0	1426850..1429201	-	783	83644276	-	HCH_01424	-	signal transduction protein
1364	 57.63	0	1429194..1430012	-	272	83644277	-	HCH_01425	-	hypothetical protein
1365	 54.48	0	1430177..1431538	-	453	83644278	-	HCH_01427	-	sigma 54-dependent transcriptional activator
1366	 54.72	0	1431535..1432053	-	172	83644279	-	HCH_01428	-	hypothetical protein
1367	 55.49	0	1432050..1433579	-	509	83644280	-	HCH_01429	-	Signal transduction histidine kinase
1368	 52.48	0	1433911..1434213	+	100	83644281	-	HCH_01430	-	calcium-binding EF-hand domain-containing protein
1369	 53.86	0	1434273..1434764	+	163	83644282	-	HCH_01431	-	phospholipid-binding domain-containing protein
1370	 55.88	0	1434783..1435292	+	169	83644283	-	HCH_01432	-	Outer membrane protein and related peptidoglycan-associated (lipo)protein
1371	 47.69	-1	1435519..1435929	+	136	83644284	-	HCH_01433	-	hypothetical protein
1372	 59.67	+1	1435989..1436945	+	318	83644285	-	HCH_01434	-	TPR repeat-containing protein
1373	 53.56	0	1436948..1438252	-	434	83644286	-	HCH_01435	-	Signal transduction histidine kinase
1374	 54.19	0	1438252..1438932	-	226	83644287	-	HCH_01436	-	response regulator
1375	 41.54	-2	1438935..1439129	+	64	83644288	-	HCH_01437	-	hypothetical protein
1376	 50.00	0	1439317..1439766	+	149	83644289	-	HCH_01438	-	hypothetical protein
1377	 48.15	0	1439797..1440930	-	377	83644290	-	HCH_01439	-	acyltransferase
1378	 54.99	0	1441176..1442117	+	313	83644291	-	HCH_01440	-	hypothetical protein
1379	 55.41	0	1442163..1442624	-	153	83644292	soxR	HCH_01441	-	redox-sensitive transcriptional activator SoxR
1380	 60.14	+1	1442705..1443286	+	193	83644293	-	HCH_01442	-	flavoprotein
1381	 61.11	+1	1443296..1443565	-	89	83644294	-	HCH_01443	-	hypothetical protein
1382	 56.48	0	1443843..1446551	-	902	83644295	-	HCH_01444	-	ATP-dependent transcriptional regulator
1383	 55.95	0	1446857..1447966	+	369	83644296	adhC	HCH_01446	-	Zn-dependent alcohol dehydrogenase, class III
1384	 55.44	0	1447985..1448830	+	281	83644297	-	HCH_01447	-	esterase
1385	 54.90	0	1448873..1449280	+	135	83644298	-	HCH_01448	-	hypothetical protein
1386	 48.59	0	1449497..1450027	-	176	83644299	-	HCH_01449	-	hypothetical protein
1387	 58.74	0	1450079..1450444	+	121	83644300	-	HCH_01450	-	hypothetical protein
1388	 37.84	-2	1451729..1451839	-	36	83644301	-	HCH_01451	-	hypothetical protein
1389	 40.07	-2	1451887..1452183	+	98	83644302	-	HCH_01452	-	hypothetical protein
1390	 33.33	-2	1452707..1452892	+	61	83644303	-	HCH_01453	-	hypothetical protein
1391	 35.35	-2	1452876..1452974	+	32	83644304	-	HCH_01454	-	hypothetical protein
1392	 38.68	-2	1453726..1454043	+	105	83644305	-	HCH_01455	-	hypothetical protein
1393	 40.05	-2	1454580..1454951	+	123	83644306	-	HCH_01456	-	hypothetical protein
1394	 38.51	-2	1455079..1455600	+	173	83644307	-	HCH_01457	-	hypothetical protein
1395	 52.65	0	1456499..1457440	+	313	83644308	-	HCH_01459	-	hypothetical protein
1396	 49.45	0	1457466..1458104	-	212	83644309	-	HCH_01460	-	transposase
1397	 44.44	-1	1458034..1458240	-	68	83644310	-	HCH_01461	-	hypothetical protein
1398	 29.17	-2	1458394..1458489	+	31	83644311	-	HCH_01463	-	hypothetical protein
1399	 44.09	-1	1458513..1458893	-	126	83644312	-	HCH_01464	-	hypothetical protein
1400	 57.32	0	1459291..1460499	+	402	83644313	-	HCH_01465	-	membrane-fusion protein
1401	 57.72	0	1460496..1463615	+	1039	83644314	-	HCH_01466	-	cation/multidrug efflux pump
1402	 54.95	0	1463625..1464401	-	258	83644315	-	HCH_01467	-	amino acid ABC transporter periplasmic protein
1403	 59.40	+1	1464373..1466133	-	586	83644316	-	HCH_01468	-	ABC-type sugar transport system, periplasmic component
1404	 62.73	+1	1466247..1467542	-	431	83644317	-	HCH_01469	-	NADH:flavin oxidoreductase
1405	 57.64	0	1467673..1468104	-	143	83644318	-	HCH_01470	-	hypothetical protein
1406	 56.77	0	1468251..1469321	+	356	83644319	-	HCH_01471	-	spermidine/putrescine-binding periplasmic protein
1407	 57.03	0	1469490..1470620	+	376	83644320	-	HCH_01472	-	ABC-type spermidine/putrescine transport system, ATPase components
1408	 56.91	0	1470630..1471490	+	286	83644321	-	HCH_01473	-	ABC-type spermidine/putrescine transport system, permease component I
1409	 57.54	0	1471501..1472355	+	284	83644322	-	HCH_01474	-	ABC-type spermidine/putrescine transport system, permease component II
1410	 58.28	0	1472619..1473488	-	289	83644323	-	HCH_01475	-	hypothetical protein
1411	 55.27	0	1473609..1474433	+	274	83644324	-	HCH_01476	-	amino acid ABC transporter periplasmic protein
53.37	MEAN

5.65	STD DEV
