IslandPath Analysis: Gloeobacter violaceus PCC 7421

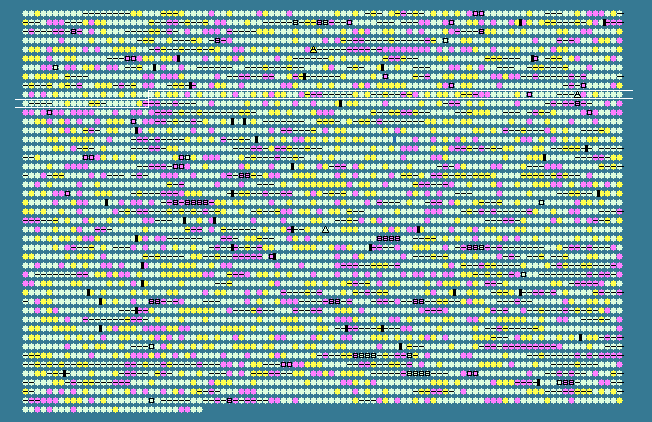

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 62.08   STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
922	 64.14	0	979580..982117	+	845	37520491	-	glr0922	-	nitrogen assimilation regulatory protein
923	 67.22	+1	982375..983094	+	239	37520492	-	glr0923	-	hypothetical protein
924	 62.50	0	983375..983590	-	71	37520493	-	gsl0924	-	hypothetical protein
925	 65.77	0	983616..984173	-	185	37520494	-	gll0925	-	hypothetical protein
926	 66.95	+1	984204..984554	-	116	37520495	-	gll0926	-	pterin-4-alpha-carbinolamine dehydratase
927	 63.01	0	984639..984884	+	81	37520496	-	gsr0927	-	hypothetical protein
928	 55.33	-1	984875..985174	-	99	37520497	psb28	gvip123	-	photosystem II reaction center 13 kDa protein
929	 65.51	0	985240..985584	-	114	37520498	-	gll0929	-	protein kinase C inhibitor
930	 65.85	0	985658..986641	+	327	37520499	-	glr0930	-	hypothetical protein
931	 60.74	0	986638..987801	+	387	37520500	ycf84	gvip124	-	hypothetical protein
932	 64.05	0	987873..989249	+	458	37520501	glgA	gvip125	-	glycogen synthase
933	 63.59	0	989250..990290	-	346	37520502	-	gll0933	-	potassium channel protein
934	 68.01	+1	990287..991480	-	397	37520503	-	gll0934	-	N-acetyl-glucosamine-6-phosphate deacetylase
935	 61.48	0	991443..991847	+	134	37520504	-	glr0935	-	iron-sulfur cluster binding protein
936	 55.61	-1	991876..992526	+	216	37520505	-	glr0936	-	hypothetical protein
937	 59.26	0	992600..993409	-	269	37520506	-	gll0937	-	hypothetical protein
938	 65.56	0	993587..996034	-	815	37520507	-	gll0938	-	proteinase
939	 68.56	+1	996502..996870	+	122	37520508	-	glr0939	-	hypothetical protein
940	 64.64	0	996963..998045	+	360	37520509	-	glr0940	-	sorbitol dehydrogenase
941	 67.39	+1	998032..998994	-	320	37520510	-	gll0941	-	hypothetical protein
942	 49.25	-2	999418..999618	+	66	37520511	-	gsr0942	-	hypothetical protein
943	 66.67	0	999853..1001253	+	466	37520512	hemG	gvip126	-	protoporphyrinogen oxidase
944	 66.29	0	1001273..1001809	+	178	37520513	-	glr0944	-	hypothetical protein
945	 62.88	0	1001858..1002490	+	210	37520514	-	glr0945	-	carbonate dehydratase
946	 62.43	0	1002451..1003560	-	369	37520515	-	gll0946	-	hypothetical protein
947	 57.66	0	1003564..1005051	-	495	37520516	-	gll0947	-	alginate O-acetylation protein
948	 65.58	0	1005232..1006890	-	552	37520517	-	gll0948	-	ABC transporter permease
949	 51.75	-2	1007073..1007300	-	75	37520518	-	gsl0949	-	hypothetical protein
950	 57.12	-1	1007663..1008322	+	219	37520519	cpcC	gvip127	-	phycocyanin-associated rod linker protein
951	 62.84	0	1008374..1008922	+	182	37520520	-	glr0951	-	hypothetical protein
952	 62.45	0	1008970..1009515	+	181	37520521	-	glr0952	-	hypothetical protein
953	 65.21	0	1009533..1010696	-	387	37520522	-	gll0953	-	hypothetical protein
954	 62.76	0	1010755..1011855	+	366	37520523	-	glr0954	-	esterase
955	 63.72	0	1012150..1012827	+	225	37520524	-	glr0955	-	hypothetical protein
956	 67.76	+1	1012960..1014153	-	397	37520525	-	gll0956	-	hypothetical protein
957	 63.97	0	1014180..1015253	-	357	37520526	-	gll0957	-	dioxygenase
958	 65.78	0	1015311..1018919	-	1202	37520527	-	gll0958	-	urea amidolyase
959	 62.88	0	1018947..1019606	-	219	37520528	-	gll0959	-	hypothetical protein
960	 64.57	0	1019619..1020335	-	238	37520529	-	gll0960	-	hypothetical protein
961	 68.58	+1	1020621..1022447	+	608	37520530	-	glr0961	-	amidase
962	 62.15	0	1022424..1022711	-	95	37520531	-	gsl0962	-	hypothetical protein
963	 63.94	0	1022981..1024702	-	573	37520532	-	gll0963	-	hypothetical protein
964	 58.43	0	1024824..1025078	-	84	37520533	-	gsl0964	-	hypothetical protein
965	 66.78	0	1025320..1027053	+	577	37520534	-	glr0965	-	N-acetylmuramoyl-L-alanine amidase
966	 51.22	-2	1027487..1028101	+	204	37520535	-	glr0966	-	outer membrane lipoprotein
967	 61.45	0	1028303..1028551	-	82	37520536	-	gsl0967	-	hypothetical protein
968	 74.27	+2	1028750..1029196	+	148	37520537	-	glr0968	-	hypothetical protein
969	 63.68	0	1029221..1030591	-	456	37520538	-	gll0969	-	UDP-glucose dehydrogenase
970	 67.15	+1	1030730..1031773	+	347	37520539	pdxA	glr0970	-	4-hydroxythreonine-4-phosphate dehydrogenase
971	 67.43	+1	1031843..1033150	+	435	37520540	-	glr0971	-	hypothetical protein
972	 63.66	0	1033173..1033538	+	121	37520541	-	glr0972	-	hypothetical protein
973	 65.98	0	1033590..1034321	+	243	37520542	-	glr0973	-	peptidyl-prolyl cis-trans isomerase
974	 67.12	+1	1034318..1035205	-	295	37520543	-	gll0974	-	hypothetical protein
975	 66.67	0	1035273..1036919	+	548	37520544	-	glr0975	-	hypothetical protein
976	 57.32	-1	1036961..1037527	+	188	37520545	-	glr0976	-	hypothetical protein
977	 43.10	-2	1037994..1038341	+	115	37520546	-	glr0977	-	hypothetical protein
978	 51.18	-2	1038338..1038718	+	126	37520547	-	glr0978	-	hypothetical protein
979	 63.76	0	1039007..1040212	+	401	37520548	-	glr0979	-	hypothetical protein
980	 63.81	0	1040299..1042713	-	804	37520549	-	gll0980	-	glucosyl transferase
981	 62.39	0	1043166..1043867	-	233	37520550	nblB	gvip128	-	phycocyanin alpha phycocyanobilin lyase related protein NblB-like protein
982	 61.63	0	1043986..1047360	+	1124	37520551	-	glr0982	-	hypothetical protein
983	 66.41	0	1047373..1048527	+	384	37520552	-	glr0983	-	hypothetical protein
984	 62.90	0	1048615..1050285	+	556	37520553	-	glr0984	-	hypothetical protein
985	 50.17	-2	1050477..1050767	+	96	37520554	-	gsr0985	-	putative transposase
986	 62.61	0	1051203..1051892	+	229	37520555	-	glr0986	-	hypothetical protein
987	 62.93	0	1052027..1052989	+	320	37520556	rps1	gvip129	-	30S ribosomal protein S1
988	 64.11	0	1053093..1054811	+	572	37520557	ribA	gvip130	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
989	 59.40	0	1054900..1055133	-	77	37520558	-	gsl0989	-	hypothetical protein
990	 62.73	0	1055412..1056122	+	236	37520559	-	glr0990	-	protein phosphatase-like protein
991	 63.92	0	1056285..1057121	-	278	37520560	-	gll0991	-	hypothetical protein
992	 60.12	0	1057258..1057899	-	213	37520561	-	gll0992	-	hypothetical protein
993	 62.15	0	1058173..1058748	-	191	37520562	xer	gvip131	-	integrase/recombinase
994	 57.40	0	1059020..1062031	-	1003	37520563	-	gll0994	-	hypothetical protein
995	 59.09	0	1062061..1065042	-	993	37520564	-	gll0995	-	hypothetical protein
996	 66.18	0	1065139..1065552	-	137	37520565	-	gll0996	-	hypothetical protein
997	 60.62	0	1065716..1068097	+	793	37520566	-	glr0997	-	putative phosphoketolase
998	 58.93	0	1068192..1070762	+	856	37520567	-	glr0998	-	glycogen phosphorylase
999	 64.63	0	1070774..1071412	+	212	37520568	-	glr0999	-	hypothetical protein
1000	 64.53	0	1071423..1072640	+	405	37520569	-	glr1000	-	acetate kinase
1001	 61.90	0	1072648..1073592	-	314	37520570	-	gll1001	-	LysR family transcriptional regulator
1002	 64.72	0	1073721..1074029	-	102	37520571	-	gll1002	-	hypothetical protein
1003	 63.57	0	1074281..1076089	+	602	37520572	ndhF	gvip132	-	NAD(P)H-quinone oxidoreductase subunit F
1004	 63.70	0	1076127..1077641	+	504	37520573	ndhD	gvip133	-	NAD(P)H-quinone oxidoreductase subunit M
1005	 60.26	0	1077664..1078974	+	436	37520574	cupA	gvip134	-	hypothetical protein
1006	 63.95	0	1078996..1079400	+	134	37520575	-	glr1006	-	hypothetical protein
1007	 63.24	0	1079436..1080164	+	242	37520576	-	glr1007	-	hypothetical protein
1008	 65.98	0	1080179..1081201	-	340	37520577	-	gll1008	-	hypothetical protein
1009	 63.00	0	1081305..1081958	+	217	37520578	-	glr1009	-	hypothetical protein
1010	 63.51	0	1082038..1082670	+	210	37520579	-	glr1010	-	hypothetical protein
1011	 60.70	0	1082736..1083590	+	284	37520580	-	glr1011	-	hypothetical protein
1012	 67.42	+1	1083803..1084858	-	351	37520581	-	gll1012	-	iron(III) ABC transporter ATP-binding protein
1013	 68.44	+1	1084855..1086486	-	543	37520582	-	gll1013	-	iron(III) ABC transporter permease protein
1014	 62.55	0	1086493..1087560	-	355	37520583	-	gll1014	-	iron(III) ABC transporter iron (III)-binding protein
1015	 64.27	0	1087633..1088007	-	124	37520584	-	gll1015	-	hypothetical protein
1016	 63.40	0	1088255..1091647	+	1130	37520585	-	glr1016	-	two-component hybrid sensor and regulator
1017	 65.12	0	1091792..1092760	+	322	37520586	-	glr1017	-	aspartate-semialdehyde dehydrogenase
1018	 64.63	0	1092757..1093638	+	293	37520587	dapA	gvip135	-	dihydrodipicolinate synthase
1019	 62.87	0	1093697..1095460	+	587	37520588	-	glr1019	-	hypothetical protein
1020	 65.75	0	1095482..1097443	-	653	37520589	topA	gvip136	-	DNA topoisomerase I
1021	 39.06	-2	1097513..1098175	-	220	37520590	-	gll1021	-	hypothetical protein
62.08	MEAN

4.75	STD DEV
