IslandPath Analysis: Gloeobacter violaceus PCC 7421

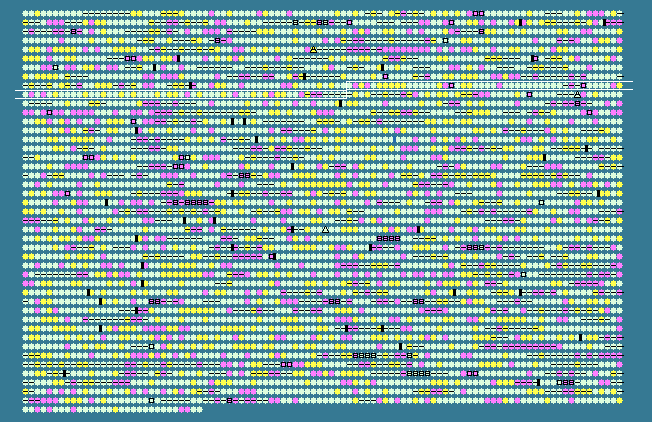

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
855	 63.68	0	904652..905623	+	323	37520424	ycf48	gvip108	-	Ycf48-like protein
856	 53.73	-1	905698..905952	+	84	37520425	psbE	gvip109	-	cytochrome b559 subunit alpha
857	 66.03	0	905972..906127	+	51	37520426	psbF	gvip110	-	cytochrome b559 subunit beta
858	 50.88	-2	906143..906256	+	37	37520427	psbL	gvip111	-	photosystem II protein L
859	 61.26	0	906270..906380	+	36	37520428	psbJ	gvip112	-	photosystem II reaction center protein J
860	 68.06	+1	906514..907230	+	238	37520429	-	glr0860	-	two-component response regulator
861	 70.27	+1	907227..908669	+	480	37520430	-	glr0861	-	two-component sensor histidine kinase
862	 69.80	+1	908682..910151	-	489	37520431	-	gll0862	-	hypothetical protein
863	 66.67	0	910168..910497	-	109	37520432	-	gll0863	-	hypothetical protein
864	 67.85	+1	910623..911807	-	394	37520433	-	gll0864	-	hypothetical protein
865	 61.47	0	911965..912426	-	153	37520434	-	gll0865	-	hypothetical protein
866	 61.52	0	912700..913827	-	375	37520435	-	gll0866	-	A/G-specific adenine glycosylase
867	 62.03	0	914022..915704	+	560	37520436	pds	gvip113	-	phytoene dehydrogenase
868	 63.84	0	915769..916263	+	164	37520437	-	glr0868	-	hypothetical protein
869	 63.61	0	916264..916656	+	130	37520438	mutT	gvip114	-	mutator protein
870	 66.72	0	916653..918662	+	669	37520439	chlD	gvip115	-	Mg chelatase subunit
871	 55.61	-1	919068..919655	+	195	37520440	-	glr0871	-	hypothetical protein
872	 50.57	-2	919913..920968	+	351	37520441	-	glr0872	-	putative transposase
873	 59.95	0	922109..922495	-	128	37520442	-	gll0873	-	hypothetical protein
874	 67.41	+1	922604..923272	+	222	37520443	-	glr0874	-	hypothetical protein
875	 66.50	0	923319..924500	-	393	37520444	-	gll0875	-	HlyD family multidrug efflux protein
876	 63.20	0	924507..927737	-	1076	37520445	-	gll0876	-	AcrB/AcrD/AcrF family multidrug efflux protein
877	 63.54	0	927961..928248	+	95	37520446	-	gsr0877	-	transcription regulator ArsR
878	 60.88	0	928383..929558	-	391	37520447	-	gll0878	-	hypothetical protein
879	 63.79	0	929709..931235	-	508	37520448	-	gll0879	-	oxaloacetate decarboxylase
880	 56.76	-1	931248..931580	-	110	37520449	-	gll0880	-	thioredoxin
881	 64.89	0	931910..933880	-	656	37520450	gidA	gvip116	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
882	 63.94	0	934036..934365	+	109	37520451	ycf54	gvip117	-	hypothetical protein
883	 61.66	0	935009..935587	+	192	37520452	trpG	gvip118	-	anthranilate synthase component II
884	 64.51	0	935584..936417	+	277	37520453	-	glr0884	-	hypothetical protein
885	 63.77	0	936511..938238	+	575	37520454	-	glr0885	-	hypothetical protein
886	 61.85	0	938257..939066	-	269	37520455	-	gll0886	-	hypothetical protein
887	 62.88	0	939050..940000	-	316	37520456	-	gll0887	-	hypothetical protein
888	 64.53	0	940053..940943	-	296	37520457	nadC	gvip119	-	nicotinate-nucleotide pyrophosphorylase
889	 64.33	0	940972..941655	+	227	37520458	trmD	glr0889	-	tRNA (guanine-N(1)-)-methyltransferase
890	 62.37	0	941659..943149	+	496	37520459	-	glr0890	-	ABC transporter permease
891	 60.39	0	943306..943560	-	84	37520460	-	gsl0891	-	hypothetical protein
892	 56.22	-1	943751..945214	+	487	37520461	-	glr0892	-	hypothetical protein
893	 64.52	0	945221..947359	-	712	37520462	-	gll0893	-	hypothetical protein
894	 52.14	-2	947969..948505	+	178	37520463	-	glr0894	-	putative transposase
895	 61.23	0	948990..950570	+	526	37520464	-	glr0895	-	hypothetical protein
896	 62.22	0	950578..952872	-	764	37520465	-	gll0896	-	hypothetical protein
897	 64.49	0	953119..954729	-	536	37520466	-	gll0897	-	hypothetical protein
898	 60.64	0	954759..955472	+	237	37520467	pspA	gvip120	-	hypothetical protein
899	 58.39	0	955562..956467	-	301	37520468	-	gll0899	-	metalloprotease MEP1-like protein
900	 66.39	0	956598..957311	-	237	37520469	-	gll0900	-	hypothetical protein
901	 62.66	0	957315..958313	-	332	37520470	-	gll0901	-	ribose-phosphate pyrophosphokinase
902	 53.03	-1	958477..958872	+	131	37520471	-	glr0902	-	hypothetical protein
903	 65.01	0	959007..959849	+	280	37520472	rplB	gvip121	-	50S ribosomal protein L2
904	 58.42	0	959858..960136	+	92	37520473	rps19	gvip122	-	30S ribosomal protein S19
905	 63.65	0	960335..961195	+	286	37520474	-	glr0905	-	hypothetical protein
906	 68.72	+1	961229..962884	+	551	37520475	-	glr0906	-	WD repeat-containing protein
907	 65.22	0	963132..963755	-	207	37520476	-	gll0907	-	hypothetical protein
908	 65.02	0	963758..964366	-	202	37520477	-	gll0908	-	ThiJ/PfpI family protein
909	 62.19	0	964403..964960	-	185	37520478	-	gll0909	-	hypothetical protein
910	 64.25	0	965049..966248	-	399	37520479	-	gll0910	-	hypothetical protein
911	 68.85	+1	966395..967126	-	243	37520480	-	gll0911	-	hypothetical protein
912	 63.08	0	967225..968535	+	436	37520481	-	glr0912	-	sugar transporter
913	 63.69	0	968556..969227	-	223	37520482	-	gll0913	-	hypothetical protein
914	 68.14	+1	969401..969739	-	112	37520483	-	gll0914	-	hypothetical protein
915	 64.39	0	969963..971414	+	483	37520484	-	glr0915	-	serine/threonine kinase
916	 59.86	0	971507..971800	-	97	37520485	-	gsl0916	-	hypothetical protein
917	 67.19	+1	971801..973126	-	441	37520486	-	gll0917	-	hypothetical protein
918	 63.50	0	973107..973517	-	136	37520487	-	gll0918	-	hypothetical protein
919	 66.89	+1	973628..975913	-	761	37520488	-	gll0919	-	hypothetical protein
920	 65.24	0	975910..977808	-	632	37520489	-	gll0920	-	hypothetical protein
921	 63.69	0	977830..979407	-	525	37520490	-	gll0921	-	general secretion pathway protein E
922	 64.14	0	979580..982117	+	845	37520491	-	glr0922	-	nitrogen assimilation regulatory protein
923	 67.22	+1	982375..983094	+	239	37520492	-	glr0923	-	hypothetical protein
924	 62.50	0	983375..983590	-	71	37520493	-	gsl0924	-	hypothetical protein
925	 65.77	0	983616..984173	-	185	37520494	-	gll0925	-	hypothetical protein
926	 66.95	+1	984204..984554	-	116	37520495	-	gll0926	-	pterin-4-alpha-carbinolamine dehydratase
927	 63.01	0	984639..984884	+	81	37520496	-	gsr0927	-	hypothetical protein
928	 55.33	-1	984875..985174	-	99	37520497	psb28	gvip123	-	photosystem II reaction center 13 kDa protein
929	 65.51	0	985240..985584	-	114	37520498	-	gll0929	-	protein kinase C inhibitor
930	 65.85	0	985658..986641	+	327	37520499	-	glr0930	-	hypothetical protein
931	 60.74	0	986638..987801	+	387	37520500	ycf84	gvip124	-	hypothetical protein
932	 64.05	0	987873..989249	+	458	37520501	glgA	gvip125	-	glycogen synthase
933	 63.59	0	989250..990290	-	346	37520502	-	gll0933	-	potassium channel protein
934	 68.01	+1	990287..991480	-	397	37520503	-	gll0934	-	N-acetyl-glucosamine-6-phosphate deacetylase
935	 61.48	0	991443..991847	+	134	37520504	-	glr0935	-	iron-sulfur cluster binding protein
936	 55.61	-1	991876..992526	+	216	37520505	-	glr0936	-	hypothetical protein
937	 59.26	0	992600..993409	-	269	37520506	-	gll0937	-	hypothetical protein
938	 65.56	0	993587..996034	-	815	37520507	-	gll0938	-	proteinase
939	 68.56	+1	996502..996870	+	122	37520508	-	glr0939	-	hypothetical protein
940	 64.64	0	996963..998045	+	360	37520509	-	glr0940	-	sorbitol dehydrogenase
941	 67.39	+1	998032..998994	-	320	37520510	-	gll0941	-	hypothetical protein
942	 49.25	-2	999418..999618	+	66	37520511	-	gsr0942	-	hypothetical protein
943	 66.67	0	999853..1001253	+	466	37520512	hemG	gvip126	-	protoporphyrinogen oxidase
944	 66.29	0	1001273..1001809	+	178	37520513	-	glr0944	-	hypothetical protein
945	 62.88	0	1001858..1002490	+	210	37520514	-	glr0945	-	carbonate dehydratase
946	 62.43	0	1002451..1003560	-	369	37520515	-	gll0946	-	hypothetical protein
947	 57.66	0	1003564..1005051	-	495	37520516	-	gll0947	-	alginate O-acetylation protein
948	 65.58	0	1005232..1006890	-	552	37520517	-	gll0948	-	ABC transporter permease
949	 51.75	-2	1007073..1007300	-	75	37520518	-	gsl0949	-	hypothetical protein
950	 57.12	-1	1007663..1008322	+	219	37520519	cpcC	gvip127	-	phycocyanin-associated rod linker protein
951	 62.84	0	1008374..1008922	+	182	37520520	-	glr0951	-	hypothetical protein
952	 62.45	0	1008970..1009515	+	181	37520521	-	glr0952	-	hypothetical protein
953	 65.21	0	1009533..1010696	-	387	37520522	-	gll0953	-	hypothetical protein
954	 62.76	0	1010755..1011855	+	366	37520523	-	glr0954	-	esterase
62.08	MEAN

4.75	STD DEV
