IslandPath Analysis: Gloeobacter violaceus PCC 7421

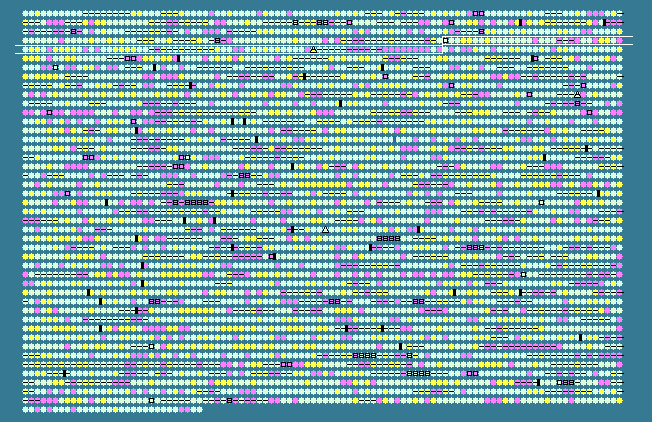

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
371	 65.17	0	385225..386628	-	467	37519940	-	gll0371	-	putative transposase
372	 64.95	0	386920..387561	-	213	37519941	-	gll0372	-	hypothetical protein
373	 60.55	0	387592..389520	+	642	37519942	-	glr0373	-	cyclomaltodextrin glucanotransferase
374	 65.69	0	389550..390773	+	407	37519943	-	glr0374	-	N-acyl-L-amino acid amidohydrolase
375	 65.69	0	390875..392623	+	582	37519944	-	glr0375	-	hypothetical protein
376	 62.86	0	392640..394373	+	577	37519945	-	glr0376	-	two-component sensor histidine kinase
377	 65.42	0	394342..395061	-	239	37519946	cobI	gvip028	-	precorrin-2 methyltransferase
378	 68.54	+1	395058..396287	-	409	37519947	cobL	gvip029	-	precorrin-6Y methylase
379	 64.01	0	396342..396980	-	212	37519948	-	gll0379	-	two-component response regulator
380	 60.77	0	396973..398040	-	355	37519949	-	gll0380	-	two-component sensor histidine kinase
381	 64.62	0	398341..399660	+	439	37519950	-	glr0381	-	hypothetical protein
382	 63.44	0	399707..402934	+	1075	37519951	-	glr0382	-	cation efflux system membrane protein CzcA-like protein
383	 63.71	0	403202..405469	-	755	37519952	-	gll0383	-	potassium efflux transporter
384	 63.99	0	405587..406183	-	198	37519953	cobH	gvip030	-	precorrin-8X methylmutase
385	 62.44	0	406192..406854	+	220	37519954	cobO	gvip031	-	cob(I)alamin adenosyltransferase
386	 43.27	-2	407182..408318	+	378	37519955	-	glr0386	-	hypothetical protein
387	 62.32	0	408371..410005	-	544	37519956	-	gll0387	-	hypothetical protein
388	 65.25	0	410021..411436	+	471	37519957	-	glr0388	-	phosphoglucomutase/phosphomannomutase
389	 61.04	0	411428..411676	-	82	37519958	-	gsl0389	-	hypothetical protein
390	 58.33	0	411716..411979	+	87	37519959	-	gsr0390	-	hypothetical protein
391	 63.50	0	411984..412772	-	262	37519960	-	gll0391	-	hypothetical protein
392	 55.20	-1	412876..413154	+	92	37519961	-	gsr0392	-	hypothetical protein
393	 51.84	-2	413184..413864	+	226	37519962	-	glr0393	-	hypothetical protein
394	 62.83	0	414059..415780	-	573	37519963	crtO	gvip032	-	beta-carotene ketolase
395	 63.75	0	415943..416869	+	308	37519964	-	glr0395	-	hypothetical protein
396	 40.32	-2	416900..417700	-	266	37519965	-	gll0396	-	hypothetical protein
397	 65.64	0	418932..420098	-	388	37519966	bioF	gvip033	-	8-amino-7-oxononanoate synthase
398	 67.20	+1	420221..420976	+	251	37519967	-	glr0398	-	hypothetical protein
399	 61.32	0	420977..421612	-	211	37519968	rpl25	gvip034	-	50S ribosomal protein L25
400	 56.13	-1	421800..422150	+	116	37519969	-	glr0400	-	hypothetical protein
401	 64.52	0	422163..422999	-	278	37519970	ycf62	gvip035	-	hypothetical protein
402	 67.15	+1	423115..423321	-	68	37519971	ycf40	gvip036	-	hypothetical protein
403	 67.03	+1	423314..424414	-	366	37519972	thiE	gvip037	-	thiamine-phosphate pyrophosphorylase
404	 63.70	0	424535..426457	+	640	37519973	-	glr0404	-	hypothetical protein
405	 56.90	-1	426531..426827	-	98	37519974	-	gsl0405	-	hypothetical protein
406	 69.30	+1	427048..427881	+	277	37519975	tyrA	gvip038	-	arogenate dehydrogenase
407	 66.23	0	427910..428590	+	226	37519976	hisH	gvip039	-	imidazole glycerol phosphate synthase subunit HisH
408	 68.41	+1	428571..429029	-	152	37519977	-	gll0408	-	hypothetical protein
409	 67.65	+1	429019..429627	-	202	37519978	-	gll0409	-	hypothetical protein
410	 63.18	0	429655..430371	-	238	37519979	ho1	gvip040	-	heme oxygenase
411	 57.29	-1	430659..431042	+	127	37519980	-	glr0411	-	hypothetical protein
412	 63.67	0	431172..431939	+	255	37519981	-	glr0412	-	methionine aminopeptidase
413	 56.76	-1	431960..432181	+	73	37519982	infA	gvip041	-	translation initiation factor IF-1
414	 63.09	0	432198..435017	-	939	37519983	ppc	gvip042	-	phosphoenolpyruvate carboxylase
415	 63.37	0	435150..437000	-	616	37519984	-	gll0415	-	hypothetical protein
416	 66.33	0	437071..437958	-	295	37519985	crtE	gvip043	-	geranylgeranyl pyrophosphate synthase
417	 69.27	+1	437995..439530	-	511	37519986	-	gll0417	-	sugar hydrolase
418	 67.18	+1	439564..440721	+	385	37519987	-	glr0418	-	two-component sensor histidine kinase
419	 66.15	0	440830..441216	+	128	37519988	-	glr0419	-	hypothetical protein
420	 61.21	0	441240..442100	+	286	37519989	-	glr0420	-	oxidoreductase
421	 62.79	0	442090..443661	-	523	37519990	leuA	gvip044	-	alpha-isopropylmalate/homocitrate synthase family transferase
422	 59.57	0	443837..445105	+	422	37519991	-	glr0422	-	serine/threonine kinase
423	 57.38	0	445483..446085	+	200	37519992	-	glr0423	-	hypothetical protein
424	 66.07	0	446288..446455	-	55	37519993	-	gsl0424	-	hypothetical protein
425	 61.89	0	446649..448322	-	557	37519994	-	gll0425	-	hypothetical protein
426	 61.90	0	448365..448931	-	188	37519995	-	gll0426	-	hypothetical protein
427	 66.20	0	448965..458798	-	3277	37519996	-	gll0427	-	hypothetical protein
428	 61.58	0	458801..459331	-	176	37519997	-	gll0428	-	hypothetical protein
429	 65.22	0	459331..459606	-	91	37519998	-	gsl0429	-	hypothetical protein
430	 70.60	+1	459704..460339	-	211	37519999	-	gll0430	-	hypothetical protein
431	 63.94	0	460351..462441	-	696	37520000	-	gll0431	-	serine/threonine kinase
432	 66.49	0	462585..463721	+	378	37520001	-	glr0432	-	hypothetical protein
433	 68.21	+1	463718..464170	-	150	37520002	ycf41	gvip045	-	hypothetical protein
434	 58.76	0	464176..464466	-	96	37520003	rpsF	gvip046	-	30S ribosomal protein S6
435	 63.22	0	464612..466120	+	502	37520004	-	glr0435	-	long-chain-fatty-acid-CoA ligase
436	 57.01	-1	466174..467043	+	289	37520005	-	glr0436	-	ABC transporter ATP-binding protein
437	 58.05	0	467040..468629	+	529	37520006	-	glr0437	-	hypothetical protein
438	 61.45	0	468631..469320	+	229	37520007	-	glr0438	-	hypothetical protein
439	 67.18	+1	469357..469743	+	128	37520008	-	glr0439	-	hypothetical protein
440	 62.96	0	469757..470134	+	125	37520009	-	glr0440	-	hypothetical protein
441	 70.54	+1	470137..470523	+	128	37520010	-	glr0441	-	hypothetical protein
442	 60.67	0	470524..470790	-	88	37520011	-	gsl0442	-	phosphoribosylformylglycinamidine synthase subunit PurS
443	 66.45	0	470886..472256	+	456	37520012	-	glr0443	-	UDP-N-acetylglucosamine pyrophosphorylase
444	 64.90	0	472253..473044	-	263	37520013	surE	gll0444	-	stationary phase survival protein SurE
445	 60.92	0	473307..474350	+	347	37520014	-	glr0445	-	phosphate ABC transporter periplasmic phosphate-binding protein
446	 61.96	0	474386..475363	+	325	37520015	-	glr0446	-	phosphate ABC transporter permease protein
447	 61.26	0	475370..476257	+	295	37520016	-	glr0447	-	phosphate ABC transporter permease protein
448	 57.99	0	476275..477081	+	268	37520017	-	glr0448	-	phosphate ABC transporter ATP binding protein
449	 66.55	0	477154..478002	-	282	37520018	xer	gvip047	-	integrase/recombinase
450	 59.79	0	478018..478497	-	159	37520019	-	gll0450	-	hypothetical protein
451	 60.14	0	478664..479491	+	275	37520020	-	glr0451	-	hypothetical protein
452	 58.78	0	479504..479896	-	130	37520021	-	gll0452	-	hypothetical protein
453	 63.08	0	480859..481833	+	324	37520022	-	glr0453	-	hypothetical protein
454	 60.27	0	481891..483921	+	676	37520023	-	glr0454	-	hypothetical protein
455	 57.68	0	483925..485304	+	459	37520024	-	glr0455	-	hypothetical protein
456	 54.19	-1	485339..486412	+	357	37520025	-	glr0456	-	glycosyltransferase
457	 58.38	0	486426..487910	+	494	37520026	-	glr0457	-	hypothetical protein
458	 56.52	-1	487915..488574	+	219	37520027	-	glr0458	-	glycosyltransferase
459	 61.48	0	488609..489784	+	391	37520028	-	glr0459	-	glycosyltransferase
460	 55.44	-1	489800..491215	-	471	37520029	-	gll0460	-	hypothetical protein
461	 51.07	-2	491587..492477	+	296	37520030	-	glr0461	-	hypothetical protein
462	 55.28	-1	492553..494475	+	640	37520031	-	glr0462	-	hypothetical protein
463	 56.72	-1	494627..495862	+	411	37520032	-	glr0463	-	glycosyltransferase
464	 49.31	-2	495942..496880	+	312	37520033	-	glr0464	-	hypothetical protein
465	 56.64	-1	496976..497863	+	295	37520034	-	glr0465	-	hypothetical protein
466	 55.96	-1	497893..499116	+	407	37520035	-	glr0466	-	hypothetical protein
467	 57.87	0	499175..500698	+	507	37520036	-	glr0467	-	hypothetical protein
468	 58.36	0	501287..502369	+	360	37520037	rfbB	gvip048	-	dTDP-glucose 4-6-dehydratase
469	 63.81	0	502369..503244	+	291	37520038	rfbA	gvip049	-	glucose-1-phosphate thymidylyltransferase
470	 57.30	-1	503246..503800	+	184	37520039	rfbC	gvip050	-	dTDP-4-dehydrorhamnose 3,5-epimerase
62.08	MEAN

4.75	STD DEV
