IslandPath Analysis: Gloeobacter violaceus PCC 7421

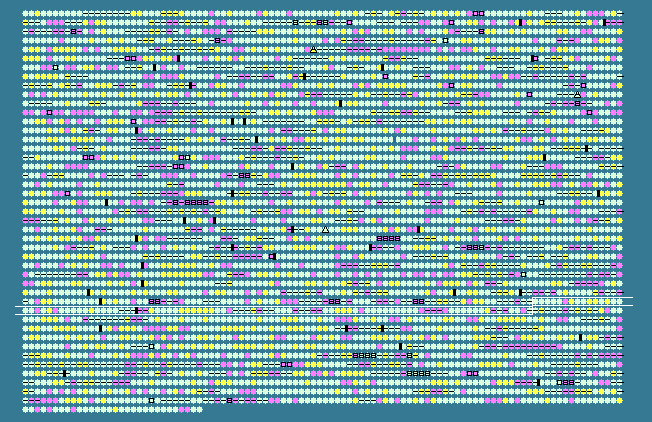

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3286	 62.44	0	3491010..3491222	+	70	37522855	-	gsr3286	-	hypothetical protein
3287	 60.98	0	3491278..3491523	-	81	37522856	psaC	gvip455	-	photosystem I subunit VII
3288	 64.69	0	3491636..3492595	-	319	37522857	-	gll3288	-	hypothetical protein
3289	 62.74	0	3492606..3493598	-	330	37522858	-	gll3289	-	hypothetical protein
3290	 65.08	0	3493667..3494677	-	336	37522859	-	gll3290	-	hypothetical protein
3291	 56.68	-1	3494797..3495507	+	236	37522860	-	glr3291	-	TetR family transcriptional regulatory protein
3292	 67.28	+1	3495502..3495825	-	107	37522861	-	gll3292	-	hypothetical protein
3293	 62.19	0	3495852..3496544	-	230	37522862	-	gll3293	-	hypothetical protein
3294	 60.24	0	3496582..3497172	+	196	37522863	-	glr3294	-	hypothetical protein
3295	 69.20	+1	3497217..3497888	+	223	37522864	-	glr3295	-	hypothetical protein
3296	 65.69	0	3497938..3498141	+	67	37522865	-	gsr3296	-	hypothetical protein
3297	 58.75	0	3498168..3498647	+	159	37522866	-	glr3297	-	hypothetical protein
3298	 70.31	+1	3498648..3499634	+	328	37522867	-	glr3298	-	thiamine-monophosphate kinase
3299	 62.68	0	3499663..3500916	+	417	37522868	-	glr3299	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
3300	 62.64	0	3500927..3501448	-	173	37522869	ruvC	gvip456	-	Holliday junction resolvase
3301	 63.27	0	3501538..3501978	+	146	37522870	-	glr3301	-	hypothetical protein
3302	 59.68	0	3502000..3502185	-	61	37522871	-	gsl3302	-	hypothetical protein
3303	 57.29	-1	3502245..3502820	+	191	37522872	-	glr3303	-	hypothetical protein
3304	 59.52	0	3502932..3503393	+	153	37522873	-	glr3304	-	ferric uptake regulation protein
3305	 66.84	+1	3503419..3505125	+	568	37522874	-	glr3305	-	hydrolase
3306	 58.12	0	3505153..3505620	+	155	37522875	-	glr3306	-	hypothetical protein
3307	 61.52	0	3505970..3506824	-	284	37522876	-	gll3307	-	hypothetical protein
3308	 63.93	0	3506873..3508441	-	522	37522877	-	gll3308	-	hypothetical protein
3309	 63.08	0	3508438..3509469	-	343	37522878	-	gll3309	-	ABC transporter permease protein
3310	 65.34	0	3509506..3510261	-	251	37522879	-	gll3310	-	ABC transporter ATP-binding protein
3311	 64.21	0	3510442..3511458	+	338	37522880	-	glr3311	-	ABC transporter solute-binding protein
3312	 66.39	0	3511483..3512214	+	243	37522881	-	glr3312	-	ABC transporter ATP-binding protein
3313	 62.02	0	3512214..3513116	+	300	37522882	-	glr3313	-	ABC transporter permease protein
3314	 62.25	0	3513109..3513516	-	135	37522883	-	gll3314	-	hypothetical protein
3315	 64.95	0	3513626..3514267	-	213	37522884	-	gll3315	-	hypothetical protein
3316	 63.10	0	3514287..3515801	-	504	37522885	-	gll3316	-	4-alpha-glucanotransferase
3317	 63.73	0	3515892..3516299	-	135	37522886	-	gll3317	-	hypothetical protein
3318	 64.05	0	3516332..3517018	+	228	37522887	-	glr3318	-	hypothetical protein
3319	 63.85	0	3517062..3518231	-	389	37522888	-	gll3319	-	hypothetical protein
3320	 50.68	-2	3518883..3520646	-	587	37522889	-	gll3320	-	hypothetical protein
3321	 56.79	-1	3520978..3521301	+	107	37522890	-	glr3321	-	hypothetical protein
3322	 67.10	+1	3521396..3524893	+	1165	37522891	-	glr3322	-	chromosome segregation SMC protein
3323	 62.10	0	3525214..3526635	-	473	37522892	-	gll3323	-	pyruvate kinase
3324	 63.34	0	3526660..3527652	-	330	37522893	-	gll3324	-	L-lactate dehydrogenase A chain
3325	 61.24	0	3527689..3528720	-	343	37522894	gap1	gvip457	-	glyceraldehyde-3-phosphate dehydrogenase
3326	 63.26	0	3529118..3529675	-	185	37522895	-	gll3326	-	hypothetical protein
3327	 66.92	+1	3529931..3530725	+	264	37522896	-	glr3327	-	hypothetical protein
3328	 68.00	+1	3530780..3534448	+	1222	37522897	chlH	gvip458	-	magnesium protoporphyrin IX chelatase subunit H
3329	 69.55	+1	3534436..3535338	+	300	37522898	-	glr3329	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
3330	 65.76	0	3535451..3536332	+	293	37522899	-	glr3330	-	chemotaxis protein methyltransferase
3331	 67.45	+1	3536471..3537238	-	255	37522900	-	gll3331	-	dolichyl phosphoryl mannose synthase
3332	 65.91	0	3537247..3539085	-	612	37522901	-	gll3332	-	hypothetical protein
3333	 62.77	0	3539166..3540320	-	384	37522902	ycf84	gvip459	-	hypothetical protein
3334	 62.71	0	3540393..3541151	-	252	37522903	-	gll3334	-	ABC transporter ATP-binding protein
3335	 57.87	0	3541200..3542006	-	268	37522904	-	gll3335	-	ABC transporter permease protein
3336	 59.12	0	3542513..3542830	+	105	37522905	-	glr3336	-	hypothetical protein
3337	 63.01	0	3542845..3543309	-	154	37522906	-	gll3337	-	hypothetical protein
3338	 60.94	0	3543449..3543745	+	98	37522907	-	gsr3338	-	hypothetical protein
3339	 66.53	0	3543742..3544500	-	252	37522908	-	gll3339	-	hydroxyacylglutathione hydrolase
3340	 53.98	-1	3544558..3544896	+	112	37522909	-	glr3340	-	hypothetical protein
3341	 64.00	0	3544946..3547453	-	835	37522910	-	gll3341	-	mannose-1-phosphate guanyltransferase
3342	 61.48	0	3547620..3548660	+	346	37522911	glpX	gvip460	-	fructose 1,6-bisphosphatase II
3343	 61.09	0	3548747..3549499	-	250	37522912	-	gll3343	-	hypothetical protein
3344	 64.66	0	3549606..3552143	-	845	37522913	-	gll3344	-	hypothetical protein
3345	 64.99	0	3552250..3552606	-	118	37522914	-	gll3345	-	hypothetical protein
3346	 49.40	-2	3552791..3553288	+	165	37522915	-	glr3346	-	hypothetical protein
3347	 60.42	0	3553745..3554176	-	143	37522916	-	gll3347	-	hypothetical protein
3348	 58.67	0	3554394..3554906	-	170	37522917	-	gll3348	-	hypothetical protein
3349	 58.39	0	3554913..3555383	-	156	37522918	-	gll3349	-	hypothetical protein
3350	 58.60	0	3555351..3555722	+	123	37522919	-	glr3350	-	hypothetical protein
3351	 61.37	0	3556336..3557241	+	301	37522920	-	glr3351	-	ParB family chromosome partitioning protein
3352	 63.27	0	3558252..3560930	+	892	37522921	-	glr3352	-	hypothetical protein
3353	 65.75	0	3560975..3562060	+	361	37522922	-	glr3353	-	hypothetical protein
3354	 66.71	0	3562079..3564301	+	740	37522923	-	glr3354	-	hypothetical protein
3355	 66.46	0	3564402..3565373	+	323	37522924	-	glr3355	-	hypothetical protein
3356	 62.85	0	3565377..3566870	-	497	37522925	lysS	gvip461	-	lysyl-tRNA synthetase
3357	 51.92	-2	3567215..3567553	-	112	37522926	-	gll3357	-	hypothetical protein
3358	 61.72	0	3567563..3567865	-	100	37522927	-	gll3358	-	hypothetical protein
3359	 65.39	0	3567904..3568842	-	312	37522928	-	gll3359	-	hypothetical protein
3360	 65.56	0	3568953..3569858	+	301	37522929	-	glr3360	-	LysR family transcriptional regulator
3361	 59.37	0	3569958..3570368	+	136	37522930	-	glr3361	-	hypothetical protein
3362	 62.07	0	3570385..3572103	-	572	37522931	-	gll3362	-	electron transfer flavoprotein-ubiquinone oxidoreductase
3363	 64.00	0	3572081..3573166	-	361	37522932	-	gll3363	-	electron transfer flavoprotein, alpha subunit
3364	 64.61	0	3573163..3573987	-	274	37522933	-	gll3364	-	electron transfer flavoprotein, beta subunit
3365	 65.15	0	3574181..3574642	-	153	37522934	-	gll3365	-	hypothetical protein
3366	 61.20	0	3574621..3575004	-	127	37522935	-	gll3366	-	hypothetical protein
3367	 58.60	0	3575012..3575569	-	185	37522936	-	gll3367	-	hypothetical protein
3368	 54.18	-1	3576348..3577052	-	234	37522937	-	gll3368	-	hypothetical protein
3369	 53.41	-1	3577811..3579349	+	512	37522938	-	glr3369	-	hypothetical protein
3370	 45.47	-2	3580848..3581432	+	194	37522939	-	glr3370	-	hypothetical protein
3371	 54.24	-1	3581452..3582489	+	345	37522940	-	glr3371	-	hypothetical protein
3372	 61.75	0	3582963..3583145	-	60	37522941	-	gsl3372	-	hypothetical protein
3373	 65.42	0	3583399..3583638	-	79	37522942	-	gsl3373	-	hypothetical protein
3374	 61.08	0	3583788..3584753	+	321	37522943	-	glr3374	-	hypothetical protein
3375	 62.31	0	3584750..3586357	-	535	37522944	-	gll3375	-	hypothetical protein
3376	 65.38	0	3586762..3587463	+	233	37522945	-	glr3376	-	hypothetical protein
3377	 64.97	0	3587545..3588666	+	373	37522946	-	glr3377	-	transaldolase
3378	 66.10	0	3588663..3589187	-	174	37522947	moaC	gll3378	-	molybdenum cofactor biosynthesis protein C
3379	 57.97	0	3589262..3589606	+	114	37522948	-	glr3379	-	hypothetical protein
3380	 62.35	0	3590124..3590888	+	254	37522949	-	glr3380	-	hypothetical protein
3381	 53.33	-1	3590937..3591206	+	89	37522950	-	gsr3381	-	hypothetical protein
3382	 62.68	0	3591283..3592410	+	375	37522951	-	glr3382	-	hypothetical protein
3383	 62.95	0	3592407..3593051	+	214	37522952	hisG	gvip462	-	ATP phosphoribosyltransferase catalytic subunit
3384	 56.81	-1	3593048..3593260	-	70	37522953	-	gsl3384	-	hypothetical protein
3385	 63.93	0	3593348..3594079	-	243	37522954	-	gll3385	-	hypothetical protein
62.08	MEAN

4.75	STD DEV
