IslandPath Analysis: Gloeobacter violaceus PCC 7421

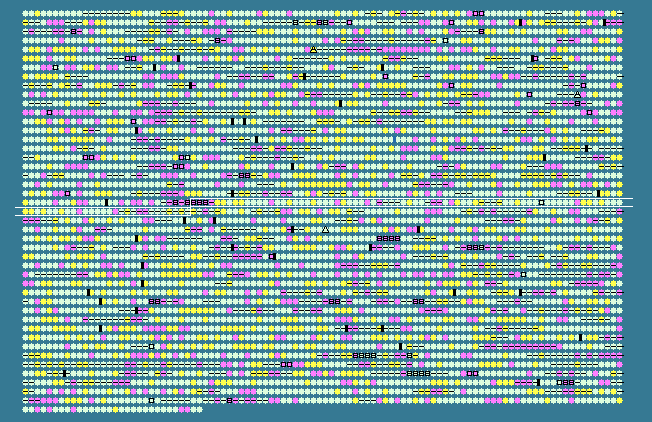

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2129	 43.27	-2	2282310..2282480	-	56	37521698	-	gsl2129	-	putative transposase
2130	 54.28	-1	2282617..2283189	+	190	37521699	-	glr2130	-	putative transposase
2131	 53.69	-1	2283239..2283793	+	184	37521700	-	glr2131	-	putative transposase
2132	 52.78	-1	2283911..2284198	-	95	37521701	-	gsl2132	-	hypothetical protein
2133	 66.27	0	2284271..2285782	-	503	37521702	crtH	gvip293	-	hypothetical protein
2134	 66.34	0	2285824..2286441	+	205	37521703	-	glr2134	-	dephospho-CoA kinase
2135	 65.09	0	2286426..2286995	-	189	37521704	-	gll2135	-	hypothetical protein
2136	 68.03	+1	2287095..2288045	+	316	37521705	-	glr2136	-	methyltransferase
2137	 69.41	+1	2288011..2289066	-	351	37521706	-	gll2137	-	oxidoreductase
2138	 61.76	0	2289132..2289539	+	135	37521707	-	glr2138	-	mannose-6-phosphate isomerase
2139	 64.64	0	2289707..2291287	+	526	37521708	serA	gvip294	-	D-3-phosphoglycerate dehydrogenase
2140	 62.48	0	2291337..2292077	+	246	37521709	-	glr2140	-	methyltransferase
2141	 64.78	0	2292097..2293689	+	530	37521710	-	glr2141	-	periplasmic oligopeptide-binding protein
2142	 51.14	-2	2293749..2294624	+	291	37521711	-	glr2142	-	hypothetical protein
2143	 63.23	0	2294654..2295031	-	125	37521712	-	gll2143	-	hypothetical protein
2144	 63.08	0	2295040..2296992	-	650	37521713	-	gll2144	-	hypothetical protein
2145	 68.24	+1	2297023..2297910	-	295	37521714	-	gll2145	-	malonyl coenzyme A-acyl carrier protein transacylase
2146	 63.78	0	2297974..2299326	-	450	37521715	-	gll2146	-	hypothetical protein
2147	 61.13	0	2299292..2300032	+	246	37521716	-	glr2147	-	hypothetical protein
2148	 63.95	0	2300033..2300731	-	232	37521717	-	gll2148	-	hypothetical protein
2149	 65.87	0	2300794..2302182	-	462	37521718	-	gll2149	-	malic enzyme
2150	 61.31	0	2302344..2302847	+	167	37521719	-	glr2150	-	hypothetical protein
2151	 64.86	0	2302905..2303291	-	128	37521720	-	gll2151	-	hypothetical protein
2152	 61.27	0	2303288..2304214	-	308	37521721	-	gll2152	-	hypothetical protein
2153	 57.44	0	2304241..2305161	+	306	37521722	-	glr2153	-	hypothetical protein
2154	 67.88	+1	2305168..2305908	-	246	37521723	-	gll2154	-	oxidoreductase
2155	 59.62	0	2306020..2306658	+	212	37521724	-	glr2155	-	AhpC/TSA family protein
2156	 64.35	0	2307046..2308470	+	474	37521725	rbcL	gvip295	-	ribulose bisophosphate carboxylase
2157	 62.96	0	2308500..2308877	+	125	37521726	rbcX	gvip296	-	hypothetical protein
2158	 56.39	-1	2308900..2309220	+	106	37521727	rbcS	gvip297	-	ribulose 1,5-bisphosphate carboxylase/oxygenase small subunit
2159	 64.70	0	2309302..2310369	+	355	37521728	-	glr2159	-	hypothetical protein
2160	 51.15	-2	2310435..2310782	-	115	37521729	-	gll2160	-	hypothetical protein
2161	 59.94	0	2310785..2311111	-	108	37521730	-	gll2161	-	hypothetical protein
2162	 61.40	0	2311236..2311862	-	208	37521731	ctaE	gvip298	-	cytochrome c oxidase subunit III
2163	 61.68	0	2311880..2313562	-	560	37521732	ctaD	gvip299	-	cytochrome c oxidase subunit I
2164	 61.81	0	2313566..2314492	-	308	37521733	ctaC	gvip300	-	cytochrome c oxidase subunit II
2165	 66.67	0	2314894..2315829	+	311	37521734	-	glr2165	-	hypothetical protein
2166	 63.29	0	2315841..2316758	+	305	37521735	ctaB	gvip301	-	protoheme IX farnesyltransferase
2167	 65.08	0	2316778..2317785	+	335	37521736	-	glr2167	-	ABC transporter ATP-binding protein
2168	 62.71	0	2317822..2318706	+	294	37521737	ycf38	gvip302	-	hypothetical protein
2169	 55.51	-1	2318703..2319401	-	232	37521738	-	gll2169	-	hypothetical protein
2170	 57.29	-1	2319719..2320294	+	191	37521739	-	glr2170	-	superoxide dismutase
2171	 62.31	0	2320338..2322587	+	749	37521740	-	glr2171	-	hypothetical protein
2172	 55.91	-1	2322659..2322937	-	92	37521741	-	gsl2172	-	hypothetical protein
2173	 69.19	+1	2323031..2323546	-	171	37521742	-	gll2173	-	ferripyochelin binding protein
2174	 64.26	0	2323555..2324511	-	318	37521743	-	gll2174	-	hypothetical protein
2175	 65.10	0	2324528..2324974	-	148	37521744	-	gll2175	-	hypothetical protein
2176	 70.06	+1	2325022..2327229	-	735	37521745	-	gll2176	-	hypothetical protein
2177	 66.01	0	2327284..2327742	-	152	37521746	-	gll2177	-	hypothetical protein
2178	 59.82	0	2327887..2329128	-	413	37521747	-	gll2178	-	hypothetical protein
2179	 61.15	0	2329248..2330207	-	319	37521748	rfbB	gvip303	-	dTDP-glucose 4-6-dehydratase
2180	 66.09	0	2330227..2331615	-	462	37521749	-	gll2180	-	UDP-glucose dehydrogenase
2181	 64.58	0	2331682..2332161	-	159	37521750	-	gll2181	-	hypothetical protein
2182	 64.96	0	2332140..2334662	-	840	37521751	-	gll2182	-	hypothetical protein
2183	 68.16	+1	2334659..2335060	-	133	37521752	-	gll2183	-	mannose-1-phosphate guanyltransferase
2184	 64.97	0	2335077..2335724	-	215	37521753	-	gll2184	-	hypothetical protein
2185	 58.70	0	2335728..2336543	-	271	37521754	-	gll2185	-	glucose-1-phosphate cytidylyltransferase
2186	 63.06	0	2336795..2337904	-	369	37521755	-	gll2186	-	acetyltransferase
2187	 60.20	0	2337933..2338442	-	169	37521756	-	gll2187	-	putative transposase
2188	 63.91	0	2338554..2339207	-	217	37521757	-	gll2188	-	glycosyl transferase
2189	 62.94	0	2339247..2340185	-	312	37521758	-	gll2189	-	glycosyl transferase
2190	 62.75	0	2340195..2341061	-	288	37521759	-	gll2190	-	hypothetical protein
2191	 62.89	0	2341064..2342518	-	484	37521760	-	gll2191	-	hypothetical protein
2192	 61.66	0	2342557..2343495	-	312	37521761	-	gll2192	-	glycosyl transferase
2193	 56.99	-1	2343641..2344591	-	316	37521762	-	gll2193	-	hypothetical protein
2194	 68.10	+1	2344651..2345835	-	394	37521763	-	gll2194	-	glycosyl transferase
2195	 66.91	+1	2345858..2347072	-	404	37521764	-	gll2195	-	glycosyl transferase
2196	 61.13	0	2347092..2348915	-	607	37521765	-	gll2196	-	HlyB/MsbA family ABC transporter
2197	 67.38	+1	2348942..2350063	-	373	37521766	-	gll2197	-	glycosyl transferase
2198	 64.42	0	2350067..2350912	-	281	37521767	-	gll2198	-	hypothetical protein
2199	 65.28	0	2350875..2352317	-	480	37521768	-	gll2199	-	hypothetical protein
2200	 64.09	0	2352327..2353298	-	323	37521769	-	gll2200	-	mannose-1-phosphate guanyltransferase
2201	 66.85	+1	2353388..2354479	-	363	37521770	-	gll2201	-	hypothetical protein
2202	 65.67	0	2354476..2356575	-	699	37521771	-	gll2202	-	hypothetical protein
2203	 64.37	0	2356675..2357982	-	435	37521772	-	gll2203	-	NAD(P)-dependent oxidoreductase
2204	 67.66	+1	2358043..2359356	-	437	37521773	-	gll2204	-	NAD(P)-dependent oxidoreductase
2205	 64.12	0	2359359..2359907	-	182	37521774	rfbC	gvip304	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2206	 60.24	0	2359915..2361003	-	362	37521775	-	gll2206	-	putative epimerase/dehydratase
2207	 66.50	0	2361018..2362238	-	406	37521776	-	gll2207	-	hypothetical protein
2208	 61.24	0	2362240..2363013	-	257	37521777	rfbF	gvip305	-	glucose-1-phosphate cytidylyltransferase
2209	 61.59	0	2363072..2363485	-	137	37521778	-	gll2209	-	hypothetical protein
2210	 56.00	-1	2364041..2364715	-	224	37521779	-	gll2210	-	two-component response regulator
2211	 60.85	0	2365744..2366121	-	125	37521780	-	gll2211	-	hypothetical protein
2212	 62.18	0	2366778..2368205	+	475	37521781	-	glr2212	-	two-component sensor histidine kinase
2213	 60.63	0	2368527..2370728	+	733	37521782	-	glr2213	-	hypothetical protein
2214	 60.20	0	2370725..2371219	+	164	37521783	-	glr2214	-	hypothetical protein
2215	 63.06	0	2371378..2373207	-	609	37521784	-	gll2215	-	D-fructose-6-phosphate amidotransferase
2216	 56.52	-1	2373345..2373551	+	68	37521785	-	gsr2216	-	hypothetical protein
2217	 64.56	0	2373529..2374098	+	189	37521786	-	glr2217	-	hypothetical protein
2218	 65.69	0	2374107..2374310	-	67	37521787	-	gsl2218	-	hypothetical protein
2219	 59.01	0	2374383..2375531	-	382	37521788	-	gll2219	-	histidine decarboxylase
2220	 54.92	-1	2375718..2376083	-	121	37521789	-	gll2220	-	alcohol dehydrogenase
2221	 48.26	-2	2376273..2377163	-	296	37521790	-	gll2221	-	hypothetical protein
2222	 64.04	0	2377254..2378852	-	532	37521791	-	gll2222	-	L-2,4-diaminobutyrate decarboxylase
2223	 63.57	0	2378776..2380227	-	483	37521792	-	gll2223	-	diaminobutyrate--2-oxoglutarate aminotransferase
2224	 60.32	0	2381379..2381567	-	62	37521793	-	gsl2224	-	hypothetical protein
2225	 66.10	0	2382332..2384278	-	648	37521794	-	gll2225	-	hypothetical protein
2226	 64.69	0	2384287..2387316	-	1009	37521795	-	gll2226	-	hypothetical protein
2227	 66.13	0	2387610..2387984	+	124	37521796	-	glr2227	-	hypothetical protein
2228	 63.30	0	2388063..2388626	-	187	37521797	def	gll2228	-	peptide deformylase
62.08	MEAN

4.75	STD DEV
