IslandPathversion 1.0

IslandPath Analysis: Gloeobacter violaceus PCC 7421

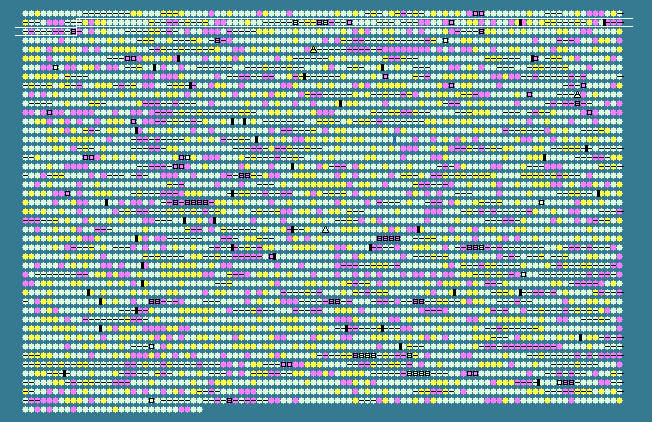

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
110	 62.02	0	107123..108457	-	444	37519679	lysA	gvip012	-	diaminopimelate decarboxylase
111	 68.07	+1	108590..109516	+	308	37519680	-	glr0111	-	ADP-ribosylglycohydrolase
112	 44.22	-2	109702..110904	+	400	37519681	-	glr0112	-	hypothetical protein
113	 66.67	0	111447..111665	+	72	37519682	-	gsr0113	-	hypothetical protein
114	 65.77	0	111838..112395	-	185	37519683	-	gll0114	-	hypothetical protein
115	 64.03	0	112414..113133	-	239	37519684	-	gll0115	-	short chain oxidoreductase
116	 62.84	0	113268..114104	+	278	37519685	-	glr0116	-	hypothetical protein
117	 62.62	0	114108..115565	-	485	37519686	-	gll0117	-	cyanophycinase
118	 59.13	0	115630..115974	-	114	37519687	-	gll0118	-	hypothetical protein
119	 63.17	0	116079..117365	-	428	37519688	-	gll0119	-	carboxyl-terminal protease
120	 60.64	0	117549..117830	+	93	37519689	-	gsr0120	-	hypothetical protein
121	 61.64	0	117922..118935	+	337	37519690	-	glr0121	-	hypothetical protein
122	 67.35	+1	119016..119891	+	291	37519691	-	glr0122	-	hypothetical protein
123	 62.88	0	119842..120897	-	351	37519692	cobW	gvip013	-	cobalamin synthesis protein cobW-like protein
124	 64.61	0	121048..121533	+	161	37519693	-	glr0124	-	hypothetical protein
125	 50.22	-2	121637..121867	+	76	37519694	-	gsr0125	-	hypothetical protein
126	 44.25	-2	121845..122192	+	115	37519695	-	glr0126	-	hypothetical protein
127	 64.90	0	122286..122966	-	226	37519696	ubiE	gvip014	-	ubiquinone/menaquinone biosynthesis methyltransferase
128	 68.23	+1	122966..123541	-	191	37519697	-	gll0128	-	molybdopterin-guanine dinucleotide biosynthesis protein A
129	 59.45	0	123820..125856	+	678	37519698	-	glr0129	-	oligopeptidase
130	 64.60	0	126121..126990	-	289	37519699	-	gll0130	-	ABC transporter solute-binding protein
131	 66.67	0	127010..127699	-	229	37519700	-	gll0131	-	hypothetical protein
132	 60.11	0	127839..128189	-	116	37519701	-	gll0132	-	hypothetical protein
133	 56.95	-1	128334..128786	-	150	37519702	-	gll0133	-	hypothetical protein
134	 57.94	0	128938..129441	+	167	37519703	-	glr0134	-	hypothetical protein
135	 63.84	0	129703..130410	+	235	37519704	-	glr0135	-	hypothetical protein
136	 59.19	0	130561..131202	+	213	37519705	-	glr0136	-	hypothetical protein
137	 62.77	0	131296..132090	+	264	37519706	-	glr0137	-	hypothetical protein
138	 65.67	0	132087..133190	+	367	37519707	-	glr0138	-	hypothetical protein
139	 62.28	0	133435..134118	-	227	37519708	-	gll0139	-	hypothetical protein
140	 64.48	0	134219..134995	+	258	37519709	-	glr0140	-	exodeoxyribonuclease III
141	 61.20	0	135008..135190	-	60	37519710	-	gsl0141	-	hypothetical protein
142	 62.02	0	135303..135689	-	128	37519711	-	gll0142	-	hypothetical protein
143	 62.24	0	135699..136217	-	172	37519712	-	gll0143	-	transcriptional regulator NrdR
144	 59.86	0	136227..136667	-	146	37519713	-	gll0144	-	hypothetical protein
145	 64.31	0	136652..137161	-	169	37519714	-	gll0145	-	hypothetical protein
146	 65.10	0	137192..138595	+	467	37519715	-	glr0146	-	putative transposase
147	 63.50	0	138540..139265	-	241	37519716	-	gll0147	-	hypothetical protein
148	 65.78	0	139525..139863	+	112	37519717	-	glr0148	-	hypothetical protein
149	 65.65	0	139924..140511	+	195	37519718	-	glr0149	-	ParA family chromosome partitioning ATPase
150	 56.62	-1	140569..141444	+	291	37519719	-	glr0150	-	putative transposase
151	 62.59	0	141822..143390	-	522	37519720	-	gll0151	-	putative transposase
152	 48.10	-2	143605..144051	-	148	37519721	-	gll0152	-	hypothetical protein
153	 58.98	0	144410..147442	+	1010	37519722	-	glr0153	-	hypothetical protein
154	 62.91	0	147765..148163	+	132	37519723	-	glr0154	-	hypothetical protein
155	 56.62	-1	148237..149112	+	291	37519724	-	glr0155	-	putative transposase
156	 65.48	0	149272..149946	+	224	37519725	-	glr0156	-	hypothetical protein
157	 60.08	0	149691..150434	-	247	37519726	-	gll0157	-	hypothetical protein
158	 64.25	0	150634..152166	-	510	37519727	-	gll0158	-	hypothetical protein
159	 65.48	0	152222..154165	-	647	37519728	-	gll0159	-	acetyl-coenzyme A synthetase
160	 60.52	0	154170..154478	-	102	37519729	rpsT	gvip015	-	30S ribosomal protein S20
161	 60.00	0	154621..154890	+	89	37519730	-	gsr0161	-	hypothetical protein
162	 65.54	0	155006..157126	+	706	37519731	-	glr0162	-	penicillin-binding protein
163	 61.30	0	157153..157506	+	117	37519732	-	glr0163	-	putative translation initiaiton factor
164	 60.82	0	157512..157802	+	96	37519733	-	gsr0164	-	hypothetical protein
165	 60.59	0	157811..158353	+	180	37519734	-	glr0165	-	hypothetical protein
166	 58.90	0	158496..158714	+	72	37519735	-	gsr0166	-	hypothetical protein
167	 52.67	-1	158895..159194	-	99	37519736	-	gsl0167	-	hypothetical protein
168	 57.61	0	159191..159466	-	91	37519737	-	gsl0168	-	hypothetical protein
169	 65.01	0	159622..160164	-	180	37519738	-	gll0169	-	hypothetical protein
170	 61.89	0	160245..161249	+	334	37519739	-	glr0170	-	ferrochelatase
171	 53.20	-1	161268..162440	-	390	37519740	-	gll0171	-	fatty acid desaturase
172	 53.67	-1	162634..163749	+	371	37519741	-	glr0172	-	putative transposase
173	 63.03	0	163771..164622	-	283	37519742	-	gll0173	-	ABC transporter permease protein
174	 63.50	0	164619..165407	-	262	37519743	-	gll0174	-	ABC transporter ATP-binding protein
175	 66.18	0	165404..166420	-	338	37519744	-	gll0175	-	hypothetical protein
176	 66.51	0	166647..168581	+	644	37519745	-	glr0176	-	hypothetical protein
177	 49.89	-2	168961..170742	-	593	37519746	-	gll0177	-	reverse transcriptase-like protein
178	 58.68	0	171416..172066	+	216	37519747	-	glr0178	-	hypothetical protein
179	 56.22	-1	172112..172312	+	66	37519748	-	gsr0179	-	hypothetical protein
180	 60.71	0	172498..172833	-	111	37519749	-	gll0180	-	hypothetical protein
181	 64.54	0	172840..173451	-	203	37519750	-	gll0181	-	hypothetical protein
182	 58.25	0	173588..173872	-	94	37519751	-	gsl0182	-	hypothetical protein
183	 66.77	0	174026..174970	-	314	37519752	-	gll0183	-	pseudouridine synthase
184	 52.08	-2	175511..175750	+	79	37519753	-	gsr0184	-	hypothetical protein
185	 66.67	0	175825..176400	+	191	37519754	-	glr0185	-	hypothetical protein
186	 61.64	0	176664..176882	+	72	37519755	-	gsr0186	-	hypothetical protein
187	 65.79	0	176887..177228	-	113	37519756	-	gll0187	-	hypothetical protein
188	 69.43	+1	177242..177820	-	192	37519757	-	gll0188	-	TetR family transcriptional regulatory protein
189	 66.87	+1	177871..178851	-	326	37519758	-	gll0189	-	oxidoreductase
190	 65.21	0	179009..179830	+	273	37519759	-	glr0190	-	monophosphatase
191	 61.95	0	179836..180450	+	204	37519760	-	glr0191	-	hypothetical protein
192	 63.96	0	180454..181413	-	319	37519761	nadA	gvip016	-	quinolinate synthetase
193	 66.86	+1	181556..182584	+	342	37519762	-	glr0193	-	3-deoxy-7-phosphoheptulonate synthase
194	 63.64	0	182701..184617	-	638	37519763	-	gll0194	-	1-deoxy-D-xylulose-5-phosphate synthase
195	 68.96	+1	184746..185792	-	348	37519764	mtnA	gll0195	-	methylthioribose-1-phosphate isomerase
196	 52.56	-2	186131..186520	+	129	37519765	-	glr0196	-	hypothetical protein
197	 63.96	0	186607..188937	-	776	37519766	-	gll0197	-	alpha-glucosidase
198	 52.62	-1	189511..190407	-	298	37519767	-	gll0198	-	bacterioopsin
199	 45.33	-2	190723..190872	-	49	37519768	-	gsl0199	-	CAB/ELIP/HLIP related protein
200	 48.76	-2	191454..191816	+	120	37519769	-	glr0200	-	hypothetical protein
201	 59.21	0	192212..192895	+	227	37519770	-	glr0201	-	hypothetical protein
202	 55.04	-1	193373..194344	-	323	37519771	-	gll0202	-	pilin gene inverting protein
203	 61.72	0	194739..195809	-	356	37519772	-	gll0203	-	group 2 sigma 70-type sigma factor
204	 60.70	0	195826..196932	+	368	37519773	-	glr0204	-	hypothetical protein
205	 62.19	0	197264..197866	-	200	37519774	-	gll0205	-	hypothetical protein
206	 47.83	-2	198027..198509	-	160	37519775	-	gll0206	-	hypothetical protein
207	 58.52	0	198509..199576	-	355	37519776	-	gll0207	-	hypothetical protein
208	 63.27	0	200444..200884	-	146	37519777	-	gll0208	-	hypothetical protein
209	 50.38	-2	202099..203154	-	351	37519778	-	gll0209	-	putative transposase
62.08	MEAN

4.75	STD DEV
