IslandPathversion 1.0

IslandPath Analysis: Gloeobacter violaceus PCC 7421

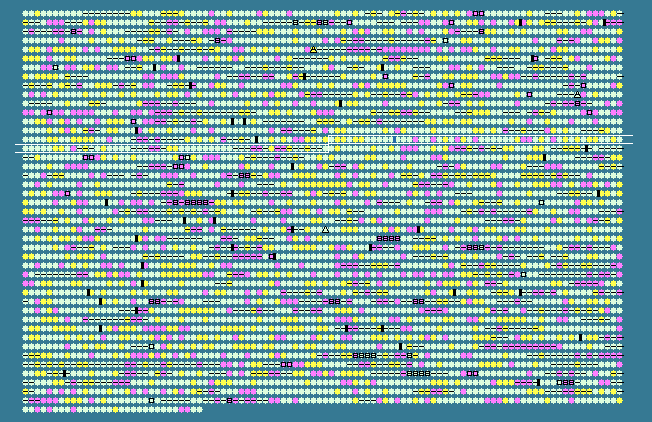

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1452	 62.98	0	1556340..1558673	-	777	37521021	-	gll1452	-	hypothetical protein
1453	 67.41	+1	1558732..1560480	-	582	37521022	-	gll1453	-	poly A polymerase
1454	 68.12	+1	1560414..1561373	-	319	37521023	-	gll1454	-	hypothetical protein
1455	 64.80	0	1561401..1561829	-	142	37521024	-	gll1455	-	hypothetical protein
1456	 66.20	0	1561833..1562909	-	358	37521025	-	gll1456	-	putative oxidoreductase
1457	 65.60	0	1563061..1564470	+	469	37521026	aspA	glr1457	-	aspartate ammonia-lyase
1458	 60.72	0	1564459..1564929	-	156	37521027	-	gll1458	-	hypothetical protein
1459	 62.16	0	1564951..1565727	+	258	37521028	-	glr1459	-	hypothetical protein
1460	 60.75	0	1565783..1566661	+	292	37521029	-	glr1460	-	hypothetical protein
1461	 62.02	0	1566662..1567048	+	128	37521030	-	glr1461	-	methyltransferase
1462	 60.32	0	1566924..1567742	-	272	37521031	-	gll1462	-	circadian phase modifier CpmA-like protein
1463	 63.82	0	1572926..1574014	-	362	37521032	thrC	gvip204	-	threonine synthase
1464	 65.52	0	1574052..1575011	-	319	37521033	-	gll1464	-	hypothetical protein
1465	 64.38	0	1575013..1575492	+	159	37521034	-	glr1465	-	deoxyuridine 5'triphosphate nucleotidohydrolase
1466	 57.66	0	1575637..1575858	+	73	37521035	-	gsr1466	-	hypothetical protein
1467	 64.83	0	1575988..1577019	+	343	37521036	-	glr1467	-	cell-shape determining protein MreB-like protein
1468	 62.03	0	1577027..1578664	-	545	37521037	-	gll1468	-	hypothetical protein
1469	 55.90	-1	1578812..1579099	-	95	37521038	-	gsl1469	-	hypothetical protein
1470	 59.78	0	1579296..1581212	-	638	37521039	-	gll1470	-	peptidase
1471	 65.90	0	1581235..1582803	-	522	37521040	-	gll1471	-	hypothetical protein
1472	 63.90	0	1582892..1583758	+	288	37521041	-	glr1472	-	hypothetical protein
1473	 56.88	-1	1583759..1585087	-	442	37521042	dnaA	gvip205	-	chromosomal replication initiation protein
1474	 69.63	+1	1585349..1585483	+	44	37521043	rpmH	gvip206	-	50S ribosomal protein L34
1475	 59.94	0	1585535..1585861	+	108	37521044	rnpA	gvip207	-	ribonuclease P protein component
1476	 57.62	0	1585851..1586270	+	139	37521045	-	glr1476	-	hypothetical protein
1477	 62.49	0	1586273..1587277	-	334	37521046	-	gll1477	-	hypothetical protein
1478	 60.84	0	1587381..1587809	+	142	37521047	-	glr1478	-	hypothetical protein
1479	 60.38	0	1587806..1590493	+	895	37521048	-	glr1479	-	hypothetical protein
1480	 63.17	0	1590575..1591660	+	361	37521049	-	glr1480	-	hypothetical protein
1481	 62.61	0	1591686..1592129	+	147	37521050	-	glr1481	-	hypothetical protein
1482	 64.08	0	1592225..1593655	+	476	37521051	-	glr1482	-	hypothetical protein
1483	 66.97	+1	1593687..1594340	-	217	37521052	-	gll1483	-	methyltransferase
1484	 55.40	-1	1594422..1594856	+	144	37521053	-	glr1484	-	hypothetical protein
1485	 54.39	-1	1594901..1595128	+	75	37521054	-	gsr1485	-	ferredoxin like protein
1486	 61.97	0	1595150..1596406	+	418	37521055	-	glr1486	-	rod-shape-determining protein MrdB-like protein
1487	 66.67	0	1596412..1596765	+	117	37521056	-	glr1487	-	dihydroneopterin aldolase
1488	 65.43	0	1596824..1599244	+	806	37521057	-	glr1488	-	hypothetical protein
1489	 44.37	-2	1599876..1601189	-	437	37521058	-	gll1489	-	hypothetical protein
1490	 64.74	0	1601297..1602487	-	396	37521059	-	gll1490	-	tetracycline resistance protein
1491	 66.07	0	1602511..1604703	+	730	37521060	-	glr1491	-	penicillin-binding protein
1492	 62.72	0	1604781..1605566	+	261	37521061	-	glr1492	-	hypothetical protein
1493	 65.84	0	1605576..1607384	-	602	37521062	-	gll1493	-	two-component sensor histidine kinase
1494	 60.35	0	1607520..1607978	-	152	37521063	smpB	gll1494	-	SsrA-binding protein
1495	 68.14	+1	1608188..1608526	-	112	37521064	-	gll1495	-	hypothetical protein
1496	 68.67	+1	1608749..1609546	-	265	37521065	-	gll1496	-	glutamate racemase
1497	 60.86	0	1609611..1610075	-	154	37521066	-	gll1497	-	hypothetical protein
1498	 63.49	0	1610185..1610625	-	146	37521067	-	gll1498	-	hypothetical protein
1499	 66.07	0	1610679..1612019	-	446	37521068	-	gll1499	-	hypothetical protein
1500	 60.56	0	1611961..1612812	+	283	37521069	-	glr1500	-	hypothetical protein
1501	 62.03	0	1612816..1614906	-	696	37521070	-	gll1501	-	polyphosphate kinase
1502	 64.55	0	1615097..1616230	+	377	37521071	-	glr1502	-	hypothetical protein
1503	 60.65	0	1616288..1617367	-	359	37521072	-	gll1503	-	hypothetical protein
1504	 63.74	0	1617698..1619236	-	512	37521073	-	gll1504	-	aldehyde dehydrogenase
1505	 65.02	0	1619374..1619919	-	181	37521074	rimM	gll1505	-	16S rRNA-processing protein
1506	 66.67	0	1620272..1622260	+	662	37521075	rne	gvip208	-	ribonuclease E
1507	 68.34	+1	1622346..1622942	+	198	37521076	rnhA	gvip209	-	ribonuclease H
1508	 64.82	0	1623084..1627688	+	1534	37521077	glsF	gvip210	-	ferredoxin-dependent glutamate synthase
1509	 58.11	0	1627753..1628418	-	221	37521078	-	gll1509	-	hypothetical protein
1510	 59.23	0	1628393..1629064	+	223	37521079	-	glr1510	-	MerR family transcriptional regulator
1511	 66.17	0	1629061..1629867	+	268	37521080	-	glr1511	-	phosphomethylpyrimidine kinase
1512	 59.50	0	1629998..1630681	-	227	37521081	-	gll1512	-	hypothetical protein
1513	 59.19	0	1630847..1631608	-	253	37521082	-	gll1513	-	hypothetical protein
1514	 67.36	+1	1631738..1632604	-	288	37521083	-	gll1514	-	hypothetical protein
1515	 63.86	0	1632666..1633271	-	201	37521084	-	gll1515	-	hypothetical protein
1516	 64.52	0	1633372..1634721	+	449	37521085	-	glr1516	-	hypothetical protein
1517	 65.43	0	1634725..1636017	+	430	37521086	-	glr1517	-	hypothetical protein
1518	 65.08	0	1636041..1637363	+	440	37521087	-	glr1518	-	hypothetical protein
1519	 62.15	0	1637424..1638065	+	213	37521088	-	glr1519	-	hypothetical protein
1520	 61.19	0	1638157..1639965	-	602	37521089	-	gll1520	-	GTP-binding protein
1521	 63.79	0	1640050..1640397	-	115	37521090	-	gll1521	-	ferredoxin like protein
1522	 57.50	0	1640525..1640884	+	119	37521091	-	glr1522	-	hypothetical protein
1523	 58.06	0	1640963..1641613	+	216	37521092	-	glr1523	-	hypothetical protein
1524	 63.21	0	1641821..1643470	+	549	37521093	pyrG	gvip211	-	CTP synthetase
1525	 67.50	+1	1643583..1645028	+	481	37521094	-	glr1525	-	hypothetical protein
1526	 65.69	0	1645041..1646171	+	376	37521095	-	glr1526	-	glycosyltransferase
1527	 62.21	0	1646312..1648285	+	657	37521096	-	glr1527	-	hypothetical protein
1528	 64.29	0	1648275..1649744	-	489	37521097	gatA	gll1528	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1529	 62.29	0	1649893..1650897	+	334	37521098	-	glr1529	-	pyruvate dehydrogenase E1 component alpha
1530	 58.64	0	1650902..1651885	+	327	37521099	-	glr1530	-	pyruvate dehydrogenase E1 component beta
1531	 59.62	0	1651931..1652455	-	174	37521100	-	gll1531	-	hypothetical protein
1532	 60.48	0	1652733..1653152	+	139	37521101	-	glr1532	-	two-component response regulator
1533	 64.07	0	1653181..1654683	-	500	37521102	-	gll1533	-	two-component hybrid sensor and regulator
1534	 59.42	0	1654875..1655288	+	137	37521103	-	glr1534	-	two-component response regulator
1535	 65.51	0	1655431..1657845	+	804	37521104	-	glr1535	-	alpha-glucosidase
1536	 63.09	0	1657861..1659117	-	418	37521105	-	gll1536	-	mechanosensitive channel protein
1537	 61.72	0	1659085..1660155	+	356	37521106	-	glr1537	-	hypothetical protein
1538	 63.22	0	1660155..1660706	+	183	37521107	-	glr1538	-	hypothetical protein
1539	 55.74	-1	1660745..1661485	-	246	37521108	-	gll1539	-	hypothetical protein
1540	 58.00	0	1661547..1661846	-	99	37521109	-	gsl1540	-	hypothetical protein
1541	 63.57	0	1662011..1662592	+	193	37521110	-	glr1541	-	TetR family transcriptional regulatory protein
1542	 66.50	0	1662655..1664991	+	778	37521111	-	glr1542	-	endopeptidase Clp ATP-binding chain
1543	 58.54	0	1665143..1665511	+	122	37521112	-	glr1543	-	hypothetical protein
1544	 53.59	-1	1665742..1665894	+	50	37521113	-	gsr1544	-	cytochrome D ubiquinol oxidase chain II
1545	 66.98	+1	1665947..1667209	-	420	37521114	-	gll1545	-	hypothetical protein
1546	 64.52	0	1667175..1668059	-	294	37521115	-	gll1546	-	hypothetical protein
1547	 61.02	0	1668189..1668365	+	58	37521116	-	gsr1547	-	hypothetical protein
1548	 66.75	0	1668372..1669580	+	402	37521117	-	glr1548	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1549	 63.67	0	1669577..1669843	+	88	37521118	-	gsr1549	-	hypothetical protein
1550	 65.28	0	1669885..1670532	+	215	37521119	-	glr1550	-	hypothetical protein
1551	 62.60	0	1670649..1671434	-	261	37521120	-	gll1551	-	hypothetical protein
62.08	MEAN

4.75	STD DEV
