IslandPathversion 1.0

IslandPath Analysis: Gloeobacter violaceus PCC 7421

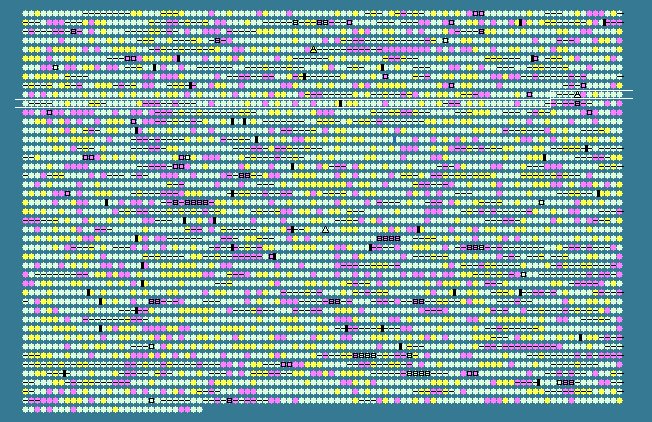

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.08 STD DEV: 4.75
Gloeobacter violaceus PCC 7421, complete genome - 1..4659019
4430 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
989	 59.40	0	1054900..1055133	-	77	37520558	-	gsl0989	-	hypothetical protein
990	 62.73	0	1055412..1056122	+	236	37520559	-	glr0990	-	protein phosphatase-like protein
991	 63.92	0	1056285..1057121	-	278	37520560	-	gll0991	-	hypothetical protein
992	 60.12	0	1057258..1057899	-	213	37520561	-	gll0992	-	hypothetical protein
993	 62.15	0	1058173..1058748	-	191	37520562	xer	gvip131	-	integrase/recombinase
994	 57.40	0	1059020..1062031	-	1003	37520563	-	gll0994	-	hypothetical protein
995	 59.09	0	1062061..1065042	-	993	37520564	-	gll0995	-	hypothetical protein
996	 66.18	0	1065139..1065552	-	137	37520565	-	gll0996	-	hypothetical protein
997	 60.62	0	1065716..1068097	+	793	37520566	-	glr0997	-	putative phosphoketolase
998	 58.93	0	1068192..1070762	+	856	37520567	-	glr0998	-	glycogen phosphorylase
999	 64.63	0	1070774..1071412	+	212	37520568	-	glr0999	-	hypothetical protein
1000	 64.53	0	1071423..1072640	+	405	37520569	-	glr1000	-	acetate kinase
1001	 61.90	0	1072648..1073592	-	314	37520570	-	gll1001	-	LysR family transcriptional regulator
1002	 64.72	0	1073721..1074029	-	102	37520571	-	gll1002	-	hypothetical protein
1003	 63.57	0	1074281..1076089	+	602	37520572	ndhF	gvip132	-	NAD(P)H-quinone oxidoreductase subunit F
1004	 63.70	0	1076127..1077641	+	504	37520573	ndhD	gvip133	-	NAD(P)H-quinone oxidoreductase subunit M
1005	 60.26	0	1077664..1078974	+	436	37520574	cupA	gvip134	-	hypothetical protein
1006	 63.95	0	1078996..1079400	+	134	37520575	-	glr1006	-	hypothetical protein
1007	 63.24	0	1079436..1080164	+	242	37520576	-	glr1007	-	hypothetical protein
1008	 65.98	0	1080179..1081201	-	340	37520577	-	gll1008	-	hypothetical protein
1009	 63.00	0	1081305..1081958	+	217	37520578	-	glr1009	-	hypothetical protein
1010	 63.51	0	1082038..1082670	+	210	37520579	-	glr1010	-	hypothetical protein
1011	 60.70	0	1082736..1083590	+	284	37520580	-	glr1011	-	hypothetical protein
1012	 67.42	+1	1083803..1084858	-	351	37520581	-	gll1012	-	iron(III) ABC transporter ATP-binding protein
1013	 68.44	+1	1084855..1086486	-	543	37520582	-	gll1013	-	iron(III) ABC transporter permease protein
1014	 62.55	0	1086493..1087560	-	355	37520583	-	gll1014	-	iron(III) ABC transporter iron (III)-binding protein
1015	 64.27	0	1087633..1088007	-	124	37520584	-	gll1015	-	hypothetical protein
1016	 63.40	0	1088255..1091647	+	1130	37520585	-	glr1016	-	two-component hybrid sensor and regulator
1017	 65.12	0	1091792..1092760	+	322	37520586	-	glr1017	-	aspartate-semialdehyde dehydrogenase
1018	 64.63	0	1092757..1093638	+	293	37520587	dapA	gvip135	-	dihydrodipicolinate synthase
1019	 62.87	0	1093697..1095460	+	587	37520588	-	glr1019	-	hypothetical protein
1020	 65.75	0	1095482..1097443	-	653	37520589	topA	gvip136	-	DNA topoisomerase I
1021	 39.06	-2	1097513..1098175	-	220	37520590	-	gll1021	-	hypothetical protein
1022	 39.37	-2	1098190..1099398	-	402	37520591	-	gll1022	-	hypothetical protein
1023	 58.12	0	1099548..1100705	-	385	37520592	-	gll1023	-	cation transporter
1024	 62.07	0	1100787..1101374	-	195	37520593	-	gll1024	-	hypothetical protein
1025	 59.98	0	1101395..1102471	-	358	37520594	fda	gvip137	-	fructose-bisphosphate aldolase
1026	 58.48	0	1102481..1102810	-	109	37520595	-	gll1026	-	hypothetical protein
1027	 62.98	0	1102925..1104553	-	542	37520596	groEL	gvip138	-	chaperonin GroEL
1028	 61.86	0	1104573..1104884	-	103	37520597	groES	gvip139	-	co-chaperonin GroES
1029	 62.32	0	1104981..1105877	-	298	37520598	-	gll1029	-	lipoyl synthase
1030	 59.02	0	1106585..1106911	-	108	37520599	-	gll1030	-	hypothetical protein
1031	 59.06	0	1106884..1107330	-	148	37520600	-	gll1031	-	hypothetical protein
1032	 53.94	-1	1107330..1107887	-	185	37520601	-	gll1032	-	hypothetical protein
1033	 65.10	0	1107922..1110594	-	890	37520602	mutS	gvip140	-	DNA mismatch repair protein
1034	 59.97	0	1110711..1111292	+	193	37520603	aat	glr1034	-	leucyl/phenylalanyl-tRNA--protein transferase
1035	 58.74	0	1111297..1111725	-	142	37520604	-	gll1035	-	hypothetical protein
1036	 61.79	0	1111762..1112130	-	122	37520605	-	gll1036	-	hypothetical protein
1037	 61.97	0	1112177..1112644	-	155	37520606	-	gll1037	-	hypothetical protein
1038	 68.98	+1	1112732..1114030	-	432	37520607	aroA	gvip141	-	3-phosphoshikimate 1-carboxyvinyltransferase
1039	 62.21	0	1114150..1114755	+	201	37520608	-	glr1039	-	hypothetical protein
1040	 62.24	0	1114986..1115708	-	240	37520609	tpiA	gvip142	-	triosephosphate isomerase
1041	 57.89	0	1115745..1116200	+	151	37520610	psb28-2	gvip143	-	photosystem II 13 kDa protein
1042	 64.64	0	1116223..1116765	+	180	37520611	ribH	gvip144	-	riboflavin synthase subunit beta
1043	 67.15	+1	1116773..1118020	+	415	37520612	-	glr1043	-	hypothetical protein
1044	 61.97	0	1118059..1118271	+	70	37520613	-	gsr1044	-	hypothetical protein
1045	 62.62	0	1118276..1119436	+	386	37520614	-	glr1045	-	deoxyhypusine synthase-like protein
1046	 51.37	-2	1120580..1121017	+	145	37520615	-	glr1046	-	hypothetical protein
1047	 65.40	0	1121072..1122100	-	342	37520616	-	gll1047	-	hypothetical protein
1048	 63.30	0	1122112..1122438	-	108	37520617	-	gll1048	-	hypothetical protein
1049	 56.85	-1	1122456..1123127	-	223	37520618	-	gll1049	-	hypothetical protein
1050	 62.55	0	1123328..1123570	+	80	37520619	-	gsr1050	-	hypothetical protein
1051	 63.75	0	1123637..1125043	-	468	37520620	argH	gvip145	-	argininosuccinate lyase
1052	 59.62	0	1125236..1126654	+	472	37520621	glnA	gvip146	-	glutamate--ammonia ligase
1053	 66.23	0	1126719..1127171	-	150	37520622	-	gll1053	-	putative cytidine and deoxycytidylate deaminase
1054	 63.51	0	1127255..1127950	+	231	37520623	-	glr1054	-	hypothetical protein
1055	 68.28	+1	1127993..1129972	-	659	37520624	-	gll1055	-	hypothetical protein
1056	 68.57	+1	1129977..1130660	-	227	37520625	-	gll1056	-	hypothetical protein
1057	 63.17	0	1130608..1131465	-	285	37520626	-	gll1057	-	hypothetical protein
1058	 59.21	0	1131464..1131691	+	75	37520627	-	gsr1058	-	hypothetical protein
1059	 62.15	0	1131678..1132784	+	368	37520628	-	glr1059	-	hypothetical protein
1060	 59.96	0	1132822..1133805	+	327	37520629	-	glr1060	-	hypothetical protein
1061	 57.04	-1	1133930..1136857	+	975	37520630	-	glr1061	-	kinesin light chain
1062	 63.72	0	1137408..1138799	+	463	37520631	-	glr1062	-	UDP-glucose dehydrogenase
1063	 64.54	0	1138836..1140059	+	407	37520632	-	glr1063	-	hypothetical protein
1064	 64.56	0	1140059..1141243	+	394	37520633	-	glr1064	-	hypothetical protein
1065	 64.66	0	1141298..1142545	+	415	37520634	-	glr1065	-	glycosyltransferase
1066	 65.16	0	1142548..1143606	+	352	37520635	-	glr1066	-	glycosyltransferase
1067	 68.04	+1	1143610..1145427	+	605	37520636	-	glr1067	-	HlyB/MsbA family ABC transporter
1068	 62.37	0	1145461..1146507	+	348	37520637	-	glr1068	-	nucleotide sugar epimerase
1069	 65.21	0	1146471..1147985	+	504	37520638	-	glr1069	-	hypothetical protein
1070	 68.09	+1	1148332..1148823	-	163	37520639	-	gll1070	-	hypothetical protein
1071	 60.84	0	1148828..1149136	-	102	37520640	-	gll1071	-	hypothetical protein
1072	 56.14	-1	1149213..1149383	-	56	37520641	-	gsl1072	-	hypothetical protein
1073	 56.15	-1	1149537..1149983	+	148	37520642	-	glr1073	-	large-conductive mechanosensitive channel
1074	 62.56	0	1150393..1151634	+	413	37520643	folC	gvip147	-	folylpolyglutamate synthase
1075	 66.96	+1	1151714..1154485	+	923	37520644	-	glr1075	-	acetyl-CoA synthetase
1076	 65.54	0	1154618..1155328	+	236	37520645	-	glr1076	-	ABC transporter ATP-binding protein
1077	 66.32	0	1155303..1157627	+	774	37520646	-	glr1077	-	hypothetical protein
1078	 60.73	0	1157624..1158145	-	173	37520647	-	gll1078	-	hypothetical protein
1079	 64.33	0	1158172..1159626	+	484	37520648	-	glr1079	-	bifunctional orotidine 5'-phosphate decarboxylase/orotate phosphoribosyltransferase protein
1080	 64.87	0	1159633..1160580	-	315	37520649	-	gll1080	-	hypothetical protein
1081	 63.04	0	1160657..1160932	-	91	37520650	-	gsl1081	-	hypothetical protein
1082	 59.41	0	1161030..1161635	-	201	37520651	-	gll1082	-	hypothetical protein
1083	 52.74	-1	1161616..1161816	-	66	37520652	petM	gsl1083	-	cytochrome b6-f complex subunit PetM
1084	 64.04	0	1161887..1163065	+	392	37520653	sat	glr1084	-	sulfate adenylyltransferase
1085	 62.81	0	1163232..1163879	-	215	37520654	-	gll1085	-	hypothetical protein
1086	 62.83	0	1163960..1164454	+	164	37520655	-	glr1086	-	hypothetical protein
1087	 62.53	0	1164458..1165714	-	418	37520656	-	gll1087	-	hypothetical protein
1088	 62.65	0	1165958..1167151	-	397	37520657	-	gll1088	-	hypothetical protein
62.08	MEAN

4.75	STD DEV
