IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

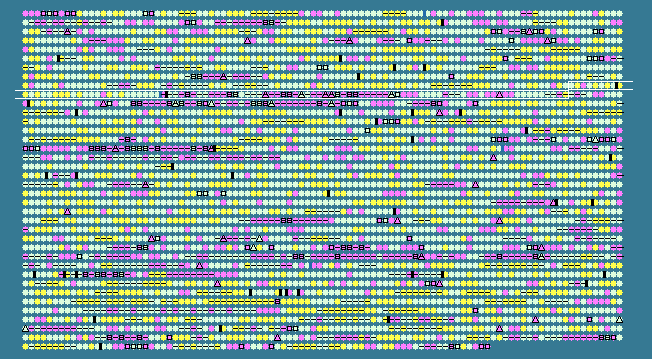

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 66.22   STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
892	 67.33	0	929070..930419	+	449	162146738	otsA	GDI0916	-	putative alpha,alpha-trehalose-phosphate synthase
893	 73.69	+1	930416..930970	+	184	162146739	-	GDI0917	-	hypothetical protein
894	 55.93	-1	930924..931100	-	58	162146740	-	GDI0918	-	hypothetical protein
895	 68.95	0	931099..933327	+	742	162146741	nadE	GDI0919	-	NAD synthetase
896	 71.38	0	933346..936207	-	953	162146742	-	GDI0920	-	putative glycosyl transferase
897	 66.07	0	936319..937668	+	449	162146743	-	GDI0921	-	putative hemolysin-type calcium-binding
898	 70.74	0	937677..940451	+	924	162146744	-	GDI0922	-	glycosyl transferase, group 1 family protein
899	 62.96	0	940759..941028	+	89	162146745	hupA	GDI0923	-	putative DNA-binding protein HU-alpha
900	 70.97	0	941421..942071	-	216	162146746	-	GDI0924	-	hypothetical protein
901	 74.21	+1	942174..942995	-	273	162146747	proC	GDI0925	-	putative pyrroline-5-carboxylate reductase
902	 67.29	0	942992..943633	-	213	162146748	-	GDI0926	-	hypothetical protein
903	 74.07	+1	943698..944021	-	107	162146749	-	GDI0927	-	hypothetical protein
904	 69.02	0	944188..945165	+	325	162146750	hldD	GDI0928	-	putative ADP-L-glycero-D-manno-heptose-6-epimerase
905	 67.97	0	945220..946062	+	280	162146751	-	GDI0929	-	putative prolipoprotein diacylglyceryl transferase
906	 73.24	+1	946059..947078	+	339	162146752	-	GDI0930	-	hypothetical protein
907	 74.21	+1	947090..947911	+	273	162146753	-	GDI0931	-	hypothetical protein
908	 75.34	+1	947908..948864	+	318	162146754	-	GDI0932	-	hypothetical protein
909	 66.46	0	948992..949972	+	326	162146755	prs	GDI0933	-	ribose-phosphate pyrophosphokinase
910	 70.33	0	950056..950655	+	199	162146756	gpmB	GDI0934	-	phosphoglycerate mutase gpmB
911	 67.95	0	950788..951408	+	206	162146757	rplY	GDI0935	-	50S ribosomal protein L25
912	 66.11	0	951463..952002	+	179	162146758	pth	GDI0936	-	peptidyl-tRNA hydrolase
913	 67.21	0	952002..953096	+	364	162146759	-	GDI0937	-	translation-associated GTPase
914	 62.39	0	953086..953319	-	77	162146760	-	GDI0938	-	hypothetical protein
915	 70.06	0	954626..955273	+	215	162146761	nadD	GDI0941	-	nicotinic acid mononucleotide adenylyltransferase
916	 66.22	0	955381..955827	+	148	162146762	-	GDI0942	-	hypothetical protein
917	 70.80	0	955863..956249	+	128	162146763	-	GDI0943	-	hypothetical protein
918	 67.64	0	956400..957116	-	238	162146764	-	GDI0944	-	putative CHAP protein
919	 64.10	0	957436..957786	-	116	162146765	-	GDI0945	-	putative endoribonuclease
920	 68.34	0	958510..959583	-	357	162146766	-	GDI0947	-	hypothetical protein
921	 67.82	0	959714..960409	+	231	162146767	-	GDI0948	-	Beta-lactamase-like protein
922	 65.76	0	960409..960960	+	183	162146768	-	GDI0949	-	hypothetical protein
923	 65.17	0	960965..962101	-	378	162146769	-	GDI0950	-	putative patatin-like phospholipase
924	 61.27	0	967982..969649	-	555	162146770	-	GDI0951	-	putative DNA recombinase
925	 65.64	0	969654..969848	-	64	162146771	-	GDI0952	-	hypothetical protein
926	 65.26	0	970241..972298	+	685	162146772	-	GDI0953	-	hypothetical protein
927	 58.37	-1	972402..973124	-	240	162146773	-	GDI0954	-	hypothetical protein
928	 55.69	-1	973409..973900	+	163	162146774	-	GDI0955	-	putative transposase
929	 60.50	0	974485..975165	-	226	162146775	-	GDI0957	-	hypothetical protein
930	 64.16	0	975162..976079	-	305	162146776	pdxA	GDI0958	-	putative 4-hydroxythreonine-4-phosphate dehydrogenase 2
931	 64.10	0	976242..977099	+	285	162146777	-	GDI0959	-	LysR family transcriptional regulator
932	 56.05	-1	977390..978661	+	423	162146778	-	GDI0960	-	hypothetical protein
933	 57.36	-1	978658..980484	+	608	162146779	-	GDI0961	-	hypothetical protein
934	 57.26	-1	980610..982151	+	513	162146780	-	GDI0962	-	putative serine/threonine protein kinase
935	 58.43	-1	982232..982498	+	88	162146781	-	GDI0963	-	putative transposase
936	 63.41	0	982522..983349	+	275	162146782	-	GDI0964	-	putative transposase
937	 64.01	0	983509..985695	-	728	162146783	recD	GDI0965	-	putative exodeoxyribonuclease V alpha chain
938	 62.85	0	985855..986142	+	95	162146784	-	GDI0966	-	hypothetical protein
939	 64.50	0	986139..987845	+	568	162146785	-	GDI0967	-	putative resolvase
940	 62.96	0	987916..988320	+	134	162146786	-	GDI0968	-	hypothetical protein
941	 50.85	-2	988347..988523	+	58	162146787	-	GDI0969	-	putative integrase (fragment)
942	 51.98	-2	988783..989463	+	226	162146788	-	GDI0970	-	hypothetical protein
943	 48.96	-2	989467..990522	+	351	162146789	-	GDI0971	-	hypothetical protein
944	 58.02	-1	990874..991347	-	157	162146790	-	GDI0972	-	putative transposase
945	 60.07	-1	991532..991819	-	95	162146791	-	GDI0973	-	putative transposase
946	 49.11	-2	991969..992304	-	111	162146792	-	GDI0974	-	hypothetical protein
947	 69.42	0	992342..993574	+	410	162146793	-	GDI0975	-	putative integrase
948	 65.67	0	993571..994374	+	267	162146794	-	GDI0976	-	putative insertion sequence
949	 53.02	-2	994371..995447	+	358	162146795	-	GDI0977	-	hypothetical protein
950	 54.30	-2	995491..995781	+	96	162146796	-	GDI0978	-	hypothetical protein
951	 61.10	0	995922..996980	-	352	162146797	-	GDI0979	-	putative integrase
952	 61.43	0	997143..998021	-	292	162146798	-	GDI0980	-	putative integrase
953	 62.82	0	998018..998329	-	103	162146799	-	GDI0981	-	putative transposase
954	 48.97	-2	998399..999172	-	257	162146800	-	GDI0982	-	hypothetical protein
955	 61.15	0	999258..999728	+	156	162146801	-	GDI0983	-	putative transposase
956	 54.55	-2	999725..1000087	+	120	162146802	-	GDI0984	-	putative transposase
957	 46.57	-2	1000289..1001542	+	417	162146803	-	GDI0985	-	hypothetical protein
958	 61.23	0	1001646..1002785	-	379	162146804	-	GDI0986	-	major facilitator transporter superfamily protein
959	 56.36	-1	1002815..1003804	-	329	162146805	-	GDI0987	-	putative instegrase
960	 59.26	-1	1003901..1004224	+	107	162146806	-	GDI0988	-	ArsR family transcriptional regulator
961	 54.52	-2	1004278..1005174	+	298	162146807	-	GDI0989	-	putative 2-dehydropantoate 2-reductase
962	 66.41	0	1005431..1006963	+	510	162146808	-	GDI0990	-	putative integrase
963	 63.46	0	1006953..1007732	+	259	162146809	-	GDI0991	-	putative transposase
964	 58.33	-1	1007990..1008433	-	147	162146810	-	GDI0992	-	putative transcriptional regulatory protein
965	 61.17	0	1008529..1009728	+	399	162146811	-	GDI0993	-	major facilitator superfamily
966	 59.28	-1	1009922..1010530	-	202	162146812	-	GDI0994	-	NAD(P)H nitroreductase
967	 64.87	0	1010577..1011413	-	278	162146813	-	GDI0995	-	putative fumarylacetoacetate (FAA) hydrolase protein
968	 65.01	0	1011430..1012155	-	241	162146814	-	GDI0996	-	hypothetical protein
969	 68.22	0	1012152..1013693	-	513	162146815	oprJ	GDI0997	-	putative outer membrane protein oprJ
970	 68.80	0	1013728..1014804	-	358	162146816	-	GDI0998	-	HlyD family secretion protein
971	 59.88	-1	1014864..1015025	-	53	162146817	-	GDI0999	-	hypothetical protein
972	 64.05	0	1015058..1016779	-	573	162146818	-	GDI1000	-	putative multidrug efflux transporter protein
973	 63.52	0	1016972..1017925	+	317	162146819	-	GDI1001	-	LysR family transcriptional regulator
974	 64.16	0	1017913..1018671	-	252	162146820	-	GDI1002	-	GntR family transcriptional regulator
975	 61.50	0	1018876..1019475	+	199	162146821	gstA	GDI1003	-	putative glutathione S-transferase
976	 60.18	-1	1019493..1020062	+	189	162146822	-	GDI1004	-	hypothetical protein
977	 63.62	0	1020052..1020969	-	305	162146823	-	GDI1005	-	LysR family transcriptional regulator
978	 60.73	0	1021071..1021862	+	263	162146824	-	GDI1006	-	putative NAD(P)H oxidoreductase
979	 61.29	0	1021979..1022740	+	253	162146825	-	GDI1007	-	LysR family transcriptional regulator
980	 61.01	0	1022770..1023795	-	341	162146826	-	GDI1008	-	putative integrase
981	 60.29	-1	1024290..1025183	+	297	162146827	apbA	GDI1009	-	2-dehydropantoate 2-reductase
982	 56.91	-1	1025350..1025595	-	81	162146828	-	GDI1010	-	hypothetical protein
983	 64.60	0	1025592..1026752	-	386	162146829	trbI	GDI1011	-	putative conjugation TrbI-like protein
984	 65.86	0	1026749..1027735	-	328	162146830	trbG	GDI1012	-	putative conjugal transfer protein trbG
985	 66.52	0	1027735..1028415	-	226	162146831	trbF	GDI1013	-	putative conjugal transfer protein; TrbF
986	 67.22	0	1028418..1029677	-	419	162146832	trbL	GDI1014	-	putative conjugal transfer protein; TrbL
987	 63.59	0	1029954..1030700	-	248	162146833	trbJ	GDI1015	-	putative conjugal transfer protein; TrbJ
988	 66.58	0	1030697..1033123	-	808	162146834	trbE	GDI1016	-	putative conjugal transfer protein trbE
989	 68.91	0	1033131..1033397	-	88	162146835	trbD	GDI1017	-	putative conjugal transfer protein; TrbD
990	 61.64	0	1033397..1033714	-	105	162146836	trbC	GDI1018	-	conjugal transfer protein TrbC
991	 70.69	0	1033720..1034688	-	322	162146837	trbB	GDI1019	-	putative type II/IV secretion system protein trbB
66.22	MEAN

5.80	STD DEV
