IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

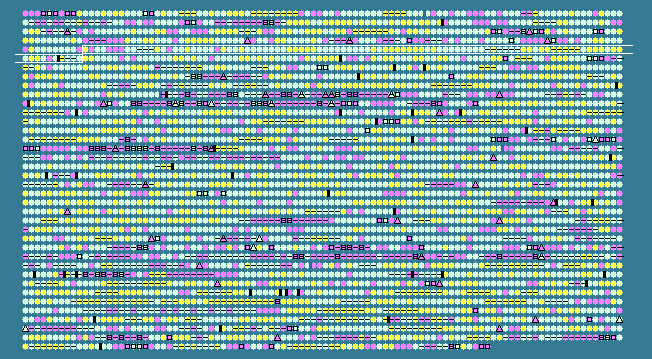

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
411	 70.26	0	431181..431987	+	268	162146257	-	GDI0432	-	hypothetical protein
412	 61.65	0	431971..432249	+	92	162146258	nifZ	GDI0433	-	putative nifZ protein
413	 62.96	0	432246..432461	+	71	162146259	fixU	GDI0434	-	putative fixU protein
414	 68.84	0	432458..433285	+	275	162146260	-	GDI0435	-	hypothetical protein
415	 62.54	0	433531..434427	+	298	162146261	nifH	GDI0436	-	nitrogenase reductase
416	 59.07	-1	434493..435992	+	499	162146262	nifD	GDI0437	-	FeMo protein of nitrogenase alpha subunit; NifD
417	 60.94	0	436057..437592	+	511	162146263	nifK	GDI0438	-	nitrogenase FeMo beta subunit protein; NifK
418	 65.14	0	437663..439102	+	479	162146264	nifE	GDI0439	-	nitrogenase iron-molybdenum cofactor biosynthesis protein nifE
419	 67.38	0	439114..440511	+	465	162146265	nifN	GDI0440	-	nitrogenase iron-molybdenum cofactor biosynthesis protein nifN
420	 67.47	0	440483..440977	+	164	162146266	nifX	GDI0441	-	protein nifX
421	 63.85	0	440980..441441	+	153	162146267	-	GDI0442	-	hypothetical protein
422	 62.86	0	441453..441662	+	69	162146268	-	GDI0443	-	hypothetical protein
423	 70.53	0	441667..441951	+	94	162146269	fdxB	GDI0444	-	putative ferredoxin protein
424	 67.31	0	441970..442587	+	205	162146270	nifQ	GDI0445	-	protein nifQ
425	 60.12	-1	442813..443133	+	106	162146271	hesB	GDI0446	-	putative hesB protein
426	 66.24	0	443175..444104	+	309	162146272	nifU	GDI0447	-	nitrogen fixation protein nifU
427	 66.25	0	444118..445320	+	400	162146273	nifS	GDI0448	-	cysteine desulfurase
428	 70.09	0	445368..446507	+	379	162146274	nifV	GDI0449	-	homocitrate synthase
429	 66.05	0	446527..446850	+	107	162146275	nifW	GDI0450	-	nitrogenase-stabilizing/protective protein nifW
430	 66.90	0	447003..447857	+	284	162146276	fixA	GDI0451	-	protein fixA
431	 67.40	0	447871..448965	+	364	162146277	fixB	GDI0452	-	hypothetical protein
432	 63.23	0	448976..450256	+	426	162146278	fixC	GDI0453	-	protein fixC
433	 59.65	-1	450285..450569	+	94	162146279	fixX	GDI0454	-	ferredoxin-like protein
434	 71.78	0	450607..451428	+	273	162146280	modD	GDI0455	-	putative pyrophosphorylase modD
435	 64.29	0	451802..453397	+	531	162146281	mcpA	GDI0456	-	chemoreceptor mcpA
436	 66.36	0	453534..454514	+	326	162146282	-	GDI0457	-	oxidoreductase (aldo/keto reductase) protein
437	 70.29	0	454536..455861	-	441	162146283	agaE	GDI0458	-	putative deaminase
438	 62.78	0	456130..456798	+	222	162146284	-	GDI0459	-	putative haloalkanoic acid dehalogenase
439	 66.12	0	456810..458081	+	423	162146285	-	GDI0460	-	putative oxidoreductase
440	 67.42	0	458122..459585	-	487	162146286	aldA	GDI0461	-	putative aldehyde dehydrogenase
441	 68.64	0	459620..460837	-	405	162146287	argE	GDI0462	-	acetylornithine deacetylase
442	 65.90	0	460848..462536	+	562	162146288	-	GDI0463	-	putative extracellular solute-binding protein
443	 68.11	0	462533..463504	+	323	162146289	-	GDI0464	-	putative ABC transporter, permease protein
444	 69.30	0	463501..464373	+	290	162146290	-	GDI0465	-	putative ABC transporter, permease protein
445	 70.70	0	464370..466181	+	603	162146291	-	GDI0466	-	putative ABC transporter, ATP-binding protein
446	 74.07	+1	466263..467369	+	368	162146292	katE	GDI0467	-	putative catalase
447	 70.31	0	467366..467941	+	191	162146293	cybB	GDI0468	-	putative cytochrome protein
448	 69.77	0	467944..468813	+	289	162146294	-	GDI0469	-	putative pirin-like protein
449	 70.56	0	468869..469999	+	376	162146295	ada	GDI0470	-	putative regulatory protein ada (regulatory protein of adaptative response)
450	 67.91	0	470113..471000	+	295	162146296	-	GDI0471	-	hypothetical protein
451	 68.10	0	471017..471295	-	92	162146297	-	GDI0472	-	putative protease
452	 66.09	0	471444..471791	+	115	162146298	-	GDI0473	-	hypothetical protein
453	 68.85	0	471871..472374	+	167	162146299	-	GDI0474	-	putative transcription regulator
454	 65.90	0	472374..473153	+	259	162146300	speE	GDI0475	-	putative spermidine synthase
455	 63.53	0	473739..475493	+	584	162146301	lsdA	GDI0476	-	levansucrase precursor protein
456	 67.60	0	475544..477148	+	534	162146302	lsdB	GDI0477	-	levanase precursor
457	 64.25	0	477184..477597	-	137	162146303	bfpH	GDI0478	-	putative BfpH protein (involved in biogenesis of type IV pili)
458	 64.24	0	477651..478145	+	164	162146304	-	GDI0479	-	putative pseudopilin G precursor
459	 73.28	+1	478157..478942	+	261	162146305	gspO	GDI0480	-	putative prepilin peptidase and N-methyltransferase O
460	 69.66	0	478965..480668	+	567	162146306	-	GDI0481	-	putative type II secretion pathway kinase GspE
461	 73.66	+1	480672..481901	+	409	162146307	lsdF	GDI0482	-	putative general secretion pathway protein F
462	 71.16	0	481891..482313	+	140	162146308	lsdH	GDI0483	-	putative pseudopilin H precursor
463	 70.12	0	482310..482714	+	134	162146309	lsdI	GDI0484	-	putative pseudopilin I precursor
464	 70.77	0	482711..483319	+	202	162146310	lsdJ	GDI0485	-	putative pseudopilin J precursor
465	 72.59	+1	483393..484439	+	348	162146311	lsdL	GDI0486	-	putative general secretion pathway protein L
466	 70.14	0	484442..485074	+	210	162146312	lsdM	GDI0487	-	putative general secretion pathway protein M
467	 72.93	+1	485071..485565	+	164	162146313	lsdN	GDI0488	-	putative general secretion pathway protein N
468	 68.22	0	485562..487880	+	772	162146314	lsdD	GDI0489	-	putative general secretion pathway protein D
469	 71.98	0	487877..488686	+	269	162146315	lsdK	GDI0490	-	putative general secretion pathway protein K
470	 63.44	0	488736..489665	-	309	162146316	fbaB	GDI0491	-	fructose-1,6-bisphosphate aldolase
471	 69.03	0	489798..490178	-	126	162146317	-	GDI0492	-	hypothetical protein
472	 69.12	0	490175..491395	-	406	162146318	-	GDI0493	-	putative flavohemoprotein
473	 68.71	0	491462..491902	+	146	162146319	-	GDI0494	-	putative transcriptional regulator
474	 68.13	0	491851..493083	-	410	162146320	-	GDI0495	-	putative glycosyl transferase
475	 65.87	0	493080..493205	-	41	162146321	-	GDI0496	-	hypothetical protein
476	 63.69	0	493517..494155	+	212	162146322	-	GDI0497	-	putative peptidase
477	 66.86	0	494174..495193	-	339	162146323	-	GDI0498	-	putative glycosyl transferase
478	 67.01	0	495209..496654	-	481	162146324	-	GDI0499	-	hypothetical protein
479	 70.12	0	496916..498103	+	395	162146325	-	GDI0500	-	putative glycosyl transferase
480	 63.85	0	498154..499146	+	330	162146326	-	GDI0501	-	radical SAM superfamily protein
481	 69.01	0	499183..500505	-	440	162146327	-	GDI0502	-	hypothetical protein
482	 66.77	0	500519..501499	-	326	162146328	-	GDI0503	-	hypothetical protein
483	 69.70	0	501515..502603	-	362	162146329	-	GDI0504	-	putative MotA/TolQ/ExbB proton channel family protein
484	 76.62	+1	502600..503403	-	267	162146330	-	GDI0505	-	hypothetical protein
485	 69.86	0	503469..504281	-	270	162146331	suhB	GDI0506	-	inositol-1-monophosphatase
486	 64.55	0	504361..504927	-	188	162146332	efp	GDI0507	-	elongation factor P
487	 72.58	+1	504986..506134	-	382	162146333	-	GDI0508	-	putative L-lysine 2,3-aminomutase
488	 70.77	0	506182..507204	+	340	162146334	poxA	GDI0509	-	putative lysyl-tRNA synthetase
489	 70.11	0	507301..507735	+	144	162146335	-	GDI0510	-	hypothetical protein
490	 73.13	+1	507765..508445	+	226	162146336	-	GDI0511	-	putative cell adhesion
491	 71.99	0	508467..509105	-	212	162146337	thiE	GDI0512	-	putative thiamine-phosphate pyrophosphorylase
492	 73.92	+1	509116..509556	-	146	162146338	-	GDI0513	-	hypothetical protein
493	 71.11	0	509582..509851	+	89	162146339	-	GDI0514	-	hypothetical protein
494	 66.96	0	509855..510196	+	113	162146340	-	GDI0515	-	putative cell division protein ZapA
495	 72.87	+1	510313..510957	+	214	162146341	-	GDI0516	-	putative 5-formyltetrahydrofolate cyclo-ligase
496	 70.10	0	510992..511807	+	271	162146342	-	GDI0517	-	putative phosphoesterase
497	 71.10	0	511817..512245	-	142	162146343	-	GDI0518	-	putative acyl-CoA thioester hydrolase
498	 67.89	0	512277..513752	-	491	162146344	-	GDI0519	-	AMP nucleosidase
499	 72.95	+1	513765..514925	-	386	162146345	-	GDI0520	-	hypothetical protein
500	 71.00	0	515075..515767	+	230	162146346	-	GDI0521	-	putative DNA-3-methyladenine glycosylase
501	 67.68	0	515770..516561	-	263	162146347	-	GDI0522	-	lipase protein
502	 71.92	0	516582..517571	-	329	162146348	-	GDI0523	-	quinone oxidoreductase
503	 70.33	0	517817..519619	+	600	162146349	clcB	GDI0524	-	putative voltage-gated ClC-type chloride channel
504	 63.38	0	519694..521154	-	486	162146350	glnA	GDI0525	-	glutamine synthetase
505	 61.95	0	521331..521669	-	112	162146351	glnB	GDI0526	-	putative nitrogen regulatory protein
506	 67.77	0	521916..523088	+	390	162146352	-	GDI0527	-	hypothetical protein
507	 72.78	+1	523274..524140	-	288	162146353	-	GDI0528	-	hypothetical protein
508	 69.65	0	524137..525510	-	457	162146354	-	GDI0529	-	hypothetical protein
509	 63.98	0	525704..526186	+	160	162146355	rplM	GDI0530	-	50S ribosomal protein L13
510	 67.47	0	526192..526692	+	166	162146356	rpsI	GDI0531	-	30S ribosomal protein S9
66.22	MEAN

5.80	STD DEV
