IslandPathversion 1.0

IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

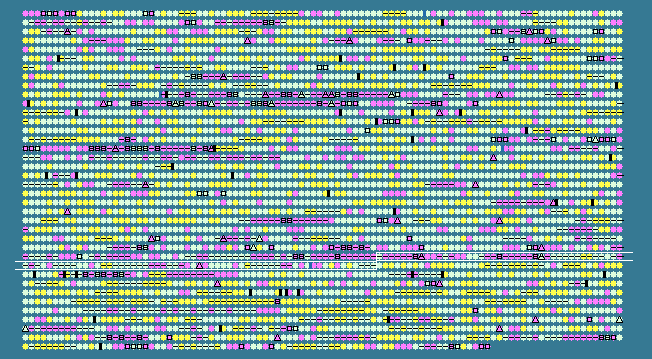

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2760	 63.31	0	2912357..2925718	+	4453	162148606	-	GDI2833	-	putative nonribosomal peptide synthetases (NPRS)
2761	 52.14	-2	2925841..2926542	+	233	162148607	-	GDI2834	-	putative sulfotransferase
2762	 54.76	-1	2926672..2927889	+	405	162148608	-	GDI2835	-	major facilitator transporter
2763	 49.21	-2	2928234..2928863	-	209	162148609	-	GDI2836	-	putative autoinducer synthesis protein
2764	 50.39	-2	2928999..2929895	+	298	162148610	-	GDI2837	-	LuxR family transcriptional regulator
2765	 49.72	-2	2930022..2930741	+	239	162148611	-	GDI2838	-	LuxR family transcriptional regulator
2766	 58.05	-1	2930872..2931138	+	88	162148612	-	GDI2839	-	putative transposase
2767	 61.03	0	2931162..2931977	+	271	162148613	-	GDI2840	-	putative integrase
2768	 61.31	0	2932370..2933302	-	310	162148614	-	GDI2841	-	putative aldo-keto reductase
2769	 60.13	-1	2933396..2934451	-	351	162148615	-	GDI2842	-	putative NAD dependent epimerase/dehydratase protein
2770	 62.58	0	2934462..2935244	-	260	162148616	-	GDI2843	-	putative intracellular protease/amidase
2771	 64.96	0	2935367..2936245	+	292	162148617	-	GDI2844	-	LysR family transcriptional regulator
2772	 62.53	0	2936368..2936778	+	136	162148618	-	GDI2845	-	hypothetical protein
2773	 60.94	0	2936717..2937502	-	261	162148619	tetR	GDI2846	-	TetR family transcriptional regulator
2774	 61.82	0	2937532..2938047	+	171	162148620	-	GDI2847	-	putative carboxymuconolactone decarboxylase
2775	 65.76	0	2938198..2939190	+	330	162148621	-	GDI2848	-	putative multidrug resistance protein
2776	 65.44	0	2939187..2940740	+	517	162148622	-	GDI2849	-	putative multidrug resistance protein
2777	 65.25	0	2940737..2942146	+	469	162148623	-	GDI2850	-	putative multidrug efflux MFS outer membrane protein
2778	 51.46	-2	2942185..2943243	-	352	162148624	-	GDI2851	-	LysR family transcriptional regulator
2779	 52.97	-2	2943499..2943936	-	145	162148625	-	GDI2852	-	hypothetical protein
2780	 60.10	-1	2944022..2944858	-	278	162148626	-	GDI2853	-	putative transposase
2781	 47.14	-2	2944909..2945118	-	69	162148627	-	GDI2854	-	hypothetical protein
2782	 57.99	-1	2945152..2945589	-	145	162148628	gloA	GDI2855	-	putative lactoylglutathione lyase
2783	 53.65	-2	2945636..2946334	-	232	162148629	-	GDI2856	-	hypothetical protein
2784	 54.69	-1	2946358..2946933	-	191	162148630	-	GDI2857	-	putative peptidase C56, PfpI
2785	 56.43	-1	2946992..2947411	-	139	162148631	-	GDI2858	-	hypothetical protein
2786	 58.43	-1	2947507..2947773	+	88	162148632	-	GDI2859	-	putative transposase
2787	 63.41	0	2947797..2948624	+	275	162148633	-	GDI2860	-	putative integrase
2788	 50.94	-2	2948610..2948876	-	88	162148634	-	GDI2861	-	hypothetical protein
2789	 64.94	0	2949183..2950916	-	577	162148635	-	GDI2862	-	hypothetical protein
2790	 68.06	0	2951164..2951667	-	167	162148636	slt	GDI2863	-	putative lytic murein transglycosylase
2791	 66.83	0	2951826..2952422	-	198	162148637	-	GDI2864	-	hypothetical protein
2792	 66.67	0	2952419..2952760	-	113	162148638	-	GDI2865	-	hypothetical protein
2793	 69.21	0	2952815..2953444	-	209	162148639	traF	GDI2866	-	putative conjugal transfer protein traF
2794	 70.44	0	2953441..2953917	-	158	162148640	-	GDI2867	-	hypothetical protein
2795	 71.51	0	2953914..2954657	-	247	162148641	-	GDI2868	-	DNA methylase N-4/N-6 domain-containing protein
2796	 66.90	0	2954897..2955745	-	282	162148642	-	GDI2869	-	putative replication protein A
2797	 66.67	0	2955747..2956031	-	94	162148643	-	GDI2870	-	hypothetical protein
2798	 65.10	0	2956030..2956221	+	63	162148644	-	GDI2871	-	hypothetical protein
2799	 65.37	0	2956230..2956460	+	76	162148645	-	GDI2872	-	hypothetical protein
2800	 61.76	0	2956593..2957102	+	169	162148646	-	GDI2873	-	hypothetical protein
2801	 67.84	0	2957128..2957637	-	169	162148647	-	GDI2874	-	hypothetical protein
2802	 57.66	-1	2957672..2958082	+	136	162148648	-	GDI2875	-	hypothetical protein
2803	 64.73	0	2958136..2958393	-	85	162148649	-	GDI2876	-	hypothetical protein
2804	 63.00	0	2958673..2958999	-	108	162148650	-	GDI2877	-	hypothetical protein
2805	 54.63	-1	2959385..2960605	+	406	162148651	-	GDI2878	-	hypothetical protein
2806	 65.01	0	2960619..2961581	-	320	162148652	-	GDI2879	-	hypothetical protein
2807	 68.83	0	2961871..2962935	-	354	162148653	-	GDI2880	-	hypothetical protein
2808	 65.22	0	2963025..2963300	+	91	162148654	hup	GDI2881	-	putative DNA-binding protein HU
2809	 63.03	0	2963378..2964643	-	421	162148655	-	GDI2882	-	hypothetical protein
2810	 65.14	0	2964695..2966860	-	721	162148656	parB	GDI2883	-	putative chromosome partitioning protein parB
2811	 66.44	0	2967195..2967644	+	149	162148657	-	GDI2884	-	putative ROS/MUCR transcriptional regulator protein
2812	 62.10	0	2967701..2968138	-	145	162148658	-	GDI2885	-	putative glutathione S-transferase
2813	 65.31	0	2968679..2971846	-	1055	162148659	dnaE	GDI2886	-	putative DNA polymerase III alpha subunit
2814	 70.62	0	2971843..2973282	-	479	162148660	-	GDI2887	-	putative nucleotidyltransferase
2815	 72.57	+1	2973293..2974003	-	236	162148661	-	GDI2888	-	hypothetical protein
2816	 66.90	0	2974257..2976356	+	699	162148662	uvrD	GDI2889	-	putative DNA helicase II
2817	 65.73	0	2976367..2977008	+	213	162148663	-	GDI2890	-	hypothetical protein
2818	 65.76	0	2977237..2978994	-	585	162148664	-	GDI2891	-	putative ubiquitin-activating enzyme
2819	 64.09	0	2979068..2980114	-	348	162148665	-	GDI2892	-	hypothetical protein
2820	 65.82	0	2980118..2981302	-	394	162148666	-	GDI2893	-	putative patatin-like phospholipase
2821	 66.67	0	2981346..2981567	-	73	162148667	-	GDI2894	-	hypothetical protein
2822	 58.61	-1	2981724..2982083	+	119	162148668	-	GDI2895	-	putative HTH-type transcriptional regulator
2823	 60.54	0	2982086..2982607	+	173	162148669	-	GDI2896	-	hypothetical protein
2824	 59.44	-1	2982708..2984021	+	437	162148670	sbcB	GDI2897	-	putative exodeoxyribonuclease I
2825	 65.81	0	2984252..2984833	-	193	162148671	tetR	GDI2898	-	putative transcriptional regulator tetR
2826	 64.05	0	2984858..2986117	+	419	162148672	-	GDI2899	-	putative mutlidrug resistance protein
2827	 60.61	0	2986285..2986482	-	65	162148673	-	GDI2900	-	hypothetical protein
2828	 62.47	0	2986506..2986982	-	158	162148674	-	GDI2901	-	hypothetical protein
2829	 66.84	0	2986990..2987583	-	197	162148675	-	GDI2902	-	hypothetical protein
2830	 56.70	-1	2988359..2989351	-	330	162148676	-	GDI2904	-	putative integrase
2831	 59.09	-1	2990082..2990345	-	87	162148677	-	GDI2905	-	hypothetical protein
2832	 66.40	0	2990338..2991474	-	378	162148678	trbI	GDI2906	-	putative conjugal transfer protein trbI
2833	 65.48	0	2991582..2992589	-	335	162148679	cagX	GDI2907	-	putative conjugal transfer protein
2834	 66.38	0	2992586..2993278	-	230	162148680	trbF	GDI2908	-	putative conjugal transfer protein trbF
2835	 66.53	0	2993275..2994741	-	488	162148681	trbL	GDI2909	-	putative TrbL/VirB6 conjugal transfer protein
2836	 62.45	0	2994745..2995455	-	236	162148682	trbJ	GDI2910	-	putative conjugal transfer protein trbJ
2837	 63.96	0	2995542..2997977	-	811	162148683	trbE	GDI2911	-	putative conjugal transfer protein trbE
2838	 69.93	0	2997991..2998266	-	91	162148684	trbD	GDI2912	-	putative conjugal transfer protein trbD
2839	 65.55	0	2998266..2998622	-	118	162148685	trbC	GDI2913	-	putative conjugal transfer protein trbC
2840	 67.99	0	2998619..2999674	-	351	162148686	trbB	GDI2914	-	putative conjugal transfer protein trbB
2841	 65.12	0	3000038..3000814	+	258	162148687	-	GDI2915	-	mucR family transcriptional regulatory protein
2842	 68.00	0	3000849..3001298	-	149	162148688	-	GDI2916	-	hypothetical protein
2843	 65.48	0	3001295..3003316	-	673	162148689	traG	GDI2917	-	putative conjugal transfer protein traG
2844	 60.87	0	3003488..3004108	-	206	162148690	tetR	GDI2918	-	putative transcription regulator tetR
2845	 60.55	0	3004324..3005157	-	277	162148691	-	GDI2919	-	hypothetical protein
2846	 63.08	0	3005179..3005457	+	92	162148692	-	GDI2920	-	hypothetical protein
2847	 58.61	-1	3005649..3006095	+	148	162148693	-	GDI2921	-	hypothetical protein
2848	 62.94	0	3006108..3007769	+	553	162148694	-	GDI2922	-	putative DNA recombinase
2849	 61.76	0	3013376..3013762	-	128	162148695	-	GDI2923	-	hypothetical protein
2850	 61.54	0	3013740..3014870	+	376	162148696	-	GDI2924	-	hypothetical protein
2851	 68.45	0	3014939..3016675	+	578	162148697	-	GDI2925	-	acyl-CoA synthetase
2852	 69.81	0	3016717..3016875	+	52	162148698	-	GDI2926	-	hypothetical protein
2853	 59.92	-1	3016872..3017123	+	83	162148699	-	GDI2927	-	putative acyl carrier protein
2854	 67.50	0	3017127..3018329	+	400	162148700	kbl	GDI2928	-	2-amino-3-ketobutyrate coenzyme A ligase
2855	 69.90	0	3018334..3019293	-	319	162148701	-	GDI2929	-	hypothetical protein
2856	 69.34	0	3019293..3020264	-	323	162148702	-	GDI2930	-	diacylglycerol kinase catalytic subunit
2857	 68.77	0	3020386..3021336	+	316	162148703	-	GDI2931	-	putative metallophosphoesterase
2858	 68.07	0	3021353..3022561	+	402	162148704	-	GDI2932	-	putative permease
2859	 69.14	0	3022558..3023691	+	377	162148705	-	GDI2933	-	putative permease
66.22	MEAN

5.80	STD DEV
