IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

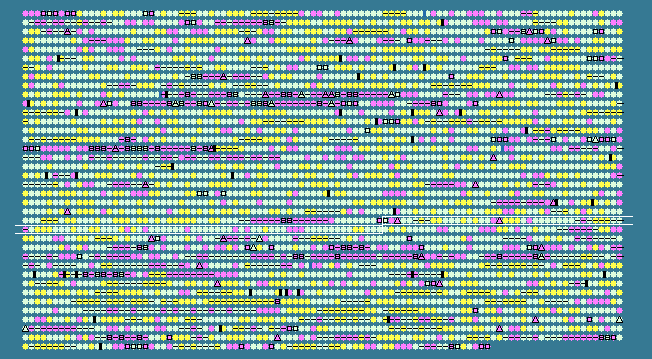

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2361	 62.96	0	2511209..2512798	-	529	162148207	-	GDI2424	-	putative transposase
2362	 52.59	-2	2512798..2512932	+	44	162148208	-	GDI2425	-	hypothetical protein
2363	 57.68	-1	2512948..2513859	+	303	162148209	-	GDI2426	-	putative integrase, catalytic region
2364	 65.81	0	2513856..2514320	+	154	162148210	-	GDI2427	-	hypothetical protein
2365	 66.76	0	2514543..2515583	+	346	162148211	ltaE	GDI2428	-	putative low specificity L-threonine aldolase
2366	 67.63	0	2515580..2516203	+	207	162148212	-	GDI2429	-	lysine exporter protein
2367	 69.73	0	2516214..2517095	-	293	162148213	-	GDI2430	-	putative phenazine-like biosynthesis protein
2368	 67.03	0	2517050..2517592	+	180	162148214	-	GDI2431	-	hypothetical protein
2369	 71.79	0	2517692..2519116	+	474	162148215	-	GDI2432	-	GntR family transcriptional regulator
2370	 74.00	+1	2519145..2519771	-	208	162148216	-	GDI2433	-	putative inner membrane protein
2371	 67.20	0	2519779..2520900	-	373	162148217	-	GDI2434	-	putative low temperature requirement A protein (LtrA)
2372	 67.16	0	2520999..2523041	-	680	162148218	-	GDI2435	-	putative glycyl aminopeptidase
2373	 64.41	0	2523245..2523775	-	176	162148219	-	GDI2436	-	hypothetical protein
2374	 70.60	0	2523735..2524877	+	380	162148220	-	GDI2437	-	HlyD family secretion protein
2375	 66.02	0	2524870..2527971	+	1033	162148221	-	GDI2438	-	putative cobalt-zinc-cadmium resistance protein
2376	 70.09	0	2527968..2529485	+	505	162148222	-	GDI2439	-	putative efflux pump outer membrane protein
2377	 68.81	0	2529585..2531126	+	513	162148223	rbsA	GDI2440	-	putative ribose transport ATP-binding protein rbsA
2378	 66.86	0	2531123..2532169	+	348	162148224	rbsC	GDI2441	-	putative ribose transport system permease protein rbsC
2379	 62.60	0	2532166..2533173	+	335	162148225	rbsB	GDI2442	-	putative D-ribose-binding protein precursor
2380	 56.60	-1	2533244..2534236	+	330	162148226	-	GDI2443	-	putative integrase
2381	 71.81	0	2534233..2534679	-	148	162148227	-	GDI2444	-	hypothetical protein
2382	 70.83	0	2534683..2535522	-	279	162148228	-	GDI2445	-	putative dienelactone hydrolases
2383	 70.54	0	2535522..2537459	-	645	162148229	acsA	GDI2446	-	putative acetyl-coenzyme A synthetase
2384	 66.60	0	2537585..2539012	-	475	162148230	-	GDI2447	-	putative transcriptional regulator
2385	 28.95	-2	2539011..2539124	+	37	162148231	-	GDI2448	-	hypothetical protein
2386	 66.96	0	2539124..2540464	+	446	162148232	aceA	GDI2449	-	putative isocitrate lyase
2387	 68.97	0	2540585..2542798	+	737	162148233	glcB	GDI2450	-	malate synthase G
2388	 68.30	0	2542830..2543624	-	264	162148234	-	GDI2451	-	hypothetical protein
2389	 69.55	0	2543621..2544280	-	219	162148235	fbpC	GDI2452	-	putative ferric cations import ATP-binding protein fbpC
2390	 62.88	0	2544445..2544708	-	87	162148236	-	GDI2453	-	hypothetical protein
2391	 66.47	0	2544766..2545266	-	166	162148237	-	GDI2454	-	putative endoribonuclease protein
2392	 65.24	0	2545278..2545697	-	139	162148238	adhB	GDI2455	-	putative alcohol dehydrogenase cytochrome c subunit
2393	 65.48	0	2545697..2547298	-	533	162148239	-	GDI2456	-	putative L-amino-acid oxidase precursor
2394	 60.67	0	2547295..2547561	-	88	162148240	-	GDI2457	-	hypothetical protein
2395	 69.64	0	2547597..2548100	-	167	162148241	-	GDI2458	-	putative cystathionine-beta-synthase
2396	 72.06	+1	2548110..2549591	-	493	162148242	nuoN	GDI2459	-	putative NADH-quinone oxidoreductase chain N
2397	 71.19	0	2549588..2551069	-	493	162148243	nuoM	GDI2460	-	putative NADH-quinone oxidoreductase chain M
2398	 70.93	0	2551066..2552943	-	625	162148244	nuoL	GDI2461	-	putative NADH-quinone oxidoreductase chain L
2399	 68.57	0	2552949..2553263	-	104	162148245	nuoK	GDI2462	-	putative NADH-quinone oxidoreductase chain K
2400	 68.44	0	2553260..2553766	-	168	162148246	nuoJ	GDI2463	-	putative NADH-quinone oxidoreductase chain J
2401	 62.22	0	2553769..2554218	-	149	162148247	nuoI	GDI2464	-	putative NADH-quinone oxidoreductase subunit I
2402	 67.40	0	2554292..2555248	-	318	162148248	nuoH	GDI2465	-	putative NADH-quinone oxidoreductase subunit H
2403	 72.24	+1	2555245..2557935	-	896	162148249	nuoG	GDI2466	-	putative NADH-quinone oxidoreductase chain 3
2404	 71.17	0	2557945..2559231	-	428	162148250	nuoF	GDI2467	-	putative NADH-quinone oxidoreductase chain F
2405	 72.12	+1	2559228..2559722	-	164	162148251	nuoE	GDI2468	-	putative NADH-quinone oxidoreductase chain E
2406	 66.00	0	2559709..2561514	-	601	162148252	nuoCD	GDI2469	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
2407	 65.88	0	2561527..2562162	-	211	162148253	nuoB	GDI2470	-	NADH dehydrogenase subunit B
2408	 67.34	0	2562147..2562590	-	147	162148254	nuoA	GDI2471	-	putative NADH-quinone oxidoreductase chain A
2409	 70.18	0	2562712..2564163	-	483	162148255	-	GDI2472	-	aminobenzoyl-glutamate utilization protein
2410	 65.73	0	2564277..2565341	-	354	162148256	adh	GDI2473	-	alcohol dehydrogenase
2411	 69.33	0	2565505..2566218	+	237	162148257	-	GDI2474	-	GntR family transcriptional regulator
2412	 69.73	0	2566215..2567909	+	564	162148258	plcA	GDI2475	-	putative phospholipase C
2413	 72.71	+1	2567915..2569270	+	451	162148259	ccp	GDI2476	-	putative cytochrome c peroxidase
2414	 63.93	0	2569290..2571776	-	828	162148260	plcN	GDI2477	-	putative non-hemolytic phospholipase C precursor
2415	 64.17	0	2572097..2572456	+	119	162148261	-	GDI2478	-	putative endoribonuclease L-PSP protein
2416	 67.49	0	2572522..2573616	-	364	162148262	ilvE	GDI2479	-	branched-chain-amino-acid aminotransferase
2417	 70.26	0	2573738..2575186	-	482	162148263	gabD	GDI2480	-	succinate-semialdehyde dehydrogenase
2418	 62.12	0	2575226..2575423	+	65	162148264	-	GDI2481	-	hypothetical protein
2419	 70.86	0	2575405..2576382	+	325	162148265	-	GDI2482	-	zinc-containing alcohol dehydrogenase superfamily protein
2420	 65.28	0	2576392..2576970	-	192	162148266	-	GDI2483	-	putative 2 phosphatidic acid phosphatase (PAP2) protein
2421	 47.95	-2	2577014..2577184	-	56	162148267	-	GDI2484	-	hypothetical protein
2422	 67.26	0	2577152..2577319	+	55	162148268	-	GDI2485	-	hypothetical protein
2423	 64.52	0	2577328..2578584	-	418	162148269	-	GDI2486	-	putative acyltransferase protein
2424	 65.52	0	2578634..2580121	-	495	162148270	-	GDI2487	-	hypothetical protein
2425	 63.79	0	2580170..2580343	-	57	162148271	-	GDI2488	-	hypothetical protein
2426	 64.56	0	2580348..2581346	-	332	162148272	-	GDI2489	-	putative glycosyl transferase, group 1
2427	 63.35	0	2581407..2582009	-	200	162148273	exoF	GDI2490	-	putative exopolysaccharide production protein exoF
2428	 60.58	0	2582029..2583342	-	437	162148274	-	GDI2491	-	hypothetical protein
2429	 63.61	0	2583755..2585257	+	500	162148275	exoY	GDI2492	-	putative exopolysaccharide production protein exoY
2430	 66.40	0	2585338..2587560	+	740	162148276	-	GDI2493	-	putative succinoglycan biosynthesis transport protein
2431	 69.15	0	2587607..2588692	+	361	162148277	-	GDI2494	-	putative glycosyl transferase
2432	 68.66	0	2588693..2589094	+	133	162148278	-	GDI2495	-	hypothetical protein
2433	 66.58	0	2589170..2590351	+	393	162148279	-	GDI2496	-	putative glycosyl transferase
2434	 64.41	0	2590348..2591235	+	295	162148280	-	GDI2497	-	putative glycosyl transferase
2435	 64.07	0	2591251..2592096	+	281	162148281	-	GDI2498	-	hypothetical protein
2436	 62.35	0	2592506..2594035	+	509	162148282	-	GDI2499	-	putative O-antigen transporter
2437	 65.91	0	2594373..2595566	+	397	162148283	-	GDI2500	-	hypothetical protein
2438	 62.55	0	2595563..2596363	+	266	162148284	-	GDI2501	-	hypothetical protein
2439	 67.98	0	2596427..2597419	+	330	162148285	-	GDI2502	-	hypothetical protein
2440	 67.25	0	2597416..2598276	+	286	162148286	-	GDI2503	-	hypothetical protein
2441	 70.83	0	2598279..2599214	+	311	162148287	-	GDI2504	-	putative 2-oxoglutarate dehydrogenase E1 component beta subunit
2442	 68.48	0	2599204..2600193	+	329	162148288	-	GDI2505	-	putative 2-oxoglutarate dehydrogenase E1 component beta subunit
2443	 64.99	0	2600278..2600634	+	118	162148289	-	GDI2506	-	putative 2-oxoglutarate dehydrogenase E2 component (dihydrolipoamide succinyltransferase)
2444	 66.30	0	2600627..2601991	-	454	162148290	-	GDI2507	-	hypothetical protein
2445	 60.98	0	2601988..2602356	-	122	162148291	-	GDI2508	-	hypothetical protein
2446	 53.33	-2	2602400..2602639	-	79	162148292	-	GDI2509	-	hypothetical protein
2447	 56.37	-1	2602695..2604170	+	491	162148293	-	GDI2510	-	hypothetical protein
2448	 66.34	0	2604232..2604540	-	102	162148294	-	GDI2511	-	putative small multidrug resistance protein
2449	 64.77	0	2604543..2606384	-	613	162148295	-	GDI2512	-	hypothetical protein
2450	 63.54	0	2606422..2608146	-	574	162148296	-	GDI2513	-	hypothetical protein
2451	 62.93	0	2608148..2609593	-	481	162148297	-	GDI2514	-	hypothetical protein
2452	 67.32	0	2609810..2611192	-	460	162148298	-	GDI2515	-	putative sodium/substrate symport protein
2453	 68.89	0	2611199..2611468	-	89	162148299	-	GDI2516	-	hypothetical protein
2454	 69.25	0	2611507..2612241	-	244	162148300	-	GDI2517	-	nucleoside diphosphate hydrolase
2455	 66.21	0	2612266..2612484	-	72	162148301	-	GDI2518	-	hypothetical protein
2456	 75.42	+1	2612483..2613133	+	216	162148302	-	GDI2519	-	hypothetical protein
2457	 73.07	+1	2613130..2613582	+	150	162148303	-	GDI2520	-	hypothetical protein
2458	 66.30	0	2613724..2615889	+	721	162148304	-	GDI2521	-	putative TonB-dependent receptor
2459	 67.07	0	2615894..2616892	-	332	162148305	-	GDI2522	-	putative UDP-glucuronate 5'-epimerase (UDP-glucuronic aci epimerase)
2460	 66.55	0	2617082..2617966	+	294	162148306	-	GDI2523	-	arginine deiminase
66.22	MEAN

5.80	STD DEV
