IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

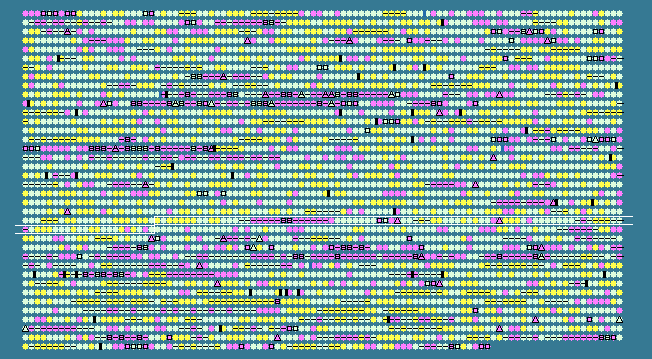

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2323	 70.14	0	2461459..2462640	+	393	162148169	-	GDI2386	-	coproporphyrinogen III oxidase
2324	 66.92	0	2462671..2463861	+	396	162148170	rih	GDI2387	-	putative pyrimidine-specific ribonucleoside hydrolase
2325	 71.59	0	2463869..2464315	+	148	162148171	-	GDI2388	-	hypothetical protein
2326	 71.79	0	2464377..2465684	+	435	162148172	-	GDI2389	-	putative lytic transglycosylase
2327	 74.19	+1	2465707..2467659	-	650	162148173	bglX	GDI2390	-	putative periplasmic beta-glucosidase precursor
2328	 70.67	0	2467831..2469003	+	390	162148174	-	GDI2391	-	putative major facilitator transporter protein
2329	 69.89	0	2469165..2469692	+	175	162148175	-	GDI2392	-	hypothetical protein
2330	 69.29	0	2469763..2472393	+	876	162148176	leuS	GDI2393	-	leucyl-tRNA synthetase
2331	 68.04	0	2472398..2473126	+	242	162148177	-	GDI2394	-	hypothetical protein
2332	 74.46	+1	2473123..2474136	+	337	162148178	holA	GDI2395	-	DNA polymerase III subunit delta
2333	 72.08	+1	2474838..2481896	+	2352	162148179	-	GDI2396	-	putative fatty acid synthase
2334	 66.51	0	2481893..2483179	+	428	162148180	klb	GDI2397	-	putative 2-amino-3-ketobutyrate coenzyme A ligase
2335	 66.83	0	2483122..2484342	-	406	162148181	kspS	GDI2398	-	putative capsule polysaccharide export protein kpsS
2336	 65.78	0	2484339..2485580	-	413	162148182	-	GDI2399	-	putative glycosyl transferase, group 1
2337	 67.75	0	2485577..2487232	-	551	162148183	kpsC	GDI2400	-	putative capsule polysaccharide export protein kpsC
2338	 66.15	0	2487390..2488559	-	389	162148184	-	GDI2401	-	putative glycosyl transferase, group 1
2339	 61.87	0	2488684..2490267	+	527	162148185	-	GDI2402	-	putative capsular polysaccharide biosynthesis protein
2340	 45.86	-2	2490595..2491632	+	345	162148186	-	GDI2403	-	hypothetical protein
2341	 56.45	-1	2491750..2493129	-	459	162148187	-	GDI2404	-	hypothetical protein
2342	 46.83	-2	2493571..2496489	-	972	162148188	-	GDI2405	-	hypothetical protein
2343	 46.57	-2	2496680..2497102	-	140	162148189	-	GDI2406	-	hypothetical protein
2344	 55.38	-1	2497099..2497488	-	129	162148190	-	GDI2407	-	putative transposase
2345	 57.80	-1	2497509..2497790	-	93	162148191	-	GDI2408	-	putative transposase
2346	 49.23	-2	2497999..2498646	-	215	162148192	ctrD	GDI2409	-	capsule polysaccharide export ATP-binding protein ctrD
2347	 47.82	-2	2498643..2499443	-	266	162148193	ctrC	GDI2410	-	putative capsule polysaccharide export inner-membrane protein ctrC
2348	 51.62	-2	2499440..2500615	-	391	162148194	ctrB	GDI2411	-	putative capsule polysaccharide export inner-membrane protein ctrB
2349	 52.67	-2	2500895..2502073	-	392	162148195	-	GDI2412	-	putative glycosyl transferase, group 1
2350	 55.12	-1	2502401..2503612	+	403	162148196	ctrA	GDI2413	-	putative polysaccharide export protein
2351	 61.48	0	2503746..2504786	-	346	162148197	-	GDI2414	-	putative inward rectifier potassium channel
2352	 61.32	0	2504851..2505168	-	105	162148198	-	GDI2415	-	hypothetical protein
2353	 64.51	0	2505148..2505564	+	138	162148199	-	GDI2416	-	putative glyoxylase I family protein
2354	 64.93	0	2505588..2505875	+	95	162148200	-	GDI2417	-	hypothetical protein
2355	 62.86	0	2505898..2506107	-	69	162148201	-	GDI2418	-	hypothetical protein
2356	 67.60	0	2506243..2507211	-	322	162148202	-	GDI2419	-	putative adenylate cyclase
2357	 64.40	0	2507248..2507733	-	161	162148203	-	GDI2420	-	AsnC family transcriptional regulator
2358	 69.01	0	2507879..2509030	+	383	162148204	dadB	GDI2421	-	putative alanine racemase, catabolic
2359	 68.82	0	2509050..2510303	+	417	162148205	dadA	GDI2422	-	putative D-amino acid dehydrogenase small subunit
2360	 60.90	0	2510440..2511219	-	259	162148206	-	GDI2423	-	putative transposase
2361	 62.96	0	2511209..2512798	-	529	162148207	-	GDI2424	-	putative transposase
2362	 52.59	-2	2512798..2512932	+	44	162148208	-	GDI2425	-	hypothetical protein
2363	 57.68	-1	2512948..2513859	+	303	162148209	-	GDI2426	-	putative integrase, catalytic region
2364	 65.81	0	2513856..2514320	+	154	162148210	-	GDI2427	-	hypothetical protein
2365	 66.76	0	2514543..2515583	+	346	162148211	ltaE	GDI2428	-	putative low specificity L-threonine aldolase
2366	 67.63	0	2515580..2516203	+	207	162148212	-	GDI2429	-	lysine exporter protein
2367	 69.73	0	2516214..2517095	-	293	162148213	-	GDI2430	-	putative phenazine-like biosynthesis protein
2368	 67.03	0	2517050..2517592	+	180	162148214	-	GDI2431	-	hypothetical protein
2369	 71.79	0	2517692..2519116	+	474	162148215	-	GDI2432	-	GntR family transcriptional regulator
2370	 74.00	+1	2519145..2519771	-	208	162148216	-	GDI2433	-	putative inner membrane protein
2371	 67.20	0	2519779..2520900	-	373	162148217	-	GDI2434	-	putative low temperature requirement A protein (LtrA)
2372	 67.16	0	2520999..2523041	-	680	162148218	-	GDI2435	-	putative glycyl aminopeptidase
2373	 64.41	0	2523245..2523775	-	176	162148219	-	GDI2436	-	hypothetical protein
2374	 70.60	0	2523735..2524877	+	380	162148220	-	GDI2437	-	HlyD family secretion protein
2375	 66.02	0	2524870..2527971	+	1033	162148221	-	GDI2438	-	putative cobalt-zinc-cadmium resistance protein
2376	 70.09	0	2527968..2529485	+	505	162148222	-	GDI2439	-	putative efflux pump outer membrane protein
2377	 68.81	0	2529585..2531126	+	513	162148223	rbsA	GDI2440	-	putative ribose transport ATP-binding protein rbsA
2378	 66.86	0	2531123..2532169	+	348	162148224	rbsC	GDI2441	-	putative ribose transport system permease protein rbsC
2379	 62.60	0	2532166..2533173	+	335	162148225	rbsB	GDI2442	-	putative D-ribose-binding protein precursor
2380	 56.60	-1	2533244..2534236	+	330	162148226	-	GDI2443	-	putative integrase
2381	 71.81	0	2534233..2534679	-	148	162148227	-	GDI2444	-	hypothetical protein
2382	 70.83	0	2534683..2535522	-	279	162148228	-	GDI2445	-	putative dienelactone hydrolases
2383	 70.54	0	2535522..2537459	-	645	162148229	acsA	GDI2446	-	putative acetyl-coenzyme A synthetase
2384	 66.60	0	2537585..2539012	-	475	162148230	-	GDI2447	-	putative transcriptional regulator
2385	 28.95	-2	2539011..2539124	+	37	162148231	-	GDI2448	-	hypothetical protein
2386	 66.96	0	2539124..2540464	+	446	162148232	aceA	GDI2449	-	putative isocitrate lyase
2387	 68.97	0	2540585..2542798	+	737	162148233	glcB	GDI2450	-	malate synthase G
2388	 68.30	0	2542830..2543624	-	264	162148234	-	GDI2451	-	hypothetical protein
2389	 69.55	0	2543621..2544280	-	219	162148235	fbpC	GDI2452	-	putative ferric cations import ATP-binding protein fbpC
2390	 62.88	0	2544445..2544708	-	87	162148236	-	GDI2453	-	hypothetical protein
2391	 66.47	0	2544766..2545266	-	166	162148237	-	GDI2454	-	putative endoribonuclease protein
2392	 65.24	0	2545278..2545697	-	139	162148238	adhB	GDI2455	-	putative alcohol dehydrogenase cytochrome c subunit
2393	 65.48	0	2545697..2547298	-	533	162148239	-	GDI2456	-	putative L-amino-acid oxidase precursor
2394	 60.67	0	2547295..2547561	-	88	162148240	-	GDI2457	-	hypothetical protein
2395	 69.64	0	2547597..2548100	-	167	162148241	-	GDI2458	-	putative cystathionine-beta-synthase
2396	 72.06	+1	2548110..2549591	-	493	162148242	nuoN	GDI2459	-	putative NADH-quinone oxidoreductase chain N
2397	 71.19	0	2549588..2551069	-	493	162148243	nuoM	GDI2460	-	putative NADH-quinone oxidoreductase chain M
2398	 70.93	0	2551066..2552943	-	625	162148244	nuoL	GDI2461	-	putative NADH-quinone oxidoreductase chain L
2399	 68.57	0	2552949..2553263	-	104	162148245	nuoK	GDI2462	-	putative NADH-quinone oxidoreductase chain K
2400	 68.44	0	2553260..2553766	-	168	162148246	nuoJ	GDI2463	-	putative NADH-quinone oxidoreductase chain J
2401	 62.22	0	2553769..2554218	-	149	162148247	nuoI	GDI2464	-	putative NADH-quinone oxidoreductase subunit I
2402	 67.40	0	2554292..2555248	-	318	162148248	nuoH	GDI2465	-	putative NADH-quinone oxidoreductase subunit H
2403	 72.24	+1	2555245..2557935	-	896	162148249	nuoG	GDI2466	-	putative NADH-quinone oxidoreductase chain 3
2404	 71.17	0	2557945..2559231	-	428	162148250	nuoF	GDI2467	-	putative NADH-quinone oxidoreductase chain F
2405	 72.12	+1	2559228..2559722	-	164	162148251	nuoE	GDI2468	-	putative NADH-quinone oxidoreductase chain E
2406	 66.00	0	2559709..2561514	-	601	162148252	nuoCD	GDI2469	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
2407	 65.88	0	2561527..2562162	-	211	162148253	nuoB	GDI2470	-	NADH dehydrogenase subunit B
2408	 67.34	0	2562147..2562590	-	147	162148254	nuoA	GDI2471	-	putative NADH-quinone oxidoreductase chain A
2409	 70.18	0	2562712..2564163	-	483	162148255	-	GDI2472	-	aminobenzoyl-glutamate utilization protein
2410	 65.73	0	2564277..2565341	-	354	162148256	adh	GDI2473	-	alcohol dehydrogenase
2411	 69.33	0	2565505..2566218	+	237	162148257	-	GDI2474	-	GntR family transcriptional regulator
2412	 69.73	0	2566215..2567909	+	564	162148258	plcA	GDI2475	-	putative phospholipase C
2413	 72.71	+1	2567915..2569270	+	451	162148259	ccp	GDI2476	-	putative cytochrome c peroxidase
2414	 63.93	0	2569290..2571776	-	828	162148260	plcN	GDI2477	-	putative non-hemolytic phospholipase C precursor
2415	 64.17	0	2572097..2572456	+	119	162148261	-	GDI2478	-	putative endoribonuclease L-PSP protein
2416	 67.49	0	2572522..2573616	-	364	162148262	ilvE	GDI2479	-	branched-chain-amino-acid aminotransferase
2417	 70.26	0	2573738..2575186	-	482	162148263	gabD	GDI2480	-	succinate-semialdehyde dehydrogenase
2418	 62.12	0	2575226..2575423	+	65	162148264	-	GDI2481	-	hypothetical protein
2419	 70.86	0	2575405..2576382	+	325	162148265	-	GDI2482	-	zinc-containing alcohol dehydrogenase superfamily protein
2420	 65.28	0	2576392..2576970	-	192	162148266	-	GDI2483	-	putative 2 phosphatidic acid phosphatase (PAP2) protein
2421	 47.95	-2	2577014..2577184	-	56	162148267	-	GDI2484	-	hypothetical protein
2422	 67.26	0	2577152..2577319	+	55	162148268	-	GDI2485	-	hypothetical protein
66.22	MEAN

5.80	STD DEV
