IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

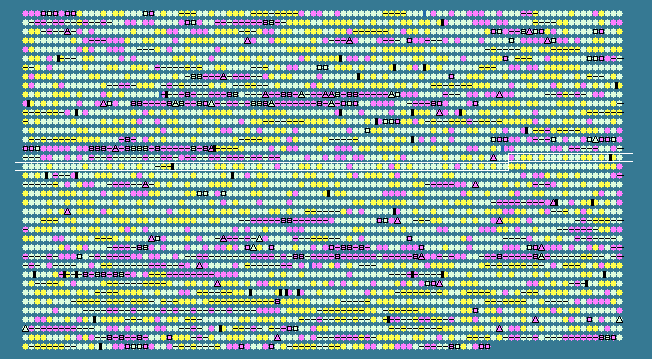

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1682	 55.56	-1	1765660..1765974	+	104	162147528	-	GDI1744	-	hypothetical protein
1683	 67.05	0	1765975..1767786	+	603	162147529	-	GDI1745	-	putative signal transduction histidine kinase
1684	 73.04	+1	1767943..1769637	+	564	162147530	cydD	GDI1746	-	putative transport ATP-binding protein cydD
1685	 73.25	+1	1769696..1771336	+	546	162147531	cydC	GDI1747	-	putative transport ATP-binding protein cydC
1686	 68.53	0	1771477..1771851	+	124	162147532	-	GDI1748	-	hypothetical protein
1687	 70.04	0	1771871..1773739	+	622	162147533	recQ	GDI1749	-	putative ATP-dependent DNA helicase recQ
1688	 68.22	0	1773744..1774517	+	257	162147534	glpR	GDI1750	-	glycerol-3-phosphate regulon repressor
1689	 68.73	0	1774579..1776273	+	564	162147535	glpD	GDI1751	-	glycerol-3-phosphate dehydrogenase
1690	 67.61	0	1776337..1777185	+	282	162147536	glpF	GDI1752	-	putative glycerol uptake facilitator protein
1691	 70.33	0	1777217..1778716	+	499	162147537	glpK	GDI1753	-	putative glycerol kinase
1692	 67.76	0	1778771..1779319	-	182	162147538	-	GDI1754	-	hypothetical protein
1693	 64.99	0	1779492..1780028	+	178	162147539	nrdR	GDI1755	-	putative transcriptional repressor nrdR
1694	 71.74	0	1780069..1780620	+	183	162147540	nusB	GDI1756	-	N utilization substance protein B-like protein
1695	 73.85	+1	1780637..1781611	+	324	162147541	thiL	GDI1757	-	putative thiamine-monophosphate kinase
1696	 67.79	0	1781619..1782779	-	386	162147542	-	GDI1758	-	hypothetical protein
1697	 70.80	0	1782840..1783685	+	281	162147543	-	GDI1759	-	putative oxidoreductase
1698	 69.45	0	1783826..1784794	+	322	162147544	-	GDI1760	-	glucokinase
1699	 71.97	0	1785104..1785820	+	238	162147545	pcm	GDI1761	-	protein-L-isoaspartate O-methyltransferase
1700	 68.76	0	1785902..1787335	+	477	162147546	tolC	GDI1762	-	putative Outer membrane protein tolC precursor
1701	 68.59	0	1787533..1790229	+	898	162147547	valS	GDI1763	-	valyl-tRNA synthetase
1702	 65.11	0	1790319..1790897	+	192	162147548	msrA	GDI1764	-	peptide methionine sulfoxide reductase msrA
1703	 66.81	0	1790915..1792276	-	453	162147549	-	GDI1765	-	putative nitrate transport ATP-binding protein
1704	 68.98	0	1792288..1794015	-	575	162147550	-	GDI1766	-	putative glycine betaine transport system permease protein
1705	 71.39	0	1794070..1795761	-	563	162147551	coaBC	GDI1767	-	coenzyme A biosynthesis bifunctional protein CoaBC
1706	 69.30	0	1795764..1796561	-	265	162147552	ubiE	GDI1768	-	ubiquinone/menaquinone biosynthesis methyltransferase ubi
1707	 69.11	0	1796591..1797451	+	286	162147553	mutM	GDI1769	-	putative formamidopyrimidine-DNA glycosylase
1708	 67.78	0	1797578..1797847	+	89	162147554	rpsT	GDI1770	-	30S ribosomal protein S20
1709	 67.28	0	1798138..1799601	+	487	162147555	dnaA	GDI1771	-	putative chromosomal replication initiator protein dnaA
1710	 65.51	0	1799776..1800900	+	374	162147556	dnaN	GDI1772	-	DNA polymerase III subunit beta
1711	 73.80	+1	1800939..1802060	+	373	162147557	recF	GDI1773	-	recombination protein F
1712	 67.48	0	1802147..1804603	+	818	162147558	gyrB	GDI1774	-	putative DNA gyrase subunit B
1713	 67.26	0	1804621..1805469	+	282	162147559	-	GDI1775	-	hypothetical protein
1714	 69.15	0	1805456..1806220	-	254	162147560	gpH	GDI1776	-	phosphoglycolate phosphatase
1715	 71.43	0	1806268..1807653	+	461	162147561	glmU	GDI1777	-	putative bifunctional protein GlmU
1716	 69.30	0	1807653..1809476	+	607	162147562	glmS	GDI1778	-	D-fructose-6-phosphate amidotransferase
1717	 71.10	0	1809575..1810657	+	360	162147563	thiO	GDI1779	-	thiamine biosynthesis oxidoreductase thiO
1718	 69.70	0	1810680..1810877	+	65	162147564	thiS	GDI1780	-	putative thiamine biosynthesis protein ThiS
1719	 69.13	0	1810882..1811652	+	256	162147565	thiG	GDI1781	-	thiazole synthase
1720	 70.28	0	1811691..1812299	+	202	162147566	thiE	GDI1782	-	thiamine-phosphate pyrophosphorylase
1721	 62.79	0	1812413..1812541	-	42	162147567	-	GDI1783	-	hypothetical protein
1722	 67.47	0	1812605..1815229	+	874	162147568	-	GDI1784	-	putative Na+/H+ antiporter
1723	 68.20	0	1815313..1815768	+	151	162147569	iorA	GDI1785	-	putative isoquinoline 1-oxidoreductase subunit alpha
1724	 70.11	0	1815768..1817915	+	715	162147570	iorB	GDI1786	-	putative isoquinoline 1-oxidoreductase subunit beta
1725	 69.83	0	1817912..1819174	+	420	162147571	-	GDI1787	-	alcohol dehydrogenase cytochrome c subunit precursor
1726	 66.34	0	1819441..1820649	+	402	162147572	-	GDI1788	-	putative mechanosensitive ion channel
1727	 65.75	0	1820650..1822182	-	510	162147573	-	GDI1789	-	putative cationic amino acid transporter
1728	 69.33	0	1822342..1823130	-	262	162147574	-	GDI1790	-	putative acetylhydrolase
1729	 66.43	0	1823145..1824002	-	285	162147575	bacA	GDI1791	-	undecaprenyl pyrophosphate phosphatase
1730	 65.17	0	1824102..1824569	+	155	162147576	-	GDI1792	-	putative toluene tolerance protein
1731	 67.93	0	1824580..1825689	-	369	162147577	-	GDI1793	-	putatie exported protein
1732	 66.49	0	1825686..1826261	-	191	162147578	-	GDI1794	-	hypothetical protein
1733	 70.09	0	1826557..1827549	+	330	162147579	-	GDI1795	-	putative membrane-bound lytic murein transglycosylase B precursor
1734	 71.43	0	1827573..1828412	+	279	162147580	-	GDI1796	-	putative rare lipoprotein A precursor
1735	 68.64	0	1828415..1829683	+	422	162147581	dacA	GDI1797	-	putative penicillin-binding protein 5 precursor
1736	 74.85	+1	1829689..1830336	+	215	162147582	-	GDI1798	-	putative thymidylate kinase
1737	 69.75	0	1830347..1831288	+	313	162147583	holB	GDI1799	-	putative DNA polymerase III delta' subunit
1738	 67.77	0	1831285..1832823	+	512	162147584	metG	GDI1800	-	methionyl-tRNA synthetase
1739	 68.31	0	1832820..1833611	+	263	162147585	-	GDI1801	-	putative deoxyribonuclease
1740	 69.96	0	1833615..1834403	+	262	162147586	-	GDI1802	-	putative beta-lactamase-like
1741	 63.23	0	1834803..1836749	+	648	162147587	-	GDI1803	-	PrkA serine protein kinase
1742	 66.67	0	1836769..1838076	+	435	162147588	-	GDI1804	-	hypothetical protein
1743	 62.66	0	1838073..1839644	+	523	162147589	-	GDI1805	-	hypothetical protein
1744	 69.44	0	1839830..1841056	+	408	162147590	mauB	GDI1806	-	putative methylamine dehydrogenase heavy chain precursor
1745	 68.72	0	1841053..1841637	+	194	162147591	mauA	GDI1807	-	putative methylamine dehydrogenase light chain precursor
1746	 68.83	0	1841634..1842095	+	153	162147592	cycA	GDI1808	-	putative cytochrome c-552
1747	 70.06	0	1842073..1842573	+	166	162147593	cycB	GDI1809	-	putative cytochrome c-552
1748	 70.52	0	1842578..1843174	-	198	162147594	-	GDI1810	-	putative nucleoside 2-deoxyribosyltransferase
1749	 68.33	0	1843325..1844827	+	500	162147595	guaB	GDI1811	-	inosine-5'-monophosphate dehydrogenase
1750	 73.03	+1	1844886..1846127	+	413	162147596	rsmB	GDI1812	-	putative ribosomal RNA small subunit methyltransferase B
1751	 68.48	0	1846243..1848066	+	607	162147597	cvrA	GDI1813	-	putative cell volume regulation protein A
1752	 65.94	0	1848235..1848918	-	227	162147598	-	GDI1814	-	hypothetical protein
1753	 64.19	0	1848883..1849650	+	255	162147599	mtrA	GDI1815	-	putative DNA-binding response regulator mtrA
1754	 65.56	0	1849785..1850597	-	270	162147600	xthA	GDI1816	-	putative exodeoxyribonuclease III protein
1755	 45.51	-2	1850733..1850888	-	51	162147601	-	GDI1817	-	hypothetical protein
1756	 67.92	0	1850908..1852821	+	637	162147602	uvrC	GDI1818	-	excinuclease ABC subunit C
1757	 64.82	0	1852929..1853525	+	198	162147603	pgsA	GDI1819	-	putative CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferas
1758	 68.95	0	1853543..1854154	+	203	162147604	-	GDI1820	-	hypothetical protein
1759	 67.83	0	1854174..1854431	+	85	162147605	moaD	GDI1821	-	putative molybdopterin-converting factor subunit 1
1760	 70.81	0	1854435..1854893	+	152	162147606	moaE	GDI1822	-	putative molybdopterin-converting factor subunit 2
1761	 63.56	0	1855133..1857130	+	665	162147607	nrdA	GDI1823	-	ribonucleotide-diphosphate reductase subunit alpha
1762	 61.86	0	1857139..1858200	+	353	162147608	nrdB	GDI1824	-	ribonucleotide-diphosphate reductase subunit beta
1763	 73.50	+1	1858204..1859037	-	277	162147609	-	GDI1825	-	putative methyltransferase
1764	 67.78	0	1859081..1860157	+	358	162147610	ispB	GDI1826	-	putative octaprenyl-diphosphate synthase
1765	 71.11	0	1860197..1860871	-	224	162147611	murI	GDI1827	-	putative glutamate racemase
1766	 66.40	0	1861037..1861798	-	253	162147612	pyrE	GDI1828	-	orotate phosphoribosyltransferase
1767	 63.33	0	1862042..1862281	+	79	162147613	-	GDI1829	-	hypothetical protein
1768	 63.52	0	1862411..1863712	-	433	162147614	-	GDI1830	-	citrate synthase
1769	 68.46	0	1863880..1864437	-	185	162147615	-	GDI1831	-	putative phosphoglycerate mutase
1770	 68.75	0	1864437..1864772	-	111	162147616	-	GDI1832	-	putative chorismate mutase
1771	 70.41	0	1864823..1865677	-	284	162147617	-	GDI1833	-	putative phosphoesterases
1772	 67.03	0	1865791..1866066	-	91	162147618	-	GDI1834	-	hypothetical protein
1773	 57.07	-1	1866063..1866260	-	65	162147619	-	GDI1835	-	hypothetical protein
1774	 64.63	0	1866249..1867769	+	506	162147620	-	GDI1836	-	Acetyl-CoA hydrolase
1775	 75.11	+1	1867819..1872354	-	1511	162147621	-	GDI1837	-	putative chromosome segregation protein SMC
1776	 68.28	0	1872386..1873003	-	205	162147622	-	GDI1838	-	thioredoxin protein
1777	 70.54	0	1873078..1874007	-	309	162147623	-	GDI1839	-	putative transporter protein
1778	 69.03	0	1874018..1874992	-	324	162147624	-	GDI1840	-	putative magnesium and cobalt efflux protein corC
1779	 72.55	+1	1874989..1875447	-	152	162147625	-	GDI1841	-	hypothetical protein
1780	 69.13	0	1875581..1876759	-	392	162147626	-	GDI1842	-	putative PhoH-like protein
1781	 68.61	0	1876756..1878198	-	480	162147627	-	GDI1843	-	hypothetical protein
66.22	MEAN

5.80	STD DEV
