IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

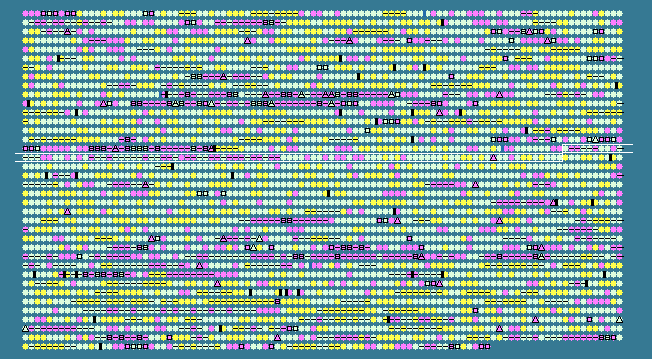

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1591	 66.32	0	1676308..1676892	-	194	162147437	-	GDI1653	-	hypothetical protein
1592	 61.90	0	1677074..1677493	+	139	162147438	flgB	GDI1654	-	putative flagellar basal-body rod protein flgB
1593	 59.56	-1	1677507..1677914	+	135	162147439	flgC	GDI1655	-	flagellar basal body rod protein FlgC
1594	 64.84	0	1678193..1679179	-	328	162147440	flaC	GDI1656	-	putative flagellin C
1595	 62.87	0	1679471..1679812	+	113	162147441	fliE	GDI1657	-	putative flagellar hook-basal body complex protein fliE
1596	 58.33	-1	1679821..1680096	+	91	162147442	fliQ	GDI1658	-	putative flagellar biosynthetic protein fliQ
1597	 65.19	0	1680131..1680943	+	270	162147443	fliR	GDI1659	-	putative flagellar biosynthetic protein fliR
1598	 63.97	0	1680973..1682049	+	358	162147444	flhB	GDI1660	-	putative flagellar biosynthetic protein flhB
1599	 61.35	0	1682229..1683938	+	569	162147445	flgE	GDI1661	-	putative flagellar hook protein flgE
1600	 63.45	0	1684090..1686330	-	746	162147446	mcpA	GDI1662	-	putative chemoreceptor mcpA (methyl-accepting chemotaxis protein)
1601	 65.88	0	1686535..1689063	-	842	162147447	-	GDI1663	-	hypothetical protein
1602	 63.58	0	1689158..1689643	+	161	162147448	-	GDI1664	-	hypothetical protein
1603	 63.91	0	1689940..1690773	+	277	162147449	-	GDI1665	-	putative two component response regulator
1604	 61.40	0	1690804..1691202	-	132	162147450	-	GDI1666	-	hypothetical protein
1605	 57.45	-1	1691425..1692270	+	281	162147451	-	GDI1667	-	hypothetical protein
1606	 67.40	0	1692409..1693776	+	455	162147452	fliI	GDI1668	-	flagellum-specific ATP synthase
1607	 67.83	0	1693773..1694201	+	142	162147453	-	GDI1669	-	hypothetical protein
1608	 61.05	0	1694393..1695157	+	254	162147454	-	GDI1670	-	hypothetical protein
1609	 65.49	0	1695175..1696281	+	368	162147455	motB	GDI1671	-	putative chemotaxis protein motB (motility protein B)
1610	 59.41	-1	1696399..1697280	+	293	162147456	motA	GDI1672	-	flagellar motor protein MotA
1611	 68.24	0	1697317..1699599	+	760	162147457	-	GDI1673	-	hypothetical protein
1612	 61.78	0	1699641..1700417	+	258	162147458	flgD	GDI1674	-	putative basal-body rod modification protein flgD
1613	 65.48	0	1700616..1700951	+	111	162147459	-	GDI1675	-	hypothetical protein
1614	 63.75	0	1701191..1702834	+	547	162147460	fliF	GDI1676	-	flagellar MS-ring protein
1615	 59.86	-1	1702876..1703889	+	337	162147461	fliG	GDI1677	-	flagellar motor switch protein G
1616	 65.24	0	1703886..1704584	+	232	162147462	-	GDI1678	-	hypothetical protein
1617	 64.55	0	1704602..1704979	+	125	162147463	fliN	GDI1679	-	putative flagellar motor switch protein fliN
1618	 65.24	0	1705015..1705365	+	116	162147464	-	GDI1680	-	hypothetical protein
1619	 63.72	0	1705388..1706167	+	259	162147465	fliP	GDI1681	-	flagellar biosynthesis protein FliP
1620	 64.93	0	1706560..1708056	+	498	162147466	mcpA	GDI1682	-	chemoreceptor mcpA (methyl-accepting chemotaxis protein)
1621	 61.56	0	1708041..1708373	+	110	162147467	-	GDI1683	-	hypothetical protein
1622	 63.80	0	1708376..1708759	+	127	162147468	cheY	GDI1684	-	putative chemotaxis protein cheY
1623	 65.25	0	1708777..1711032	+	751	162147469	cheA	GDI1685	-	putative chemotaxis protein cheA
1624	 59.35	-1	1711045..1711536	+	163	162147470	cheW	GDI1686	-	putative chemotaxis protein cheW
1625	 62.40	0	1711533..1712375	+	280	162147471	cheR	GDI1687	-	putative chemotaxis protein methyltransferase
1626	 65.22	0	1712379..1713416	+	345	162147472	cheB	GDI1688	-	putative chemotaxis response regulator protein-glutamate methylesterase o group 1 operon
1627	 56.41	-1	1713503..1713892	+	129	162147473	cheY	GDI1689	-	putative chemotaxis protein cheY
1628	 62.09	0	1713889..1714347	+	152	162147474	cheD	GDI1690	-	putative chemotaxis protein cheD
1629	 62.14	0	1714447..1714866	+	139	162147475	-	GDI1691	-	hypothetical protein
1630	 62.82	0	1714889..1715641	-	250	162147476	flgH	GDI1692	-	flagellar basal body L-ring protein
1631	 64.72	0	1715649..1716626	-	325	162147477	flgA	GDI1693	-	flagellar basal body P-ring biosynthesis protein FlgA
1632	 61.47	0	1716673..1717461	-	262	162147478	flgG	GDI1694	-	flagellar basal body rod protein FlgG
1633	 62.09	0	1717690..1718454	+	254	162147479	flgF	GDI1695	-	putative flagellar basal-body rod protein flgF
1634	 62.76	0	1718562..1720073	+	503	162147480	-	GDI1696	-	putative flagellar hook-associated protein
1635	 62.40	0	1720093..1721169	+	358	162147481	-	GDI1697	-	flagellar hook-associated protein FlgL
1636	 45.61	-2	1721166..1721279	-	37	162147482	-	GDI1698	-	hypothetical protein
1637	 60.68	0	1721360..1721593	+	77	162147483	-	GDI1699	-	hypothetical protein
1638	 62.79	0	1722071..1722586	+	171	162147484	-	GDI1700	-	putative transcriptional regulator protein
1639	 60.48	0	1722675..1723385	-	236	162147485	-	GDI1701	-	hypothetical protein
1640	 61.95	0	1723516..1724703	-	395	162147486	-	GDI1702	-	flagellar motor switch protein FliM
1641	 64.57	0	1724766..1725338	-	190	162147487	-	GDI1703	-	putative flagellar fliL protein
1642	 53.80	-2	1725770..1725940	+	56	162147488	-	GDI1704	-	putative Flp/Fap pilin component
1643	 58.90	-1	1726005..1726493	+	162	162147489	-	GDI1705	-	hypothetical protein
1644	 66.21	0	1726504..1727382	+	292	162147490	-	GDI1706	-	putative pilus assembly protein
1645	 62.94	0	1727369..1728790	+	473	162147491	-	GDI1707	-	type II and III secretion system protein
1646	 65.60	0	1728897..1730399	+	500	162147492	-	GDI1708	-	putative pilus assembly protein
1647	 63.33	0	1730396..1731832	+	478	162147493	-	GDI1709	-	Type II/IV secretion system protein
1648	 62.08	0	1731829..1732788	+	319	162147494	-	GDI1710	-	putative type II secretion system protein
1649	 63.38	0	1732785..1733726	+	313	162147495	-	GDI1711	-	putative type II secretion system protein
1650	 67.69	0	1733729..1734508	+	259	162147496	-	GDI1712	-	hypothetical protein
1651	 61.94	0	1734576..1734977	+	133	162147497	-	GDI1713	-	hypothetical protein
1652	 63.39	0	1735003..1735581	+	192	162147498	-	GDI1714	-	hypothetical protein
1653	 56.06	-1	1735569..1737284	+	571	162147499	-	GDI1715	-	hypothetical protein
1654	 61.31	0	1737441..1738970	+	509	162147500	-	GDI1716	-	putative amine oxidase
1655	 64.61	0	1738970..1740868	+	632	162147501	-	GDI1717	-	hypothetical protein
1656	 62.06	0	1740865..1742058	+	397	162147502	-	GDI1718	-	hypothetical protein
1657	 57.39	-1	1742048..1743049	+	333	162147503	-	GDI1719	-	hypothetical protein
1658	 69.69	0	1743152..1744276	-	374	162147504	-	GDI1720	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1659	 67.06	0	1744280..1745308	-	342	162147505	pdhB	GDI1721	-	putative pyruvate dehydrogenase E1 component subunit beta
1660	 67.81	0	1745354..1746319	-	321	162147506	pdhA	GDI1722	-	putative pyruvate dehydrogenase E1 component subunit alpha
1661	 70.53	0	1746517..1747500	+	327	162147507	-	GDI1723	-	Fis family transcriptional regulator
1662	 69.45	0	1747534..1748682	-	382	162147508	purK	GDI1724	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1663	 72.84	+1	1748679..1749164	-	161	162147509	purE	GDI1725	-	putative phosphoribosylaminoimidazole carboxylase catalytic subunit
1664	 59.20	-1	1749245..1749445	-	66	162147510	-	GDI1726	-	hypothetical protein
1665	 63.74	0	1749607..1749777	+	56	162147511	-	GDI1727	-	hypothetical protein
1666	 64.94	0	1749819..1750397	-	192	162147512	-	GDI1728	-	hypothetical protein
1667	 68.23	0	1750639..1751151	-	170	162147513	-	GDI1729	-	putative small heat shock protein ibpA
1668	 63.64	0	1751347..1751577	-	76	162147514	rpmE	GDI1730	-	50S ribosomal protein L31
1669	 63.66	0	1751777..1752241	+	154	162147515	mscL	GDI1731	-	putative large-conductance mechanosensitive channel
1670	 66.96	0	1752292..1753641	-	449	162147516	guaD	GDI1732	-	putative guanine deaminase
1671	 70.63	0	1753853..1754584	-	243	162147517	-	GDI1733	-	acetoin(diacetyl) reductase
1672	 69.36	0	1754605..1755123	+	172	162147518	-	GDI1734	-	hypothetical protein
1673	 68.10	0	1755184..1757694	-	836	162147519	secD	GDI1735	-	bifunctional preprotein translocase subunit SecD/SecF
1674	 70.90	0	1757859..1759109	-	416	162147520	-	GDI1736	-	hypothetical protein
1675	 71.74	0	1759152..1760195	+	347	162147521	-	GDI1737	-	putative oxidoreductase
1676	 68.39	0	1760192..1760539	-	115	162147522	-	GDI1738	-	putative pterin-4-alpha-carbinolamine dehydratase
1677	 71.37	0	1760613..1762421	-	602	162147523	uup	GDI1739	-	ABC transporter ATP-binding protein uup
1678	 69.30	0	1762485..1763168	-	227	162147524	-	GDI1740	-	two-component response regulator
1679	 56.67	-1	1763224..1764183	-	319	162147525	-	GDI1741	-	putative integrase
1680	 68.01	0	1764431..1764952	+	173	162147526	rpoD	GDI1742	-	putative RNA polymerase sigma-70 factor
1681	 65.97	0	1765051..1765623	+	190	162147527	rpoE	GDI1743	-	putative RNA polymerase sigma-E factor (sigma-24)
1682	 55.56	-1	1765660..1765974	+	104	162147528	-	GDI1744	-	hypothetical protein
1683	 67.05	0	1765975..1767786	+	603	162147529	-	GDI1745	-	putative signal transduction histidine kinase
1684	 73.04	+1	1767943..1769637	+	564	162147530	cydD	GDI1746	-	putative transport ATP-binding protein cydD
1685	 73.25	+1	1769696..1771336	+	546	162147531	cydC	GDI1747	-	putative transport ATP-binding protein cydC
1686	 68.53	0	1771477..1771851	+	124	162147532	-	GDI1748	-	hypothetical protein
1687	 70.04	0	1771871..1773739	+	622	162147533	recQ	GDI1749	-	putative ATP-dependent DNA helicase recQ
1688	 68.22	0	1773744..1774517	+	257	162147534	glpR	GDI1750	-	glycerol-3-phosphate regulon repressor
1689	 68.73	0	1774579..1776273	+	564	162147535	glpD	GDI1751	-	glycerol-3-phosphate dehydrogenase
1690	 67.61	0	1776337..1777185	+	282	162147536	glpF	GDI1752	-	putative glycerol uptake facilitator protein
66.22	MEAN

5.80	STD DEV
