IslandPathversion 1.0

IslandPath Analysis: Gluconacetobacter diazotrophicus PAl 5

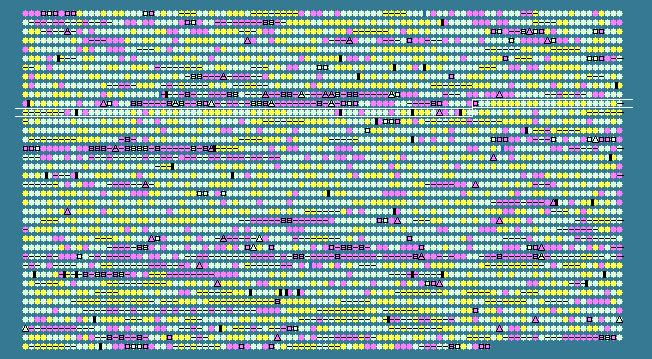

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.22 STD DEV: 5.80
Gluconacetobacter diazotrophicus PAl 5, complete genome - 1..3944163
3778 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1076	 60.18	-1	1116022..1117161	+	379	162146922	-	GDI1127	-	putative transposase
1077	 63.47	0	1117437..1117967	+	176	162146923	-	GDI1128	-	hypothetical protein
1078	 67.48	0	1118077..1121403	-	1108	162146924	mdtC	GDI1129	-	puitative multidrug resistance protein mdtC
1079	 69.86	0	1121432..1122685	-	417	162146925	-	GDI1130	-	putative purine-cytosine permease
1080	 73.93	+1	1122841..1123680	-	279	162146926	-	GDI1131	-	putative short-chain dehydrogenase
1081	 71.14	0	1123768..1124460	+	230	162146927	-	GDI1132	-	guanylate kinase
1082	 72.10	+1	1124467..1125921	+	484	162146928	hldE	GDI1133	-	putative bifunctional protein HldE kinase
1083	 71.97	0	1125918..1127123	+	401	162146929	pmi	GDI1134	-	putative mannose-6-phosphate isomerase
1084	 67.33	0	1127201..1128715	+	504	162146930	-	GDI1135	-	replicative DNA helicase
1085	 73.59	+1	1128733..1129353	-	206	162146931	-	GDI1136	-	hypothetical protein
1086	 71.63	0	1129350..1130759	-	469	162146932	radA	GDI1137	-	DNA repair protein RadA
1087	 68.56	0	1130814..1131605	-	263	162146933	-	GDI1138	-	putative ABC transport
1088	 68.19	0	1131602..1132387	-	261	162146934	-	GDI1139	-	hypothetical protein
1089	 69.18	0	1132788..1134101	+	437	162146935	-	GDI1140	-	putative UDP-glucose 6-dehydrogenase
1090	 69.72	0	1134105..1135349	-	414	162146936	-	GDI1141	-	putative bicyclomycin resistance protein
1091	 72.41	+1	1135510..1136136	-	208	162146937	-	GDI1142	-	hypothetical protein
1092	 72.79	+1	1136296..1136997	+	233	162146938	tetR	GDI1143	-	TetR family transcriptional regulator
1093	 66.36	0	1136945..1139221	-	758	162146939	fdhH	GDI1144	-	formate dehydrogenase alpha subunit
1094	 73.31	+1	1139243..1140100	-	285	162146940	fdhD	GDI1145	-	putative formate dehydrogenase accessory protein
1095	 64.98	0	1140127..1140363	+	78	162146941	-	GDI1146	-	hypothetical protein
1096	 68.01	0	1140524..1141789	+	421	162146942	-	GDI1147	-	pyridine nucleotide-disulphide oxidoreductase
1097	 66.16	0	1141835..1143019	-	394	162146943	-	GDI1148	-	putative mechanosensitive ion channel
1098	 68.83	0	1143033..1145810	-	925	162146944	-	GDI1149	-	hypothetical protein
1099	 69.76	0	1146035..1147036	-	333	162146945	-	GDI1150	-	hypothetical protein
1100	 66.87	0	1147109..1147591	-	160	162146946	ribH	GDI1151	-	putative 6,7-dimethyl-8-ribityllumazine synthase
1101	 70.35	0	1147625..1148899	-	424	162146947	ribAB	GDI1152	-	putative 3,4-dihydroxy-2-butanone 4 phosphate synthase
1102	 67.15	0	1148884..1149501	-	205	162146948	ribE	GDI1153	-	riboflavin synthase subunit alpha
1103	 75.48	+1	1149483..1150583	-	366	162146949	ribD	GDI1154	-	riboflavin biosynthesis protein
1104	 69.29	0	1150993..1151259	+	88	162146950	-	GDI1155	-	hypothetical protein
1105	 73.09	+1	1151387..1152895	+	502	162146951	-	GDI1156	-	putative sodium cotransporter
1106	 70.08	0	1152892..1154064	+	390	162146952	-	GDI1157	-	putative beta-lactamase/acylhydrolase
1107	 68.53	0	1154159..1154695	+	178	162146953	-	GDI1158	-	putative thioesterase superfamily protein
1108	 60.99	0	1154685..1155953	-	422	162146954	-	GDI1159	-	putative transmembrane acyltransferase
1109	 65.39	0	1155999..1156862	-	287	162146955	-	GDI1160	-	putative endo-1,3-1,4-beta-glycanase protein
1110	 66.97	0	1157298..1158605	-	435	162146956	-	GDI1161	-	putative MFS transporter
1111	 58.97	-1	1158866..1161229	-	787	162146957	-	GDI1162	-	putative TonB-dependent receptor
1112	 66.78	0	1161651..1162544	+	297	162146958	-	GDI1163	-	putative endonuclease
1113	 63.48	0	1162634..1163575	+	313	162146959	-	GDI1164	-	hypothetical protein
1114	 69.52	0	1163694..1164569	+	291	162146960	-	GDI1165	-	putative diacylglycerol kinase family protein
1115	 65.65	0	1164592..1165479	-	295	162146961	-	GDI1166	-	putative transmembrane protein
1116	 65.90	0	1165684..1166601	+	305	162146962	araC	GDI1167	-	AraC family transcriptional regulator
1117	 65.97	0	1166589..1168610	-	673	162146963	-	GDI1168	-	hypothetical protein
1118	 64.19	0	1168872..1169801	-	309	162146964	-	GDI1169	-	putative formyltetrahydrofolate deformylase
1119	 72.22	+1	1169836..1170159	-	107	162146965	-	GDI1170	-	hypothetical protein
1120	 67.28	0	1170235..1170723	+	162	162146966	-	GDI1171	-	hypothetical protein
1121	 47.62	-2	1170928..1171074	-	48	162146967	-	GDI1172	-	hypothetical protein
1122	 69.89	0	1171078..1171170	+	30	162146968	-	GDI1173	-	hypothetical protein
1123	 66.27	0	1171186..1172181	-	331	162146969	-	GDI1174	-	hypothetical protein
1124	 70.46	0	1172214..1173872	-	552	162146970	-	GDI1175	-	hypothetical protein
1125	 69.60	0	1173883..1174632	-	249	162146971	-	GDI1176	-	putative glycosyl transferase
1126	 72.32	+1	1174653..1175147	-	164	162146972	atpF	GDI1177	-	putative ATP synthase
1127	 69.28	0	1175178..1175789	-	203	162146973	-	GDI1178	-	putative ATP synthase
1128	 64.89	0	1175804..1176028	-	74	162146974	-	GDI1179	-	putative ATP synthase
1129	 63.33	0	1176084..1176833	-	249	162146975	atpB	GDI1180	-	F0F1 ATP synthase subunit A
1130	 67.89	0	1176864..1177190	-	108	162146976	atpI	GDI1181	-	putative ATP synthase
1131	 73.44	+1	1177364..1178146	-	260	162146977	-	GDI1182	-	hypothetical protein
1132	 71.55	0	1178236..1179813	-	525	162146978	purH	GDI1183	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1133	 71.52	0	1179950..1180753	-	267	162146979	ilvE	GDI1184	-	putative aminotransferase, class IV
1134	 74.12	+1	1180756..1182150	-	464	162146980	pabB	GDI1185	-	putative Para-aminobenzoate synthase
1135	 72.75	+1	1182156..1184012	-	618	162146981	ptsI	GDI1186	-	putative phosphoenolpyruvate-protein phosphotransferase
1136	 67.90	0	1183999..1184322	-	107	162146982	ptsO	GDI1187	-	putative phosphoryl transfer system, HPr
1137	 68.47	0	1184329..1184826	-	165	162146983	manX	GDI1188	-	putative phosphotransferase enzyme IIA
1138	 67.18	0	1184823..1185980	-	385	162146984	-	GDI1189	-	hypothetical protein
1139	 70.16	0	1186032..1186517	-	161	162146985	-	GDI1190	-	putative HPr kinase
1140	 65.73	0	1186634..1186954	+	106	162146986	-	GDI1191	-	putative endoribonuclease
1141	 74.20	+1	1187110..1188012	+	300	162146987	-	GDI1192	-	putative ABC tranporter protein
1142	 69.85	0	1188009..1188761	+	250	162146988	-	GDI1193	-	putative ABC tranporter protein
1143	 70.91	0	1188758..1189864	+	368	162146989	-	GDI1194	-	putative two-component system sensor protein
1144	 70.30	0	1189861..1190466	+	201	162146990	-	GDI1195	-	putative two-component system regulatory protein
1145	 64.91	0	1190555..1191067	-	170	162146991	-	GDI1196	-	hypothetical protein
1146	 68.72	0	1191129..1192055	-	308	162146992	-	GDI1197	-	D-2-hydroxyacid dehydrogensase
1147	 69.58	0	1192106..1192792	-	228	162146993	-	GDI1198	-	putative 2-keto-4-pentenoate hydratase-like
1148	 64.82	0	1192946..1194247	-	433	162146994	-	GDI1199	-	putative sugar transport protein
1149	 65.07	0	1194369..1195373	-	334	162146995	-	GDI1200	-	oxidoreductase protein
1150	 69.65	0	1195687..1196223	-	178	162146996	-	GDI1201	-	hypothetical protein
1151	 67.25	0	1196243..1197442	+	399	162146997	idnD	GDI1202	-	L-idonate 5-dehydrogenase
1152	 66.27	0	1197535..1198035	-	166	162146998	-	GDI1203	-	hypothetical protein
1153	 55.86	-1	1198071..1198403	-	110	162146999	-	GDI1204	-	hypothetical protein
1154	 63.14	0	1198753..1199121	+	122	162147000	-	GDI1205	-	hypothetical protein
1155	 67.68	0	1199214..1199411	+	65	162147001	-	GDI1206	-	hypothetical protein
1156	 64.63	0	1199472..1199717	-	81	162147002	-	GDI1207	-	hypothetical protein
1157	 41.67	-2	1200056..1200175	-	39	162147003	-	GDI1208	-	hypothetical protein
1158	 66.26	0	1200174..1200905	+	243	162147004	-	GDI1209	-	hypothetical protein
1159	 65.53	0	1200955..1202097	+	380	162147005	-	GDI1210	-	hypothetical protein
1160	 67.40	0	1202107..1202787	-	226	162147006	-	GDI1211	-	hypothetical protein
1161	 64.62	0	1202915..1203793	-	292	162147007	-	GDI1212	-	putative aldose 1-epimerase
1162	 60.00	-1	1203848..1204297	-	149	162147008	-	GDI1213	-	hypothetical protein
1163	 69.24	0	1204294..1205031	-	245	162147009	-	GDI1214	-	putative hydrolase protein
1164	 69.77	0	1205034..1206095	-	353	162147010	hemE	GDI1215	-	uroporphyrinogen decarboxylase
1165	 65.21	0	1206434..1207189	+	251	162147011	-	GDI1216	-	putative septum formation inhibitor protein
1166	 73.53	+1	1207466..1210060	-	864	162147012	-	GDI1217	-	putative permease protein
1167	 71.69	0	1210057..1210833	-	258	162147013	-	GDI1218	-	putative ABC transporter, ATP-binding protein
1168	 71.09	0	1210892..1211524	+	210	162147014	-	GDI1219	-	putative GDSL-like lipase/acylhydrolase
1169	 63.01	0	1211586..1212104	+	172	162147015	-	GDI1220	-	hypothetical protein
1170	 56.90	-1	1212190..1213182	+	330	162147016	-	GDI1221	-	putative integrase
1171	 60.49	0	1213277..1213438	+	53	162147017	-	GDI1222	-	hypothetical protein
1172	 65.40	0	1213537..1215978	-	813	162147018	-	GDI1223	-	putative TonB-dependent receptor
1173	 59.51	-1	1216533..1217063	-	176	162147019	-	GDI1224	-	hypothetical protein
1174	 69.81	0	1217477..1218367	-	296	162147020	parB	GDI1225	-	putative chromosome partitioning protein parB
1175	 66.67	0	1218364..1219161	-	265	162147021	parA	GDI1226	-	putative chromosome partitioning protein parA
66.22	MEAN

5.80	STD DEV
