IslandPath Analysis: Geobacter sulfurreducens PCA

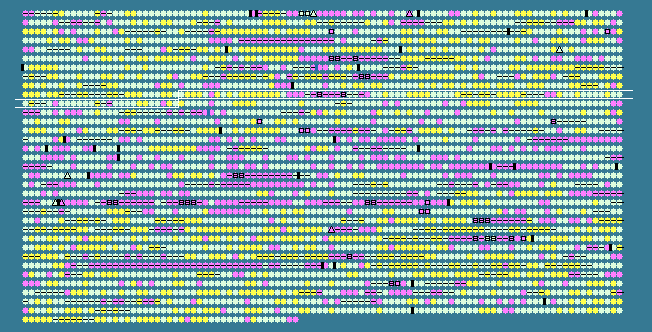

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
927	 62.86	0	1003658..1004287	+	209	39996037	-	GSU0934	-	hypothetical protein
928	 64.21	0	1004344..1005930	-	528	39996038	-	GSU0935	-	methyl-accepting chemotaxis protein, putative
929	 67.67	+1	1006181..1006876	+	231	39996039	-	GSU0936	-	glutamine amidotransferase, class I
930	 64.32	0	1007092..1008243	+	383	39996040	aksA	GSU0937	-	trans-homoaconitate synthase
931	 59.63	0	1008591..1009343	+	250	39996041	-	GSU0938	-	hypothetical protein
932	 56.64	0	1009395..1009733	+	112	39996042	-	GSU0939	-	nitrogen regulatory protein P-II, putative
933	 65.17	0	1009771..1011240	+	489	39996043	-	GSU0940	-	ammonium transporter
934	 61.31	0	1011471..1012217	+	248	39996044	-	GSU0941	-	sensor histidine kinase, putative
935	 65.27	0	1012334..1013119	+	261	39996045	suhB	GSU0942	-	inositol-1-monophosphatase
936	 63.13	0	1013207..1013941	+	244	39996046	-	GSU0943	-	hypothetical protein
937	 65.34	0	1014277..1015410	+	377	39996047	metC-1	GSU0944	-	cystathionine beta-lyase
938	 65.79	0	1015426..1016562	+	378	39996048	metC-2	GSU0945	-	cystathionine beta-lyase
939	 64.85	0	1016762..1019290	+	842	39996049	-	GSU0946	-	sensory box/GGDEF family protein
940	 64.96	0	1019379..1020083	-	234	39996050	-	GSU0947	-	ABC transporter, ATP-binding protein
941	 65.75	0	1020101..1021300	-	399	39996051	-	GSU0948	-	ABC transporter, permease protein, putative
942	 70.50	+1	1021297..1022469	-	390	39996052	-	GSU0949	-	RND family efflux transporter MFP subunit
943	 71.14	+1	1022466..1023740	-	424	39996053	-	GSU0950	-	outer membrane efflux protein
944	 63.62	0	1023807..1024397	-	196	39996054	-	GSU0951	-	TetR family transcriptional regulator
945	 55.53	0	1024618..1025910	+	430	39996055	-	GSU0952	-	GGDEF domain-containing protein
946	 54.31	-1	1026184..1026774	-	196	39996056	-	GSU0953	-	hypothetical protein
947	 55.76	0	1027076..1028056	-	326	39996057	-	GSU0954	-	hypothetical protein
948	 60.84	0	1029182..1030486	+	434	39996058	-	GSU0955	-	group II intron, maturase
949	 33.03	-2	1031005..1031670	-	221	39996059	-	GSU0956	-	hypothetical protein
950	 51.03	-1	1031690..1032808	-	372	39996060	-	GSU0957	-	ISGsu1, transposase
951	 52.91	-1	1032982..1033170	-	62	39996061	-	GSU0958	-	putative lipoprotein
952	 47.15	-2	1033287..1034075	-	262	39996062	-	GSU0959	-	hypothetical protein
953	 48.48	-2	1034351..1034449	+	32	39996063	-	GSU0960	-	hypothetical protein
954	 51.77	-1	1034609..1035655	-	348	39996064	-	GSU0961	-	ISGsu4, transposase
955	 61.99	0	1036181..1038148	+	655	39996065	-	GSU0962	-	sensor histidine kinase
956	 62.11	0	1038168..1039571	+	467	39996066	-	GSU0963	-	sigma-54 dependent DNA-binding response regulator
957	 53.19	-1	1040042..1040323	-	93	39996067	-	GSU0965	-	hypothetical protein
958	 55.21	-1	1040081..1040272	+	63	39996068	-	GSU0964	-	hypothetical protein
959	 63.89	0	1040397..1040648	+	83	39996069	-	GSU0966	-	hypothetical protein
960	 61.06	0	1040661..1041713	+	350	39996070	-	GSU0967	-	hypothetical protein
961	 65.21	0	1041859..1043229	+	456	39996071	-	GSU0968	-	hypothetical protein
962	 62.75	0	1043393..1044745	+	450	39996072	ctpA-1	GSU0969	-	carboxy-terminal processing protease
963	 61.69	0	1044984..1047935	+	983	39996073	-	GSU0970	-	hypothetical protein
964	 59.57	0	1047989..1048312	-	107	39996074	-	GSU0971	-	peptidyl-tRNA hydrolase domain-containing protein
965	 66.35	+1	1048581..1050812	+	743	39996075	-	GSU0972	-	AAA family ATPase
966	 65.66	0	1050826..1051422	+	198	39996076	-	GSU0973	-	hypothetical protein
967	 69.49	+1	1051419..1052267	+	282	39996077	-	GSU0974	-	hypothetical protein
968	 66.82	+1	1052346..1054328	+	660	39996078	-	GSU0975	-	phage tail sheath protein, putative
969	 59.59	0	1054369..1054806	+	145	39996079	-	GSU0976	-	hypothetical protein
970	 64.19	0	1054829..1055191	+	120	39996080	-	GSU0977	-	hypothetical protein
971	 63.64	0	1055269..1055367	+	32	39996081	-	GSU0978	-	hypothetical protein
972	 61.90	0	1055421..1055861	+	146	39996082	-	GSU0979	-	hypothetical protein
973	 68.51	+1	1055865..1057055	+	396	39996083	-	GSU0980	-	hypothetical protein
974	 66.02	0	1057071..1057688	+	205	39996084	-	GSU0981	-	hypothetical protein
975	 66.48	+1	1057692..1058780	+	362	39996085	-	GSU0982	-	hypothetical protein
976	 63.62	0	1058767..1059423	+	218	39996086	-	GSU0983	-	hypothetical protein
977	 67.65	+1	1059447..1059548	+	33	39996087	-	GSU0984	-	hypothetical protein
978	 71.38	+1	1059655..1059951	+	98	39996088	-	GSU0985	-	hypothetical protein
979	 62.69	0	1059962..1060363	+	133	39996089	-	GSU0986	-	tail lysozyme, putative
980	 69.17	+1	1060383..1063742	+	1119	39996090	-	GSU0987	-	hypothetical protein
981	 67.85	+1	1063766..1065799	+	677	39996091	-	GSU0988	-	hypothetical protein
982	 66.93	+1	1065932..1067824	+	630	39996092	-	GSU0989	-	NHL repeat-containing protein
983	 64.55	0	1067946..1069832	+	628	39996093	-	GSU0990	-	hypothetical protein
984	 65.17	0	1069829..1071094	+	421	39996094	-	GSU0991	-	glycosyl transferase, group 1 family protein
985	 62.66	0	1071166..1074108	+	980	39996095	-	GSU0992	-	hypothetical protein
986	 64.07	0	1074122..1074544	-	140	39996096	-	GSU0993	-	hypothetical protein
987	 62.79	0	1074639..1076264	-	541	39996097	fumB	GSU0994	-	fumarate hydratase, class I
988	 47.76	-2	1076356..1076556	+	66	39996098	-	GSU0995	-	hypothetical protein
989	 57.22	0	1076650..1076829	+	59	39996099	-	GSU0996	-	hypothetical protein
990	 66.79	+1	1076875..1077690	-	271	39996100	mutM	GSU0997	-	formamidopyrimidine-DNA glycosylase
991	 61.42	0	1077822..1079192	+	456	39996101	dnaB	GSU0998	-	replicative DNA helicase
992	 60.12	0	1079182..1079991	+	269	39996102	-	GSU0999	-	UDP-N-acetylglucosamine acyltransferase
993	 64.26	0	1079972..1081384	+	470	39996103	-	GSU1000	-	hypothetical protein
994	 58.07	0	1081683..1082066	+	127	39996104	-	GSU1001	-	hypothetical protein
995	 60.82	0	1082223..1082786	-	187	39996105	-	GSU1002	-	isochorismatase family protein
996	 58.92	0	1082803..1084248	-	481	39996106	ntrC	GSU1003	-	nitrogen regulation protein NR(I)
997	 62.73	0	1084304..1085395	-	363	39996107	-	GSU1004	-	sensory box histidine kinase
998	 65.24	0	1085392..1086369	-	325	39996108	-	GSU1005	-	dihydrouridine synthase family protein
999	 62.25	0	1086563..1086811	+	82	39996109	-	GSU1006	-	hypothetical protein
1000	 63.16	0	1086843..1088495	-	550	39996110	-	GSU1007	-	GAF domain/HD domain-containing protein
1001	 60.96	0	1088641..1089411	+	256	39996111	fabI	GSU1008	-	enoyl-(acyl-carrier-protein) reductase
1002	 64.33	0	1089471..1091138	+	555	39996112	-	GSU1009	-	GTP-binding protein
1003	 60.03	0	1091283..1092803	+	506	39996113	-	GSU1010	-	Slt family transglycosylase
1004	 58.57	0	1092852..1093580	+	242	39996114	-	GSU1011	-	hypothetical protein
1005	 60.74	0	1093676..1094890	+	404	39996115	-	GSU1012	-	hypothetical protein
1006	 57.01	0	1094975..1095844	+	289	39996116	-	GSU1013	-	chemotaxis MotB protein, putative
1007	 63.61	0	1095857..1096576	+	239	39996117	-	GSU1014	-	smr domain-containing protein
1008	 61.70	0	1096607..1097029	+	140	39996118	-	GSU1015	-	hypothetical protein
1009	 62.77	0	1097041..1098681	+	546	39996119	-	GSU1016	-	Trk family potassium uptake protein
1010	 62.19	0	1098815..1099372	+	185	39996120	-	GSU1017	-	hypoxanthine-guanine phosphoribosyltransferase
1011	 59.78	0	1099430..1099981	-	183	39996121	-	GSU1018	-	hypothetical protein
1012	 60.68	0	1100288..1101589	+	433	39996122	-	GSU1019	-	xanthine/uracil permease family protein
1013	 65.19	0	1101535..1102209	+	224	39996123	-	GSU1020	-	hypothetical protein
1014	 63.76	0	1101667..1102320	-	217	39996124	-	GSU1021	-	hypothetical protein
1015	 51.61	-1	1102317..1102409	-	30	39996125	-	GSU1022	-	hypothetical protein
1016	 62.75	0	1102492..1103997	+	501	39996126	glgA-1	GSU1023	-	glycogen synthase
1017	 60.57	0	1104057..1104335	-	92	39996127	cyd-4	GSU1024	-	cytochrome c3
1018	 58.71	0	1104518..1105120	-	200	39996128	-	GSU1025	-	hypothetical protein
1019	 61.05	0	1105190..1105723	-	177	39996129	-	GSU1026	-	hypothetical protein
1020	 64.86	0	1105733..1106617	-	294	39996130	-	GSU1027	-	glycosy hydrolase family protein
1021	 67.05	+1	1106605..1107639	-	344	39996131	-	GSU1028	-	peptidylarginine deiminase-related protein
1022	 61.82	0	1107913..1109562	+	549	39996132	-	GSU1029	-	methyl-accepting chemotaxis protein
1023	 62.36	0	1109751..1111400	+	549	39996133	-	GSU1030	-	methyl-accepting chemotaxis protein
1024	 51.06	-1	1111462..1111602	+	46	39996134	-	GSU1031	-	hypothetical protein
1025	 64.50	0	1111658..1113595	+	645	39996135	-	GSU1032	-	methyl-accepting chemotaxis protein
1026	 64.11	0	1113816..1115417	+	533	39996136	-	GSU1033	-	methyl-accepting chemotaxis protein
60.71	MEAN

5.38	STD DEV
