IslandPath Analysis: Geobacter sulfurreducens PCA

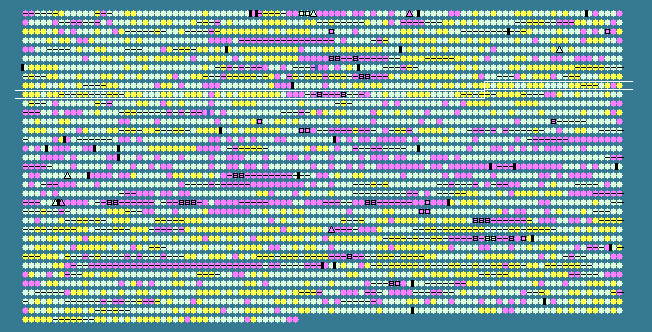

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
878	 71.36	+1	941403..942275	-	290	39995988	-	GSU0882	-	hypothetical protein
879	 59.29	0	942296..944179	-	627	39995989	-	GSU0883	-	ferric enterobactin receptor, putative
880	 67.91	+1	944454..945986	+	510	39995990	-	GSU0884	-	radical SAM domain-containing protein
881	 64.47	0	945928..947022	-	364	39995991	-	GSU0885	-	cobyrinic acid a,c-diamide synthase family protein
882	 66.67	+1	947252..948577	+	441	39995992	-	GSU0886	-	radical SAM domain-containing protein
883	 58.37	0	948574..949188	-	204	39995993	-	GSU0887	-	hypothetical protein
884	 57.62	0	949163..949372	-	69	39995994	-	GSU0888	-	hypothetical protein
885	 67.75	+1	949477..949752	-	91	39995995	-	GSU0889	-	acylphosphatase
886	 67.01	+1	949753..951765	-	670	39995996	ligA	GSU0890	-	DNA ligase, NAD-dependent
887	 66.79	+1	951817..954297	+	826	39995997	-	GSU0891	-	subtilase domain-containing protein
888	 63.17	0	956555..957097	-	180	39995998	-	GSU0893	-	thioredoxin peroxidase
889	 59.11	0	957394..957909	+	171	39995999	-	GSU0894	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
890	 63.43	0	957967..960033	-	688	39996000	-	GSU0895	-	GAF domain/GGDEF domain-containing protein
891	 63.05	0	960231..961613	-	460	39996001	tldD	GSU0896	-	tldD protein
892	 64.61	0	962153..963028	+	291	39996002	-	GSU0897	-	hypothetical protein
893	 68.49	+1	963031..964842	+	603	39996003	recQ	GSU0898	-	ATP-dependent DNA helicase RecQ
894	 69.14	+1	964941..966554	+	537	39996004	-	GSU0899	-	hypothetical protein
895	 67.62	+1	966579..967520	-	313	39996005	-	GSU0900	-	hypothetical protein
896	 68.43	+1	967566..968357	+	263	39996006	-	GSU0901	-	hypothetical protein
897	 62.41	0	970535..971404	-	289	39996007	-	GSU0904	-	HD domain-containing protein
898	 66.37	+1	971391..971723	-	110	39996008	-	GSU0905	-	hypothetical protein
899	 55.22	-1	972287..972487	-	66	39996009	rpsU-1	GSU0906	-	30S ribosomal protein S21
900	 64.58	0	972677..973348	-	223	39996010	-	GSU0907	-	thiF family protein
901	 68.79	+1	973352..973633	-	93	39996011	-	GSU0908	-	moaD family protein
902	 67.24	+1	973639..974862	-	407	39996012	-	GSU0909	-	pyridine nucleotide-disulphide oxidoreductase family protein
903	 67.61	+1	974864..976669	-	601	39996013	-	GSU0910	-	aldehyde:ferredoxin oxidoreductase, tungsten-containing
904	 63.12	0	976671..977150	-	159	39996014	-	GSU0911	-	iron-sulfur cluster-binding protein
905	 66.12	+1	977215..977940	-	241	39996015	-	GSU0912	-	hypothetical protein
906	 66.93	+1	978103..980004	+	633	39996016	-	GSU0913	-	ABC transporter, ATP-binding protein
907	 68.75	+1	980161..981504	+	447	39996017	rhlE-2	GSU0914	-	ATP-dependent RNA helicase RhlE
908	 58.61	0	981656..982015	+	119	39996018	-	GSU0915	-	hypothetical protein
909	 63.12	0	982110..983294	-	394	39996019	-	GSU0916	-	methyl-accepting chemotaxis protein
910	 65.71	0	983484..983903	-	139	39996020	-	GSU0917	-	hypothetical protein
911	 66.00	0	983875..985077	-	400	39996021	-	GSU0918	-	S-adenosylmethionine synthetase
912	 60.36	0	985247..985468	-	73	39996022	-	GSU0919	-	hypothetical protein
913	 58.23	0	985467..985715	+	82	39996023	-	GSU0920	-	hypothetical protein
914	 63.82	0	986118..988544	-	808	39996024	-	GSU0921	-	ribonuclease, Rne/Rng family protein
915	 65.84	0	988816..990753	+	645	39996025	-	GSU0922	-	ABC transporter, ATP-binding protein
916	 65.45	0	990895..993201	+	768	39996026	loN-1	GSU0923	-	ATP-dependent protease La
917	 62.39	0	993208..993978	+	256	39996027	-	GSU0924	-	ABC transporter, permease protein, putative
918	 65.49	0	993989..994753	+	254	39996028	-	GSU0925	-	ABC transporter, ATP-binding protein
919	 65.00	0	994769..995851	+	360	39996029	-	GSU0926	-	mce-related protein
920	 64.39	0	995984..997390	+	468	39996030	-	GSU0927	-	M16 family peptidase
921	 63.88	0	997428..998864	+	478	39996031	-	GSU0928	-	M16 family peptidase
922	 57.41	0	998881..998988	+	35	39996032	-	GSU0929	-	hypothetical protein
923	 61.48	0	999205..1000476	+	423	39996033	-	GSU0930	-	sulfur transferase, putative, selenocysteine-containing
924	 66.89	+1	1000592..1001497	-	301	39996034	-	GSU0931	-	rhodanese-like domain-containing protein
925	 66.27	+1	1001567..1002817	-	416	39996035	uraA	GSU0932	-	uracil permease
926	 64.13	0	1002836..1003465	-	209	39996036	upp	GSU0933	-	uracil phosphoribosyltransferase
927	 62.86	0	1003658..1004287	+	209	39996037	-	GSU0934	-	hypothetical protein
928	 64.21	0	1004344..1005930	-	528	39996038	-	GSU0935	-	methyl-accepting chemotaxis protein, putative
929	 67.67	+1	1006181..1006876	+	231	39996039	-	GSU0936	-	glutamine amidotransferase, class I
930	 64.32	0	1007092..1008243	+	383	39996040	aksA	GSU0937	-	trans-homoaconitate synthase
931	 59.63	0	1008591..1009343	+	250	39996041	-	GSU0938	-	hypothetical protein
932	 56.64	0	1009395..1009733	+	112	39996042	-	GSU0939	-	nitrogen regulatory protein P-II, putative
933	 65.17	0	1009771..1011240	+	489	39996043	-	GSU0940	-	ammonium transporter
934	 61.31	0	1011471..1012217	+	248	39996044	-	GSU0941	-	sensor histidine kinase, putative
935	 65.27	0	1012334..1013119	+	261	39996045	suhB	GSU0942	-	inositol-1-monophosphatase
936	 63.13	0	1013207..1013941	+	244	39996046	-	GSU0943	-	hypothetical protein
937	 65.34	0	1014277..1015410	+	377	39996047	metC-1	GSU0944	-	cystathionine beta-lyase
938	 65.79	0	1015426..1016562	+	378	39996048	metC-2	GSU0945	-	cystathionine beta-lyase
939	 64.85	0	1016762..1019290	+	842	39996049	-	GSU0946	-	sensory box/GGDEF family protein
940	 64.96	0	1019379..1020083	-	234	39996050	-	GSU0947	-	ABC transporter, ATP-binding protein
941	 65.75	0	1020101..1021300	-	399	39996051	-	GSU0948	-	ABC transporter, permease protein, putative
942	 70.50	+1	1021297..1022469	-	390	39996052	-	GSU0949	-	RND family efflux transporter MFP subunit
943	 71.14	+1	1022466..1023740	-	424	39996053	-	GSU0950	-	outer membrane efflux protein
944	 63.62	0	1023807..1024397	-	196	39996054	-	GSU0951	-	TetR family transcriptional regulator
945	 55.53	0	1024618..1025910	+	430	39996055	-	GSU0952	-	GGDEF domain-containing protein
946	 54.31	-1	1026184..1026774	-	196	39996056	-	GSU0953	-	hypothetical protein
947	 55.76	0	1027076..1028056	-	326	39996057	-	GSU0954	-	hypothetical protein
948	 60.84	0	1029182..1030486	+	434	39996058	-	GSU0955	-	group II intron, maturase
949	 33.03	-2	1031005..1031670	-	221	39996059	-	GSU0956	-	hypothetical protein
950	 51.03	-1	1031690..1032808	-	372	39996060	-	GSU0957	-	ISGsu1, transposase
951	 52.91	-1	1032982..1033170	-	62	39996061	-	GSU0958	-	putative lipoprotein
952	 47.15	-2	1033287..1034075	-	262	39996062	-	GSU0959	-	hypothetical protein
953	 48.48	-2	1034351..1034449	+	32	39996063	-	GSU0960	-	hypothetical protein
954	 51.77	-1	1034609..1035655	-	348	39996064	-	GSU0961	-	ISGsu4, transposase
955	 61.99	0	1036181..1038148	+	655	39996065	-	GSU0962	-	sensor histidine kinase
956	 62.11	0	1038168..1039571	+	467	39996066	-	GSU0963	-	sigma-54 dependent DNA-binding response regulator
957	 53.19	-1	1040042..1040323	-	93	39996067	-	GSU0965	-	hypothetical protein
958	 55.21	-1	1040081..1040272	+	63	39996068	-	GSU0964	-	hypothetical protein
959	 63.89	0	1040397..1040648	+	83	39996069	-	GSU0966	-	hypothetical protein
960	 61.06	0	1040661..1041713	+	350	39996070	-	GSU0967	-	hypothetical protein
961	 65.21	0	1041859..1043229	+	456	39996071	-	GSU0968	-	hypothetical protein
962	 62.75	0	1043393..1044745	+	450	39996072	ctpA-1	GSU0969	-	carboxy-terminal processing protease
963	 61.69	0	1044984..1047935	+	983	39996073	-	GSU0970	-	hypothetical protein
964	 59.57	0	1047989..1048312	-	107	39996074	-	GSU0971	-	peptidyl-tRNA hydrolase domain-containing protein
965	 66.35	+1	1048581..1050812	+	743	39996075	-	GSU0972	-	AAA family ATPase
966	 65.66	0	1050826..1051422	+	198	39996076	-	GSU0973	-	hypothetical protein
967	 69.49	+1	1051419..1052267	+	282	39996077	-	GSU0974	-	hypothetical protein
968	 66.82	+1	1052346..1054328	+	660	39996078	-	GSU0975	-	phage tail sheath protein, putative
969	 59.59	0	1054369..1054806	+	145	39996079	-	GSU0976	-	hypothetical protein
970	 64.19	0	1054829..1055191	+	120	39996080	-	GSU0977	-	hypothetical protein
971	 63.64	0	1055269..1055367	+	32	39996081	-	GSU0978	-	hypothetical protein
972	 61.90	0	1055421..1055861	+	146	39996082	-	GSU0979	-	hypothetical protein
973	 68.51	+1	1055865..1057055	+	396	39996083	-	GSU0980	-	hypothetical protein
974	 66.02	0	1057071..1057688	+	205	39996084	-	GSU0981	-	hypothetical protein
975	 66.48	+1	1057692..1058780	+	362	39996085	-	GSU0982	-	hypothetical protein
976	 63.62	0	1058767..1059423	+	218	39996086	-	GSU0983	-	hypothetical protein
977	 67.65	+1	1059447..1059548	+	33	39996087	-	GSU0984	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
