IslandPath Analysis: Geobacter sulfurreducens PCA

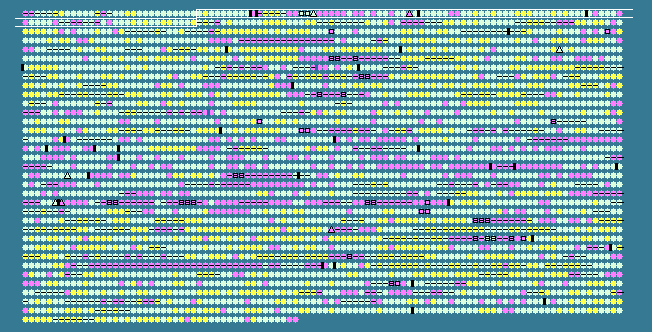

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
30	 62.95	0	38522..39301	-	259	39995140	-	GSU0029	-	carbon-nitrogen family hydrolase
31	 64.77	0	39428..40585	+	385	39995141	-	GSU0030	-	oxygen-independent coproporphyrinogen III oxidase, putative
32	 60.93	0	40721..41749	+	342	39995142	hrcA	GSU0031	-	heat-inducible transcription repressor HrcA
33	 61.53	0	41789..42391	+	200	39995143	grpE	GSU0032	-	GrpE protein
34	 61.17	0	42473..44383	+	636	39995144	dnaK	GSU0033	-	chaperone protein dnaK
35	 60.43	0	44496..45617	+	373	39995145	dnaJ	GSU0034	-	chaperone protein dnaJ
36	 62.78	0	45707..46246	-	179	39995146	-	GSU0035	-	2',5' RNA ligase, putative
37	 63.73	0	46259..47314	-	351	39995147	-	GSU0036	-	capsule biosynthesis protein, putative
38	 58.47	0	47406..48674	+	422	39995148	serS	GSU0037	-	seryl-tRNA synthetase
39	 52.35	-1	48933..49421	+	162	39995149	-	GSU0038	-	putative lipoprotein
40	 44.76	-2	49833..49937	+	34	39995150	-	GSU0039	-	hypothetical protein
41	 65.48	0	50370..51041	+	223	39995151	-	GSU0040	-	hypothetical protein
42	 67.33	+1	51143..51748	+	201	39995152	lexA-1	GSU0041	-	LexA repressor
43	 65.06	0	51755..52003	+	82	39995153	-	GSU0042	-	hypothetical protein
44	 63.12	0	52000..53241	+	413	39995154	-	GSU0043	-	ImpB/MucB/SamB family protein
45	 56.53	0	53925..60278	-	2117	39995155	-	GSU0044	-	hypothetical protein
46	 44.22	-2	60303..61211	-	302	39995156	-	GSU0045	-	hypothetical protein
47	 58.77	0	61246..62271	+	341	39995157	-	GSU0046	-	ISGsu6, transposase OrfA
48	 58.24	0	62268..63062	+	264	39995158	-	GSU0047	-	transposase/IS protein
49	 58.42	0	63072..63908	+	278	39995159	-	GSU0048	-	integrase
50	 54.62	-1	64130..65092	+	320	39995160	-	GSU0049	-	hypothetical protein
51	 56.39	0	65166..65564	+	132	39995161	-	GSU0050	-	hypothetical protein
52	 56.54	0	65570..68335	+	921	39995162	-	GSU0051	-	CRISPR-associated HD domain-containing protein
53	 50.39	-1	68332..69222	+	296	39995163	-	GSU0052	-	hypothetical protein
54	 54.03	-1	69225..70316	+	363	39995164	-	GSU0053	-	hypothetical protein
55	 58.09	0	70330..71949	+	539	39995165	-	GSU0054	-	hypothetical protein
56	 55.56	0	72000..72296	-	98	39995166	-	GSU0055	-	hypothetical protein
57	 51.85	-1	72289..72585	-	98	39995167	-	GSU0056	-	hypothetical protein
58	 63.51	0	72630..74309	+	559	39995168	-	GSU0057	-	CRISPR-associated Cas1/Cas4 family protein
59	 52.43	-1	74314..74601	+	95	39995169	-	GSU0058	-	CRISPR-associated Cas2 family protein
60	 59.63	0	77772..78041	-	89	39995170	-	GSU0059	-	hypothetical protein
61	 59.17	0	78089..78208	+	39	39995171	-	GSU0060	-	hypothetical protein
62	 55.56	0	78381..78839	+	152	39995172	-	GSU0061	-	hypothetical protein
63	 57.36	0	78940..79272	+	110	39995173	-	GSU0062	-	TraD protein, putative
64	 63.51	0	79477..79698	+	73	39995174	-	GSU0063	-	hypothetical protein
65	 55.00	-1	79725..81044	-	439	39995175	-	GSU0064	-	integrative genetic element Gsu32, integrase
66	 58.15	0	81425..81964	+	179	39995176	-	GSU0065	-	cytidine/deoxycytidylate deaminase family protein
67	 59.04	0	82566..83273	+	235	39995177	-	GSU0066	-	AhpC/Tsa family protein, selenocysteine-containing
68	 57.87	0	83254..83901	+	215	39995178	-	GSU0067	-	carbonic anhydrase
69	 60.46	0	84006..84488	+	160	39995179	-	GSU0068	-	cytochrome c family protein
70	 61.63	0	84481..85254	+	257	39995180	-	GSU0069	-	oxidoreductase, iron-sulfur cluster-binding subunit
71	 58.93	0	85257..86510	+	417	39995181	-	GSU0070	-	oxidoreductase, membrane subunit
72	 54.89	-1	86581..87030	-	149	39995182	-	GSU0071	-	hypothetical protein
73	 48.96	-2	87371..87466	-	31	39995183	-	GSU0072	-	hypothetical protein
74	 60.70	0	87476..88078	-	200	39995184	-	GSU0073	-	outer membrane protein, putative
75	 62.84	0	88132..88785	-	217	39995185	elbB	GSU0074	-	isoprenoid biosynthesis protein
76	 64.81	0	88858..89775	-	305	39995186	-	GSU0075	-	hypothetical protein
77	 63.50	0	89887..90486	+	199	39995187	-	GSU0076	-	hypothetical protein
78	 59.00	0	90505..90765	+	86	39995188	-	GSU0077	-	hypothetical protein
79	 65.50	0	90775..91116	+	113	39995189	-	GSU0078	-	hypothetical protein
80	 58.54	0	91135..91725	-	196	39995190	-	GSU0079	-	Cro/CI family transcriptional regulator
81	 63.06	0	91907..93322	+	471	39995191	degQ	GSU0080	-	protease degQ
82	 61.36	0	93366..93629	+	87	39995192	-	GSU0081	-	hypothetical protein
83	 65.43	0	93714..94682	+	322	39995193	rluD	GSU0082	-	ribosomal large subunit pseudouridine synthase D
84	 64.92	0	94685..95485	+	266	39995194	-	GSU0083	-	hypothetical protein
85	 67.43	+1	95499..96674	+	391	39995195	-	GSU0084	-	hypothetical protein
86	 64.06	0	96773..97615	-	280	39995196	-	GSU0085	-	heterodisulfide reductase, cytochrome reductase subunit
87	 57.35	0	97614..98021	+	135	39995197	-	GSU0086	-	hypothetical protein
88	 63.38	0	98008..99012	-	334	39995198	-	GSU0087	-	heterodisulfide reductase, iron-sulfur binding subunit, putative
89	 65.70	0	99056..99985	-	309	39995199	-	GSU0088	-	heterodisulfide reductase subunit
90	 62.28	0	100019..100519	-	166	39995200	-	GSU0089	-	heterodisulfide reductase subunit
91	 64.26	0	100519..102516	-	665	39995201	-	GSU0090	-	heterodisulfide reductase subunit
92	 64.09	0	102517..103407	-	296	39995202	-	GSU0091	-	heterodisulfide reductase subunit
93	 59.74	0	103404..103952	-	182	39995203	-	GSU0092	-	heterodisulfide reductase subunit
94	 61.92	0	104580..106412	+	610	39995204	-	GSU0093	-	ABC transporter, ATP-binding/permease protein
95	 63.51	0	106783..108522	+	579	39995205	dnaX	GSU0094	-	DNA polymerase III, gamma and tau subunits
96	 56.19	0	108593..108907	+	104	39995206	-	GSU0095	-	hypothetical protein
97	 62.63	0	109096..109689	+	197	39995207	recR	GSU0096	-	recombination protein RecR
98	 62.90	0	109754..113341	+	1195	39995208	-	GSU0097	-	pyruvate ferredoxin/flavodoxin oxidoreductase
99	 57.93	0	113608..114099	+	163	39995209	-	GSU0098	-	MglB protein
100	 56.29	0	114118..114705	+	195	39995210	-	GSU0099	-	MglA protein
101	 53.33	-1	114689..114793	-	34	39995211	-	GSU0100	-	hypothetical protein
102	 62.45	0	114856..116634	+	592	39995212	-	GSU0101	-	ABC transporter, ATP-binding/permease protein
103	 63.79	0	116665..118575	+	636	39995213	selB	GSU0102	-	selenocysteine-specific translation elongation factor
104	 58.24	0	118723..120834	+	703	39995214	-	GSU0103	-	sensory box histidine kinase
105	 61.03	0	120852..121241	+	129	39995215	-	GSU0104	-	response regulator, putative
106	 56.09	0	121302..121613	-	103	39995216	-	GSU0105	-	cytochrome c family protein, putative
107	 59.69	0	121771..122544	+	257	39995217	-	GSU0106	-	soj protein
108	 60.86	0	122567..123376	+	269	39995218	-	GSU0107	-	ParB-like nuclease domain-containing protein
109	 56.10	0	123555..123980	+	141	39995219	-	GSU0108	-	ATP synthase F0, B' subunit, putative
110	 56.16	0	124109..124603	+	164	39995220	atpF	GSU0109	-	ATP synthase F0, B subunit
111	 58.38	0	124600..125142	+	180	39995221	atpH	GSU0110	-	F0F1 ATP synthase subunit delta
112	 59.85	0	125151..126662	+	503	39995222	atpA	GSU0111	-	F0F1 ATP synthase subunit alpha
113	 55.44	0	126684..127547	+	287	39995223	atpG	GSU0112	-	F0F1 ATP synthase subunit gamma
114	 60.86	0	127605..129017	+	470	39995224	atpD	GSU0113	-	F0F1 ATP synthase subunit beta
115	 53.96	-1	129078..129494	+	138	39995225	atpC	GSU0114	-	F0F1 ATP synthase subunit epsilon
116	 60.26	0	129587..130600	+	337	39995226	pdxA	GSU0115	-	pyridoxal phosphate biosynthetic protein PdxA
117	 58.81	0	130603..131556	+	317	39995227	-	GSU0116	-	transglycosylase
118	 57.47	0	131671..132975	-	434	39995228	-	GSU0117	-	aminotransferase
119	 65.02	0	133254..133859	-	201	39995229	-	GSU0118	-	hypothetical protein
120	 60.77	0	133877..134215	-	112	39995230	-	GSU0119	-	glyoxalase family protein
121	 66.67	+1	134385..134819	-	144	39995231	-	GSU0120	-	hydrogenase maturation protease
122	 61.88	0	134859..135527	-	222	39995232	-	GSU0121	-	nickel-iron hydrogenase, b-type cytochrome subunit
123	 63.30	0	135537..137231	-	564	39995233	-	GSU0122	-	nickel-dependent hydrogenase, large subunit
124	 66.21	+1	137241..138326	-	361	39995234	-	GSU0123	-	nickel-dependent hydrogenase, small subunit
125	 69.46	+1	138515..139231	-	238	39995235	-	GSU0124	-	competence protein F, putative
126	 63.15	0	139235..139888	-	217	39995236	-	GSU0125	-	hypothetical protein
127	 62.17	0	139913..140890	-	325	39995237	-	GSU0126	-	iron-sulfur cluster-binding protein
128	 62.07	0	141097..141945	-	282	39995238	-	GSU0127	-	hypothetical protein
129	 67.38	+1	141993..144248	+	751	39995239	priA	GSU0128	-	primosomal protein n`
60.71	MEAN

5.38	STD DEV
