IslandPath Analysis: Geobacter sulfurreducens PCA

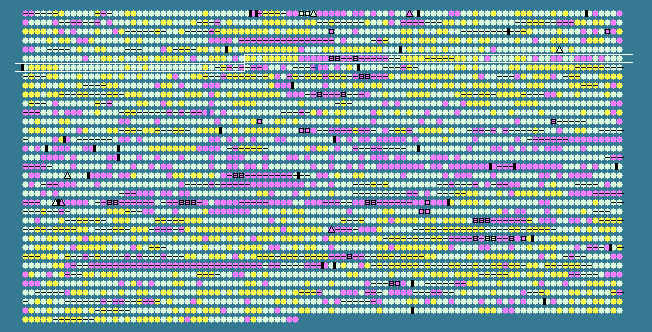

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
538	 66.52	+1	572574..575249	+	891	39995648	polA	GSU0541	-	DNA polymerase I
539	 64.42	0	575439..576464	+	341	39995649	-	GSU0542	-	GGDEF domain-containing protein
540	 63.45	0	576489..576986	-	165	39995650	-	GSU0543	-	Slp family outer membrane lipoprotein
541	 65.08	0	577003..577632	-	209	39995651	-	GSU0544	-	hypothetical protein
542	 66.77	+1	577781..578707	+	308	39995652	-	GSU0545	-	hypothetical protein
543	 64.83	0	578710..579090	+	126	39995653	-	GSU0546	-	peptidyl-tRNA hydrolase domain-containing protein
544	 68.43	+1	579087..581465	+	792	39995654	-	GSU0547	-	MutS2 family protein
545	 64.82	0	581487..583001	-	504	39995655	-	GSU0548	-	radical SAM domain-containing protein
546	 69.16	+1	583123..583803	+	226	39995656	-	GSU0549	-	hypothetical protein
547	 56.41	0	583902..584057	-	51	39995657	-	GSU0550	-	hypothetical protein
548	 54.39	-1	584149..584490	+	113	39995658	-	GSU0551	-	hypothetical protein
549	 49.77	-2	584623..586161	+	512	39995659	-	GSU0552	-	hypothetical protein
550	 49.30	-2	586238..587659	+	473	39995660	-	GSU0553	-	hypothetical protein
551	 49.63	-2	587652..589013	+	453	39995661	-	GSU0554	-	hypothetical protein
552	 56.20	0	589039..589401	+	120	39995662	-	GSU0555	-	ISGsu7, transposase OrfA
553	 56.79	0	589398..590288	+	296	39995663	-	GSU0556	-	ISGsu7, transposase OrfB
554	 47.46	-2	590343..590519	+	58	39995664	-	GSU0557	-	hypothetical protein
555	 41.20	-2	590661..590927	-	88	39995665	-	GSU0558	-	hypothetical protein
556	 55.34	0	590955..592040	+	361	39995666	-	GSU0559	-	ISGsu2, transposase
557	 42.74	-2	592166..592282	+	38	39995667	-	GSU0560	-	hypothetical protein
558	 39.79	-2	592429..594162	+	577	39995668	-	GSU0561	-	hypothetical protein
559	 54.77	-1	594226..594822	+	198	39995669	-	GSU0562	-	hypothetical protein
560	 50.39	-1	595014..595394	+	126	39995670	-	GSU0563	-	hypothetical protein
561	 43.38	-2	595484..596707	+	407	39995671	-	GSU0564	-	hypothetical protein
562	 62.50	0	596737..596832	-	31	39995672	-	GSU0565	-	hypothetical protein
563	 60.32	0	597066..597317	+	83	39995673	-	GSU0566	-	glutaredoxin family protein
564	 65.97	0	597360..597935	+	191	39995674	tag	GSU0567	-	DNA-3-methyladenine glycosylase I
565	 66.92	+1	597932..598333	+	133	39995675	-	GSU0568	-	hypothetical protein
566	 65.57	0	598373..598921	+	182	39995676	-	GSU0569	-	isochorismatase family protein
567	 69.97	+1	598962..599567	+	201	39995677	-	GSU0570	-	hypothetical protein
568	 69.36	+1	599582..600064	+	160	39995678	folA	GSU0571	-	dihydrofolate reductase
569	 68.43	+1	600586..601209	+	207	39995679	-	GSU0572	-	HAD family hydrolase
570	 71.90	+2	601211..602203	+	330	39995680	-	GSU0573	-	alcohol dehydrogenase, zinc-containing
571	 70.23	+1	602546..603472	+	308	39995681	-	GSU0574	-	hypothetical protein
572	 66.04	0	603597..605525	+	642	39995682	cstA	GSU0575	-	carbon starvation protein A
573	 64.41	0	605795..606238	+	147	39995683	-	GSU0576	-	hypothetical protein
574	 70.08	+1	606305..607036	+	243	39995684	recO	GSU0577	-	DNA repair protein RecO
575	 62.46	0	607314..608192	+	292	39995685	glyQ	GSU0578	-	glycyl-tRNA synthetase subunit alpha
576	 66.28	+1	608194..610257	+	687	39995686	glyS	GSU0579	-	glycyl-tRNA synthetase, beta subunit
577	 63.33	0	610378..613044	+	888	39995687	ppdK	GSU0580	-	pyruvate phosphate dikinase
578	 53.73	-1	613202..613402	+	66	39995688	-	GSU0581	-	cold-shock domain-contain protein
579	 61.84	0	613603..615693	+	696	39995689	-	GSU0582	-	methyl-accepting chemotaxis protein
580	 62.28	0	615706..617322	-	538	39995690	-	GSU0583	-	methyl-accepting chemotaxis protein
581	 61.89	0	617517..618668	-	383	39995691	-	GSU0584	-	hypothetical protein
582	 62.10	0	619169..619825	-	218	39995692	-	GSU0585	-	fumarylacetoacetate hydrolase family protein
583	 64.58	0	619853..620812	-	319	39995693	-	GSU0586	-	radical SAM family protein
584	 68.22	+1	620816..621457	-	213	39995694	thiE	GSU0587	-	thiamine-phosphate pyrophosphorylase
585	 60.79	0	621450..622232	-	260	39995695	thiG	GSU0588	-	thiazole synthase
586	 57.07	0	622304..622501	-	65	39995696	-	GSU0589	-	hypothetical protein
587	 58.57	0	622832..623362	-	176	39995697	-	GSU0590	-	hypothetical protein
588	 61.03	0	623398..624249	-	283	39995698	-	GSU0591	-	cytochrome c family protein
589	 56.97	0	624366..625355	-	329	39995699	-	GSU0592	-	cytochrome c family protein
590	 54.49	-1	625543..626199	-	218	39995700	-	GSU0593	-	hypothetical protein
591	 58.67	0	626203..627252	-	349	39995701	-	GSU0594	-	cytochrome c family protein
592	 57.83	0	627368..627616	+	82	39995702	-	GSU0595	-	hypothetical protein
593	 55.98	0	627650..628042	-	130	39995703	-	GSU0596	-	response regulator
594	 57.20	0	628093..628335	-	80	39995704	-	GSU0597	-	hypothetical protein
595	 56.97	0	628853..630265	+	470	39995705	-	GSU0598	-	sigma-54 dependent DNA-binding response regulator
596	 57.25	0	630362..631912	-	516	39995706	-	GSU0599	-	sensor histidine kinase
597	 56.57	0	631911..632009	+	32	39995707	-	GSU0600	-	hypothetical protein
598	 64.15	0	632134..635715	+	1193	39995708	-	GSU0601	-	alpha amylase family protein
599	 59.22	0	635752..636516	+	254	39995709	-	GSU0602	-	hypothetical protein
600	 59.69	0	636486..637403	-	305	39995710	-	GSU0603	-	hypothetical protein
601	 63.08	0	637928..639238	-	436	39995711	thiC-1	GSU0604	-	thiamine biosynthesis protein ThiC
602	 66.67	+1	639288..640760	-	490	39995712	-	GSU0605	-	thiamine-phosphate pyrophosphorylase/phosphomethylpyrimidine kinase
603	 65.36	0	641051..642199	+	382	39995713	alr	GSU0606	-	alanine racemase
604	 69.17	+1	642216..643253	+	345	39995714	selD	GSU0607	-	selenide, water dikinase, selenocysteine-containing
605	 65.89	0	643240..644520	+	426	39995715	-	GSU0608	-	hypothetical protein
606	 64.62	0	644573..646138	+	521	39995716	purH	GSU0609	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
607	 63.44	0	646167..647438	+	423	39995717	purD	GSU0610	-	phosphoribosylamine--glycine ligase
608	 63.73	0	647453..647962	+	169	39995718	purE-1	GSU0611	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
609	 57.61	0	648095..648370	+	91	39995719	ppcA	GSU0612	-	cytochrome c3
610	 57.44	0	648569..649933	+	454	39995720	-	GSU0613	-	ResB-like family protein
611	 58.10	0	649955..650806	+	283	39995721	-	GSU0614	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
612	 63.18	0	650845..651933	+	362	39995722	-	GSU0615	-	cytochrome c family protein
613	 60.22	0	651948..652940	+	330	39995723	-	GSU0616	-	cytochrome c family protein
614	 58.10	0	652996..654081	+	361	39995724	-	GSU0617	-	NHL repeat-containing protein
615	 62.52	0	654657..655355	+	232	39995725	-	GSU0618	-	cytochrome c family protein
616	 59.85	0	655534..657777	+	747	39995726	-	GSU0619	-	hypothetical protein
617	 61.54	0	656865..657215	-	116	39995727	-	GSU0620	-	hypothetical protein
618	 66.77	+1	657888..658853	+	321	39995728	-	GSU0621	-	hypothetical protein
619	 62.80	0	658850..660349	+	499	39995729	-	GSU0622	-	hypothetical protein
620	 61.83	0	660358..661308	+	316	39995730	-	GSU0623	-	glycosyl transferase, group 2 family protein
621	 66.23	+1	661333..662484	+	383	39995731	-	GSU0624	-	glycosyl transferase, group 1 family protein
622	 63.38	0	662525..663163	+	212	39995732	-	GSU0625	-	hypothetical protein
623	 63.81	0	663160..664209	+	349	39995733	gmd	GSU0626	-	GDP-mannose 4,6-dehydratase
624	 62.75	0	664202..665146	+	314	39995734	-	GSU0627	-	GDP-fucose synthetase
625	 60.35	0	665182..665988	+	268	39995735	-	GSU0628	-	hypothetical protein
626	 59.19	0	665985..667388	+	467	39995736	-	GSU0629	-	lipopolysaccharide/O-antigen transporter, putative
627	 61.83	0	667388..668110	+	240	39995737	-	GSU0630	-	hypothetical protein
628	 60.46	0	668122..669087	+	321	39995738	-	GSU0631	-	glycosyl transferase, group 2 family protein
629	 59.33	0	669113..669916	+	267	39995739	-	GSU0632	-	hypothetical protein
630	 64.12	0	669913..670776	+	287	39995740	-	GSU0633	-	glycosyl transferase, group 2 family protein
631	 67.59	+1	670781..671977	+	398	39995741	-	GSU0634	-	glycosyl transferase, group 1 family protein
632	 63.25	0	672007..674409	+	800	39995742	-	GSU0636	-	hypothetical protein
633	 62.42	0	674412..675188	+	258	39995743	-	GSU0637	-	hypothetical protein
634	 64.38	0	675167..675646	-	159	39995744	-	GSU0638	-	hypothetical protein
635	 53.88	-1	675639..675896	-	85	39995745	-	GSU0639	-	hypothetical protein
636	 60.00	0	675977..676231	+	84	39995746	-	GSU0640	-	hypothetical protein
637	 56.57	0	676252..676350	+	32	39995747	-	GSU0641	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
