IslandPath Analysis: Geobacter sulfurreducens PCA

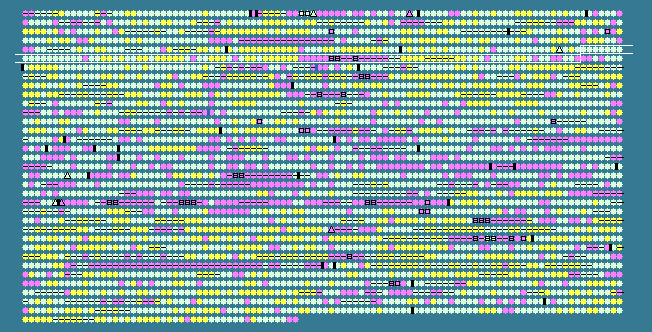

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
494	 62.45	0	528747..529955	+	402	39995604	-	GSU0496	-	RND family efflux transporter MFP subunit
495	 59.65	0	531917..532087	+	56	39995605	-	GSU0498	-	hypothetical protein
496	 62.17	0	532095..532850	-	251	39995606	-	GSU0499	-	M23/M37 peptidase domain-containing protein
497	 60.82	0	533056..534852	+	598	39995607	typA	GSU0500	-	GTP-binding protein TypA
498	 57.52	0	534968..535732	+	254	39995608	-	GSU0501	-	putative lipoprotein
499	 63.98	0	535734..536105	+	123	39995609	-	GSU0502	-	putative lipoprotein
500	 61.23	0	536089..536511	+	140	39995610	-	GSU0503	-	crcB protein
501	 60.28	0	536521..536880	+	119	39995611	-	GSU0504	-	hypothetical protein
502	 61.18	0	536877..537386	+	169	39995612	-	GSU0505	-	rhodanese-like domain-containing protein
503	 57.31	0	537386..537802	+	138	39995613	-	GSU0506	-	methylamine utilization protein MauE, putative
504	 61.71	0	537876..538460	+	194	39995614	-	GSU0507	-	hypothetical protein
505	 59.24	0	538457..539479	+	340	39995615	-	GSU0508	-	hypothetical protein
506	 59.45	0	539537..542071	-	844	39995616	sfrA	GSU0509	-	Fe(III) reductase, alpha subunit
507	 60.62	0	542195..544213	-	672	39995617	sfrB	GSU0510	-	Fe(III) reductase, beta subunit
508	 58.42	0	544177..545607	+	476	39995618	-	GSU0511	-	hypothetical protein
509	 60.94	0	545697..547337	+	546	39995619	-	GSU0512	-	hypothetical protein
510	 63.97	0	547440..548033	+	197	39995620	-	GSU0513	-	dephospho-CoA kinase
511	 56.70	0	548065..548847	-	260	39995621	-	GSU0514	-	IclR family transcriptional regulator
512	 57.89	0	549161..549616	+	151	39995622	-	GSU0515	-	universal stress protein
513	 59.09	0	549749..550540	-	263	39995623	-	GSU0516	-	hypothetical protein
514	 64.61	0	550546..551760	-	404	39995624	-	GSU0517	-	hypothetical protein
515	 65.35	0	551782..553305	-	507	39995625	-	GSU0518	-	sodium/solute symporter family protein
516	 58.72	0	553298..553624	-	108	39995626	-	GSU0519	-	hypothetical protein
517	 68.87	+1	553701..554927	-	408	39995627	-	GSU0520	-	hypothetical protein
518	 59.84	0	554931..555560	-	209	39995628	-	GSU0521	-	methyltransferase, putative
519	 63.89	0	555700..557031	+	443	39995629	rhlB	GSU0522	-	ATP-dependent RNA helicase RhlB
520	 67.67	+1	557100..558890	-	596	39995630	pabB	GSU0523	-	para-aminobenzoate synthase, component I
521	 65.82	0	558887..559594	-	235	39995631	-	GSU0524	-	hypothetical protein
522	 62.31	0	559887..560345	-	152	39995632	dtd	GSU0525	-	D-tyrosyl-tRNA deacylase
523	 69.35	+1	560342..560863	-	173	39995633	-	GSU0526	-	hypothetical protein
524	 64.42	0	561008..562702	-	564	39995634	-	GSU0527	-	TrkA domain-containing protein
525	 69.21	+1	562724..563548	-	274	39995635	-	GSU0528	-	nitroreductase family protein
526	 64.42	0	563536..564426	-	296	39995636	nfo	GSU0529	-	endonuclease IV
527	 65.48	0	564430..564849	-	139	39995637	-	GSU0530	-	HIT family protein
528	 62.43	0	564955..565803	-	282	39995638	dapF	GSU0531	-	diaminopimelate epimerase
529	 51.25	-1	565957..566235	-	92	39995639	-	GSU0532	-	hypothetical protein
530	 60.74	0	566260..566664	+	134	39995640	-	GSU0533	-	cytochrome c family protein, putative
531	 58.28	0	566814..567278	+	154	39995641	-	GSU0534	-	Rrf2 family protein
532	 65.04	0	567299..568222	+	307	39995642	cysK	GSU0535	-	cysteine synthase A
533	 64.69	0	568286..569095	+	269	39995643	-	GSU0536	-	hypothetical protein
534	 64.76	0	569343..571391	+	682	39995644	-	GSU0537	-	sensory box/GGDEF family protein
535	 60.14	0	571372..571815	-	147	39995645	-	GSU0538	-	HSP20 family protein
536	 51.41	-1	571962..572138	-	58	39995646	-	GSU0539	-	hypothetical protein
537	 60.48	0	572364..572573	+	69	39995647	-	GSU0540	-	hypothetical protein
538	 66.52	+1	572574..575249	+	891	39995648	polA	GSU0541	-	DNA polymerase I
539	 64.42	0	575439..576464	+	341	39995649	-	GSU0542	-	GGDEF domain-containing protein
540	 63.45	0	576489..576986	-	165	39995650	-	GSU0543	-	Slp family outer membrane lipoprotein
541	 65.08	0	577003..577632	-	209	39995651	-	GSU0544	-	hypothetical protein
542	 66.77	+1	577781..578707	+	308	39995652	-	GSU0545	-	hypothetical protein
543	 64.83	0	578710..579090	+	126	39995653	-	GSU0546	-	peptidyl-tRNA hydrolase domain-containing protein
544	 68.43	+1	579087..581465	+	792	39995654	-	GSU0547	-	MutS2 family protein
545	 64.82	0	581487..583001	-	504	39995655	-	GSU0548	-	radical SAM domain-containing protein
546	 69.16	+1	583123..583803	+	226	39995656	-	GSU0549	-	hypothetical protein
547	 56.41	0	583902..584057	-	51	39995657	-	GSU0550	-	hypothetical protein
548	 54.39	-1	584149..584490	+	113	39995658	-	GSU0551	-	hypothetical protein
549	 49.77	-2	584623..586161	+	512	39995659	-	GSU0552	-	hypothetical protein
550	 49.30	-2	586238..587659	+	473	39995660	-	GSU0553	-	hypothetical protein
551	 49.63	-2	587652..589013	+	453	39995661	-	GSU0554	-	hypothetical protein
552	 56.20	0	589039..589401	+	120	39995662	-	GSU0555	-	ISGsu7, transposase OrfA
553	 56.79	0	589398..590288	+	296	39995663	-	GSU0556	-	ISGsu7, transposase OrfB
554	 47.46	-2	590343..590519	+	58	39995664	-	GSU0557	-	hypothetical protein
555	 41.20	-2	590661..590927	-	88	39995665	-	GSU0558	-	hypothetical protein
556	 55.34	0	590955..592040	+	361	39995666	-	GSU0559	-	ISGsu2, transposase
557	 42.74	-2	592166..592282	+	38	39995667	-	GSU0560	-	hypothetical protein
558	 39.79	-2	592429..594162	+	577	39995668	-	GSU0561	-	hypothetical protein
559	 54.77	-1	594226..594822	+	198	39995669	-	GSU0562	-	hypothetical protein
560	 50.39	-1	595014..595394	+	126	39995670	-	GSU0563	-	hypothetical protein
561	 43.38	-2	595484..596707	+	407	39995671	-	GSU0564	-	hypothetical protein
562	 62.50	0	596737..596832	-	31	39995672	-	GSU0565	-	hypothetical protein
563	 60.32	0	597066..597317	+	83	39995673	-	GSU0566	-	glutaredoxin family protein
564	 65.97	0	597360..597935	+	191	39995674	tag	GSU0567	-	DNA-3-methyladenine glycosylase I
565	 66.92	+1	597932..598333	+	133	39995675	-	GSU0568	-	hypothetical protein
566	 65.57	0	598373..598921	+	182	39995676	-	GSU0569	-	isochorismatase family protein
567	 69.97	+1	598962..599567	+	201	39995677	-	GSU0570	-	hypothetical protein
568	 69.36	+1	599582..600064	+	160	39995678	folA	GSU0571	-	dihydrofolate reductase
569	 68.43	+1	600586..601209	+	207	39995679	-	GSU0572	-	HAD family hydrolase
570	 71.90	+2	601211..602203	+	330	39995680	-	GSU0573	-	alcohol dehydrogenase, zinc-containing
571	 70.23	+1	602546..603472	+	308	39995681	-	GSU0574	-	hypothetical protein
572	 66.04	0	603597..605525	+	642	39995682	cstA	GSU0575	-	carbon starvation protein A
573	 64.41	0	605795..606238	+	147	39995683	-	GSU0576	-	hypothetical protein
574	 70.08	+1	606305..607036	+	243	39995684	recO	GSU0577	-	DNA repair protein RecO
575	 62.46	0	607314..608192	+	292	39995685	glyQ	GSU0578	-	glycyl-tRNA synthetase subunit alpha
576	 66.28	+1	608194..610257	+	687	39995686	glyS	GSU0579	-	glycyl-tRNA synthetase, beta subunit
577	 63.33	0	610378..613044	+	888	39995687	ppdK	GSU0580	-	pyruvate phosphate dikinase
578	 53.73	-1	613202..613402	+	66	39995688	-	GSU0581	-	cold-shock domain-contain protein
579	 61.84	0	613603..615693	+	696	39995689	-	GSU0582	-	methyl-accepting chemotaxis protein
580	 62.28	0	615706..617322	-	538	39995690	-	GSU0583	-	methyl-accepting chemotaxis protein
581	 61.89	0	617517..618668	-	383	39995691	-	GSU0584	-	hypothetical protein
582	 62.10	0	619169..619825	-	218	39995692	-	GSU0585	-	fumarylacetoacetate hydrolase family protein
583	 64.58	0	619853..620812	-	319	39995693	-	GSU0586	-	radical SAM family protein
584	 68.22	+1	620816..621457	-	213	39995694	thiE	GSU0587	-	thiamine-phosphate pyrophosphorylase
585	 60.79	0	621450..622232	-	260	39995695	thiG	GSU0588	-	thiazole synthase
586	 57.07	0	622304..622501	-	65	39995696	-	GSU0589	-	hypothetical protein
587	 58.57	0	622832..623362	-	176	39995697	-	GSU0590	-	hypothetical protein
588	 61.03	0	623398..624249	-	283	39995698	-	GSU0591	-	cytochrome c family protein
589	 56.97	0	624366..625355	-	329	39995699	-	GSU0592	-	cytochrome c family protein
590	 54.49	-1	625543..626199	-	218	39995700	-	GSU0593	-	hypothetical protein
591	 58.67	0	626203..627252	-	349	39995701	-	GSU0594	-	cytochrome c family protein
592	 57.83	0	627368..627616	+	82	39995702	-	GSU0595	-	hypothetical protein
593	 55.98	0	627650..628042	-	130	39995703	-	GSU0596	-	response regulator
60.71	MEAN

5.38	STD DEV
