IslandPath Analysis: Geobacter sulfurreducens PCA

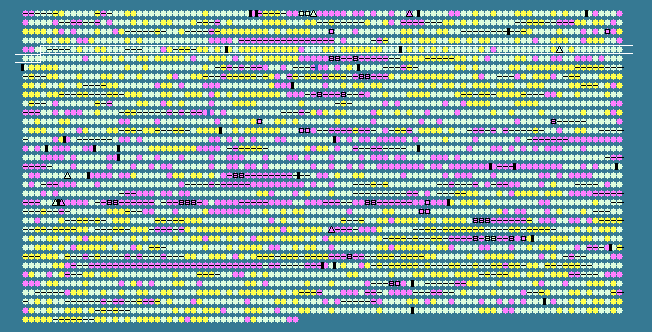

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
404	 63.64	0	437013..439259	+	748	39995514	-	GSU0406	-	TPR domain-containing protein
405	 58.81	0	439493..439912	+	139	39995515	flgB	GSU0407	-	flagellar basal-body rod protein FlgB
406	 62.59	0	439915..440355	+	146	39995516	flgC	GSU0408	-	flagellar basal-body rod protein FlgC
407	 58.75	0	440461..440763	+	100	39995517	fliE	GSU0409	-	flagellar hook-basal body complex protein FliE
408	 61.11	0	440788..442371	+	527	39995518	fliF	GSU0410	-	flagellar M-ring protein FliF
409	 58.81	0	442383..443375	+	330	39995519	fliG	GSU0411	-	flagellar motor switch protein FliG
410	 67.01	+1	443362..444243	+	293	39995520	-	GSU0412	-	flagellar assembly protein fliH, putative
411	 62.52	0	444236..445561	+	441	39995521	fliI	GSU0413	-	flagellum-specific ATP synthase FliI
412	 59.18	0	445621..446061	+	146	39995522	-	GSU0414	-	flagellar protein FliJ, putative
413	 65.29	0	446076..446585	+	169	39995523	-	GSU0415	-	hypothetical protein
414	 65.21	0	446799..448238	+	479	39995524	-	GSU0416	-	hypothetical protein
415	 59.36	0	448263..448919	+	218	39995525	flgD	GSU0417	-	flagellar hook assembly protein FlgD
416	 59.69	0	448927..449313	+	128	39995526	-	GSU0418	-	hypothetical protein
417	 62.86	0	449476..450735	+	419	39995527	flgE	GSU0419	-	flagellar hook protein FlgE
418	 59.96	0	451106..451627	+	173	39995528	-	GSU0420	-	flagellar protein FliL
419	 59.57	0	451662..452648	+	328	39995529	fliM	GSU0421	-	flagellar motor switch protein FliM
420	 57.52	0	452645..452950	+	101	39995530	fliN	GSU0422	-	flagellar motor switch protein FliN
421	 61.59	0	453450..454217	+	255	39995531	fliP	GSU0423	-	flagellar biosynthesis protein FliP
422	 58.89	0	454230..454499	+	89	39995532	fliQ	GSU0424	-	flagellar biosynthetic protein FliQ
423	 60.63	0	454550..455344	+	264	39995533	fliR	GSU0425	-	flagellar biosynthesis protein FliR
424	 55.05	-1	455349..456407	+	352	39995534	flhB	GSU0426	-	flagellar biosynthesis protein FlhB
425	 66.03	0	456466..456936	-	156	39995535	-	GSU0427	-	putative lipoprotein
426	 61.44	0	457223..457777	+	184	39995536	-	GSU0428	-	putative lipoprotein
427	 68.18	+1	457774..459165	+	463	39995537	-	GSU0429	-	hypothetical protein
428	 64.22	0	459169..459576	+	135	39995538	-	GSU0430	-	tail lysozyme, putative
429	 64.19	0	459605..461338	+	577	39995539	-	GSU0431	-	hypothetical protein
430	 65.76	0	461302..462294	+	330	39995540	-	GSU0432	-	hypothetical protein
431	 68.87	+1	462307..464934	+	875	39995541	-	GSU0433	-	clpB protein, putative
432	 62.99	0	464944..465948	-	334	39995542	-	GSU0434	-	hypothetical protein
433	 65.76	0	466122..467771	+	549	39995543	-	GSU0435	-	MSHA biogenesis protein MshE, putative
434	 62.56	0	467785..468855	+	356	39995544	pilT-3	GSU0436	-	twitching motility protein PilT
435	 68.57	+1	469239..470654	+	471	39995545	ubiD	GSU0437	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
436	 64.03	0	470654..471184	+	176	39995546	-	GSU0438	-	putative lipoprotein
437	 64.66	0	471184..472080	+	298	39995547	ubiA	GSU0439	-	prenyltransferase
438	 65.71	0	472077..472700	+	207	39995548	-	GSU0440	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase, putative
439	 65.19	0	472705..473790	+	361	39995549	-	GSU0441	-	radical SAM domain-containing protein
440	 65.73	0	473790..474854	+	354	39995550	-	GSU0442	-	radical SAM domain-containing protein
441	 65.71	0	475021..476166	+	381	39995551	-	GSU0443	-	ribonuclease D, putative
442	 65.01	0	476304..477026	-	240	39995552	-	GSU0444	-	hypothetical protein
443	 66.02	0	476386..477006	+	206	39995553	-	GSU0445	-	hypothetical protein
444	 65.39	0	477066..477848	-	260	39995554	-	GSU0446	-	hypothetical protein
445	 67.00	+1	477851..478750	-	299	39995555	prmA	GSU0447	-	ribosomal protein L11 methyltransferase
446	 64.43	0	478895..480058	+	387	39995556	-	GSU0448	-	hydrolase, putative
447	 44.76	-2	480111..480215	-	34	39995557	-	GSU0449	-	hypothetical protein
448	 61.60	0	480195..481004	+	269	39995558	-	GSU0450	-	hypothetical protein
449	 58.37	0	481052..481726	+	224	39995559	-	GSU0451	-	DNA-binding response regulator
450	 61.70	0	481730..483139	+	469	39995560	-	GSU0452	-	sensor histidine kinase
451	 64.89	0	483145..483876	+	243	39995561	pfs	GSU0453	-	MTA/SAH nucleosidase
452	 64.64	0	483876..484712	+	278	39995562	-	GSU0454	-	hypothetical protein
453	 58.28	0	484815..485267	+	150	39995563	-	GSU0455	-	lipoprotein A domain-containing protein
454	 64.55	0	485319..487868	-	849	39995564	-	GSU0456	-	hypothetical protein
455	 66.81	+1	487869..488558	-	229	39995565	-	GSU0457	-	putative lipoprotein
456	 66.67	+1	489195..489584	-	129	39995566	-	GSU0458	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase, putative
457	 67.45	+1	489577..490602	-	341	39995567	-	GSU0459	-	beta-ketoacyl synthase domain-containing protein
458	 67.33	+1	490614..491819	-	401	39995568	fabF-1	GSU0460	-	3-oxoacyl-(acyl-carrier-protein) synthase II
459	 67.07	+1	491954..492694	-	246	39995569	fabG-1	GSU0461	-	3-oxoacyl-(acyl carrier protein) reductase
460	 65.46	0	492743..493816	-	357	39995570	-	GSU0462	-	M48 family peptidase
461	 63.84	0	493813..494943	-	376	39995571	-	GSU0463	-	hypothetical protein
462	 62.50	0	495068..495283	-	71	39995572	-	GSU0464	-	S4 domain-containing protein
463	 62.59	0	495363..495926	+	187	39995573	efp-1	GSU0465	-	translation elongation factor P
464	 62.63	0	496167..497207	-	346	39995574	ccpA-1	GSU0466	-	cytochrome c551 peroxidase
465	 64.74	0	497302..498183	-	293	39995575	-	GSU0467	-	hypothetical protein
466	 62.38	0	498210..498722	-	170	39995576	-	GSU0468	-	hypothetical protein
467	 71.47	+2	498751..499104	-	117	39995577	-	GSU0469	-	hypothetical protein
468	 63.58	0	499286..500647	-	453	39995578	-	GSU0470	-	sigma-54 dependent response regulator
469	 64.29	0	500664..501923	-	419	39995579	-	GSU0471	-	sensor histidine kinase
470	 60.22	0	502068..502532	+	154	39995580	-	GSU0472	-	hypothetical protein
471	 64.38	0	502666..503670	+	334	39995581	-	GSU0473	-	transcriptional regulator, putative
472	 60.61	0	503803..506181	+	792	39995582	-	GSU0474	-	sensory box/GGDEF family protein
473	 60.03	0	506171..508039	-	622	39995583	-	GSU0475	-	sensory box histidine kinase
474	 63.48	0	508371..509531	+	386	39995584	-	GSU0476	-	hypothetical protein
475	 63.54	0	509602..510240	+	212	39995585	-	GSU0477	-	HAD superfamily hydrolase
476	 59.69	0	510237..510695	+	152	39995586	-	GSU0478	-	hypothetical protein
477	 66.59	+1	510727..512118	+	463	39995587	aspA	GSU0479	-	aspartate ammonia-lyase
478	 60.89	0	512162..512386	+	74	39995588	-	GSU0480	-	NifU-like domain-containing protein
479	 57.21	0	512423..512623	+	66	39995589	-	GSU0481	-	hypothetical protein
480	 62.47	0	512758..513948	+	396	39995590	-	GSU0482	-	cardiolipin synthetase, putative
481	 62.32	0	514039..514752	+	237	39995591	-	GSU0483	-	exsB protein
482	 58.43	0	514818..515594	+	258	39995592	-	GSU0484	-	putative GTP cyclohydrolase
483	 62.74	0	515708..516445	+	245	39995593	-	GSU0485	-	hypothetical protein
484	 62.20	0	516396..517604	-	402	39995594	ilvA	GSU0486	-	threonine dehydratase
485	 61.75	0	517626..518621	-	331	39995595	-	GSU0487	-	cation efflux family protein
486	 62.78	0	518779..519729	+	316	39995596	trxB	GSU0488	-	thioredoxin reductase
487	 62.35	0	519735..521264	+	509	39995597	-	GSU0489	-	Mg chelatase-related protein
488	 60.09	0	521516..523111	+	531	39995598	-	GSU0490	-	acetyl-CoA hydrolase/transferase family protein
489	 64.45	0	523215..524567	-	450	39995599	rhlE-1	GSU0491	-	ATP-dependent RNA helicase RhlE
490	 63.50	0	524995..525879	-	294	39995600	-	GSU0492	-	phage integrase family site specific recombinase
491	 62.62	0	526070..527329	+	419	39995601	-	GSU0493	-	pyridine nucleotide-disulphide oxidoreductase family protein
492	 65.69	0	527317..528447	+	376	39995602	-	GSU0494	-	iron-sulfur cluster-binding protein
493	 61.01	0	528549..528707	+	52	39995603	-	GSU0495	-	hypothetical protein
494	 62.45	0	528747..529955	+	402	39995604	-	GSU0496	-	RND family efflux transporter MFP subunit
495	 59.65	0	531917..532087	+	56	39995605	-	GSU0498	-	hypothetical protein
496	 62.17	0	532095..532850	-	251	39995606	-	GSU0499	-	M23/M37 peptidase domain-containing protein
497	 60.82	0	533056..534852	+	598	39995607	typA	GSU0500	-	GTP-binding protein TypA
498	 57.52	0	534968..535732	+	254	39995608	-	GSU0501	-	putative lipoprotein
499	 63.98	0	535734..536105	+	123	39995609	-	GSU0502	-	putative lipoprotein
500	 61.23	0	536089..536511	+	140	39995610	-	GSU0503	-	crcB protein
501	 60.28	0	536521..536880	+	119	39995611	-	GSU0504	-	hypothetical protein
502	 61.18	0	536877..537386	+	169	39995612	-	GSU0505	-	rhodanese-like domain-containing protein
503	 57.31	0	537386..537802	+	138	39995613	-	GSU0506	-	methylamine utilization protein MauE, putative
60.71	MEAN

5.38	STD DEV
