IslandPath Analysis: Geobacter sulfurreducens PCA

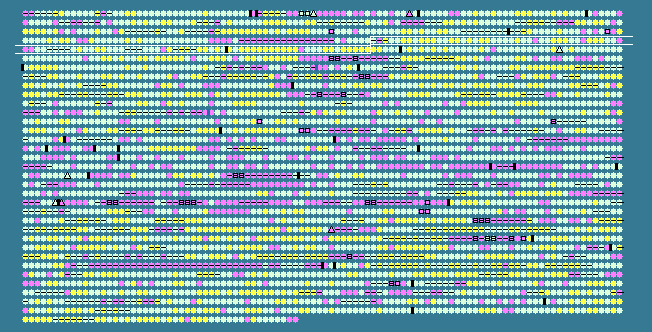

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
359	 59.96	0	392844..393737	-	297	39995469	-	GSU0361	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
360	 56.80	0	393987..394442	+	151	39995470	-	GSU0362	-	hypothetical protein
361	 65.40	0	394457..396979	-	840	39995471	dinG	GSU0363	-	ATP-dependent helicase DinG
362	 60.51	0	397076..397351	-	91	39995472	cyd-1	GSU0364	-	cytochrome c3
363	 60.07	0	397486..397773	-	95	39995473	cyd-2	GSU0365	-	cytochrome c3
364	 66.45	+1	397904..398824	+	306	39995474	-	GSU0366	-	transcriptional regulator, putative
365	 66.45	+1	398821..399738	+	305	39995475	-	GSU0367	-	radical SAM family protein
366	 61.39	0	399774..401024	-	416	39995476	-	GSU0368	-	putative lipoprotein
367	 65.20	0	401190..401462	-	90	39995477	-	GSU0369	-	FlhB domain-containing protein
368	 69.85	+1	401449..403206	-	585	39995478	-	GSU0370	-	hypothetical protein
369	 64.80	0	403252..405816	-	854	39995479	-	GSU0371	-	carbohydrate phosphorylase family protein
370	 63.71	0	406003..407388	-	461	39995480	-	GSU0372	-	sigma-54 dependent DNA-binding response regulator
371	 61.61	0	407414..408916	-	500	39995481	-	GSU0373	-	sensor histidine kinase
372	 65.77	0	409015..409347	+	110	39995482	hypA	GSU0374	-	hydrogenase expression/formation protein hupa
373	 65.38	0	409470..410558	+	362	39995483	gcvT	GSU0375	-	glycine cleavage system T protein
374	 60.80	0	410614..410988	+	124	39995484	gcvH-1	GSU0376	-	glycine cleavage system H protein
375	 67.56	+1	410988..412334	+	448	39995485	-	GSU0377	-	glycine dehydrogenase subunit 1
376	 64.18	0	412325..413770	+	481	39995486	-	GSU0378	-	glycine dehydrogenase subunit 2
377	 70.49	+1	413770..414579	+	269	39995487	-	GSU0379	-	biotin/lipoate A/B protein ligase family protein
378	 66.89	+1	414576..415487	+	303	39995488	lipA	GSU0380	-	lipoyl synthase
379	 59.11	0	415484..415708	+	74	39995489	-	GSU0381	-	putative lipoprotein
380	 61.73	0	415717..416121	+	134	39995490	-	GSU0382	-	hypothetical protein
381	 62.00	0	416237..416665	+	142	39995491	-	GSU0383	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
382	 57.65	0	416747..417223	-	158	39995492	-	GSU0384	-	hypothetical protein
383	 65.20	0	417404..418288	+	294	39995493	-	GSU0385	-	NADH dehydrogenase subunit, putative
384	 63.77	0	418326..419015	-	229	39995494	radC	GSU0386	-	DNA repair protein RadC
385	 63.33	0	419107..419916	-	269	39995495	-	GSU0387	-	undecaprenol kinase, putative
386	 56.47	0	420116..420733	+	205	39995496	-	GSU0388	-	hypothetical protein
387	 60.48	0	420726..421727	+	333	39995497	-	GSU0389	-	phosphate transporter, putative
388	 59.83	0	421780..422262	-	160	39995498	-	GSU0390	-	hypothetical protein
389	 65.53	0	422509..423822	+	437	39995499	-	GSU0391	-	Outer membrane efflux family protein
390	 67.21	+1	423819..424931	+	370	39995500	-	GSU0392	-	RND family efflux transporter MFP subunit
391	 65.00	0	424968..425147	+	59	39995501	-	GSU0393	-	hypothetical protein
392	 62.93	0	425153..428386	+	1077	39995502	-	GSU0394	-	AcrB/AcrD/AcrF family protein
393	 63.17	0	428361..428789	+	142	39995503	-	GSU0395	-	hypothetical protein
394	 55.40	0	428803..429015	+	70	39995504	-	GSU0396	-	hypothetical protein
395	 64.86	0	429012..429842	+	276	39995505	-	GSU0397	-	metallo-beta-lactamase family protein
396	 64.71	0	429887..430243	+	118	39995506	-	GSU0398	-	phage shock protein E, putative
397	 66.67	+1	430266..430541	+	91	39995507	-	GSU0399	-	ArsR family transcriptional regulator
398	 62.42	0	430815..432464	+	549	39995508	-	GSU0400	-	methyl-accepting chemotaxis protein
399	 59.57	0	432601..434220	+	539	39995509	-	GSU0401	-	methyl-accepting chemotaxis protein, putative
400	 54.41	-1	434398..434805	+	135	39995510	-	GSU0402	-	hemerythrin family protein
401	 55.65	0	434966..435328	+	120	39995511	cheY-1	GSU0403	-	chemotaxis protein CheY
402	 56.80	0	435325..435831	+	168	39995512	-	GSU0404	-	hypothetical protein
403	 61.08	0	435856..436965	+	369	39995513	-	GSU0405	-	response regulator
404	 63.64	0	437013..439259	+	748	39995514	-	GSU0406	-	TPR domain-containing protein
405	 58.81	0	439493..439912	+	139	39995515	flgB	GSU0407	-	flagellar basal-body rod protein FlgB
406	 62.59	0	439915..440355	+	146	39995516	flgC	GSU0408	-	flagellar basal-body rod protein FlgC
407	 58.75	0	440461..440763	+	100	39995517	fliE	GSU0409	-	flagellar hook-basal body complex protein FliE
408	 61.11	0	440788..442371	+	527	39995518	fliF	GSU0410	-	flagellar M-ring protein FliF
409	 58.81	0	442383..443375	+	330	39995519	fliG	GSU0411	-	flagellar motor switch protein FliG
410	 67.01	+1	443362..444243	+	293	39995520	-	GSU0412	-	flagellar assembly protein fliH, putative
411	 62.52	0	444236..445561	+	441	39995521	fliI	GSU0413	-	flagellum-specific ATP synthase FliI
412	 59.18	0	445621..446061	+	146	39995522	-	GSU0414	-	flagellar protein FliJ, putative
413	 65.29	0	446076..446585	+	169	39995523	-	GSU0415	-	hypothetical protein
414	 65.21	0	446799..448238	+	479	39995524	-	GSU0416	-	hypothetical protein
415	 59.36	0	448263..448919	+	218	39995525	flgD	GSU0417	-	flagellar hook assembly protein FlgD
416	 59.69	0	448927..449313	+	128	39995526	-	GSU0418	-	hypothetical protein
417	 62.86	0	449476..450735	+	419	39995527	flgE	GSU0419	-	flagellar hook protein FlgE
418	 59.96	0	451106..451627	+	173	39995528	-	GSU0420	-	flagellar protein FliL
419	 59.57	0	451662..452648	+	328	39995529	fliM	GSU0421	-	flagellar motor switch protein FliM
420	 57.52	0	452645..452950	+	101	39995530	fliN	GSU0422	-	flagellar motor switch protein FliN
421	 61.59	0	453450..454217	+	255	39995531	fliP	GSU0423	-	flagellar biosynthesis protein FliP
422	 58.89	0	454230..454499	+	89	39995532	fliQ	GSU0424	-	flagellar biosynthetic protein FliQ
423	 60.63	0	454550..455344	+	264	39995533	fliR	GSU0425	-	flagellar biosynthesis protein FliR
424	 55.05	-1	455349..456407	+	352	39995534	flhB	GSU0426	-	flagellar biosynthesis protein FlhB
425	 66.03	0	456466..456936	-	156	39995535	-	GSU0427	-	putative lipoprotein
426	 61.44	0	457223..457777	+	184	39995536	-	GSU0428	-	putative lipoprotein
427	 68.18	+1	457774..459165	+	463	39995537	-	GSU0429	-	hypothetical protein
428	 64.22	0	459169..459576	+	135	39995538	-	GSU0430	-	tail lysozyme, putative
429	 64.19	0	459605..461338	+	577	39995539	-	GSU0431	-	hypothetical protein
430	 65.76	0	461302..462294	+	330	39995540	-	GSU0432	-	hypothetical protein
431	 68.87	+1	462307..464934	+	875	39995541	-	GSU0433	-	clpB protein, putative
432	 62.99	0	464944..465948	-	334	39995542	-	GSU0434	-	hypothetical protein
433	 65.76	0	466122..467771	+	549	39995543	-	GSU0435	-	MSHA biogenesis protein MshE, putative
434	 62.56	0	467785..468855	+	356	39995544	pilT-3	GSU0436	-	twitching motility protein PilT
435	 68.57	+1	469239..470654	+	471	39995545	ubiD	GSU0437	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
436	 64.03	0	470654..471184	+	176	39995546	-	GSU0438	-	putative lipoprotein
437	 64.66	0	471184..472080	+	298	39995547	ubiA	GSU0439	-	prenyltransferase
438	 65.71	0	472077..472700	+	207	39995548	-	GSU0440	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase, putative
439	 65.19	0	472705..473790	+	361	39995549	-	GSU0441	-	radical SAM domain-containing protein
440	 65.73	0	473790..474854	+	354	39995550	-	GSU0442	-	radical SAM domain-containing protein
441	 65.71	0	475021..476166	+	381	39995551	-	GSU0443	-	ribonuclease D, putative
442	 65.01	0	476304..477026	-	240	39995552	-	GSU0444	-	hypothetical protein
443	 66.02	0	476386..477006	+	206	39995553	-	GSU0445	-	hypothetical protein
444	 65.39	0	477066..477848	-	260	39995554	-	GSU0446	-	hypothetical protein
445	 67.00	+1	477851..478750	-	299	39995555	prmA	GSU0447	-	ribosomal protein L11 methyltransferase
446	 64.43	0	478895..480058	+	387	39995556	-	GSU0448	-	hydrolase, putative
447	 44.76	-2	480111..480215	-	34	39995557	-	GSU0449	-	hypothetical protein
448	 61.60	0	480195..481004	+	269	39995558	-	GSU0450	-	hypothetical protein
449	 58.37	0	481052..481726	+	224	39995559	-	GSU0451	-	DNA-binding response regulator
450	 61.70	0	481730..483139	+	469	39995560	-	GSU0452	-	sensor histidine kinase
451	 64.89	0	483145..483876	+	243	39995561	pfs	GSU0453	-	MTA/SAH nucleosidase
452	 64.64	0	483876..484712	+	278	39995562	-	GSU0454	-	hypothetical protein
453	 58.28	0	484815..485267	+	150	39995563	-	GSU0455	-	lipoprotein A domain-containing protein
454	 64.55	0	485319..487868	-	849	39995564	-	GSU0456	-	hypothetical protein
455	 66.81	+1	487869..488558	-	229	39995565	-	GSU0457	-	putative lipoprotein
456	 66.67	+1	489195..489584	-	129	39995566	-	GSU0458	-	(3R)-hydroxymyristoyl-(acyl-carrier-protein) dehydratase, putative
457	 67.45	+1	489577..490602	-	341	39995567	-	GSU0459	-	beta-ketoacyl synthase domain-containing protein
458	 67.33	+1	490614..491819	-	401	39995568	fabF-1	GSU0460	-	3-oxoacyl-(acyl-carrier-protein) synthase II
60.71	MEAN

5.38	STD DEV
