IslandPath Analysis: Geobacter sulfurreducens PCA

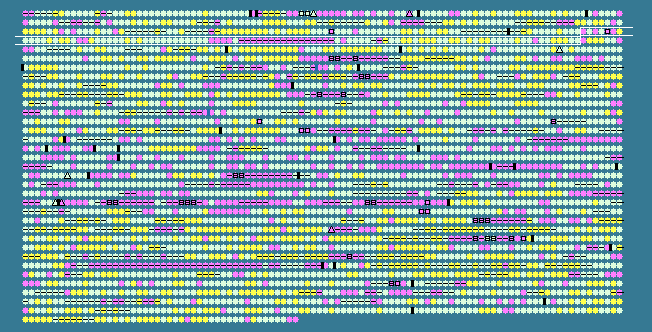

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
294	 50.96	-1	323955..324788	-	277	39995404	cheR-1	GSU0295	-	chemotaxis protein methyltransferase CheR
295	 61.92	0	324839..326671	-	610	39995405	-	GSU0296	-	chemotaxis protein CheA, putative
296	 56.57	0	326720..327214	-	164	39995406	cheW-1	GSU0297	-	purine-binding chemotaxis protein CheW
297	 58.16	0	327608..328606	+	332	39995407	-	GSU0298	-	sigma-54 dependent DNA-binding response regulator, interruption-C
298	 51.03	-1	328610..329728	-	372	39995408	-	GSU0299	-	ISGsu1, transposase
299	 54.25	-1	329817..330251	+	144	39995409	-	GSU0300	-	sigma-54 dependent DNA-binding response regulator, interruption-N
300	 65.48	0	330437..331027	+	196	39995410	-	GSU0301	-	lytic murein transglycosylase, putative
301	 63.87	0	331170..333134	+	654	39995411	-	GSU0302	-	hypothetical protein
302	 59.11	0	333197..334414	+	405	39995412	-	GSU0303	-	sensory box protein
303	 62.95	0	334411..337044	-	877	39995413	pepN	GSU0304	-	aminopeptidase N
304	 58.69	0	337596..338360	+	254	39995414	hypB	GSU0305	-	hydrogenase accessory protein HypB
305	 64.92	0	338376..340667	+	763	39995415	hypF	GSU0306	-	hydrogenase maturation protein HypF
306	 58.87	0	340674..340904	+	76	39995416	hypC	GSU0307	-	hydrogenase assembly chaperone hypC/hupF
307	 65.84	0	340904..341995	+	363	39995417	hypD	GSU0308	-	hydrogenase expression/formation protein HypD
308	 64.50	0	342016..343029	+	337	39995418	hypE	GSU0309	-	hydrogenase expression/formation protein HypE
309	 61.17	0	343116..343970	+	284	39995419	-	GSU0310	-	hypothetical protein
310	 51.52	-1	344076..344207	-	43	39995420	-	GSU0311	-	hypothetical protein
311	 53.41	-1	344230..344508	+	92	39995421	-	GSU0312	-	hypothetical protein
312	 64.97	0	344584..345351	+	255	39995422	-	GSU0313	-	dnaJ domain-containing protein
313	 60.69	0	345463..346566	+	367	39995423	-	GSU0314	-	general secretion pathway protein E
314	 59.40	0	346535..347002	-	155	39995424	-	GSU0315	-	hypothetical protein
315	 60.78	0	346965..347660	-	231	39995425	-	GSU0316	-	hypothetical protein
316	 58.74	0	348045..348776	+	243	39995426	-	GSU0317	-	hypothetical protein
317	 61.04	0	348883..350127	+	414	39995427	-	GSU0318	-	M48 family peptidase
318	 64.52	0	350163..351002	-	279	39995428	-	GSU0319	-	hypothetical protein
319	 59.38	0	350999..351547	-	182	39995429	-	GSU0320	-	hypothetical protein
320	 65.45	0	351544..352860	-	438	39995430	-	GSU0321	-	general secretion pathway protein L, putative
321	 62.00	0	352860..353780	-	306	39995431	gspK	GSU0322	-	general secretion pathway protein K
322	 62.39	0	353777..354337	-	186	39995432	-	GSU0323	-	general secretion pathway protein j, putative
323	 59.10	0	354384..354740	-	118	39995433	-	GSU0324	-	general secretion pathway protein I, putative
324	 63.83	0	354737..355264	-	175	39995434	-	GSU0325	-	general secretion pathway protein H, putative
325	 60.36	0	355233..355676	-	147	39995435	gspG	GSU0326	-	general secretion pathway protein G
326	 64.11	0	355703..356914	-	403	39995436	-	GSU0327	-	general secretion pathway protein F
327	 64.08	0	356895..358439	-	514	39995437	gspE	GSU0328	-	general secretion pathway protein E
328	 59.98	0	358454..360352	-	632	39995438	-	GSU0329	-	general secretion pathway protein D, putative
329	 60.62	0	360462..361337	-	291	39995439	-	GSU0330	-	general secretion pathway protein C, putative
330	 58.14	0	361506..362900	+	464	39995440	-	GSU0331	-	trypsin domain/PDZ domain-containing protein
331	 59.83	0	362976..364466	+	496	39995441	pepA	GSU0332	-	aminopeptidase A/I
332	 55.80	0	364544..364819	-	91	39995442	atpE	GSU0333	-	ATP synthase F0, C subunit
333	 51.88	-1	364879..365568	-	229	39995443	atpB	GSU0334	-	ATP synthase F0, A subunit
334	 54.26	-1	365573..365959	-	128	39995444	-	GSU0335	-	hypothetical protein
335	 46.75	-2	365931..366176	-	81	39995445	-	GSU0336	-	hypothetical protein
336	 57.32	0	366273..367556	-	427	39995446	hemL	GSU0337	-	glutamate-1-semialdehyde-2,1-aminomutase
337	 48.18	-2	367863..368219	+	118	39995447	nuoA-1	GSU0338	-	NADH dehydrogenase I, A subunit
338	 55.95	0	368210..368722	+	170	39995448	nuoB	GSU0339	-	NADH dehydrogenase I, B subunit
339	 53.37	-1	368755..369243	+	162	39995449	nuoC	GSU0340	-	NADH dehydrogenase I, C subunit
340	 52.43	-1	369296..370468	+	390	39995450	nouD	GSU0341	-	NADH dehydrogenase I, D subunit
341	 54.60	-1	370496..371017	+	173	39995451	nuoE-1	GSU0342	-	NADH dehydrogenase I, E subunit
342	 54.00	-1	371053..372828	+	591	39995452	nouF	GSU0343	-	NADH dehydrogenase I, F subunit
343	 54.57	-1	372869..375349	+	826	39995453	-	GSU0344	-	NADH dehydrogenase I, G subunit, putative
344	 52.05	-1	375402..376448	+	348	39995454	nuoH-1	GSU0345	-	NADH dehydrogenase I, H subunit
345	 47.12	-2	376470..376868	+	132	39995455	nuoI-1	GSU0346	-	NADH dehydrogenase I, I subunit
346	 50.40	-1	376879..377382	+	167	39995456	nouJ	GSU0347	-	NADH dehydrogenase I, J subunit
347	 45.87	-2	377401..377703	+	100	39995457	nuoK	GSU0348	-	NADH dehydrogenase I, K subunit
348	 51.17	-1	377757..379757	+	666	39995458	nuoL-1	GSU0349	-	NADH dehydrogenase I, L subunit
349	 51.43	-1	379791..381359	+	522	39995459	nuoM-1	GSU0350	-	NADH dehydrogenase I, M subunit
350	 51.89	-1	381394..382848	+	484	39995460	nuoN-1	GSU0351	-	NADH dehydrogenase I, N subunit
351	 56.20	0	382951..383466	+	171	39995461	psaD	GSU0352	-	thiol peroxidase
352	 55.70	0	383605..384051	+	148	39995462	-	GSU0353	-	hypothetical protein
353	 59.36	0	384038..385228	+	396	39995463	-	GSU0354	-	hypothetical protein
354	 56.05	0	385231..385635	+	134	39995464	-	GSU0355	-	hypothetical protein
355	 59.80	0	387351..388952	-	533	39995465	-	GSU0357	-	cytochrome c family protein
356	 61.27	0	388985..389410	-	141	39995466	-	GSU0358	-	iron-sulfur cluster-binding protein
357	 60.42	0	389808..391184	-	458	39995467	-	GSU0359	-	sensory box protein/sigma-54 dependent transcriptional regulator
358	 60.62	0	391444..392733	+	429	39995468	-	GSU0360	-	OmpA domain-containing protein
359	 59.96	0	392844..393737	-	297	39995469	-	GSU0361	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
360	 56.80	0	393987..394442	+	151	39995470	-	GSU0362	-	hypothetical protein
361	 65.40	0	394457..396979	-	840	39995471	dinG	GSU0363	-	ATP-dependent helicase DinG
362	 60.51	0	397076..397351	-	91	39995472	cyd-1	GSU0364	-	cytochrome c3
363	 60.07	0	397486..397773	-	95	39995473	cyd-2	GSU0365	-	cytochrome c3
364	 66.45	+1	397904..398824	+	306	39995474	-	GSU0366	-	transcriptional regulator, putative
365	 66.45	+1	398821..399738	+	305	39995475	-	GSU0367	-	radical SAM family protein
366	 61.39	0	399774..401024	-	416	39995476	-	GSU0368	-	putative lipoprotein
367	 65.20	0	401190..401462	-	90	39995477	-	GSU0369	-	FlhB domain-containing protein
368	 69.85	+1	401449..403206	-	585	39995478	-	GSU0370	-	hypothetical protein
369	 64.80	0	403252..405816	-	854	39995479	-	GSU0371	-	carbohydrate phosphorylase family protein
370	 63.71	0	406003..407388	-	461	39995480	-	GSU0372	-	sigma-54 dependent DNA-binding response regulator
371	 61.61	0	407414..408916	-	500	39995481	-	GSU0373	-	sensor histidine kinase
372	 65.77	0	409015..409347	+	110	39995482	hypA	GSU0374	-	hydrogenase expression/formation protein hupa
373	 65.38	0	409470..410558	+	362	39995483	gcvT	GSU0375	-	glycine cleavage system T protein
374	 60.80	0	410614..410988	+	124	39995484	gcvH-1	GSU0376	-	glycine cleavage system H protein
375	 67.56	+1	410988..412334	+	448	39995485	-	GSU0377	-	glycine dehydrogenase subunit 1
376	 64.18	0	412325..413770	+	481	39995486	-	GSU0378	-	glycine dehydrogenase subunit 2
377	 70.49	+1	413770..414579	+	269	39995487	-	GSU0379	-	biotin/lipoate A/B protein ligase family protein
378	 66.89	+1	414576..415487	+	303	39995488	lipA	GSU0380	-	lipoyl synthase
379	 59.11	0	415484..415708	+	74	39995489	-	GSU0381	-	putative lipoprotein
380	 61.73	0	415717..416121	+	134	39995490	-	GSU0382	-	hypothetical protein
381	 62.00	0	416237..416665	+	142	39995491	-	GSU0383	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
382	 57.65	0	416747..417223	-	158	39995492	-	GSU0384	-	hypothetical protein
383	 65.20	0	417404..418288	+	294	39995493	-	GSU0385	-	NADH dehydrogenase subunit, putative
384	 63.77	0	418326..419015	-	229	39995494	radC	GSU0386	-	DNA repair protein RadC
385	 63.33	0	419107..419916	-	269	39995495	-	GSU0387	-	undecaprenol kinase, putative
386	 56.47	0	420116..420733	+	205	39995496	-	GSU0388	-	hypothetical protein
387	 60.48	0	420726..421727	+	333	39995497	-	GSU0389	-	phosphate transporter, putative
388	 59.83	0	421780..422262	-	160	39995498	-	GSU0390	-	hypothetical protein
389	 65.53	0	422509..423822	+	437	39995499	-	GSU0391	-	Outer membrane efflux family protein
390	 67.21	+1	423819..424931	+	370	39995500	-	GSU0392	-	RND family efflux transporter MFP subunit
391	 65.00	0	424968..425147	+	59	39995501	-	GSU0393	-	hypothetical protein
392	 62.93	0	425153..428386	+	1077	39995502	-	GSU0394	-	AcrB/AcrD/AcrF family protein
393	 63.17	0	428361..428789	+	142	39995503	-	GSU0395	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
