IslandPath Analysis: Geobacter sulfurreducens PCA

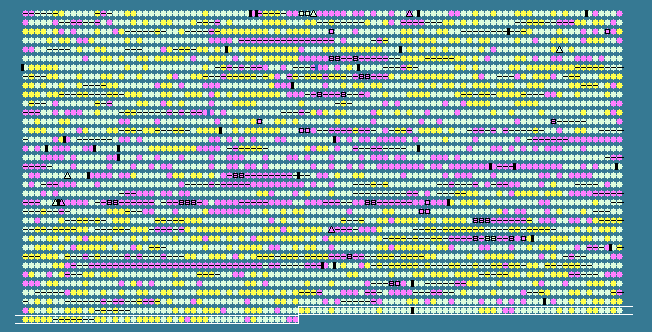

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3347	 64.23	0	3701309..3702007	-	232	39998457	ispD	GSU3368	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
3348	 66.16	+1	3702160..3703548	-	462	39998458	selA	GSU3369	-	selenocysteine synthase
3349	 57.49	0	3703818..3704525	-	235	39998459	-	GSU3370	-	GntR family transcriptional regulator
3350	 62.39	0	3704800..3705570	+	256	39998460	-	GSU3371	-	AP endonuclease
3351	 61.33	0	3705606..3707048	-	480	39998461	-	GSU3372	-	cardiolipin synthetase, putative
3352	 64.88	0	3707306..3708652	+	448	39998462	sun	GSU3373	-	Sun protein
3353	 61.26	0	3708688..3709353	+	221	39998463	rpe	GSU3374	-	ribulose-phosphate 3-epimerase
3354	 62.21	0	3709465..3709980	+	171	39998464	-	GSU3375	-	mutT/nudix family protein
3355	 61.49	0	3710034..3710960	+	308	39998465	-	GSU3376	-	GGDEF/response regulator receiver domain-containing protein
3356	 62.30	0	3710946..3711632	-	228	39998466	-	GSU3377	-	helix-hairpin-helix domain-containing protein
3357	 62.77	0	3711595..3714648	-	1017	39998467	-	GSU3378	-	glutamate-ammonia ligase adenylyltransferase
3358	 63.88	0	3714645..3715685	-	346	39998468	-	GSU3379	-	aIF-2BI family translation initiation factor
3359	 63.12	0	3715702..3717141	-	479	39998469	gatB	GSU3380	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
3360	 66.26	+1	3717158..3718615	-	485	39998470	gatA	GSU3381	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
3361	 61.45	0	3718661..3719005	-	114	39998471	-	GSU3382	-	hypothetical protein
3362	 57.29	0	3718983..3719270	-	95	39998472	gatC	GSU3383	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
3363	 63.69	0	3719386..3720963	-	525	39998473	-	GSU3384	-	cardiolipin synthetase, putative
3364	 61.39	0	3721688..3723544	+	618	39998474	pckA	GSU3385	-	phosphoenolpyruvate carboxykinase
3365	 59.38	0	3723671..3724768	-	365	39998475	-	GSU3386	-	putative lipoprotein
3366	 63.55	0	3725285..3726118	-	277	39998476	-	GSU3387	-	AraC/XylS family transcriptional regulator
3367	 63.56	0	3726258..3727223	+	321	39998477	-	GSU3388	-	hypothetical protein
3368	 62.38	0	3727295..3727924	-	209	39998478	-	GSU3389	-	hypothetical protein
3369	 62.05	0	3727955..3728863	-	302	39998479	-	GSU3390	-	hypothetical protein
3370	 60.00	0	3728872..3729576	-	234	39998480	-	GSU3391	-	branched-chain amino acid ABC transporter, ATP-binding protein
3371	 62.91	0	3729621..3730391	-	256	39998481	-	GSU3392	-	branched-chain amino acid ABC transporter, ATP-binding protein
3372	 60.06	0	3730410..3731333	-	307	39998482	-	GSU3393	-	branched-chain amino acid ABC transporter, permease protein
3373	 61.64	0	3731341..3732216	-	291	39998483	-	GSU3394	-	branched-chain amino acid ABC transporter, permease protein
3374	 62.39	0	3732461..3735475	-	1004	39998484	putA	GSU3395	-	proline dehydrogenase/delta-1-pyrroline-5-carboxylate dehydrogenase
3375	 62.20	0	3735764..3736480	+	238	39998485	-	GSU3396	-	GntR family transcriptional regulator
3376	 62.13	0	3736569..3736943	+	124	39998486	-	GSU3397	-	hypothetical protein
3377	 67.20	+1	3737064..3738368	+	434	39998487	-	GSU3398	-	metal ion efflux outer membrane protein family protein, putative
3378	 67.87	+1	3738371..3740119	+	582	39998488	-	GSU3399	-	RND family efflux transporter MFP subunit
3379	 64.78	0	3740132..3743203	+	1023	39998489	-	GSU3400	-	CzcA family heavy metal efflux protein
3380	 61.13	0	3743342..3744532	-	396	39998490	-	GSU3401	-	branched-chain amino acid ABC transporter, periplasmic amino acid-binding protein, putative
3381	 55.90	0	3744573..3744860	-	95	39998491	-	GSU3402	-	hypothetical protein
3382	 57.12	0	3744939..3746321	-	460	39998492	-	GSU3403	-	hypothetical protein
3383	 60.30	0	3746456..3747178	-	240	39998493	-	GSU3404	-	amino acid ABC transporter, ATP-binding protein
3384	 58.96	0	3747189..3747980	-	263	39998494	-	GSU3405	-	amino acid ABC transporter, permease protein
3385	 58.60	0	3747981..3748736	-	251	39998495	-	GSU3406	-	amino acid ABC transporter, periplasmic amino acid-binding protein
3386	 62.00	0	3748930..3749808	+	292	39998496	-	GSU3407	-	hypothetical protein
3387	 61.36	0	3749852..3750907	+	351	39998497	-	GSU3408	-	L-threonine aldolase, low-specificity
3388	 58.67	0	3751347..3751571	+	74	39998498	-	GSU3409	-	hypothetical protein
3389	 59.74	0	3751637..3751867	+	76	39998499	-	GSU3410	-	hypothetical protein
3390	 65.05	0	3752116..3754335	-	739	39998500	-	GSU3411	-	ATP-dependent DNA helicase PcrA, putative
3391	 62.91	0	3754334..3754546	+	70	39998501	-	GSU3412	-	hypothetical protein
3392	 64.49	0	3754585..3755181	-	198	39998502	-	GSU3413	-	putative lipoprotein
3393	 59.85	0	3755246..3756889	-	547	39998503	-	GSU3414	-	hypothetical protein
3394	 62.86	0	3757472..3758890	+	472	39998504	-	GSU3415	-	radical SAM domain/B12 binding domain-containing protein
3395	 66.02	0	3758896..3759513	+	205	39998505	-	GSU3416	-	hypothetical protein
3396	 66.86	+1	3759521..3761050	+	509	39998506	-	GSU3417	-	dioxygenase, putative
3397	 63.20	0	3761065..3762537	-	490	39998507	-	GSU3418	-	sigma-54 dependent DNA-binding response regulator
3398	 61.89	0	3762534..3764858	-	774	39998508	-	GSU3419	-	sensor histidine kinase
3399	 66.34	+1	3765224..3766147	+	307	39998509	-	GSU3420	-	lipid A biosynthesis lauroyl acyltransferase, putative
3400	 63.50	0	3766220..3766945	-	241	39998510	-	GSU3421	-	Crp/FNR family transcriptional regulator
3401	 68.64	+1	3766924..3767532	-	202	39998511	-	GSU3422	-	hypothetical protein
3402	 69.51	+1	3767539..3769545	-	668	39998512	tkt	GSU3423	-	transketolase
3403	 67.52	+1	3769624..3771030	+	468	39998513	merA-2	GSU3424	-	mercuric reductase
3404	 66.17	+1	3771037..3771840	+	267	39998514	-	GSU3425	-	hypothetical protein
3405	 66.89	+1	3771846..3772745	-	299	39998515	-	GSU3426	-	hypothetical protein
3406	 62.16	0	3773200..3773532	-	110	39998516	-	GSU3427	-	hypothetical protein
3407	 66.84	+1	3773542..3774105	-	187	39998517	-	GSU3428	-	cytochrome c family protein, putative
3408	 68.74	+1	3774129..3775529	-	466	39998518	nuoN-2	GSU3429	-	NADH dehydrogenase I, N subunit
3409	 64.86	0	3775526..3777016	-	496	39998519	nuoM-2	GSU3430	-	NADH dehydrogenase I, M subunit
3410	 66.99	+1	3777016..3778890	-	624	39998520	nuoL-2	GSU3431	-	NADH dehydrogenase I, L subunit
3411	 62.78	0	3778887..3779195	-	102	39998521	nuoI	GSU3432	-	NADH dehydrogenase I, K subunit
3412	 63.82	0	3779192..3779683	-	163	39998522	nuoJ	GSU3433	-	NADH dehydrogenase I, J subunit
3413	 66.10	+1	3779688..3780218	-	176	39998523	nuoI-2	GSU3434	-	NADH dehydrogenase subunit I
3414	 64.32	0	3780275..3780700	-	141	39998524	-	GSU3435	-	ankyrin repeat-containing protein
3415	 63.54	0	3780842..3781831	-	329	39998525	nuoH-2	GSU3436	-	NADH dehydrogenase I, H subunit
3416	 64.86	0	3781828..3783429	-	533	39998526	-	GSU3437	-	sensory box histidine kinase
3417	 58.19	0	3783594..3783935	-	113	39998527	-	GSU3438	-	hypothetical protein
3418	 66.22	+1	3783961..3785994	-	677	39998528	-	GSU3439	-	NADH dehydrogenase subunit G
3419	 62.30	0	3786004..3786576	-	190	39998529	-	GSU3440	-	hypothetical protein
3420	 66.59	+1	3786573..3787844	-	423	39998530	nuoF	GSU3441	-	NADH dehydrogenase I, F subunit
3421	 64.64	0	3787919..3788263	-	114	39998531	-	GSU3442	-	hypothetical protein
3422	 67.89	+1	3788267..3788755	-	162	39998532	nuoE-2	GSU3443	-	NADH dehydrogenase subunit E
3423	 64.86	0	3788761..3791139	-	792	39998533	nuoBCD	GSU3444	-	trifunctional NADH dehydrogenase I subunit B/C/D
3424	 62.70	0	3791126..3791554	-	142	39998534	nuoA-2	GSU3445	-	NADH dehydrogenase I, A subunit
3425	 68.65	+1	3791654..3792106	-	150	39998535	-	GSU3446	-	thioredoxin family protein, selenocysteine-containing
3426	 60.47	0	3792116..3792583	-	155	39998536	-	GSU3447	-	AhpC/TSA family protein
3427	 66.01	0	3792646..3793857	-	403	39998537	ackA-2	GSU3448	-	acetate kinase
3428	 57.14	0	3793890..3794078	-	62	39998538	-	GSU3449	-	ferredoxin family protein, putative
3429	 66.12	+1	3794113..3798645	-	1510	39998539	-	GSU3450	-	glutamate synthase-related protein
3430	 64.61	0	3799051..3799878	-	275	39998540	-	GSU3451	-	hypothetical protein
3431	 69.70	+1	3799899..3800030	-	43	39998541	-	GSU3452	-	hypothetical protein
3432	 61.58	0	3800181..3801203	-	340	39998542	hemE	GSU3453	-	uroporphyrinogen decarboxylase
3433	 57.80	0	3801376..3802446	-	356	39998543	-	GSU3454	-	radical SAM domain-containing protein
3434	 61.67	0	3802531..3803250	-	239	39998544	-	GSU3455	-	ABC transporter permease
3435	 62.35	0	3803386..3803895	-	169	39998545	def-2	GSU3456	-	polypeptide deformylase
3436	 60.22	0	3803900..3804457	-	185	39998546	-	GSU3457	-	glycine cleavage system transcriptional repressor, putative
3437	 59.60	0	3804549..3804845	-	98	39998547	-	GSU3459	-	hypothetical protein
3438	 54.95	-1	3804616..3804726	+	36	39998548	-	GSU3458	-	hypothetical protein
3439	 67.88	+1	3804900..3805892	-	330	39998549	-	GSU3460	-	glycosyl transferase, group 2 family protein
3440	 62.60	0	3805904..3806296	-	130	39998550	-	GSU3461	-	thioesterase family protein
3441	 61.27	0	3806359..3807099	-	246	39998551	-	GSU3462	-	putative lipoprotein
3442	 60.24	0	3807391..3808044	-	217	39998552	gidB	GSU3463	-	glucose-inhibited division protein B
3443	 61.62	0	3808041..3809924	-	627	39998553	gidA	GSU3464	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3444	 58.72	0	3810131..3811501	-	456	39998554	trmE	GSU3465	-	tRNA modification GTPase TrmE
3445	 56.45	0	3811508..3813103	-	531	39998555	-	GSU3466	-	hypothetical protein
3446	 52.38	-1	3813123..3813332	-	69	39998556	-	GSU3467	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
