IslandPath Analysis: Geobacter sulfurreducens PCA

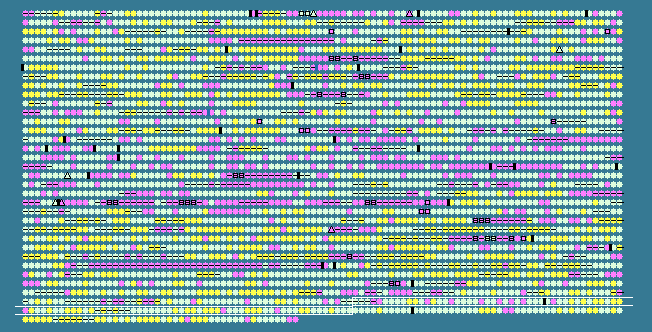

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3256	 62.99	0	3594416..3595123	-	235	39998366	-	GSU3277	-	lysM domain-containing protein
3257	 62.77	0	3595125..3598025	-	966	39998367	-	GSU3278	-	hypothetical protein
3258	 61.67	0	3598194..3600035	+	613	39998368	uvrC	GSU3279	-	excinuclease ABC, C subunit
3259	 55.43	0	3600112..3600627	-	171	39998369	-	GSU3280	-	thioredoxin-related protein
3260	 55.76	0	3600648..3600977	-	109	39998370	trx	GSU3281	-	thioredoxin
3261	 61.78	0	3601183..3601857	+	224	39998371	-	GSU3282	-	siroheme synthase
3262	 59.56	0	3601854..3602669	+	271	39998372	-	GSU3283	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
3263	 60.38	0	3602688..3603992	+	434	39998373	hemA	GSU3284	-	glutamyl-tRNA reductase
3264	 62.90	0	3604051..3605007	+	318	39998374	hemC	GSU3285	-	porphobilinogen deaminase
3265	 65.18	0	3605124..3606671	+	515	39998375	-	GSU3286	-	uroporphyrinogen III synthase/methyltransferase
3266	 66.28	+1	3606699..3607475	+	258	39998376	-	GSU3287	-	TatD family hydrolase
3267	 63.80	0	3607503..3608270	+	255	39998377	-	GSU3288	-	thiF family protein
3268	 54.42	-1	3608359..3608856	+	165	39998378	-	GSU3289	-	hypothetical protein
3269	 64.68	0	3608974..3609174	-	66	39998379	-	GSU3290	-	hypothetical protein
3270	 63.53	0	3609341..3611383	-	680	39998380	hppA	GSU3291	-	membrane-bound proton-translocating pyrophosphatase
3271	 60.11	0	3611697..3612062	+	121	39998381	-	GSU3292	-	FUR family transcriptional regulator
3272	 55.19	-1	3612260..3612712	+	150	39998382	-	GSU3293	-	hypothetical protein
3273	 58.11	0	3612842..3614056	+	404	39998383	-	GSU3294	-	rubredoxin-oxygen oxidoreductase, putative
3274	 63.41	0	3614102..3615421	+	439	39998384	-	GSU3295	-	hypothetical protein
3275	 62.46	0	3615489..3616868	+	459	39998385	-	GSU3296	-	glycolate oxidase subunit GlcD, putative
3276	 63.74	0	3616956..3618221	+	421	39998386	-	GSU3297	-	iron-sulfur cluster-binding protein
3277	 54.08	-1	3618530..3619093	+	187	39998387	-	GSU3298	-	Cro/CI family transcriptional regulator
3278	 61.70	0	3619432..3621042	+	536	39998388	-	GSU3299	-	carboxyl transferase domain-containing protein
3279	 59.84	0	3621220..3623958	+	912	39998389	-	GSU3300	-	biotin-requiring enzyme subunit
3280	 54.87	-1	3624159..3624794	+	211	39998390	-	GSU3301	-	hypothetical protein
3281	 60.64	0	3624910..3626568	+	552	39998391	-	GSU3302	-	methylmalonyl-CoA mutase, putative
3282	 56.30	0	3626626..3627030	+	134	39998392	-	GSU3303	-	methylmalonyl-CoA epimerase
3283	 58.59	0	3627493..3628866	+	457	39998393	-	GSU3304	-	LamB porin family protein, putative
3284	 52.84	-1	3628992..3629273	+	93	39998394	-	GSU3305	-	hypothetical protein
3285	 59.29	0	3629453..3630970	+	505	39998395	-	GSU3306	-	hypothetical protein
3286	 60.97	0	3631136..3632452	+	438	39998396	hisZ	GSU3307	-	ATP phosphoribosyltransferase regulatory subunit
3287	 60.83	0	3632453..3633754	+	433	39998397	purA	GSU3308	-	adenylosuccinate synthetase
3288	 61.17	0	3634083..3634901	-	272	39998398	-	GSU3309	-	hypothetical protein
3289	 55.30	-1	3634910..3635173	-	87	39998399	-	GSU3310	-	hypothetical protein
3290	 58.47	0	3635189..3636091	+	300	39998400	-	GSU3311	-	hypothetical protein
3291	 61.74	0	3636130..3637083	-	317	39998401	hemH	GSU3312	-	ferrochelatase
3292	 65.30	0	3637191..3638798	-	535	39998402	-	GSU3313	-	thiolase, putative
3293	 61.95	0	3638936..3639952	-	338	39998403	-	GSU3314	-	putative lipoprotein
3294	 64.58	0	3640042..3641286	-	414	39998404	-	GSU3315	-	major facilitator family transporter
3295	 63.47	0	3641415..3642134	+	239	39998405	-	GSU3316	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
3296	 65.41	0	3642950..3644059	+	369	39998406	-	GSU3317	-	hypothetical protein
3297	 64.25	0	3644195..3645598	-	467	39998407	-	GSU3318	-	hypothetical protein
3298	 62.31	0	3645704..3646300	-	198	39998408	ppiA	GSU3319	-	peptidyl-prolyl cis-trans isomerase A
3299	 65.16	0	3646373..3646969	-	198	39998409	-	GSU3320	-	ribosomal protein L11 methyltransferase, putative
3300	 66.81	+1	3647128..3648537	+	469	39998410	-	GSU3321	-	phosphoglucomutase/phosphomannomutase family protein
3301	 57.23	0	3648635..3649588	+	317	39998411	corA-2	GSU3322	-	magnesium and cobalt transport protein CorA
3302	 64.33	0	3649590..3651773	+	727	39998412	ppk	GSU3323	-	polyphosphate kinase
3303	 64.16	0	3651999..3652637	-	212	39998413	-	GSU3324	-	Cro/CI family transcriptional regulator
3304	 63.04	0	3652846..3655659	+	937	39998414	uvrA	GSU3325	-	excinuclease ABC, A subunit
3305	 64.89	0	3655690..3656421	-	243	39998415	-	GSU3326	-	hypothetical protein
3306	 61.22	0	3656418..3656711	-	97	39998416	-	GSU3327	-	hypothetical protein
3307	 63.58	0	3656802..3657545	-	247	39998417	-	GSU3328	-	hypothetical protein
3308	 65.28	0	3657542..3658837	-	431	39998418	-	GSU3329	-	radical SAM domain-containing protein
3309	 65.78	0	3658912..3660036	-	374	39998419	-	GSU3330	-	Oye family NADH-dependent flavin oxidoreductase
3310	 64.38	0	3660079..3661521	-	480	39998420	pyk	GSU3331	-	pyruvate kinase
3311	 61.49	0	3661539..3661886	-	115	39998421	-	GSU3332	-	cytochrome c family protein, putative
3312	 64.29	0	3662036..3663046	-	336	161579496	-	GSU3333	-	3-deoxy-7-phosphoheptulonate synthase
3313	 60.95	0	3663224..3663538	+	104	39998423	-	GSU3334	-	cytochrome c family protein, putative
3314	 64.21	0	3663545..3663829	+	94	39998424	-	GSU3335	-	hypothetical protein
3315	 59.34	0	3663853..3664125	+	90	39998425	-	GSU3336	-	hypothetical protein
3316	 65.60	0	3664119..3664682	+	187	39998426	-	GSU3337	-	hypothetical protein
3317	 61.40	0	3664470..3664583	-	37	39998427	-	GSU3338	-	hypothetical protein
3318	 57.99	0	3664919..3665206	+	95	39998428	groES	GSU3339	-	co-chaperonin GroES
3319	 62.94	0	3665270..3666904	+	544	39998429	groEL	GSU3340	-	chaperonin GroEL
3320	 60.31	0	3667264..3669228	+	654	39998430	-	GSU3341	-	hypothetical protein
3321	 63.24	0	3669269..3670612	+	447	39998431	-	GSU3342	-	hypothetical protein
3322	 60.38	0	3670697..3672319	+	540	39998432	-	GSU3343	-	SpoVR-like family protein
3323	 59.03	0	3672332..3674635	+	767	39998433	-	GSU3344	-	hypothetical protein
3324	 63.69	0	3674668..3675036	+	122	39998434	-	GSU3345	-	hypothetical protein
3325	 60.39	0	3675042..3676874	-	610	39998435	-	GSU3346	-	potassium uptake protein, Kup system
3326	 65.57	0	3677009..3679381	+	790	39998436	-	GSU3347	-	U32 family peptidase
3327	 64.02	0	3679517..3680422	+	301	39998437	-	GSU3348	-	heat shock protein 33
3328	 66.23	+1	3680526..3681209	+	227	39998438	-	GSU3349	-	cyclase, putative
3329	 65.19	0	3681280..3682977	+	565	39998439	-	GSU3350	-	sensor histidine kinase/GGDEF domain-containing protein
3330	 61.45	0	3683067..3683564	+	165	39998440	-	GSU3351	-	hypothetical protein
3331	 64.60	0	3683584..3683970	+	128	39998441	-	GSU3352	-	hypothetical protein
3332	 67.12	+1	3684041..3684931	-	296	39998442	-	GSU3353	-	RNA pseudouridine synthase family protein
3333	 65.33	0	3684928..3685449	-	173	39998443	-	GSU3354	-	mutT/nudix family protein
3334	 56.25	0	3685436..3685579	+	47	39998444	-	GSU3355	-	hypothetical protein
3335	 62.86	0	3685627..3687228	+	533	39998445	-	GSU3356	-	GGDEF domain/HAMP domain-containing protein
3336	 62.56	0	3687303..3689687	+	794	39998446	-	GSU3357	-	sensory box histidine kinase
3337	 61.42	0	3689689..3690126	-	145	39998447	-	GSU3358	-	hypothetical protein
3338	 65.07	0	3690311..3691372	+	353	39998448	-	GSU3359	-	hypothetical protein
3339	 64.92	0	3691369..3692688	+	439	39998449	-	GSU3360	-	M16 family peptidase
3340	 64.34	0	3692660..3694207	-	515	39998450	-	GSU3361	-	transglutaminase domain-containing protein
3341	 61.99	0	3694218..3694559	-	113	39998451	-	GSU3362	-	hypothetical protein
3342	 58.73	0	3694820..3697111	+	763	39998452	-	GSU3363	-	sigma-54 dependent trancsriptional regulator
3343	 48.37	-2	3697200..3697505	+	101	39998453	-	GSU3364	-	hypothetical protein
3344	 60.03	0	3697619..3699064	-	481	39998454	cysS	GSU3365	-	cysteinyl-tRNA synthetase
3345	 62.46	0	3699097..3700761	-	554	39998455	glnS	GSU3366	-	glutaminyl-tRNA synthetase
3346	 63.71	0	3700792..3701265	-	157	39998456	ispF	GSU3367	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
3347	 64.23	0	3701309..3702007	-	232	39998457	ispD	GSU3368	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
3348	 66.16	+1	3702160..3703548	-	462	39998458	selA	GSU3369	-	selenocysteine synthase
3349	 57.49	0	3703818..3704525	-	235	39998459	-	GSU3370	-	GntR family transcriptional regulator
3350	 62.39	0	3704800..3705570	+	256	39998460	-	GSU3371	-	AP endonuclease
3351	 61.33	0	3705606..3707048	-	480	39998461	-	GSU3372	-	cardiolipin synthetase, putative
3352	 64.88	0	3707306..3708652	+	448	39998462	sun	GSU3373	-	Sun protein
3353	 61.26	0	3708688..3709353	+	221	39998463	rpe	GSU3374	-	ribulose-phosphate 3-epimerase
3354	 62.21	0	3709465..3709980	+	171	39998464	-	GSU3375	-	mutT/nudix family protein
3355	 61.49	0	3710034..3710960	+	308	39998465	-	GSU3376	-	GGDEF/response regulator receiver domain-containing protein
60.71	MEAN

5.38	STD DEV
