IslandPath Analysis: Geobacter sulfurreducens PCA

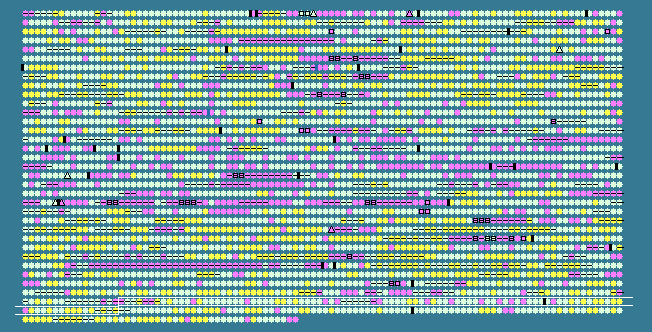

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3217	 39.47	-2	3551233..3551346	-	37	39998327	-	GSU3237	-	hypothetical protein
3218	 58.33	0	3551349..3551648	-	99	39998328	-	GSU3238	-	Rieske 2Fe-2S family protein
3219	 58.77	0	3551672..3553267	-	531	39998329	cafA	GSU3239	-	ribonuclease G
3220	 64.21	0	3553203..3555641	-	812	39998330	-	GSU3240	-	radical SAM domain-containing protein
3221	 54.50	-1	3555958..3556335	-	125	39998331	-	GSU3241	-	hypothetical protein
3222	 48.15	-2	3556109..3556216	+	35	39998332	-	GSU3242	-	hypothetical protein
3223	 64.52	0	3556304..3556675	-	123	39998333	-	GSU3243	-	hypothetical protein
3224	 61.87	0	3556672..3557088	-	138	39998334	-	GSU3244	-	hypothetical protein
3225	 64.39	0	3557188..3559425	-	745	39998335	-	GSU3245	-	DNA polymerase II, putative
3226	 57.76	0	3559499..3560104	-	201	39998336	-	GSU3246	-	thioredoxin peroxidase
3227	 63.80	0	3560212..3560943	-	243	39998337	-	GSU3247	-	iron-sulfur cluster-binding protein
3228	 59.66	0	3560987..3561343	-	118	39998338	-	GSU3248	-	hypothetical protein
3229	 46.88	-2	3561352..3561447	-	31	39998339	-	GSU3249	-	hypothetical protein
3230	 66.96	+1	3561440..3562807	+	455	39998340	pcnB	GSU3250	-	polyA polymerase
3231	 58.44	0	3562966..3563913	-	315	39998341	-	GSU3251	-	hypothetical protein
3232	 60.16	0	3564114..3565757	+	547	39998342	-	GSU3252	-	sensor histidine kinase
3233	 58.33	0	3565735..3566106	+	123	39998343	-	GSU3253	-	response regulator
3234	 61.41	0	3566149..3568659	+	836	39998344	-	GSU3254	-	phosphoglucomutase/phosphomannomutase family protein
3235	 64.11	0	3568660..3570849	+	729	39998345	-	GSU3255	-	hypothetical protein
3236	 62.48	0	3570860..3571885	+	341	39998346	galT	GSU3256	-	galactose-1-phosphate uridylyltransferase
3237	 63.78	0	3571890..3573344	+	484	39998347	glgA-2	GSU3257	-	glycogen synthase
3238	 56.55	0	3573348..3573515	+	55	39998348	-	GSU3258	-	hypothetical protein
3239	 59.84	0	3573587..3575110	-	507	39998349	-	GSU3259	-	cytochrome c family protein
3240	 62.10	0	3575462..3576535	+	357	39998350	-	GSU3260	-	phosphoserine aminotransferase, putative
3241	 61.81	0	3576650..3577102	+	150	39998351	-	GSU3261	-	response regulator
3242	 62.76	0	3577166..3579160	+	664	39998352	uvrB	GSU3262	-	excinuclease ABC subunit B
3243	 64.22	0	3579182..3579877	+	231	39998353	-	GSU3263	-	response regulator
3244	 64.30	0	3579874..3581100	+	408	39998354	-	GSU3264	-	hypothetical protein
3245	 62.24	0	3581132..3581809	+	225	39998355	-	GSU3265	-	sulfite reductase, assimilatory-type
3246	 67.44	+1	3581843..3585079	-	1078	39998356	-	GSU3266	-	DNA helicase II, putative
3247	 62.02	0	3585163..3585291	-	42	39998357	-	GSU3267	-	hypothetical protein
3248	 62.21	0	3585295..3587538	-	747	39998358	feoB-2	GSU3268	-	ferrous iron transport protein B
3249	 59.61	0	3587766..3588020	-	84	39998359	-	GSU3270	-	feoA family protein
3250	 63.05	0	3588092..3589501	-	469	39998360	-	GSU3271	-	hypothetical protein
3251	 55.37	0	3589489..3589665	-	58	39998361	-	GSU3272	-	hypothetical protein
3252	 60.10	0	3589678..3590727	-	349	39998362	-	GSU3273	-	hypothetical protein
3253	 57.21	0	3590746..3591168	-	140	39998363	-	GSU3274	-	cytochrome c family protein, putative
3254	 63.51	0	3591525..3592634	+	369	39998364	-	GSU3275	-	hypothetical protein
3255	 60.97	0	3592634..3594319	+	561	39998365	-	GSU3276	-	LysM domain-containing protein
3256	 62.99	0	3594416..3595123	-	235	39998366	-	GSU3277	-	lysM domain-containing protein
3257	 62.77	0	3595125..3598025	-	966	39998367	-	GSU3278	-	hypothetical protein
3258	 61.67	0	3598194..3600035	+	613	39998368	uvrC	GSU3279	-	excinuclease ABC, C subunit
3259	 55.43	0	3600112..3600627	-	171	39998369	-	GSU3280	-	thioredoxin-related protein
3260	 55.76	0	3600648..3600977	-	109	39998370	trx	GSU3281	-	thioredoxin
3261	 61.78	0	3601183..3601857	+	224	39998371	-	GSU3282	-	siroheme synthase
3262	 59.56	0	3601854..3602669	+	271	39998372	-	GSU3283	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
3263	 60.38	0	3602688..3603992	+	434	39998373	hemA	GSU3284	-	glutamyl-tRNA reductase
3264	 62.90	0	3604051..3605007	+	318	39998374	hemC	GSU3285	-	porphobilinogen deaminase
3265	 65.18	0	3605124..3606671	+	515	39998375	-	GSU3286	-	uroporphyrinogen III synthase/methyltransferase
3266	 66.28	+1	3606699..3607475	+	258	39998376	-	GSU3287	-	TatD family hydrolase
3267	 63.80	0	3607503..3608270	+	255	39998377	-	GSU3288	-	thiF family protein
3268	 54.42	-1	3608359..3608856	+	165	39998378	-	GSU3289	-	hypothetical protein
3269	 64.68	0	3608974..3609174	-	66	39998379	-	GSU3290	-	hypothetical protein
3270	 63.53	0	3609341..3611383	-	680	39998380	hppA	GSU3291	-	membrane-bound proton-translocating pyrophosphatase
3271	 60.11	0	3611697..3612062	+	121	39998381	-	GSU3292	-	FUR family transcriptional regulator
3272	 55.19	-1	3612260..3612712	+	150	39998382	-	GSU3293	-	hypothetical protein
3273	 58.11	0	3612842..3614056	+	404	39998383	-	GSU3294	-	rubredoxin-oxygen oxidoreductase, putative
3274	 63.41	0	3614102..3615421	+	439	39998384	-	GSU3295	-	hypothetical protein
3275	 62.46	0	3615489..3616868	+	459	39998385	-	GSU3296	-	glycolate oxidase subunit GlcD, putative
3276	 63.74	0	3616956..3618221	+	421	39998386	-	GSU3297	-	iron-sulfur cluster-binding protein
3277	 54.08	-1	3618530..3619093	+	187	39998387	-	GSU3298	-	Cro/CI family transcriptional regulator
3278	 61.70	0	3619432..3621042	+	536	39998388	-	GSU3299	-	carboxyl transferase domain-containing protein
3279	 59.84	0	3621220..3623958	+	912	39998389	-	GSU3300	-	biotin-requiring enzyme subunit
3280	 54.87	-1	3624159..3624794	+	211	39998390	-	GSU3301	-	hypothetical protein
3281	 60.64	0	3624910..3626568	+	552	39998391	-	GSU3302	-	methylmalonyl-CoA mutase, putative
3282	 56.30	0	3626626..3627030	+	134	39998392	-	GSU3303	-	methylmalonyl-CoA epimerase
3283	 58.59	0	3627493..3628866	+	457	39998393	-	GSU3304	-	LamB porin family protein, putative
3284	 52.84	-1	3628992..3629273	+	93	39998394	-	GSU3305	-	hypothetical protein
3285	 59.29	0	3629453..3630970	+	505	39998395	-	GSU3306	-	hypothetical protein
3286	 60.97	0	3631136..3632452	+	438	39998396	hisZ	GSU3307	-	ATP phosphoribosyltransferase regulatory subunit
3287	 60.83	0	3632453..3633754	+	433	39998397	purA	GSU3308	-	adenylosuccinate synthetase
3288	 61.17	0	3634083..3634901	-	272	39998398	-	GSU3309	-	hypothetical protein
3289	 55.30	-1	3634910..3635173	-	87	39998399	-	GSU3310	-	hypothetical protein
3290	 58.47	0	3635189..3636091	+	300	39998400	-	GSU3311	-	hypothetical protein
3291	 61.74	0	3636130..3637083	-	317	39998401	hemH	GSU3312	-	ferrochelatase
3292	 65.30	0	3637191..3638798	-	535	39998402	-	GSU3313	-	thiolase, putative
3293	 61.95	0	3638936..3639952	-	338	39998403	-	GSU3314	-	putative lipoprotein
3294	 64.58	0	3640042..3641286	-	414	39998404	-	GSU3315	-	major facilitator family transporter
3295	 63.47	0	3641415..3642134	+	239	39998405	-	GSU3316	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
3296	 65.41	0	3642950..3644059	+	369	39998406	-	GSU3317	-	hypothetical protein
3297	 64.25	0	3644195..3645598	-	467	39998407	-	GSU3318	-	hypothetical protein
3298	 62.31	0	3645704..3646300	-	198	39998408	ppiA	GSU3319	-	peptidyl-prolyl cis-trans isomerase A
3299	 65.16	0	3646373..3646969	-	198	39998409	-	GSU3320	-	ribosomal protein L11 methyltransferase, putative
3300	 66.81	+1	3647128..3648537	+	469	39998410	-	GSU3321	-	phosphoglucomutase/phosphomannomutase family protein
3301	 57.23	0	3648635..3649588	+	317	39998411	corA-2	GSU3322	-	magnesium and cobalt transport protein CorA
3302	 64.33	0	3649590..3651773	+	727	39998412	ppk	GSU3323	-	polyphosphate kinase
3303	 64.16	0	3651999..3652637	-	212	39998413	-	GSU3324	-	Cro/CI family transcriptional regulator
3304	 63.04	0	3652846..3655659	+	937	39998414	uvrA	GSU3325	-	excinuclease ABC, A subunit
3305	 64.89	0	3655690..3656421	-	243	39998415	-	GSU3326	-	hypothetical protein
3306	 61.22	0	3656418..3656711	-	97	39998416	-	GSU3327	-	hypothetical protein
3307	 63.58	0	3656802..3657545	-	247	39998417	-	GSU3328	-	hypothetical protein
3308	 65.28	0	3657542..3658837	-	431	39998418	-	GSU3329	-	radical SAM domain-containing protein
3309	 65.78	0	3658912..3660036	-	374	39998419	-	GSU3330	-	Oye family NADH-dependent flavin oxidoreductase
3310	 64.38	0	3660079..3661521	-	480	39998420	pyk	GSU3331	-	pyruvate kinase
3311	 61.49	0	3661539..3661886	-	115	39998421	-	GSU3332	-	cytochrome c family protein, putative
3312	 64.29	0	3662036..3663046	-	336	161579496	-	GSU3333	-	3-deoxy-7-phosphoheptulonate synthase
3313	 60.95	0	3663224..3663538	+	104	39998423	-	GSU3334	-	cytochrome c family protein, putative
3314	 64.21	0	3663545..3663829	+	94	39998424	-	GSU3335	-	hypothetical protein
3315	 59.34	0	3663853..3664125	+	90	39998425	-	GSU3336	-	hypothetical protein
3316	 65.60	0	3664119..3664682	+	187	39998426	-	GSU3337	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
