IslandPath Analysis: Geobacter sulfurreducens PCA

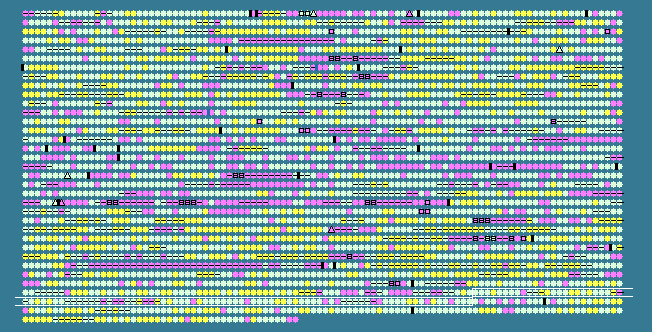

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3176	 63.95	0	3504112..3505398	+	428	39998286	-	GSU3196	-	methyl-accepting chemotaxis protein
3177	 63.07	0	3505395..3505811	+	138	39998287	-	GSU3197	-	purine-binding chemotaxis protein CheW, putative
3178	 59.02	0	3505828..3506193	+	121	39998288	cheY-7	GSU3198	-	chemotaxis protein CheY
3179	 66.13	+1	3506196..3507881	+	561	39998289	cheA-3	GSU3199	-	chemotaxis protein CheA
3180	 58.21	0	3507878..3508492	+	204	39998290	-	GSU3200	-	chemotaxis protein CheC
3181	 61.35	0	3508489..3508977	+	162	39998291	-	GSU3201	-	chemotaxis protein CheD, putative
3182	 62.48	0	3509017..3509829	+	270	39998292	-	GSU3202	-	hypothetical protein
3183	 61.59	0	3509921..3510649	+	242	39998293	-	GSU3203	-	outer membrane lipoprotein carrier protein LolA, putative
3184	 54.12	-1	3510670..3511155	+	161	39998294	-	GSU3204	-	nucleotide-binding protein
3185	 62.05	0	3511168..3512511	+	447	39998295	-	GSU3205	-	MiaB-like tRNA modifying enzyme YliG
3186	 58.33	0	3512703..3513122	+	139	39998296	-	GSU3206	-	dnaK suppressor protein, putative
3187	 65.50	0	3513216..3514757	-	513	39998297	gpmA	GSU3207	-	phosphoglyceromutase
3188	 65.15	0	3514776..3515237	-	153	39998298	-	GSU3208	-	hypothetical protein
3189	 61.87	0	3515275..3515670	-	131	39998299	-	GSU3209	-	iojap-related protein
3190	 63.29	0	3515660..3516310	-	216	39998300	nadD	GSU3210	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
3191	 62.85	0	3516342..3517598	-	418	39998301	proA	GSU3211	-	gamma-glutamyl phosphate reductase
3192	 65.78	0	3517870..3518991	-	373	39998302	proB	GSU3212	-	gamma-glutamyl kinase
3193	 64.60	0	3519000..3520016	-	338	39998303	obgE	GSU3213	-	GTPase ObgE
3194	 62.75	0	3520152..3520790	-	212	39998304	-	GSU3214	-	cytochrome c family protein
3195	 64.58	0	3521209..3521352	+	47	39998305	-	GSU3215	-	hypothetical protein
3196	 62.78	0	3521447..3522475	+	342	39998306	-	GSU3216	-	sensor histidine kinase, putative
3197	 60.82	0	3522478..3523983	+	501	39998307	-	GSU3217	-	sigma-54 dependent DNA-binding response regulator
3198	 62.02	0	3523993..3525435	+	480	39998308	-	GSU3218	-	cytochrome c family protein
3199	 65.03	0	3525819..3531911	+	2030	39998309	-	GSU3219	-	fibronectin type III domain-containing protein
3200	 50.00	-1	3531992..3532093	+	33	39998310	-	GSU3220	-	hypothetical protein
3201	 60.25	0	3532306..3533100	+	264	39998311	-	GSU3221	-	cytochrome c family protein
3202	 61.10	0	3533249..3534487	+	412	39998312	-	GSU3222	-	NHL repeat-containing protein
3203	 64.80	0	3534509..3535096	+	195	39998313	-	GSU3223	-	cytochrome c family protein
3204	 59.96	0	3535172..3537139	+	655	39998314	-	GSU3224	-	hypothetical protein
3205	 64.75	0	3537164..3538261	+	365	39998315	-	GSU3225	-	NHL repeat-containing protein
3206	 64.12	0	3538273..3540003	+	576	39998316	-	GSU3226	-	cytochrome c family protein
3207	 63.29	0	3540430..3540843	+	137	39998317	-	GSU3227	-	hypothetical protein
3208	 63.24	0	3540862..3543837	+	991	39998318	-	GSU3228	-	cytochrome c family protein
3209	 63.19	0	3543991..3544680	-	229	39998319	-	GSU3229	-	LuxR family DNA-binding response regulator
3210	 62.24	0	3544670..3546226	-	518	39998320	-	GSU3230	-	sensory box histidine kinase
3211	 58.33	0	3546660..3546779	-	39	39998321	-	GSU3231	-	hypothetical protein
3212	 63.66	0	3546769..3547101	+	110	39998322	-	GSU3232	-	cytochrome c family protein, putative
3213	 62.55	0	3547120..3550323	+	1067	39998323	-	GSU3233	-	cytochrome c family protein
3214	 55.10	-1	3550468..3550614	+	48	39998324	-	GSU3234	-	hypothetical protein
3215	 60.08	0	3550599..3550856	-	85	39998325	rpmA	GSU3235	-	50S ribosomal protein L27
3216	 53.07	-1	3550937..3551245	-	102	39998326	rplU	GSU3236	-	50S ribosomal protein L21
3217	 39.47	-2	3551233..3551346	-	37	39998327	-	GSU3237	-	hypothetical protein
3218	 58.33	0	3551349..3551648	-	99	39998328	-	GSU3238	-	Rieske 2Fe-2S family protein
3219	 58.77	0	3551672..3553267	-	531	39998329	cafA	GSU3239	-	ribonuclease G
3220	 64.21	0	3553203..3555641	-	812	39998330	-	GSU3240	-	radical SAM domain-containing protein
3221	 54.50	-1	3555958..3556335	-	125	39998331	-	GSU3241	-	hypothetical protein
3222	 48.15	-2	3556109..3556216	+	35	39998332	-	GSU3242	-	hypothetical protein
3223	 64.52	0	3556304..3556675	-	123	39998333	-	GSU3243	-	hypothetical protein
3224	 61.87	0	3556672..3557088	-	138	39998334	-	GSU3244	-	hypothetical protein
3225	 64.39	0	3557188..3559425	-	745	39998335	-	GSU3245	-	DNA polymerase II, putative
3226	 57.76	0	3559499..3560104	-	201	39998336	-	GSU3246	-	thioredoxin peroxidase
3227	 63.80	0	3560212..3560943	-	243	39998337	-	GSU3247	-	iron-sulfur cluster-binding protein
3228	 59.66	0	3560987..3561343	-	118	39998338	-	GSU3248	-	hypothetical protein
3229	 46.88	-2	3561352..3561447	-	31	39998339	-	GSU3249	-	hypothetical protein
3230	 66.96	+1	3561440..3562807	+	455	39998340	pcnB	GSU3250	-	polyA polymerase
3231	 58.44	0	3562966..3563913	-	315	39998341	-	GSU3251	-	hypothetical protein
3232	 60.16	0	3564114..3565757	+	547	39998342	-	GSU3252	-	sensor histidine kinase
3233	 58.33	0	3565735..3566106	+	123	39998343	-	GSU3253	-	response regulator
3234	 61.41	0	3566149..3568659	+	836	39998344	-	GSU3254	-	phosphoglucomutase/phosphomannomutase family protein
3235	 64.11	0	3568660..3570849	+	729	39998345	-	GSU3255	-	hypothetical protein
3236	 62.48	0	3570860..3571885	+	341	39998346	galT	GSU3256	-	galactose-1-phosphate uridylyltransferase
3237	 63.78	0	3571890..3573344	+	484	39998347	glgA-2	GSU3257	-	glycogen synthase
3238	 56.55	0	3573348..3573515	+	55	39998348	-	GSU3258	-	hypothetical protein
3239	 59.84	0	3573587..3575110	-	507	39998349	-	GSU3259	-	cytochrome c family protein
3240	 62.10	0	3575462..3576535	+	357	39998350	-	GSU3260	-	phosphoserine aminotransferase, putative
3241	 61.81	0	3576650..3577102	+	150	39998351	-	GSU3261	-	response regulator
3242	 62.76	0	3577166..3579160	+	664	39998352	uvrB	GSU3262	-	excinuclease ABC subunit B
3243	 64.22	0	3579182..3579877	+	231	39998353	-	GSU3263	-	response regulator
3244	 64.30	0	3579874..3581100	+	408	39998354	-	GSU3264	-	hypothetical protein
3245	 62.24	0	3581132..3581809	+	225	39998355	-	GSU3265	-	sulfite reductase, assimilatory-type
3246	 67.44	+1	3581843..3585079	-	1078	39998356	-	GSU3266	-	DNA helicase II, putative
3247	 62.02	0	3585163..3585291	-	42	39998357	-	GSU3267	-	hypothetical protein
3248	 62.21	0	3585295..3587538	-	747	39998358	feoB-2	GSU3268	-	ferrous iron transport protein B
3249	 59.61	0	3587766..3588020	-	84	39998359	-	GSU3270	-	feoA family protein
3250	 63.05	0	3588092..3589501	-	469	39998360	-	GSU3271	-	hypothetical protein
3251	 55.37	0	3589489..3589665	-	58	39998361	-	GSU3272	-	hypothetical protein
3252	 60.10	0	3589678..3590727	-	349	39998362	-	GSU3273	-	hypothetical protein
3253	 57.21	0	3590746..3591168	-	140	39998363	-	GSU3274	-	cytochrome c family protein, putative
3254	 63.51	0	3591525..3592634	+	369	39998364	-	GSU3275	-	hypothetical protein
3255	 60.97	0	3592634..3594319	+	561	39998365	-	GSU3276	-	LysM domain-containing protein
3256	 62.99	0	3594416..3595123	-	235	39998366	-	GSU3277	-	lysM domain-containing protein
3257	 62.77	0	3595125..3598025	-	966	39998367	-	GSU3278	-	hypothetical protein
3258	 61.67	0	3598194..3600035	+	613	39998368	uvrC	GSU3279	-	excinuclease ABC, C subunit
3259	 55.43	0	3600112..3600627	-	171	39998369	-	GSU3280	-	thioredoxin-related protein
3260	 55.76	0	3600648..3600977	-	109	39998370	trx	GSU3281	-	thioredoxin
3261	 61.78	0	3601183..3601857	+	224	39998371	-	GSU3282	-	siroheme synthase
3262	 59.56	0	3601854..3602669	+	271	39998372	-	GSU3283	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
3263	 60.38	0	3602688..3603992	+	434	39998373	hemA	GSU3284	-	glutamyl-tRNA reductase
3264	 62.90	0	3604051..3605007	+	318	39998374	hemC	GSU3285	-	porphobilinogen deaminase
3265	 65.18	0	3605124..3606671	+	515	39998375	-	GSU3286	-	uroporphyrinogen III synthase/methyltransferase
3266	 66.28	+1	3606699..3607475	+	258	39998376	-	GSU3287	-	TatD family hydrolase
3267	 63.80	0	3607503..3608270	+	255	39998377	-	GSU3288	-	thiF family protein
3268	 54.42	-1	3608359..3608856	+	165	39998378	-	GSU3289	-	hypothetical protein
3269	 64.68	0	3608974..3609174	-	66	39998379	-	GSU3290	-	hypothetical protein
3270	 63.53	0	3609341..3611383	-	680	39998380	hppA	GSU3291	-	membrane-bound proton-translocating pyrophosphatase
3271	 60.11	0	3611697..3612062	+	121	39998381	-	GSU3292	-	FUR family transcriptional regulator
3272	 55.19	-1	3612260..3612712	+	150	39998382	-	GSU3293	-	hypothetical protein
3273	 58.11	0	3612842..3614056	+	404	39998383	-	GSU3294	-	rubredoxin-oxygen oxidoreductase, putative
3274	 63.41	0	3614102..3615421	+	439	39998384	-	GSU3295	-	hypothetical protein
3275	 62.46	0	3615489..3616868	+	459	39998385	-	GSU3296	-	glycolate oxidase subunit GlcD, putative
60.71	MEAN

5.38	STD DEV
