IslandPath Analysis: Geobacter sulfurreducens PCA

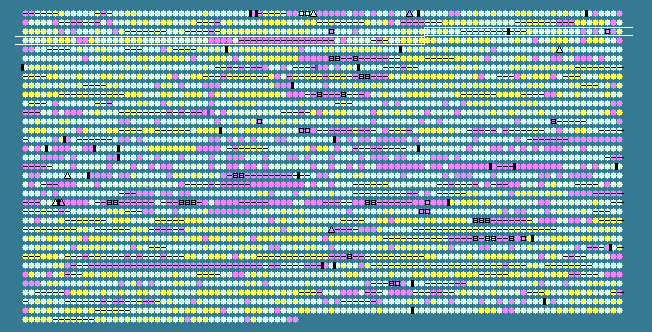

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
268	 62.83	0	275389..276222	+	277	39995378	-	GSU0268	-	hypothetical protein
269	 63.81	0	276219..276533	+	104	39995379	-	GSU0269	-	hypothetical protein
270	 64.81	0	276632..278461	-	609	39995380	glmS	GSU0270	-	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
271	 65.27	0	278527..279957	-	476	39995381	glmU	GSU0271	-	UDP-N-acetylglucosamine pyrophosphorylase
272	 59.34	0	280118..280663	+	181	39995382	-	GSU0272	-	hypothetical protein
273	 63.22	0	280807..282576	+	589	39995383	-	GSU0273	-	radical SAM domain-containing protein
274	 59.25	0	282877..284736	+	619	39995384	-	GSU0274	-	cytochrome c family protein
275	 57.29	0	285027..285218	-	63	39995385	-	GSU0275	-	hypothetical protein
276	 60.27	0	285252..286424	-	390	39995386	-	GSU0276	-	HlyD family secretion protein
277	 62.93	0	286417..288585	-	722	39995387	-	GSU0277	-	ABC transporter, ATP-binding/permease protein
278	 61.53	0	288582..289847	-	421	39995388	-	GSU0278	-	outer membrane efflux protein
279	 62.89	0	289984..307683	-	5899	39995389	-	GSU0279	-	cadherin domain/calx-beta domain-containing protein
280	 58.31	0	307916..309268	-	450	39995390	-	GSU0280	-	Fis family transcriptional regulator
281	 59.00	0	311187..311447	+	86	39995391	-	GSU0282	-	hypothetical protein
282	 61.18	0	311626..313428	-	600	39995392	-	GSU0283	-	sensor histidine kinase
283	 57.98	0	313467..313823	-	118	39995393	dksA	GSU0284	-	dnaK suppressor protein
284	 64.52	0	313908..315260	-	450	39995394	radA	GSU0285	-	DNA repair protein RadA
285	 64.41	0	315412..317049	+	545	39995395	-	GSU0286	-	HEAT repeat-containing PBS lyase
286	 61.75	0	317042..318403	+	453	39995396	-	GSU0287	-	HD domain-containing protein
287	 63.77	0	318413..319033	-	206	39995397	-	GSU0288	-	HEAT repeat-containing PBS lyase
288	 60.66	0	319102..319434	+	110	39995398	-	GSU0289	-	hypothetical protein
289	 60.86	0	319532..320512	+	326	39995399	fabH-1	GSU0290	-	3-oxoacyl-(acyl-carrier-protein) synthase III
290	 66.01	0	320502..321560	-	352	39995400	-	GSU0291	-	CheR methyltransferase SAM binding domain-containing protein
291	 63.74	0	321610..321951	+	113	39995401	-	GSU0292	-	hypothetical protein
292	 63.45	0	321952..323040	-	362	39995402	cheB-1	GSU0293	-	protein-glutamate methylesterase
293	 59.32	0	323047..323958	-	303	39995403	-	GSU0294	-	HD domain-containing protein
294	 50.96	-1	323955..324788	-	277	39995404	cheR-1	GSU0295	-	chemotaxis protein methyltransferase CheR
295	 61.92	0	324839..326671	-	610	39995405	-	GSU0296	-	chemotaxis protein CheA, putative
296	 56.57	0	326720..327214	-	164	39995406	cheW-1	GSU0297	-	purine-binding chemotaxis protein CheW
297	 58.16	0	327608..328606	+	332	39995407	-	GSU0298	-	sigma-54 dependent DNA-binding response regulator, interruption-C
298	 51.03	-1	328610..329728	-	372	39995408	-	GSU0299	-	ISGsu1, transposase
299	 54.25	-1	329817..330251	+	144	39995409	-	GSU0300	-	sigma-54 dependent DNA-binding response regulator, interruption-N
300	 65.48	0	330437..331027	+	196	39995410	-	GSU0301	-	lytic murein transglycosylase, putative
301	 63.87	0	331170..333134	+	654	39995411	-	GSU0302	-	hypothetical protein
302	 59.11	0	333197..334414	+	405	39995412	-	GSU0303	-	sensory box protein
303	 62.95	0	334411..337044	-	877	39995413	pepN	GSU0304	-	aminopeptidase N
304	 58.69	0	337596..338360	+	254	39995414	hypB	GSU0305	-	hydrogenase accessory protein HypB
305	 64.92	0	338376..340667	+	763	39995415	hypF	GSU0306	-	hydrogenase maturation protein HypF
306	 58.87	0	340674..340904	+	76	39995416	hypC	GSU0307	-	hydrogenase assembly chaperone hypC/hupF
307	 65.84	0	340904..341995	+	363	39995417	hypD	GSU0308	-	hydrogenase expression/formation protein HypD
308	 64.50	0	342016..343029	+	337	39995418	hypE	GSU0309	-	hydrogenase expression/formation protein HypE
309	 61.17	0	343116..343970	+	284	39995419	-	GSU0310	-	hypothetical protein
310	 51.52	-1	344076..344207	-	43	39995420	-	GSU0311	-	hypothetical protein
311	 53.41	-1	344230..344508	+	92	39995421	-	GSU0312	-	hypothetical protein
312	 64.97	0	344584..345351	+	255	39995422	-	GSU0313	-	dnaJ domain-containing protein
313	 60.69	0	345463..346566	+	367	39995423	-	GSU0314	-	general secretion pathway protein E
314	 59.40	0	346535..347002	-	155	39995424	-	GSU0315	-	hypothetical protein
315	 60.78	0	346965..347660	-	231	39995425	-	GSU0316	-	hypothetical protein
316	 58.74	0	348045..348776	+	243	39995426	-	GSU0317	-	hypothetical protein
317	 61.04	0	348883..350127	+	414	39995427	-	GSU0318	-	M48 family peptidase
318	 64.52	0	350163..351002	-	279	39995428	-	GSU0319	-	hypothetical protein
319	 59.38	0	350999..351547	-	182	39995429	-	GSU0320	-	hypothetical protein
320	 65.45	0	351544..352860	-	438	39995430	-	GSU0321	-	general secretion pathway protein L, putative
321	 62.00	0	352860..353780	-	306	39995431	gspK	GSU0322	-	general secretion pathway protein K
322	 62.39	0	353777..354337	-	186	39995432	-	GSU0323	-	general secretion pathway protein j, putative
323	 59.10	0	354384..354740	-	118	39995433	-	GSU0324	-	general secretion pathway protein I, putative
324	 63.83	0	354737..355264	-	175	39995434	-	GSU0325	-	general secretion pathway protein H, putative
325	 60.36	0	355233..355676	-	147	39995435	gspG	GSU0326	-	general secretion pathway protein G
326	 64.11	0	355703..356914	-	403	39995436	-	GSU0327	-	general secretion pathway protein F
327	 64.08	0	356895..358439	-	514	39995437	gspE	GSU0328	-	general secretion pathway protein E
328	 59.98	0	358454..360352	-	632	39995438	-	GSU0329	-	general secretion pathway protein D, putative
329	 60.62	0	360462..361337	-	291	39995439	-	GSU0330	-	general secretion pathway protein C, putative
330	 58.14	0	361506..362900	+	464	39995440	-	GSU0331	-	trypsin domain/PDZ domain-containing protein
331	 59.83	0	362976..364466	+	496	39995441	pepA	GSU0332	-	aminopeptidase A/I
332	 55.80	0	364544..364819	-	91	39995442	atpE	GSU0333	-	ATP synthase F0, C subunit
333	 51.88	-1	364879..365568	-	229	39995443	atpB	GSU0334	-	ATP synthase F0, A subunit
334	 54.26	-1	365573..365959	-	128	39995444	-	GSU0335	-	hypothetical protein
335	 46.75	-2	365931..366176	-	81	39995445	-	GSU0336	-	hypothetical protein
336	 57.32	0	366273..367556	-	427	39995446	hemL	GSU0337	-	glutamate-1-semialdehyde-2,1-aminomutase
337	 48.18	-2	367863..368219	+	118	39995447	nuoA-1	GSU0338	-	NADH dehydrogenase I, A subunit
338	 55.95	0	368210..368722	+	170	39995448	nuoB	GSU0339	-	NADH dehydrogenase I, B subunit
339	 53.37	-1	368755..369243	+	162	39995449	nuoC	GSU0340	-	NADH dehydrogenase I, C subunit
340	 52.43	-1	369296..370468	+	390	39995450	nouD	GSU0341	-	NADH dehydrogenase I, D subunit
341	 54.60	-1	370496..371017	+	173	39995451	nuoE-1	GSU0342	-	NADH dehydrogenase I, E subunit
342	 54.00	-1	371053..372828	+	591	39995452	nouF	GSU0343	-	NADH dehydrogenase I, F subunit
343	 54.57	-1	372869..375349	+	826	39995453	-	GSU0344	-	NADH dehydrogenase I, G subunit, putative
344	 52.05	-1	375402..376448	+	348	39995454	nuoH-1	GSU0345	-	NADH dehydrogenase I, H subunit
345	 47.12	-2	376470..376868	+	132	39995455	nuoI-1	GSU0346	-	NADH dehydrogenase I, I subunit
346	 50.40	-1	376879..377382	+	167	39995456	nouJ	GSU0347	-	NADH dehydrogenase I, J subunit
347	 45.87	-2	377401..377703	+	100	39995457	nuoK	GSU0348	-	NADH dehydrogenase I, K subunit
348	 51.17	-1	377757..379757	+	666	39995458	nuoL-1	GSU0349	-	NADH dehydrogenase I, L subunit
349	 51.43	-1	379791..381359	+	522	39995459	nuoM-1	GSU0350	-	NADH dehydrogenase I, M subunit
350	 51.89	-1	381394..382848	+	484	39995460	nuoN-1	GSU0351	-	NADH dehydrogenase I, N subunit
351	 56.20	0	382951..383466	+	171	39995461	psaD	GSU0352	-	thiol peroxidase
352	 55.70	0	383605..384051	+	148	39995462	-	GSU0353	-	hypothetical protein
353	 59.36	0	384038..385228	+	396	39995463	-	GSU0354	-	hypothetical protein
354	 56.05	0	385231..385635	+	134	39995464	-	GSU0355	-	hypothetical protein
355	 59.80	0	387351..388952	-	533	39995465	-	GSU0357	-	cytochrome c family protein
356	 61.27	0	388985..389410	-	141	39995466	-	GSU0358	-	iron-sulfur cluster-binding protein
357	 60.42	0	389808..391184	-	458	39995467	-	GSU0359	-	sensory box protein/sigma-54 dependent transcriptional regulator
358	 60.62	0	391444..392733	+	429	39995468	-	GSU0360	-	OmpA domain-containing protein
359	 59.96	0	392844..393737	-	297	39995469	-	GSU0361	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
360	 56.80	0	393987..394442	+	151	39995470	-	GSU0362	-	hypothetical protein
361	 65.40	0	394457..396979	-	840	39995471	dinG	GSU0363	-	ATP-dependent helicase DinG
362	 60.51	0	397076..397351	-	91	39995472	cyd-1	GSU0364	-	cytochrome c3
363	 60.07	0	397486..397773	-	95	39995473	cyd-2	GSU0365	-	cytochrome c3
364	 66.45	+1	397904..398824	+	306	39995474	-	GSU0366	-	transcriptional regulator, putative
365	 66.45	+1	398821..399738	+	305	39995475	-	GSU0367	-	radical SAM family protein
366	 61.39	0	399774..401024	-	416	39995476	-	GSU0368	-	putative lipoprotein
367	 65.20	0	401190..401462	-	90	39995477	-	GSU0369	-	FlhB domain-containing protein
60.71	MEAN

5.38	STD DEV
