IslandPathversion 1.0

IslandPath Analysis: Geobacter sulfurreducens PCA

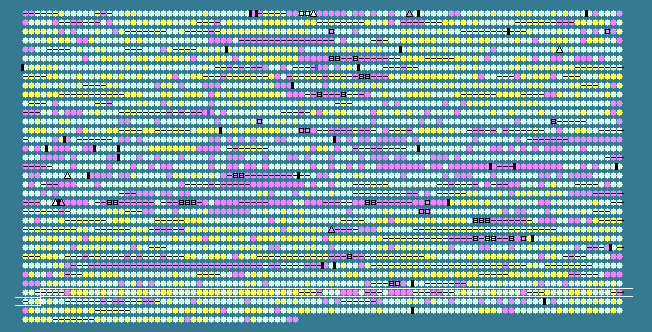

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3104	 61.33	0	3425036..3425485	-	149	39998214	-	GSU3124	-	iron-sulfur cluster-binding protein
3105	 64.12	0	3425543..3426601	-	352	39998215	-	GSU3125	-	alcohol dehydrogenase, zinc-containing
3106	 63.58	0	3426711..3427715	-	334	39998216	-	GSU3126	-	aldo/keto reductase family oxidoreductase
3107	 63.58	0	3427883..3428821	+	312	39998217	-	GSU3127	-	AraC family transcriptional regulator
3108	 56.28	0	3428934..3429116	+	60	39998218	-	GSU3128	-	hypothetical protein
3109	 66.00	0	3429286..3430644	+	452	39998219	-	GSU3129	-	MATE efflux family protein
3110	 64.71	0	3430691..3431353	-	220	39998220	-	GSU3130	-	putative lipoprotein
3111	 66.78	+1	3431433..3434960	-	1175	39998221	-	GSU3131	-	hypothetical protein
3112	 61.40	0	3435206..3435490	-	94	39998222	huP-2	GSU3132	-	DNA-binding protein HU
3113	 61.23	0	3435686..3438076	-	796	39998223	-	GSU3133	-	1A family penicillin-binding protein
3114	 64.24	0	3438253..3439281	+	342	39998224	-	GSU3134	-	hypothetical protein
3115	 61.49	0	3439285..3439767	-	160	39998225	lspA	GSU3135	-	lipoprotein signal peptidase
3116	 63.82	0	3439773..3442544	-	923	39998226	ileS	GSU3136	-	isoleucyl-tRNA synthetase
3117	 65.48	0	3442747..3444522	+	591	39998227	-	GSU3137	-	cytochrome c family protein
3118	 61.99	0	3444551..3446005	+	484	39998228	-	GSU3138	-	sensor histidine kinase/response regulator
3119	 60.31	0	3446013..3446861	-	282	39998229	-	GSU3139	-	hypothetical protein
3120	 66.43	+1	3446890..3448962	-	690	39998230	-	GSU3140	-	peptidase, M1 family protein
3121	 66.04	0	3449070..3449546	-	158	39998231	-	GSU3141	-	hypothetical protein
3122	 62.35	0	3449646..3450665	-	339	39998232	-	GSU3142	-	3-deoxy-7-phosphoheptulonate synthase
3123	 61.38	0	3451151..3451585	+	144	39998233	-	GSU3143	-	peptidyl-prolyl cis-trans isomerase, FKBP-type, putative
3124	 64.43	0	3451680..3452888	+	402	39998234	-	GSU3144	-	hypothetical protein
3125	 64.60	0	3453011..3453445	-	144	39998235	-	GSU3145	-	MOSC domain-containing protein
3126	 62.59	0	3453478..3454458	-	326	39998236	-	GSU3146	-	molybdenum cofactor biosynthesis protein A, putative
3127	 61.18	0	3454545..3455054	-	169	39998237	mobB	GSU3147	-	molybdopterin-guanine dinucleotide biosynthesis protein MobB
3128	 63.29	0	3455690..3457705	-	671	39998238	-	GSU3148	-	sensor histidine kinase
3129	 64.17	0	3457683..3457802	-	39	39998239	-	GSU3149	-	hypothetical protein
3130	 66.67	+1	3457827..3458321	-	164	39998240	-	GSU3150	-	HPP family protein
3131	 66.67	+1	3458395..3459048	-	217	39998241	-	GSU3151	-	hypothetical protein
3132	 67.11	+1	3459198..3459653	-	151	39998242	-	GSU3152	-	sensory box protein
3133	 65.28	0	3459731..3460738	-	335	39998243	-	GSU3153	-	iron-sulfur cluster-binding protein
3134	 62.12	0	3460814..3462286	-	490	39998244	-	GSU3154	-	cytochrome c nitrite reductase, catalytic subunit NrfA, putative
3135	 66.67	+1	3462332..3462736	-	134	39998245	-	GSU3155	-	cytochrome c nitrite reductase, small subunit NrfH, putative
3136	 59.47	0	3463071..3464168	+	365	39998246	-	GSU3156	-	methyl-accepting chemotaxis protein, putative
3137	 66.54	+1	3464329..3465129	+	266	39998247	-	GSU3157	-	alpha/beta fold family hydrolase
3138	 66.02	0	3465190..3466116	-	308	39998248	cysM	GSU3158	-	cysteine synthase B
3139	 69.01	+1	3466266..3466820	+	184	39998249	-	GSU3159	-	mutT/nudix family protein
3140	 68.79	+1	3466826..3467578	+	250	39998250	-	GSU3160	-	RNA pseudouridine synthase family protein
3141	 64.83	0	3467663..3468151	+	162	39998251	msrA	GSU3161	-	methionine sulfoxide reductase A
3142	 67.81	+1	3468247..3469293	+	348	39998252	-	GSU3162	-	L-allo-threonine aldolase
3143	 63.27	0	3469290..3469436	+	48	39998253	-	GSU3163	-	hypothetical protein
3144	 64.25	0	3469452..3469658	+	68	39998254	-	GSU3164	-	hypothetical protein
3145	 62.26	0	3469894..3470688	+	264	39998255	-	GSU3165	-	hypothetical protein
3146	 65.68	0	3470702..3474154	+	1150	39998256	-	GSU3166	-	hypothetical protein
3147	 65.86	0	3474201..3476570	+	789	39998257	-	GSU3167	-	hypothetical protein
3148	 67.25	+1	3476577..3477770	+	397	39998258	-	GSU3168	-	3-oxoacyl-(acyl carrier protein) synthase
3149	 65.62	0	3477770..3478438	+	222	39998259	-	GSU3169	-	hypothetical protein
3150	 56.37	0	3478435..3479463	+	342	39998260	-	GSU3170	-	hypothetical protein
3151	 61.11	0	3479479..3481098	+	539	39998261	-	GSU3171	-	hypothetical protein
3152	 58.64	0	3481200..3481685	+	161	39998262	-	GSU3172	-	hypothetical protein
3153	 60.47	0	3481696..3483180	+	494	39998263	-	GSU3173	-	hypothetical protein
3154	 55.56	0	3483262..3483747	+	161	39998264	hcP-2	GSU3174	-	hcp protein
3155	 46.05	-2	3483866..3484321	+	151	39998265	-	GSU3175	-	hypothetical protein
3156	 50.22	-1	3484376..3485293	+	305	39998266	-	GSU3176	-	lysM domain-containing protein
3157	 57.31	0	3485350..3487443	+	697	39998267	-	GSU3177	-	Rhs family protein
3158	 53.62	-1	3487475..3487750	+	91	39998268	-	GSU3178	-	hypothetical protein
3159	 53.66	-1	3487734..3487979	+	81	39998269	-	GSU3179	-	hypothetical protein
3160	 59.97	0	3488000..3489253	+	417	39998270	-	GSU3180	-	hypothetical protein
3161	 60.06	0	3489250..3490293	+	347	39998271	-	GSU3181	-	3-oxoacyl-(acyl carrier protein) synthase
3162	 51.44	-1	3490313..3490693	+	126	39998272	-	GSU3182	-	hypothetical protein
3163	 51.32	-1	3490745..3491122	+	125	39998273	-	GSU3183	-	hypothetical protein
3164	 55.14	-1	3491320..3493002	+	560	39998274	-	GSU3184	-	hypothetical protein
3165	 45.34	-2	3492999..3494222	+	407	39998275	-	GSU3185	-	hypothetical protein
3166	 62.00	0	3494464..3495471	+	335	39998276	-	GSU3186	-	hypothetical protein
3167	 57.81	0	3495602..3495793	+	63	39998277	-	GSU3187	-	ferredoxin family protein
3168	 61.01	0	3495860..3496018	+	52	39998278	-	GSU3188	-	rubredoxin
3169	 55.83	0	3496070..3496438	-	122	39998279	-	GSU3189	-	hypothetical protein
3170	 50.63	-1	3496433..3496669	+	78	39998280	-	GSU3190	-	twin arginine-targeting protein translocase
3171	 58.95	0	3496790..3498706	-	638	39998281	-	GSU3191	-	TPR domain-containing protein
3172	 61.56	0	3499180..3499629	+	149	39998282	-	GSU3192	-	HSP20 family protein
3173	 61.75	0	3499629..3502088	+	819	39998283	loN-3	GSU3193	-	ATP-dependent protease La
3174	 66.26	+1	3502085..3503071	+	328	39998284	thiL	GSU3194	-	thiamine monophosphate kinase
3175	 58.12	0	3503129..3504052	+	307	39998285	-	GSU3195	-	chemotaxis protein methyltransferase CheR,putative
3176	 63.95	0	3504112..3505398	+	428	39998286	-	GSU3196	-	methyl-accepting chemotaxis protein
3177	 63.07	0	3505395..3505811	+	138	39998287	-	GSU3197	-	purine-binding chemotaxis protein CheW, putative
3178	 59.02	0	3505828..3506193	+	121	39998288	cheY-7	GSU3198	-	chemotaxis protein CheY
3179	 66.13	+1	3506196..3507881	+	561	39998289	cheA-3	GSU3199	-	chemotaxis protein CheA
3180	 58.21	0	3507878..3508492	+	204	39998290	-	GSU3200	-	chemotaxis protein CheC
3181	 61.35	0	3508489..3508977	+	162	39998291	-	GSU3201	-	chemotaxis protein CheD, putative
3182	 62.48	0	3509017..3509829	+	270	39998292	-	GSU3202	-	hypothetical protein
3183	 61.59	0	3509921..3510649	+	242	39998293	-	GSU3203	-	outer membrane lipoprotein carrier protein LolA, putative
3184	 54.12	-1	3510670..3511155	+	161	39998294	-	GSU3204	-	nucleotide-binding protein
3185	 62.05	0	3511168..3512511	+	447	39998295	-	GSU3205	-	MiaB-like tRNA modifying enzyme YliG
3186	 58.33	0	3512703..3513122	+	139	39998296	-	GSU3206	-	dnaK suppressor protein, putative
3187	 65.50	0	3513216..3514757	-	513	39998297	gpmA	GSU3207	-	phosphoglyceromutase
3188	 65.15	0	3514776..3515237	-	153	39998298	-	GSU3208	-	hypothetical protein
3189	 61.87	0	3515275..3515670	-	131	39998299	-	GSU3209	-	iojap-related protein
3190	 63.29	0	3515660..3516310	-	216	39998300	nadD	GSU3210	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
3191	 62.85	0	3516342..3517598	-	418	39998301	proA	GSU3211	-	gamma-glutamyl phosphate reductase
3192	 65.78	0	3517870..3518991	-	373	39998302	proB	GSU3212	-	gamma-glutamyl kinase
3193	 64.60	0	3519000..3520016	-	338	39998303	obgE	GSU3213	-	GTPase ObgE
3194	 62.75	0	3520152..3520790	-	212	39998304	-	GSU3214	-	cytochrome c family protein
3195	 64.58	0	3521209..3521352	+	47	39998305	-	GSU3215	-	hypothetical protein
3196	 62.78	0	3521447..3522475	+	342	39998306	-	GSU3216	-	sensor histidine kinase, putative
3197	 60.82	0	3522478..3523983	+	501	39998307	-	GSU3217	-	sigma-54 dependent DNA-binding response regulator
3198	 62.02	0	3523993..3525435	+	480	39998308	-	GSU3218	-	cytochrome c family protein
3199	 65.03	0	3525819..3531911	+	2030	39998309	-	GSU3219	-	fibronectin type III domain-containing protein
3200	 50.00	-1	3531992..3532093	+	33	39998310	-	GSU3220	-	hypothetical protein
3201	 60.25	0	3532306..3533100	+	264	39998311	-	GSU3221	-	cytochrome c family protein
3202	 61.10	0	3533249..3534487	+	412	39998312	-	GSU3222	-	NHL repeat-containing protein
3203	 64.80	0	3534509..3535096	+	195	39998313	-	GSU3223	-	cytochrome c family protein
60.71	MEAN

5.38	STD DEV
