IslandPath Analysis: Geobacter sulfurreducens PCA

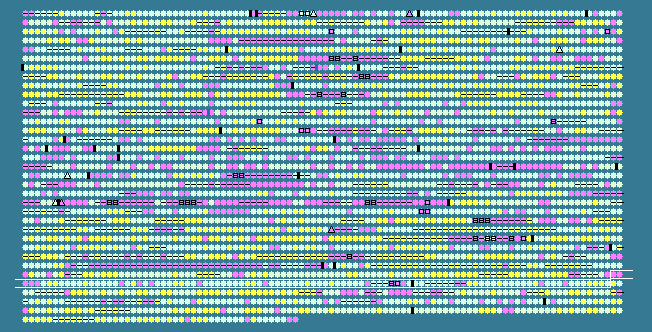

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2999	 42.16	-2	3311879..3312637	+	252	39998109	-	GSU3018	-	hypothetical protein
3000	 49.11	-2	3312678..3314636	+	652	39998110	-	GSU3019	-	dehydrogenase, E1 component, alpha and beta subunits
3001	 49.37	-2	3314633..3315748	+	371	39998111	-	GSU3020	-	hexapeptide transferase family protein
3002	 54.77	-1	3315770..3316954	+	394	39998112	-	GSU3021	-	DegT/DnrJ/EryC1/StrS family protein
3003	 52.62	-1	3316979..3320353	+	1124	39998113	-	GSU3022	-	hypothetical protein
3004	 60.34	0	3320350..3327555	+	2401	39998114	-	GSU3023	-	glycosyl transferase, group 1/2 family protein
3005	 66.35	+1	3327458..3329374	+	638	39998115	-	GSU3024	-	hypothetical protein
3006	 66.09	+1	3329371..3330924	+	517	39998116	-	GSU3025	-	heptosyltransferase family protein
3007	 57.35	0	3330990..3331268	+	92	39998117	-	GSU3026	-	flagellar protein FlbD, putative
3008	 59.08	0	3331289..3332053	+	254	39998118	-	GSU3027	-	chemotaxis MotA protein
3009	 60.67	0	3332063..3332863	+	266	39998119	motB	GSU3028	-	chemotaxis MotB protein
3010	 64.17	0	3332939..3336349	-	1136	39998120	-	GSU3029	-	2-acyl-glycerophospho-ethanolamine acyltransferase
3011	 65.13	0	3336366..3337343	-	325	39998121	-	GSU3030	-	hypothetical protein
3012	 61.85	0	3337484..3339019	+	511	39998122	-	GSU3031	-	sigma-54 dependent transcriptional regulator
3013	 64.07	0	3339016..3340593	-	525	39998123	-	GSU3032	-	hypothetical protein
3014	 62.56	0	3340671..3341474	-	267	39998124	-	GSU3033	-	hypothetical protein
3015	 62.28	0	3341490..3341945	-	151	39998125	-	GSU3034	-	hypothetical protein
3016	 60.52	0	3342011..3342433	-	140	39998126	-	GSU3035	-	hypothetical protein
3017	 55.63	0	3342430..3342864	-	144	39998127	fliS	GSU3036	-	flagellar protein FliS
3018	 58.01	0	3342898..3344307	-	469	39998128	fliD	GSU3037	-	flagellar hook-associated protein 2
3019	 65.34	0	3344677..3345507	-	276	39998129	fliC	GSU3038	-	flagellin FliC
3020	 50.00	-1	3345608..3345811	+	67	39998130	-	GSU3039	-	hypothetical protein
3021	 59.17	0	3345798..3346277	-	159	39998131	-	GSU3040	-	flagellar assembly protein FliW
3022	 54.58	-1	3346282..3346521	-	79	39998132	csrA	GSU3041	-	carbon storage regulator
3023	 59.42	0	3346545..3347441	-	298	39998133	flgL	GSU3042	-	flagellar hook-associated protein FlgL
3024	 61.30	0	3347451..3348884	-	477	39998134	flgK	GSU3043	-	flagellar hook-associated protein FlgK
3025	 63.62	0	3348886..3349377	-	163	39998135	-	GSU3044	-	hypothetical protein
3026	 64.24	0	3349396..3349683	-	95	39998136	flgM	GSU3045	-	negative regulator of flagellin synthesis FlgM
3027	 64.30	0	3349686..3350066	-	126	39998137	-	GSU3046	-	flagellar protein FlgJ-like protein
3028	 62.96	0	3350209..3351315	-	368	39998138	flgI	GSU3047	-	flagellar basal body P-ring protein
3029	 61.71	0	3351462..3352127	-	221	39998139	flgH	GSU3048	-	flagellar L-ring protein FlgH
3030	 50.83	-1	3352126..3352245	+	39	39998140	-	GSU3049	-	hypothetical protein
3031	 63.86	0	3352242..3352988	-	248	39998141	-	GSU3050	-	flagella basal body P-ring formation protein flgA, putative
3032	 63.24	0	3352996..3353784	-	262	39998142	flgG	GSU3051	-	flagellar basal body rod protein FlgG
3033	 60.77	0	3353883..3354611	-	242	39998143	flgG-2	GSU3052	-	flagellar basal-body rod protein FlgG
3034	 59.10	0	3354638..3355390	-	250	39998144	fliA	GSU3053	-	RNA polymerase sigma factor for flagellar operon
3035	 61.18	0	3355387..3356316	-	309	39998145	-	GSU3054	-	ParA family protein
3036	 63.35	0	3356313..3357638	-	441	39998146	-	GSU3055	-	flagellar biosynthetic protein FlhF, putative
3037	 62.31	0	3357658..3359748	-	696	39998147	flhA	GSU3056	-	flagellar biosynthesis protein FlhA
3038	 66.03	0	3360147..3361559	-	470	39998148	gltA	GSU3057	-	putative oxidoreductase
3039	 64.76	0	3361556..3362392	-	278	39998149	-	GSU3058	-	ferredoxin--NADP(+) reductase subunit alpha
3040	 62.13	0	3362756..3363637	-	293	39998150	-	GSU3059	-	radical SAM domain-containing protein
3041	 56.86	0	3363768..3364379	+	203	39998151	-	GSU3060	-	TetR family transcriptional regulator
3042	 62.43	0	3364460..3366652	+	730	39998152	shc-2	GSU3061	-	squalene-hopene cyclase
3043	 62.94	0	3366639..3368330	-	563	39998153	-	GSU3062	-	radical SAM domain-containing protein
3044	 62.15	0	3368488..3369639	-	383	39998154	ftsZ	GSU3063	-	cell division protein FtsZ
3045	 62.30	0	3369691..3370926	-	411	39998155	ftsA	GSU3064	-	cell division protein FtsA
3046	 63.06	0	3370942..3371772	-	276	39998156	ftsQ	GSU3065	-	cell division protein FtsQ
3047	 62.78	0	3371784..3372734	-	316	39998157	ddl	GSU3066	-	D-alanine--D-alanine ligase
3048	 64.82	0	3372764..3373630	-	288	39998158	murB	GSU3067	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3049	 62.20	0	3373685..3375073	-	462	39998159	murC	GSU3068	-	UDP-N-acetylmuramate--alanine ligase
3050	 63.65	0	3375076..3376170	-	364	39998160	murG	GSU3069	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
3051	 59.06	0	3376167..3377231	-	354	39998161	-	GSU3070	-	cell cycle protein FtsW
3052	 65.42	0	3377285..3378643	-	452	39998162	murD	GSU3071	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
3053	 58.96	0	3378645..3379721	-	358	39998163	mraY	GSU3072	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
3054	 62.48	0	3381149..3382678	-	509	39998164	murE	GSU3074	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate ligase
3055	 59.98	0	3382710..3384683	-	657	39998165	-	GSU3075	-	penicillin-binding protein
3056	 59.52	0	3384680..3385015	-	111	39998166	-	GSU3076	-	cell division protein FtsL, putative
3057	 63.03	0	3385043..3385978	-	311	39998167	mraW	GSU3077	-	S-adenosyl-methyltransferase MraW
3058	 55.77	0	3385982..3386458	-	158	39998168	-	GSU3078	-	cell division protein MraZ
3059	 59.54	0	3386899..3387249	-	116	39998169	-	GSU3079	-	hypothetical protein
3060	 59.02	0	3387299..3387847	-	182	39998170	-	GSU3080	-	hypothetical protein
3061	 62.39	0	3388257..3388607	-	116	39998171	-	GSU3081	-	hypothetical protein
3062	 56.20	0	3388646..3389008	+	120	39998172	-	GSU3082	-	ISGsu7, transposase OrfA
3063	 56.79	0	3389005..3389895	+	296	39998173	-	GSU3083	-	ISGsu7, transposase OrfB
3064	 56.49	0	3389874..3390335	-	153	39998174	-	GSU3084	-	hypothetical protein
3065	 60.46	0	3390382..3391509	-	375	39998175	-	GSU3085	-	hypothetical protein
3066	 63.86	0	3391779..3392954	-	391	39998176	-	GSU3086	-	hypothetical protein
3067	 61.35	0	3392958..3393785	-	275	39998177	-	GSU3087	-	Sir2 family transcriptional regulator
3068	 60.46	0	3393821..3394303	-	160	39998178	-	GSU3088	-	YbaK/EbsC protein
3069	 57.84	0	3394412..3396145	-	577	39998179	rpoD	GSU3089	-	RNA polymerase sigma factor RpoD
3070	 61.85	0	3396176..3397939	-	587	39998180	dnaG	GSU3090	-	DNA primase
3071	 60.52	0	3397917..3398453	-	178	39998181	-	GSU3091	-	CvpA family protein
3072	 61.45	0	3398549..3398989	-	146	39998182	-	GSU3092	-	YqeY family protein
3073	 48.99	-2	3399113..3399310	-	65	39998183	rpsU	GSU3093	-	30S ribosomal protein S21
3074	 55.05	-1	3399456..3399782	-	108	39998184	-	GSU3094	-	phosphoribosyl-ATP pyrophosphohydrolase
3075	 64.96	0	3399779..3400540	-	253	39998185	hisF	GSU3095	-	imidazole glycerol phosphate synthase subunit HisF
3076	 64.49	0	3400542..3401276	-	244	39998186	hisA	GSU3096	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
3077	 61.11	0	3401273..3401902	-	209	39998187	hisH	GSU3097	-	imidazole glycerol phosphate synthase subunit HisH
3078	 59.69	0	3401904..3402491	-	195	39998188	hisB	GSU3098	-	imidazoleglycerol-phosphate dehydratase
3079	 62.49	0	3402517..3403569	-	350	39998189	hisC	GSU3099	-	histidinol-phosphate aminotransferase
3080	 65.19	0	3403592..3404881	-	429	39998190	hisD	GSU3100	-	histidinol dehydrogenase
3081	 59.31	0	3404878..3405516	-	212	39998191	hisG	GSU3101	-	ATP phosphoribosyltransferase catalytic subunit
3082	 61.56	0	3405581..3406834	-	417	39998192	murA	GSU3102	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3083	 63.63	0	3406891..3407745	-	284	39998193	-	GSU3103	-	HemK family modification methylase
3084	 62.36	0	3407771..3408838	-	355	39998194	prfA	GSU3104	-	peptide chain release factor 1
3085	 59.75	0	3408858..3409811	-	317	39998195	-	GSU3105	-	hypothetical protein
3086	 64.23	0	3409808..3410506	-	232	39998196	thyX	GSU3106	-	FAD-dependent thymidylate synthase
3087	 53.54	-1	3410597..3410794	-	65	39998197	rpmE	GSU3107	-	50S ribosomal protein L31
3088	 58.65	0	3410940..3412187	-	415	39998198	rho	GSU3108	-	transcription termination factor Rho
3089	 61.89	0	3412645..3413418	+	257	39998199	-	GSU3109	-	IclR family transcriptional regulator
3090	 60.84	0	3413447..3413755	-	102	39998200	-	GSU3110	-	hypothetical protein
3091	 56.60	0	3413770..3414057	-	95	39998201	-	GSU3111	-	hypothetical protein
3092	 62.33	0	3414131..3416368	-	745	39998202	-	GSU3112	-	cell division protein FtsK, putative
3093	 62.67	0	3416422..3418023	-	533	39998203	-	GSU3113	-	metallo-beta-lactamase family protein
3094	 64.18	0	3418114..3418515	-	133	39998204	-	GSU3114	-	hypothetical protein
3095	 68.89	+1	3418522..3418701	-	59	39998205	-	GSU3115	-	hypothetical protein
3096	 64.68	0	3418703..3419407	-	234	39998206	-	GSU3116	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
3097	 64.40	0	3419688..3420128	+	146	39998207	ssb-2	GSU3117	-	single-strand binding protein
3098	 62.43	0	3420191..3420874	-	227	39998208	-	GSU3118	-	DNA-binding response regulator
60.71	MEAN

5.38	STD DEV
