IslandPath Analysis: Geobacter sulfurreducens PCA

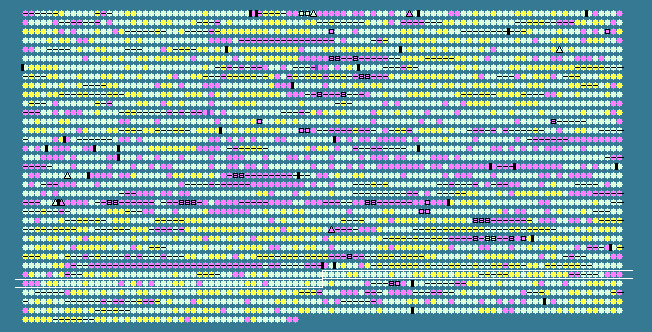

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2951	 59.11	0	3264290..3264580	+	96	39998061	-	GSU2970	-	hypothetical protein
2952	 61.95	0	3264683..3264979	+	98	39998062	-	GSU2972	-	hypothetical protein
2953	 63.82	0	3264691..3264936	-	81	39998063	-	GSU2971	-	hypothetical protein
2954	 58.70	0	3265018..3265431	-	137	39998064	-	GSU2973	-	putative lipoprotein
2955	 66.39	+1	3265450..3267267	-	605	39998065	-	GSU2974	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
2956	 65.21	0	3267264..3268916	-	550	39998066	-	GSU2975	-	putative manganese-dependent inorganic pyrophosphatase
2957	 61.47	0	3269006..3269602	+	198	39998067	-	GSU2976	-	DedA family protein
2958	 60.78	0	3269687..3270331	-	214	39998068	-	GSU2977	-	putative translaldolase
2959	 59.84	0	3270375..3270623	-	82	39998069	-	GSU2978	-	hypothetical protein
2960	 63.01	0	3270642..3271133	-	163	39998070	folK	GSU2979	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2961	 60.00	0	3271194..3271613	-	139	39998071	-	GSU2980	-	nickel responsive regulator
2962	 70.69	+1	3271715..3272584	-	289	39998072	-	GSU2981	-	TonB-dependent receptor, putative
2963	 61.48	0	3272590..3274689	-	699	39998073	-	GSU2982	-	TonB dependent receptor, putative
2964	 60.34	0	3275022..3275558	-	178	39998074	-	GSU2983	-	hypothetical protein
2965	 62.76	0	3275601..3276419	-	272	39998075	-	GSU2984	-	ABC transporter, permease protein
2966	 66.67	+1	3276434..3277186	-	250	39998076	-	GSU2985	-	ABC transporter, ATP-binding protein
2967	 65.14	0	3277177..3278157	-	326	39998077	-	GSU2986	-	adhesion lipoprotein
2968	 61.90	0	3278158..3278577	-	139	39998078	-	GSU2987	-	FUR family transcriptional regulator
2969	 66.30	+1	3279233..3280603	+	456	39998079	-	GSU2988	-	hypothetical protein
2970	 69.43	+1	3280633..3281718	-	361	39998080	-	GSU2989	-	L-threonine-O-3-phosphate decarboxylase, putative
2971	 67.81	+1	3281715..3282677	-	320	39998081	cobD	GSU2990	-	cobalamin biosynthesis protein CobD
2972	 63.52	0	3282674..3284707	-	677	39998082	-	GSU2991	-	sensor histidine kinase
2973	 65.04	0	3284732..3286330	-	532	39998083	cobQ	GSU2992	-	cobyric acid synthase
2974	 66.76	+1	3287136..3288191	-	351	39998084	-	GSU2993	-	cobalamin biosynthesis protein CbiG, putative
2975	 69.31	+1	3288222..3289016	-	264	39998085	cobM	GSU2994	-	precorrin-4 C11-methyltransferase
2976	 64.70	0	3289047..3289757	-	236	39998086	cobI	GSU2995	-	precorrin-2 C20-methyltransferase
2977	 63.55	0	3289754..3290971	-	405	39998087	cobL	GSU2996	-	precorrin-6y c5,15-methyltransferase
2978	 68.69	+1	3291016..3292104	-	362	39998088	cbiD	GSU2997	-	cobalamin biosynthesis protein CbiD
2979	 64.09	0	3292111..3292653	-	180	39998089	-	GSU2998	-	nitroimidazole resistance protein, putative
2980	 68.07	+1	3292653..3293294	-	213	39998090	cobH	GSU2999	-	precorrin-8X methylmutase
2981	 65.62	0	3293294..3293677	-	127	39998091	-	GSU3000	-	cbiX protein
2982	 65.12	0	3293679..3294518	-	279	39998092	-	GSU3001	-	cobalt ABC transporter, ATP-binding protein
2983	 67.86	+1	3294515..3295270	-	251	39998093	-	GSU3002	-	cobalt ABC transporter, permease protein
2984	 61.82	0	3295267..3295782	-	171	39998094	-	GSU3003	-	hypothetical protein
2985	 66.46	+1	3295769..3296734	-	321	161579497	-	GSU3004	-	cobalt transport protein CbiM
2986	 67.05	+1	3297117..3298424	-	435	39998096	thiC-2	GSU3005	-	thiamine biosynthesis protein ThiC
2987	 66.45	+1	3298421..3299815	-	464	39998097	cobB	GSU3006	-	cobyrinic acid a,c-diamide synthase
2988	 63.76	0	3299819..3300472	-	217	39998098	-	GSU3007	-	phosphoglycerate mutase family protein, putative
2989	 68.02	+1	3300552..3301292	-	246	39998099	cobS	GSU3008	-	cobalamin 5'-phosphate synthase
2990	 64.59	0	3301289..3302347	-	352	39998100	cobT	GSU3009	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2991	 64.93	0	3302370..3302888	-	172	39998101	cobU	GSU3010	-	bifunctional cobalamin biosynthesis protein CobU
2992	 56.25	0	3302867..3303058	-	63	39998102	-	GSU3011	-	hypothetical protein
2993	 53.94	-1	3303119..3303283	+	54	39998103	-	GSU3012	-	hypothetical protein
2994	 62.80	0	3303260..3303880	-	206	39998104	-	GSU3013	-	GTPase EngB
2995	 57.43	0	3303989..3304897	+	302	39998105	-	GSU3014	-	HD domain-containing protein
2996	 59.84	0	3305088..3305468	-	126	39998106	-	GSU3015	-	flagellin FlaG, putative
2997	 62.65	0	3305627..3311104	-	1825	39998107	-	GSU3016	-	hypothetical protein
2998	 55.38	0	3311632..3311826	+	64	39998108	-	GSU3017	-	hypothetical protein
2999	 42.16	-2	3311879..3312637	+	252	39998109	-	GSU3018	-	hypothetical protein
3000	 49.11	-2	3312678..3314636	+	652	39998110	-	GSU3019	-	dehydrogenase, E1 component, alpha and beta subunits
3001	 49.37	-2	3314633..3315748	+	371	39998111	-	GSU3020	-	hexapeptide transferase family protein
3002	 54.77	-1	3315770..3316954	+	394	39998112	-	GSU3021	-	DegT/DnrJ/EryC1/StrS family protein
3003	 52.62	-1	3316979..3320353	+	1124	39998113	-	GSU3022	-	hypothetical protein
3004	 60.34	0	3320350..3327555	+	2401	39998114	-	GSU3023	-	glycosyl transferase, group 1/2 family protein
3005	 66.35	+1	3327458..3329374	+	638	39998115	-	GSU3024	-	hypothetical protein
3006	 66.09	+1	3329371..3330924	+	517	39998116	-	GSU3025	-	heptosyltransferase family protein
3007	 57.35	0	3330990..3331268	+	92	39998117	-	GSU3026	-	flagellar protein FlbD, putative
3008	 59.08	0	3331289..3332053	+	254	39998118	-	GSU3027	-	chemotaxis MotA protein
3009	 60.67	0	3332063..3332863	+	266	39998119	motB	GSU3028	-	chemotaxis MotB protein
3010	 64.17	0	3332939..3336349	-	1136	39998120	-	GSU3029	-	2-acyl-glycerophospho-ethanolamine acyltransferase
3011	 65.13	0	3336366..3337343	-	325	39998121	-	GSU3030	-	hypothetical protein
3012	 61.85	0	3337484..3339019	+	511	39998122	-	GSU3031	-	sigma-54 dependent transcriptional regulator
3013	 64.07	0	3339016..3340593	-	525	39998123	-	GSU3032	-	hypothetical protein
3014	 62.56	0	3340671..3341474	-	267	39998124	-	GSU3033	-	hypothetical protein
3015	 62.28	0	3341490..3341945	-	151	39998125	-	GSU3034	-	hypothetical protein
3016	 60.52	0	3342011..3342433	-	140	39998126	-	GSU3035	-	hypothetical protein
3017	 55.63	0	3342430..3342864	-	144	39998127	fliS	GSU3036	-	flagellar protein FliS
3018	 58.01	0	3342898..3344307	-	469	39998128	fliD	GSU3037	-	flagellar hook-associated protein 2
3019	 65.34	0	3344677..3345507	-	276	39998129	fliC	GSU3038	-	flagellin FliC
3020	 50.00	-1	3345608..3345811	+	67	39998130	-	GSU3039	-	hypothetical protein
3021	 59.17	0	3345798..3346277	-	159	39998131	-	GSU3040	-	flagellar assembly protein FliW
3022	 54.58	-1	3346282..3346521	-	79	39998132	csrA	GSU3041	-	carbon storage regulator
3023	 59.42	0	3346545..3347441	-	298	39998133	flgL	GSU3042	-	flagellar hook-associated protein FlgL
3024	 61.30	0	3347451..3348884	-	477	39998134	flgK	GSU3043	-	flagellar hook-associated protein FlgK
3025	 63.62	0	3348886..3349377	-	163	39998135	-	GSU3044	-	hypothetical protein
3026	 64.24	0	3349396..3349683	-	95	39998136	flgM	GSU3045	-	negative regulator of flagellin synthesis FlgM
3027	 64.30	0	3349686..3350066	-	126	39998137	-	GSU3046	-	flagellar protein FlgJ-like protein
3028	 62.96	0	3350209..3351315	-	368	39998138	flgI	GSU3047	-	flagellar basal body P-ring protein
3029	 61.71	0	3351462..3352127	-	221	39998139	flgH	GSU3048	-	flagellar L-ring protein FlgH
3030	 50.83	-1	3352126..3352245	+	39	39998140	-	GSU3049	-	hypothetical protein
3031	 63.86	0	3352242..3352988	-	248	39998141	-	GSU3050	-	flagella basal body P-ring formation protein flgA, putative
3032	 63.24	0	3352996..3353784	-	262	39998142	flgG	GSU3051	-	flagellar basal body rod protein FlgG
3033	 60.77	0	3353883..3354611	-	242	39998143	flgG-2	GSU3052	-	flagellar basal-body rod protein FlgG
3034	 59.10	0	3354638..3355390	-	250	39998144	fliA	GSU3053	-	RNA polymerase sigma factor for flagellar operon
3035	 61.18	0	3355387..3356316	-	309	39998145	-	GSU3054	-	ParA family protein
3036	 63.35	0	3356313..3357638	-	441	39998146	-	GSU3055	-	flagellar biosynthetic protein FlhF, putative
3037	 62.31	0	3357658..3359748	-	696	39998147	flhA	GSU3056	-	flagellar biosynthesis protein FlhA
3038	 66.03	0	3360147..3361559	-	470	39998148	gltA	GSU3057	-	putative oxidoreductase
3039	 64.76	0	3361556..3362392	-	278	39998149	-	GSU3058	-	ferredoxin--NADP(+) reductase subunit alpha
3040	 62.13	0	3362756..3363637	-	293	39998150	-	GSU3059	-	radical SAM domain-containing protein
3041	 56.86	0	3363768..3364379	+	203	39998151	-	GSU3060	-	TetR family transcriptional regulator
3042	 62.43	0	3364460..3366652	+	730	39998152	shc-2	GSU3061	-	squalene-hopene cyclase
3043	 62.94	0	3366639..3368330	-	563	39998153	-	GSU3062	-	radical SAM domain-containing protein
3044	 62.15	0	3368488..3369639	-	383	39998154	ftsZ	GSU3063	-	cell division protein FtsZ
3045	 62.30	0	3369691..3370926	-	411	39998155	ftsA	GSU3064	-	cell division protein FtsA
3046	 63.06	0	3370942..3371772	-	276	39998156	ftsQ	GSU3065	-	cell division protein FtsQ
3047	 62.78	0	3371784..3372734	-	316	39998157	ddl	GSU3066	-	D-alanine--D-alanine ligase
3048	 64.82	0	3372764..3373630	-	288	39998158	murB	GSU3067	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3049	 62.20	0	3373685..3375073	-	462	39998159	murC	GSU3068	-	UDP-N-acetylmuramate--alanine ligase
3050	 63.65	0	3375076..3376170	-	364	39998160	murG	GSU3069	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
60.71	MEAN

5.38	STD DEV
