IslandPath Analysis: Geobacter sulfurreducens PCA

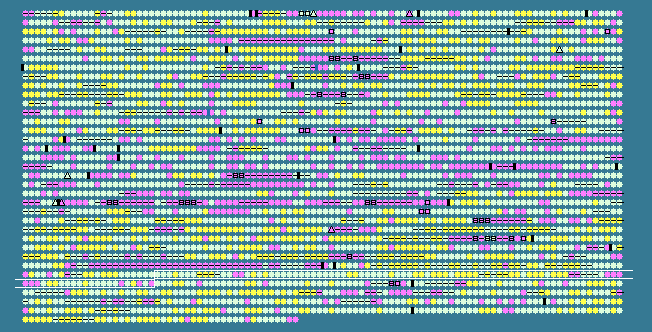

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2923	 62.45	0	3238978..3240612	+	544	39998033	-	GSU2942	-	methyl-accepting chemotaxis protein
2924	 63.70	0	3240768..3241205	+	145	39998034	-	GSU2943	-	hypothetical protein
2925	 61.65	0	3241463..3242758	+	431	39998035	-	GSU2944	-	(R)-2-hydroxyglutaryl-CoA dehydratase alpha-subunit, putative
2926	 67.07	+1	3242763..3243509	+	248	39998036	-	GSU2945	-	(R)-2-hydroxyglutaryl-CoA dehydratase activator, putative
2927	 62.95	0	3243689..3244360	+	223	39998037	-	GSU2946	-	DNA-binding heavy metal response regulator
2928	 63.87	0	3244341..3245768	+	475	39998038	-	GSU2947	-	sensor histidine kinase
2929	 62.25	0	3245954..3247855	+	633	39998039	-	GSU2948	-	hypothetical protein
2930	 65.51	0	3247858..3248718	+	286	39998040	-	GSU2949	-	PAP2 family protein
2931	 65.24	0	3248816..3250432	+	538	39998041	-	GSU2950	-	ABC transporter, permease protein
2932	 66.74	+1	3250442..3251749	+	435	39998042	-	GSU2951	-	ABC transporter, ATP-binding protein
2933	 61.99	0	3251800..3252141	+	113	39998043	-	GSU2952	-	ArsR family transcriptional regulator
2934	 63.12	0	3252197..3252619	+	140	39998044	arsC	GSU2953	-	arsenate reductase
2935	 61.82	0	3252612..3253664	+	350	39998045	acr3	GSU2954	-	arsenical-resistance protein
2936	 57.17	0	3253679..3254626	+	315	39998046	-	GSU2955	-	hypothetical protein
2937	 51.48	-1	3254643..3254879	+	78	39998047	-	GSU2956	-	redox-active disulfide protein 2
2938	 62.43	0	3254879..3255256	+	125	39998048	-	GSU2957	-	thioredoxin family protein
2939	 64.77	0	3255253..3255939	+	228	39998049	-	GSU2958	-	thiol:disulfide interchange protein, putative
2940	 63.79	0	3255969..3256628	+	219	39998050	-	GSU2959	-	hypothetical protein
2941	 64.26	0	3256634..3257671	-	345	39998051	modC	GSU2960	-	molybdenum ABC transporter, ATP-binding protein modC
2942	 61.26	0	3257691..3258374	-	227	39998052	modB	GSU2961	-	molybdenum ABC transporter, permease protein modB
2943	 60.82	0	3258378..3259130	-	250	39998053	modA	GSU2962	-	molybdenum ABC transporter, periplasmic molybdenum-binding protein modA
2944	 63.97	0	3259168..3260019	-	283	39998054	-	GSU2963	-	modD protein
2945	 60.37	0	3260255..3261064	-	269	39998055	modE	GSU2964	-	molybdenum transport regulatory protein ModE
2946	 62.11	0	3261189..3261737	-	182	39998056	-	GSU2965	-	hypothetical protein
2947	 58.56	0	3261759..3261980	+	73	39998057	-	GSU2966	-	hypothetical protein
2948	 60.16	0	3262124..3262615	+	163	39998058	-	GSU2967	-	hypothetical protein
2949	 62.45	0	3262848..3263108	+	86	39998059	-	GSU2968	-	hypothetical protein
2950	 60.97	0	3263301..3264248	+	315	39998060	-	GSU2969	-	sensory box/GGDEF family protein
2951	 59.11	0	3264290..3264580	+	96	39998061	-	GSU2970	-	hypothetical protein
2952	 61.95	0	3264683..3264979	+	98	39998062	-	GSU2972	-	hypothetical protein
2953	 63.82	0	3264691..3264936	-	81	39998063	-	GSU2971	-	hypothetical protein
2954	 58.70	0	3265018..3265431	-	137	39998064	-	GSU2973	-	putative lipoprotein
2955	 66.39	+1	3265450..3267267	-	605	39998065	-	GSU2974	-	bifunctional homocysteine S-methyltransferase/5,10-methylenetetrahydrofolate reductase protein
2956	 65.21	0	3267264..3268916	-	550	39998066	-	GSU2975	-	putative manganese-dependent inorganic pyrophosphatase
2957	 61.47	0	3269006..3269602	+	198	39998067	-	GSU2976	-	DedA family protein
2958	 60.78	0	3269687..3270331	-	214	39998068	-	GSU2977	-	putative translaldolase
2959	 59.84	0	3270375..3270623	-	82	39998069	-	GSU2978	-	hypothetical protein
2960	 63.01	0	3270642..3271133	-	163	39998070	folK	GSU2979	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2961	 60.00	0	3271194..3271613	-	139	39998071	-	GSU2980	-	nickel responsive regulator
2962	 70.69	+1	3271715..3272584	-	289	39998072	-	GSU2981	-	TonB-dependent receptor, putative
2963	 61.48	0	3272590..3274689	-	699	39998073	-	GSU2982	-	TonB dependent receptor, putative
2964	 60.34	0	3275022..3275558	-	178	39998074	-	GSU2983	-	hypothetical protein
2965	 62.76	0	3275601..3276419	-	272	39998075	-	GSU2984	-	ABC transporter, permease protein
2966	 66.67	+1	3276434..3277186	-	250	39998076	-	GSU2985	-	ABC transporter, ATP-binding protein
2967	 65.14	0	3277177..3278157	-	326	39998077	-	GSU2986	-	adhesion lipoprotein
2968	 61.90	0	3278158..3278577	-	139	39998078	-	GSU2987	-	FUR family transcriptional regulator
2969	 66.30	+1	3279233..3280603	+	456	39998079	-	GSU2988	-	hypothetical protein
2970	 69.43	+1	3280633..3281718	-	361	39998080	-	GSU2989	-	L-threonine-O-3-phosphate decarboxylase, putative
2971	 67.81	+1	3281715..3282677	-	320	39998081	cobD	GSU2990	-	cobalamin biosynthesis protein CobD
2972	 63.52	0	3282674..3284707	-	677	39998082	-	GSU2991	-	sensor histidine kinase
2973	 65.04	0	3284732..3286330	-	532	39998083	cobQ	GSU2992	-	cobyric acid synthase
2974	 66.76	+1	3287136..3288191	-	351	39998084	-	GSU2993	-	cobalamin biosynthesis protein CbiG, putative
2975	 69.31	+1	3288222..3289016	-	264	39998085	cobM	GSU2994	-	precorrin-4 C11-methyltransferase
2976	 64.70	0	3289047..3289757	-	236	39998086	cobI	GSU2995	-	precorrin-2 C20-methyltransferase
2977	 63.55	0	3289754..3290971	-	405	39998087	cobL	GSU2996	-	precorrin-6y c5,15-methyltransferase
2978	 68.69	+1	3291016..3292104	-	362	39998088	cbiD	GSU2997	-	cobalamin biosynthesis protein CbiD
2979	 64.09	0	3292111..3292653	-	180	39998089	-	GSU2998	-	nitroimidazole resistance protein, putative
2980	 68.07	+1	3292653..3293294	-	213	39998090	cobH	GSU2999	-	precorrin-8X methylmutase
2981	 65.62	0	3293294..3293677	-	127	39998091	-	GSU3000	-	cbiX protein
2982	 65.12	0	3293679..3294518	-	279	39998092	-	GSU3001	-	cobalt ABC transporter, ATP-binding protein
2983	 67.86	+1	3294515..3295270	-	251	39998093	-	GSU3002	-	cobalt ABC transporter, permease protein
2984	 61.82	0	3295267..3295782	-	171	39998094	-	GSU3003	-	hypothetical protein
2985	 66.46	+1	3295769..3296734	-	321	161579497	-	GSU3004	-	cobalt transport protein CbiM
2986	 67.05	+1	3297117..3298424	-	435	39998096	thiC-2	GSU3005	-	thiamine biosynthesis protein ThiC
2987	 66.45	+1	3298421..3299815	-	464	39998097	cobB	GSU3006	-	cobyrinic acid a,c-diamide synthase
2988	 63.76	0	3299819..3300472	-	217	39998098	-	GSU3007	-	phosphoglycerate mutase family protein, putative
2989	 68.02	+1	3300552..3301292	-	246	39998099	cobS	GSU3008	-	cobalamin 5'-phosphate synthase
2990	 64.59	0	3301289..3302347	-	352	39998100	cobT	GSU3009	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2991	 64.93	0	3302370..3302888	-	172	39998101	cobU	GSU3010	-	bifunctional cobalamin biosynthesis protein CobU
2992	 56.25	0	3302867..3303058	-	63	39998102	-	GSU3011	-	hypothetical protein
2993	 53.94	-1	3303119..3303283	+	54	39998103	-	GSU3012	-	hypothetical protein
2994	 62.80	0	3303260..3303880	-	206	39998104	-	GSU3013	-	GTPase EngB
2995	 57.43	0	3303989..3304897	+	302	39998105	-	GSU3014	-	HD domain-containing protein
2996	 59.84	0	3305088..3305468	-	126	39998106	-	GSU3015	-	flagellin FlaG, putative
2997	 62.65	0	3305627..3311104	-	1825	39998107	-	GSU3016	-	hypothetical protein
2998	 55.38	0	3311632..3311826	+	64	39998108	-	GSU3017	-	hypothetical protein
2999	 42.16	-2	3311879..3312637	+	252	39998109	-	GSU3018	-	hypothetical protein
3000	 49.11	-2	3312678..3314636	+	652	39998110	-	GSU3019	-	dehydrogenase, E1 component, alpha and beta subunits
3001	 49.37	-2	3314633..3315748	+	371	39998111	-	GSU3020	-	hexapeptide transferase family protein
3002	 54.77	-1	3315770..3316954	+	394	39998112	-	GSU3021	-	DegT/DnrJ/EryC1/StrS family protein
3003	 52.62	-1	3316979..3320353	+	1124	39998113	-	GSU3022	-	hypothetical protein
3004	 60.34	0	3320350..3327555	+	2401	39998114	-	GSU3023	-	glycosyl transferase, group 1/2 family protein
3005	 66.35	+1	3327458..3329374	+	638	39998115	-	GSU3024	-	hypothetical protein
3006	 66.09	+1	3329371..3330924	+	517	39998116	-	GSU3025	-	heptosyltransferase family protein
3007	 57.35	0	3330990..3331268	+	92	39998117	-	GSU3026	-	flagellar protein FlbD, putative
3008	 59.08	0	3331289..3332053	+	254	39998118	-	GSU3027	-	chemotaxis MotA protein
3009	 60.67	0	3332063..3332863	+	266	39998119	motB	GSU3028	-	chemotaxis MotB protein
3010	 64.17	0	3332939..3336349	-	1136	39998120	-	GSU3029	-	2-acyl-glycerophospho-ethanolamine acyltransferase
3011	 65.13	0	3336366..3337343	-	325	39998121	-	GSU3030	-	hypothetical protein
3012	 61.85	0	3337484..3339019	+	511	39998122	-	GSU3031	-	sigma-54 dependent transcriptional regulator
3013	 64.07	0	3339016..3340593	-	525	39998123	-	GSU3032	-	hypothetical protein
3014	 62.56	0	3340671..3341474	-	267	39998124	-	GSU3033	-	hypothetical protein
3015	 62.28	0	3341490..3341945	-	151	39998125	-	GSU3034	-	hypothetical protein
3016	 60.52	0	3342011..3342433	-	140	39998126	-	GSU3035	-	hypothetical protein
3017	 55.63	0	3342430..3342864	-	144	39998127	fliS	GSU3036	-	flagellar protein FliS
3018	 58.01	0	3342898..3344307	-	469	39998128	fliD	GSU3037	-	flagellar hook-associated protein 2
3019	 65.34	0	3344677..3345507	-	276	39998129	fliC	GSU3038	-	flagellin FliC
3020	 50.00	-1	3345608..3345811	+	67	39998130	-	GSU3039	-	hypothetical protein
3021	 59.17	0	3345798..3346277	-	159	39998131	-	GSU3040	-	flagellar assembly protein FliW
3022	 54.58	-1	3346282..3346521	-	79	39998132	csrA	GSU3041	-	carbon storage regulator
60.71	MEAN

5.38	STD DEV
