IslandPath Analysis: Geobacter sulfurreducens PCA

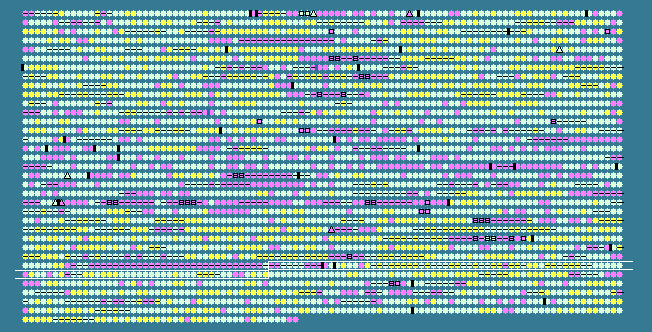

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2842	 54.59	-1	3130763..3132841	-	692	39997952	fusA-3	GSU2860	-	elongation factor G
2843	 54.35	-1	3132883..3133353	-	156	39997953	rpsG	GSU2861	-	30S ribosomal protein S7
2844	 58.86	0	3138159..3142271	-	1370	39997954	rpoB	GSU2863	-	DNA-directed RNA polymerase subunit beta
2845	 58.59	0	3142434..3142817	-	127	39997955	rplL	GSU2864	-	50S ribosomal protein L7/L12
2846	 57.90	0	3142865..3143389	-	174	39997956	rplJ	GSU2865	-	50S ribosomal protein L10
2847	 60.71	0	3143569..3144273	-	234	39997957	rplA	GSU2866	-	50S ribosomal protein L1
2848	 56.10	0	3144291..3144716	-	141	39997958	rplK	GSU2867	-	50S ribosomal protein L11
2849	 54.73	-1	3144778..3145305	-	175	39997959	nusG	GSU2868	-	transcription antitermination protein NusG
2850	 54.23	-1	3145321..3145521	-	66	39997960	secE	GSU2869	-	preprotein translocase subunit SecE
2851	 50.67	-1	3145659..3145808	-	49	39997961	rpmG	GSU2870	-	50S ribosomal protein L33
2852	 60.71	0	3145862..3147052	-	396	39997962	tuf-2	GSU2871	-	elongation factor Tu
2853	 61.87	0	3147726..3148538	-	270	39997963	-	GSU2872	-	electron transfer flavoprotein
2854	 66.94	+1	3148608..3150425	-	605	39997964	-	GSU2873	-	radical SAM domain-containing protein
2855	 63.21	0	3150441..3151481	-	346	39997965	argC	GSU2874	-	N-acetyl-gamma-glutamyl-phosphate reductase
2856	 60.81	0	3151592..3151984	-	130	39997966	rpsI	GSU2875	-	30S ribosomal protein S9
2857	 56.48	0	3152018..3152449	-	143	39997967	rplM	GSU2876	-	50S ribosomal protein L13
2858	 66.12	+1	3152554..3153288	-	244	39997968	truA	GSU2877	-	tRNA pseudouridine synthase A
2859	 63.59	0	3153358..3154461	-	367	39997969	-	GSU2878	-	aspartate-semialdehyde dehydrogenase
2860	 64.55	0	3154503..3155591	-	362	39997970	leuB	GSU2879	-	3-isopropylmalate dehydrogenase
2861	 60.91	0	3155698..3156531	-	277	39997971	-	GSU2880	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
2862	 64.90	0	3156513..3157814	+	433	39997972	-	GSU2881	-	hypothetical protein
2863	 67.10	+1	3157976..3160042	-	688	39997973	-	GSU2882	-	cytochrome c family protein
2864	 67.33	+1	3160224..3162932	-	902	39997974	-	GSU2883	-	cytochrome c family protein
2865	 67.47	+1	3163008..3166124	-	1038	39997975	-	GSU2884	-	cytochrome c family protein
2866	 65.84	0	3166135..3168801	-	888	39997976	-	GSU2885	-	NHL repeat-containing protein
2867	 64.07	0	3169273..3170544	+	423	39997977	-	GSU2886	-	TonB-dependent receptor, putative
2868	 65.01	0	3170511..3173165	-	884	39997978	-	GSU2887	-	cytochrome c family protein
2869	 61.90	0	3173653..3175164	-	503	39997979	-	GSU2888	-	B12 binding /radical SAM domain-containing protein
2870	 59.89	0	3175424..3175777	-	117	39997980	-	GSU2889	-	hypothetical protein
2871	 60.51	0	3175814..3176641	-	275	39997981	-	GSU2890	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
2872	 65.49	0	3176689..3177966	-	425	39997982	-	GSU2891	-	hypothetical protein
2873	 70.18	+1	3178124..3178294	-	56	39997983	-	GSU2892	-	hypothetical protein
2874	 63.55	0	3178281..3179501	-	406	39997984	-	GSU2893	-	hypothetical protein
2875	 62.20	0	3180104..3180841	+	245	39997985	-	GSU2894	-	hypothetical protein
2876	 64.98	0	3180870..3181403	-	177	39997986	-	GSU2895	-	hypothetical protein
2877	 63.78	0	3181453..3182493	-	346	39997987	-	GSU2896	-	ankyrin-related protein
2878	 58.33	0	3182630..3182725	-	31	39997988	-	GSU2897	-	hypothetical protein
2879	 64.98	0	3182745..3191156	-	2803	39997989	-	GSU2898	-	high-molecular-weight cytochrome c
2880	 66.02	0	3191201..3194140	-	979	39997990	-	GSU2899	-	high-molecular-weight cytochrome c
2881	 40.40	-2	3194429..3194527	+	32	39997991	-	GSU2900	-	hypothetical protein
2882	 70.04	+1	3194535..3195572	-	345	39997992	-	GSU2901	-	hypothetical protein
2883	 65.49	0	3195596..3196189	-	197	39997993	-	GSU2902	-	TPR domain-containing protein
2884	 62.79	0	3196158..3196931	-	257	39997994	-	GSU2903	-	hypothetical protein
2885	 68.16	+1	3197101..3197970	-	289	39997995	-	GSU2904	-	hypothetical protein
2886	 67.86	+1	3197975..3199144	-	389	39997996	-	GSU2905	-	radical SAM domain-containing protein
2887	 58.88	0	3199445..3199765	-	106	39997997	-	GSU2906	-	hypothetical protein
2888	 66.07	0	3199825..3201660	-	611	39997998	-	GSU2907	-	hypothetical protein
2889	 64.58	0	3201779..3202687	-	302	39997999	-	GSU2908	-	hypothetical protein
2890	 62.54	0	3202707..3203264	-	185	39998000	-	GSU2909	-	putative lipoprotein
2891	 68.70	+1	3203337..3204026	-	229	39998001	-	GSU2910	-	hypothetical protein
2892	 66.03	0	3204023..3206524	-	833	39998002	-	GSU2911	-	hypothetical protein
2893	 64.95	0	3206802..3209942	-	1046	39998003	-	GSU2912	-	cytochrome c family protein
2894	 60.24	0	3209979..3210818	-	279	39998004	-	GSU2913	-	cytochrome c family protein
2895	 62.70	0	3210885..3213581	-	898	39998005	-	GSU2914	-	NHL repeat-containing protein
2896	 57.42	0	3213944..3215317	-	457	39998006	-	GSU2915	-	sigma-54 dependent DNA-binding response regulator
2897	 59.90	0	3215428..3216891	-	487	39998007	-	GSU2916	-	sensor histidine kinase
2898	 61.08	0	3217011..3217493	-	160	39998008	-	GSU2917	-	hypothetical protein
2899	 64.02	0	3217554..3218498	-	314	39998009	-	GSU2918	-	transketolase, C-terminal subunit
2900	 62.95	0	3218541..3219374	-	277	39998010	-	GSU2919	-	transketolase, N-terminal subunit
2901	 50.45	-1	3219402..3219512	+	36	39998011	-	GSU2920	-	hypothetical protein
2902	 66.38	+1	3219940..3222354	-	804	39998012	-	GSU2921	-	5-methyltetrahydrofolate-homocysteine methyltransferase, truncation
2903	 62.96	0	3222448..3223041	-	197	39998013	-	GSU2922	-	hypothetical protein
2904	 63.61	0	3223038..3223856	-	272	39998014	murI	GSU2923	-	glutamate racemase
2905	 52.34	-1	3224073..3224414	+	113	39998015	-	GSU2924	-	hypothetical protein
2906	 62.56	0	3224422..3225396	+	324	39998016	-	GSU2925	-	hypothetical protein
2907	 65.35	0	3225393..3226154	+	253	39998017	-	GSU2926	-	(R)-2-hydroxyglutaryl-CoA dehydratase activator, putative
2908	 54.74	-1	3226255..3226539	+	94	39998018	-	GSU2927	-	cytochrome c, putative
2909	 63.08	0	3226547..3227131	+	194	39998019	-	GSU2928	-	hypothetical protein
2910	 57.58	0	3227205..3227600	+	131	39998020	-	GSU2929	-	hypothetical protein
2911	 65.70	0	3227678..3228295	-	205	39998021	-	GSU2930	-	cytochrome c family protein
2912	 68.60	+1	3228374..3228838	+	154	39998022	-	GSU2931	-	hypothetical protein
2913	 62.16	0	3228939..3229559	-	206	39998023	-	GSU2932	-	cytochrome b/b6
2914	 66.92	+1	3229556..3229951	-	131	39998024	-	GSU2933	-	cytochrome b/b6 complex, iron-sulfur subunit
2915	 68.90	+1	3229906..3231159	-	417	39998025	-	GSU2934	-	cytochrome c family protein
2916	 65.10	0	3231104..3233077	-	657	39998026	-	GSU2935	-	cytochrome c family protein
2917	 58.26	0	3233101..3233421	-	106	39998027	-	GSU2936	-	hypothetical protein
2918	 60.10	0	3233479..3234453	-	324	39998028	-	GSU2937	-	cytochrome c family protein
2919	 60.63	0	3234566..3234880	-	104	39998029	-	GSU2938	-	hypothetical protein
2920	 59.05	0	3234920..3236140	-	406	39998030	-	GSU2939	-	outer membrane porin FmdC, putative
2921	 59.63	0	3236208..3237614	-	468	39998031	-	GSU2940	-	putative lipoprotein
2922	 59.62	0	3237885..3238820	+	311	39998032	-	GSU2941	-	LysR family transcriptional regulator
2923	 62.45	0	3238978..3240612	+	544	39998033	-	GSU2942	-	methyl-accepting chemotaxis protein
2924	 63.70	0	3240768..3241205	+	145	39998034	-	GSU2943	-	hypothetical protein
2925	 61.65	0	3241463..3242758	+	431	39998035	-	GSU2944	-	(R)-2-hydroxyglutaryl-CoA dehydratase alpha-subunit, putative
2926	 67.07	+1	3242763..3243509	+	248	39998036	-	GSU2945	-	(R)-2-hydroxyglutaryl-CoA dehydratase activator, putative
2927	 62.95	0	3243689..3244360	+	223	39998037	-	GSU2946	-	DNA-binding heavy metal response regulator
2928	 63.87	0	3244341..3245768	+	475	39998038	-	GSU2947	-	sensor histidine kinase
2929	 62.25	0	3245954..3247855	+	633	39998039	-	GSU2948	-	hypothetical protein
2930	 65.51	0	3247858..3248718	+	286	39998040	-	GSU2949	-	PAP2 family protein
2931	 65.24	0	3248816..3250432	+	538	39998041	-	GSU2950	-	ABC transporter, permease protein
2932	 66.74	+1	3250442..3251749	+	435	39998042	-	GSU2951	-	ABC transporter, ATP-binding protein
2933	 61.99	0	3251800..3252141	+	113	39998043	-	GSU2952	-	ArsR family transcriptional regulator
2934	 63.12	0	3252197..3252619	+	140	39998044	arsC	GSU2953	-	arsenate reductase
2935	 61.82	0	3252612..3253664	+	350	39998045	acr3	GSU2954	-	arsenical-resistance protein
2936	 57.17	0	3253679..3254626	+	315	39998046	-	GSU2955	-	hypothetical protein
2937	 51.48	-1	3254643..3254879	+	78	39998047	-	GSU2956	-	redox-active disulfide protein 2
2938	 62.43	0	3254879..3255256	+	125	39998048	-	GSU2957	-	thioredoxin family protein
2939	 64.77	0	3255253..3255939	+	228	39998049	-	GSU2958	-	thiol:disulfide interchange protein, putative
2940	 63.79	0	3255969..3256628	+	219	39998050	-	GSU2959	-	hypothetical protein
2941	 64.26	0	3256634..3257671	-	345	39998051	modC	GSU2960	-	molybdenum ABC transporter, ATP-binding protein modC
60.71	MEAN

5.38	STD DEV
