IslandPath Analysis: Geobacter sulfurreducens PCA

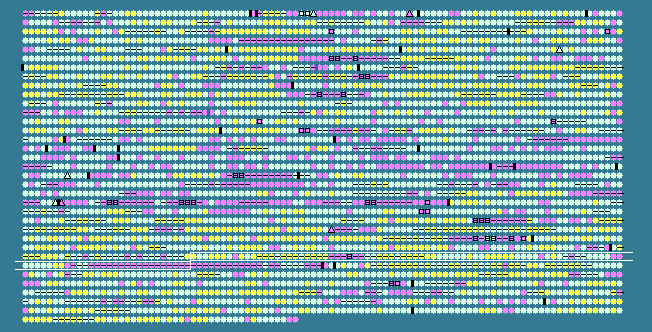

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2729	 67.94	+1	3020923..3022410	-	495	39997839	-	GSU2745	-	AAA family ATPase
2730	 63.89	0	3022635..3023714	+	359	39997840	-	GSU2746	-	hypothetical protein
2731	 60.32	0	3023798..3023986	-	62	39997841	-	GSU2747	-	hypothetical protein
2732	 66.48	+1	3024100..3024645	+	181	39997842	-	GSU2748	-	cytochrome c family protein, putative
2733	 68.33	+1	3024642..3025601	+	319	39997843	-	GSU2749	-	NOL1/NOP2/sun family protein
2734	 66.13	+1	3025675..3026046	-	123	39997844	-	GSU2750	-	hypothetical protein
2735	 63.05	0	3026124..3027452	-	442	39997845	dcuB	GSU2751	-	anaerobic C4-dicarboxylate transporter
2736	 43.14	-2	3027517..3027618	+	33	39997846	-	GSU2752	-	hypothetical protein
2737	 66.88	+1	3027724..3029130	-	468	39997847	-	GSU2753	-	sigma-54 dependent DNA-binding response regulator
2738	 63.04	0	3029155..3029292	+	45	39997848	-	GSU2754	-	hypothetical protein
2739	 67.91	+1	3029367..3031139	-	590	39997849	-	GSU2755	-	periplasmic substrate-binding protein/sensor histidine kinase
2740	 67.97	+1	3031262..3032029	+	255	39997850	-	GSU2756	-	hypothetical protein
2741	 69.88	+1	3033064..3038631	-	1855	39997851	-	GSU2758	-	excinuclease ABC family protein
2742	 66.67	+1	3038707..3040590	-	627	39997852	-	GSU2759	-	potassium efflux system protein
2743	 62.56	0	3040587..3041195	-	202	39997853	-	GSU2760	-	NAD(P)H oxidoreductase, putative
2744	 71.69	+2	3041518..3043071	-	517	39997854	-	GSU2761	-	FAD-dependent glycerol-3-phosphate dehydrogenase subunit
2745	 71.43	+1	3043068..3044558	-	496	39997855	glpK	GSU2762	-	glycerol kinase
2746	 64.57	0	3044601..3045077	-	158	39997856	-	GSU2763	-	hypothetical protein
2747	 61.07	0	3045108..3045482	-	124	39997857	-	GSU2764	-	hypothetical protein
2748	 70.97	+1	3045506..3045598	-	30	39997858	-	GSU2765	-	hypothetical protein
2749	 67.01	+1	3045657..3046247	-	196	39997859	-	GSU2766	-	decarboxylase family protein
2750	 70.29	+1	3046538..3046813	-	91	39997860	-	GSU2767	-	cytochrome c family protein, putative
2751	 65.95	0	3047068..3048744	+	558	39997861	-	GSU2768	-	hypothetical protein
2752	 46.85	-2	3048784..3049671	-	295	39997862	-	GSU2769	-	metallo-beta-lactamase family protein
2753	 51.80	-1	3050003..3051361	-	452	39997863	-	GSU2770	-	hypothetical protein
2754	 54.55	-1	3051489..3052445	-	318	39997864	-	GSU2771	-	hypothetical protein
2755	 54.91	-1	3052662..3053750	-	362	39997865	-	GSU2772	-	ISGsu3, transposase
2756	 38.79	-2	3053934..3054905	-	323	39997866	-	GSU2773	-	hypothetical protein
2757	 43.39	-2	3054983..3055648	-	221	39997867	-	GSU2774	-	hypothetical protein
2758	 62.84	0	3056230..3056595	-	121	39997868	-	GSU2775	-	hypothetical protein
2759	 64.04	0	3056612..3056953	-	113	39997869	-	GSU2776	-	hypothetical protein
2760	 69.01	+1	3057126..3057764	+	212	39997870	-	GSU2777	-	amino acid transporter LysE
2761	 65.05	0	3057881..3058066	+	61	39997871	-	GSU2778	-	hypothetical protein
2762	 67.20	+1	3058112..3058669	+	185	39997872	-	GSU2779	-	MerR family transcriptional regulator
2763	 59.17	0	3058694..3059200	-	168	39997873	-	GSU2780	-	hypothetical protein
2764	 67.38	+1	3059292..3060410	+	372	39997874	-	GSU2781	-	RND family efflux transporter MFP subunit
2765	 67.02	+1	3060587..3063697	+	1036	39997875	-	GSU2782	-	AcrB/AcrD/AcrF family protein
2766	 68.75	+1	3063713..3064288	+	191	39997876	-	GSU2783	-	HDIG domain-containing protein
2767	 69.23	+1	3064345..3064617	-	90	39997877	-	GSU2784	-	hypothetical protein
2768	 64.66	0	3064629..3064877	-	82	39997878	-	GSU2785	-	hypothetical protein
2769	 70.36	+1	3064891..3066027	-	378	39997879	-	GSU2786	-	cysteine desulfurase
2770	 61.98	0	3066335..3067252	+	305	39997880	-	GSU2787	-	LysR family transcriptional regulator
2771	 63.10	0	3067408..3067968	+	186	39997881	-	GSU2788	-	hypothetical protein
2772	 63.86	0	3068098..3070410	-	770	39997882	-	GSU2789	-	sensory box histidine kinase
2773	 63.59	0	3070492..3070914	-	140	39997883	-	GSU2790	-	hypothetical protein
2774	 63.86	0	3071109..3071429	+	106	161579498	-	GSU2791	-	hypothetical protein
2775	 69.32	+1	3071446..3072198	+	250	39997885	-	GSU2792	-	hypothetical protein
2776	 63.27	0	3072206..3072499	-	97	39997886	-	GSU2793	-	hypothetical protein
2777	 58.80	0	3072594..3073025	+	143	39997887	mscL	GSU2794	-	large-conductance mechanosensitive channel
2778	 64.60	0	3073134..3075119	-	661	39997888	-	GSU2795	-	iron-sulfur cluster-binding protein
2779	 65.79	0	3075175..3076197	-	340	39997889	etfA	GSU2796	-	electron transfer flavoprotein, alpha subunit
2780	 64.96	0	3076562..3077380	-	272	39997890	etfB	GSU2797	-	electron transfer flavoprotein, beta subunit
2781	 70.90	+1	3077578..3078381	-	267	39997891	-	GSU2798	-	acetyltransferase
2782	 64.60	0	3078386..3079258	-	290	39997892	-	GSU2799	-	radical SAM domain-containing protein
2783	 64.19	0	3079699..3080628	+	309	39997893	draG	GSU2800	-	dinitrogenase reductase activating glycohydrolase
2784	 63.26	0	3080715..3082181	+	488	39997894	-	GSU2801	-	cytochrome c family protein
2785	 60.78	0	3082277..3083074	-	265	39997895	dRAT	GSU2802	-	NAD(+)--dinitrogen-reductase ADP-D-ribosyltransferase
2786	 63.94	0	3083133..3083462	-	109	39997896	-	GSU2803	-	dinitrogenase iron-molybdenum cofactor family protein
2787	 56.06	0	3083491..3083754	-	87	39997897	-	GSU2804	-	ferredoxin family protein
2788	 62.82	0	3083822..3084211	-	129	39997898	nifX	GSU2805	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifX
2789	 64.46	0	3084293..3087052	-	919	39997899	nifEN	GSU2806	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifEN
2790	 61.16	0	3087268..3087957	-	229	39997900	-	GSU2807	-	hypothetical protein
2791	 58.95	0	3088058..3088627	+	189	39997901	-	GSU2808	-	cytochrome c family protein
2792	 56.64	0	3088861..3089319	+	152	39997902	-	GSU2809	-	FUR family transcriptional regulator
2793	 60.98	0	3089483..3089605	+	40	39997903	-	GSU2810	-	hypothetical protein
2794	 59.97	0	3089715..3091118	+	467	39997904	hsc	GSU2811	-	cytochrome c Hsc
2795	 60.45	0	3091152..3091553	+	133	39997905	-	GSU2812	-	glutaredoxin family protein
2796	 61.66	0	3091634..3092671	+	345	39997906	ccpA-2	GSU2813	-	cytochrome c551 peroxidase
2797	 61.61	0	3092806..3093378	+	190	39997907	-	GSU2814	-	rubrerythrin
2798	 60.93	0	3093614..3095863	+	749	39997908	-	GSU2815	-	sensory box histidine kinase
2799	 57.23	0	3095966..3098614	-	882	39997909	-	GSU2816	-	sensory box histidine kinase/response regulator
2800	 54.99	-1	3098717..3099607	-	296	39997910	-	GSU2817	-	LysR family transcriptional regulator
2801	 58.62	0	3099680..3100648	+	322	39997911	-	GSU2818	-	hypothetical protein
2802	 61.56	0	3100763..3102232	-	489	39997912	nifK	GSU2819	-	nitrogenase molybdenum-iron protein, beta subunit
2803	 60.90	0	3102400..3103839	-	479	39997913	nifD	GSU2820	-	nitrogenase molybdenum-iron protein, alpha chain
2804	 60.80	0	3104018..3104887	-	289	39997914	nifH	GSU2821	-	nitrogenase iron protein
2805	 58.51	0	3105261..3105836	-	191	39997915	-	GSU2822	-	response regulator
2806	 66.26	+1	3105998..3106987	+	329	39997916	-	GSU2823	-	HlyD family secretion protein
2807	 64.46	0	3108907..3110040	+	377	39997917	-	GSU2825	-	hypothetical protein
2808	 56.94	0	3110043..3111173	+	376	39997918	-	GSU2826	-	hypothetical protein
2809	 55.56	0	3111249..3111590	-	113	39997919	-	GSU2827	-	hypothetical protein
2810	 61.44	0	3111708..3112568	-	286	39997920	-	GSU2828	-	GGDEF domain-containing protein
2811	 59.02	0	3112696..3114081	-	461	39997921	-	GSU2829	-	deoxyribodipyrimidine photolyase, putative
2812	 56.25	0	3114556..3115083	-	175	39997922	rplQ	GSU2830	-	50S ribosomal protein L17
2813	 52.39	-1	3115118..3116140	-	340	39997923	rpoA	GSU2831	-	DNA-directed RNA polymerase subunit alpha
2814	 53.43	-1	3116173..3116799	-	208	39997924	rpsD	GSU2832	-	30S ribosomal protein S4
2815	 56.82	0	3116837..3117232	-	131	39997925	rpsK	GSU2833	-	30S ribosomal protein S11
2816	 57.18	0	3117254..3117622	-	122	39997926	rpsM	GSU2834	-	30S ribosomal protein S13
2817	 53.41	-1	3117790..3118536	-	248	39997927	map	GSU2835	-	methionine aminopeptidase, type I
2818	 54.59	-1	3118533..3119186	-	217	39997928	adk	GSU2836	-	adenylate kinase
2819	 52.60	-1	3119208..3120515	-	435	39997929	secY	GSU2837	-	preprotein translocase subunit SecY
2820	 54.81	-1	3120512..3120958	-	148	39997930	rplO	GSU2838	-	50S ribosomal protein L15
2821	 52.22	-1	3120978..3121157	-	59	39997931	rpmD	GSU2839	-	50S ribosomal protein L30
2822	 55.01	-1	3121179..3121667	-	162	39997932	rpsE	GSU2840	-	30S ribosomal protein S5
2823	 53.91	-1	3121690..3122034	-	114	39997933	rplR	GSU2841	-	50S ribosomal protein L18
2824	 53.89	-1	3122077..3122616	-	179	39997934	rplF	GSU2842	-	50S ribosomal protein L6
2825	 53.38	-1	3122645..3123043	-	132	39997935	rpsH	GSU2843	-	30S ribosomal protein S8
2826	 52.69	-1	3123080..3123265	-	61	39997936	rpsN	GSU2844	-	30S ribosomal protein S14
2827	 50.56	-1	3123285..3123824	-	179	39997937	rplE	GSU2845	-	50S ribosomal protein L5
2828	 51.99	-1	3123839..3124165	-	108	39997938	rplX	GSU2846	-	50S ribosomal protein L24
60.71	MEAN

5.38	STD DEV
