IslandPath Analysis: Geobacter sulfurreducens PCA

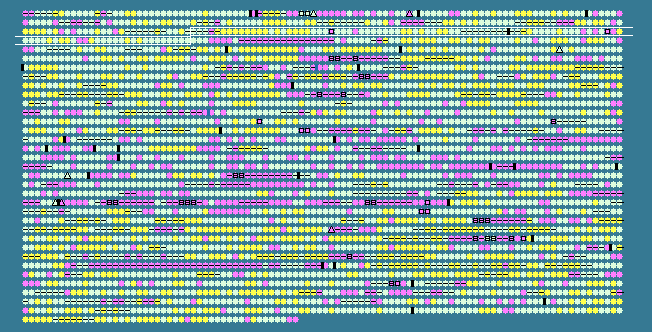

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
229	 63.64	0	236228..237880	+	550	39995339	alkK	GSU0229	-	acyl-CoA synthetase
230	 62.37	0	237886..238956	-	356	39995340	pilT-2	GSU0230	-	twitching motility protein PilT
231	 63.57	0	239002..240777	-	591	39995341	-	GSU0231	-	hypothetical protein
232	 48.15	-2	240866..240973	-	35	39995342	-	GSU0232	-	hypothetical protein
233	 66.82	+1	241033..241692	+	219	39995343	-	GSU0233	-	hypothetical protein
234	 65.31	0	241707..242519	+	270	39995344	-	GSU0234	-	FNT family protein
235	 68.59	+1	242523..244808	-	761	39995345	-	GSU0235	-	S1 RNA-binding domain-containing protein
236	 68.59	+1	244889..245305	-	138	39995346	-	GSU0236	-	hypothetical protein
237	 68.13	+1	245317..245793	-	158	39995347	-	GSU0237	-	MaoC-like domain-containing protein
238	 69.05	+1	245855..247240	-	461	39995348	-	GSU0238	-	radical SAM domain-containing protein
239	 68.56	+1	247237..247659	-	140	39995349	-	GSU0239	-	hypothetical protein
240	 69.16	+1	247661..248503	-	280	39995350	-	GSU0240	-	malonyl CoA-acyl carrier protein transacylase, putative
241	 67.05	+1	248506..249798	-	430	39995351	-	GSU0241	-	BchE/P-methylase family protein
242	 62.40	0	249795..250052	-	85	39995352	acpP-1	GSU0242	-	acyl carrier protein
243	 67.22	+1	250057..250956	-	299	39995353	-	GSU0243	-	hypothetical protein
244	 62.96	0	251048..252424	-	458	39995354	-	GSU0244	-	radical SAM domain-containing protein
245	 68.02	+1	252474..253136	-	220	39995355	-	GSU0245	-	glycosyl transferase, group 2 family protein
246	 69.43	+1	253121..253951	-	276	39995356	-	GSU0246	-	polysaccharide deacetylase domain-containing protein
247	 68.44	+1	254133..255596	+	487	39995357	-	GSU0247	-	radical SAM domain-containing protein
248	 67.91	+1	255596..256882	+	428	39995358	-	GSU0248	-	BchE/P-methylase family protein
249	 62.88	0	256943..257920	+	325	39995359	-	GSU0249	-	hypothetical protein
250	 61.00	0	257966..258406	+	146	39995360	-	GSU0250	-	hypothetical protein
251	 62.75	0	258486..258791	-	101	39995361	-	GSU0251	-	hypothetical protein
252	 51.03	-1	259068..260186	+	372	39995362	-	GSU0252	-	ISGsu1, transposase
253	 62.33	0	260497..262989	+	830	39995363	-	GSU0253	-	sensory box histidine kinase
254	 59.10	0	262990..263637	+	215	39995364	-	GSU0254	-	LuxR family DNA-binding response regulator
255	 59.86	0	263840..265690	+	616	39995365	-	GSU0255	-	sensory box histidine kinase
256	 53.65	-1	265796..266233	+	145	39995366	-	GSU0256	-	hypothetical protein
257	 62.54	0	266321..266611	-	96	39995367	-	GSU0257	-	hypothetical protein
258	 58.45	0	266599..266805	-	68	39995368	-	GSU0258	-	hypothetical protein
259	 61.23	0	266802..267371	-	189	39995369	-	GSU0259	-	flavoredoxin
260	 63.68	0	267578..268045	-	155	39995370	-	GSU0260	-	universal stress protein
261	 64.18	0	268106..269872	-	588	39995371	-	GSU0261	-	sodium/hydrogen exchanger family protein
262	 57.58	0	270284..270679	-	131	39995372	-	GSU0263	-	hypothetical protein
263	 58.56	0	270365..270475	+	36	39995373	-	GSU0262	-	hypothetical protein
264	 67.56	+1	270803..272038	-	411	39995374	-	GSU0264	-	Bcr/CflA subfamily drug resistance transporter
265	 64.34	0	272096..272998	-	300	39995375	-	GSU0265	-	hypothetical protein
266	 58.66	0	273393..274316	+	307	39995376	-	GSU0266	-	LysR family transcriptional regulator
267	 64.66	0	274646..275392	+	248	39995377	-	GSU0267	-	GntR family transcriptional regulator
268	 62.83	0	275389..276222	+	277	39995378	-	GSU0268	-	hypothetical protein
269	 63.81	0	276219..276533	+	104	39995379	-	GSU0269	-	hypothetical protein
270	 64.81	0	276632..278461	-	609	39995380	glmS	GSU0270	-	glucosamine--fructose-6-phosphate aminotransferase (isomerizing)
271	 65.27	0	278527..279957	-	476	39995381	glmU	GSU0271	-	UDP-N-acetylglucosamine pyrophosphorylase
272	 59.34	0	280118..280663	+	181	39995382	-	GSU0272	-	hypothetical protein
273	 63.22	0	280807..282576	+	589	39995383	-	GSU0273	-	radical SAM domain-containing protein
274	 59.25	0	282877..284736	+	619	39995384	-	GSU0274	-	cytochrome c family protein
275	 57.29	0	285027..285218	-	63	39995385	-	GSU0275	-	hypothetical protein
276	 60.27	0	285252..286424	-	390	39995386	-	GSU0276	-	HlyD family secretion protein
277	 62.93	0	286417..288585	-	722	39995387	-	GSU0277	-	ABC transporter, ATP-binding/permease protein
278	 61.53	0	288582..289847	-	421	39995388	-	GSU0278	-	outer membrane efflux protein
279	 62.89	0	289984..307683	-	5899	39995389	-	GSU0279	-	cadherin domain/calx-beta domain-containing protein
280	 58.31	0	307916..309268	-	450	39995390	-	GSU0280	-	Fis family transcriptional regulator
281	 59.00	0	311187..311447	+	86	39995391	-	GSU0282	-	hypothetical protein
282	 61.18	0	311626..313428	-	600	39995392	-	GSU0283	-	sensor histidine kinase
283	 57.98	0	313467..313823	-	118	39995393	dksA	GSU0284	-	dnaK suppressor protein
284	 64.52	0	313908..315260	-	450	39995394	radA	GSU0285	-	DNA repair protein RadA
285	 64.41	0	315412..317049	+	545	39995395	-	GSU0286	-	HEAT repeat-containing PBS lyase
286	 61.75	0	317042..318403	+	453	39995396	-	GSU0287	-	HD domain-containing protein
287	 63.77	0	318413..319033	-	206	39995397	-	GSU0288	-	HEAT repeat-containing PBS lyase
288	 60.66	0	319102..319434	+	110	39995398	-	GSU0289	-	hypothetical protein
289	 60.86	0	319532..320512	+	326	39995399	fabH-1	GSU0290	-	3-oxoacyl-(acyl-carrier-protein) synthase III
290	 66.01	0	320502..321560	-	352	39995400	-	GSU0291	-	CheR methyltransferase SAM binding domain-containing protein
291	 63.74	0	321610..321951	+	113	39995401	-	GSU0292	-	hypothetical protein
292	 63.45	0	321952..323040	-	362	39995402	cheB-1	GSU0293	-	protein-glutamate methylesterase
293	 59.32	0	323047..323958	-	303	39995403	-	GSU0294	-	HD domain-containing protein
294	 50.96	-1	323955..324788	-	277	39995404	cheR-1	GSU0295	-	chemotaxis protein methyltransferase CheR
295	 61.92	0	324839..326671	-	610	39995405	-	GSU0296	-	chemotaxis protein CheA, putative
296	 56.57	0	326720..327214	-	164	39995406	cheW-1	GSU0297	-	purine-binding chemotaxis protein CheW
297	 58.16	0	327608..328606	+	332	39995407	-	GSU0298	-	sigma-54 dependent DNA-binding response regulator, interruption-C
298	 51.03	-1	328610..329728	-	372	39995408	-	GSU0299	-	ISGsu1, transposase
299	 54.25	-1	329817..330251	+	144	39995409	-	GSU0300	-	sigma-54 dependent DNA-binding response regulator, interruption-N
300	 65.48	0	330437..331027	+	196	39995410	-	GSU0301	-	lytic murein transglycosylase, putative
301	 63.87	0	331170..333134	+	654	39995411	-	GSU0302	-	hypothetical protein
302	 59.11	0	333197..334414	+	405	39995412	-	GSU0303	-	sensory box protein
303	 62.95	0	334411..337044	-	877	39995413	pepN	GSU0304	-	aminopeptidase N
304	 58.69	0	337596..338360	+	254	39995414	hypB	GSU0305	-	hydrogenase accessory protein HypB
305	 64.92	0	338376..340667	+	763	39995415	hypF	GSU0306	-	hydrogenase maturation protein HypF
306	 58.87	0	340674..340904	+	76	39995416	hypC	GSU0307	-	hydrogenase assembly chaperone hypC/hupF
307	 65.84	0	340904..341995	+	363	39995417	hypD	GSU0308	-	hydrogenase expression/formation protein HypD
308	 64.50	0	342016..343029	+	337	39995418	hypE	GSU0309	-	hydrogenase expression/formation protein HypE
309	 61.17	0	343116..343970	+	284	39995419	-	GSU0310	-	hypothetical protein
310	 51.52	-1	344076..344207	-	43	39995420	-	GSU0311	-	hypothetical protein
311	 53.41	-1	344230..344508	+	92	39995421	-	GSU0312	-	hypothetical protein
312	 64.97	0	344584..345351	+	255	39995422	-	GSU0313	-	dnaJ domain-containing protein
313	 60.69	0	345463..346566	+	367	39995423	-	GSU0314	-	general secretion pathway protein E
314	 59.40	0	346535..347002	-	155	39995424	-	GSU0315	-	hypothetical protein
315	 60.78	0	346965..347660	-	231	39995425	-	GSU0316	-	hypothetical protein
316	 58.74	0	348045..348776	+	243	39995426	-	GSU0317	-	hypothetical protein
317	 61.04	0	348883..350127	+	414	39995427	-	GSU0318	-	M48 family peptidase
318	 64.52	0	350163..351002	-	279	39995428	-	GSU0319	-	hypothetical protein
319	 59.38	0	350999..351547	-	182	39995429	-	GSU0320	-	hypothetical protein
320	 65.45	0	351544..352860	-	438	39995430	-	GSU0321	-	general secretion pathway protein L, putative
321	 62.00	0	352860..353780	-	306	39995431	gspK	GSU0322	-	general secretion pathway protein K
322	 62.39	0	353777..354337	-	186	39995432	-	GSU0323	-	general secretion pathway protein j, putative
323	 59.10	0	354384..354740	-	118	39995433	-	GSU0324	-	general secretion pathway protein I, putative
324	 63.83	0	354737..355264	-	175	39995434	-	GSU0325	-	general secretion pathway protein H, putative
325	 60.36	0	355233..355676	-	147	39995435	gspG	GSU0326	-	general secretion pathway protein G
326	 64.11	0	355703..356914	-	403	39995436	-	GSU0327	-	general secretion pathway protein F
327	 64.08	0	356895..358439	-	514	39995437	gspE	GSU0328	-	general secretion pathway protein E
328	 59.98	0	358454..360352	-	632	39995438	-	GSU0329	-	general secretion pathway protein D, putative
60.71	MEAN

5.38	STD DEV
