IslandPath Analysis: Geobacter sulfurreducens PCA

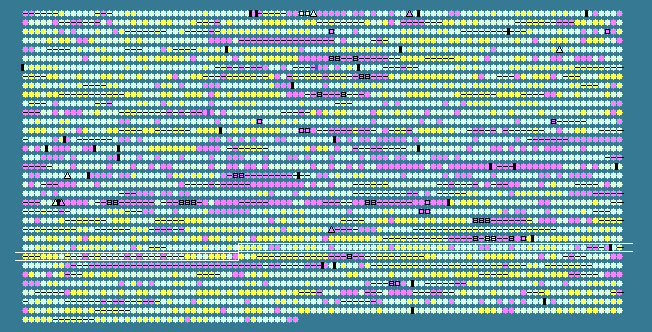

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.71 STD DEV: 5.38
Geobacter sulfurreducens PCA, complete genome - 1..3814139
3446 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2637	 67.29	+1	2923302..2924756	+	484	39997747	-	GSU2653	-	MATE efflux family protein
2638	 68.46	+1	2924871..2925929	+	352	39997748	pdhA	GSU2654	-	pyruvate dehydrogenase complex E1 component, alpha subunit
2639	 69.57	+1	2925945..2926907	+	320	39997749	pdhB	GSU2655	-	pyruvate dehydrogenase complex E1 component, beta subunit
2640	 66.16	+1	2927243..2928421	+	392	39997750	aceF	GSU2656	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2641	 61.51	0	2928502..2931024	-	840	39997751	-	GSU2657	-	spore coat protein A
2642	 52.81	-1	2931002..2931232	+	76	39997752	-	GSU2658	-	putative lipoprotein
2643	 53.15	-1	2931410..2931631	+	73	39997753	-	GSU2659	-	hypothetical protein
2644	 62.28	0	2931669..2932124	+	151	39997754	-	GSU2660	-	hypothetical protein
2645	 63.49	0	2932127..2932693	+	188	39997755	-	GSU2661	-	hypothetical protein
2646	 64.83	0	2932790..2934262	-	490	39997756	-	GSU2662	-	hypothetical protein
2647	 58.79	0	2934433..2934597	-	54	39997757	-	GSU2663	-	putative lipoprotein
2648	 64.33	0	2934692..2939182	-	1496	39997758	-	GSU2664	-	outer membrane efflux protein
2649	 65.37	0	2939179..2940339	-	386	39997759	-	GSU2665	-	RND family efflux transporter MFP subunit
2650	 61.84	0	2940336..2940977	-	213	39997760	-	GSU2666	-	TetR family transcriptional regulator
2651	 62.32	0	2941214..2942710	+	498	39997761	-	GSU2667	-	sensory box histidine kinase
2652	 56.38	0	2942694..2942975	+	93	39997762	-	GSU2668	-	hypothetical protein
2653	 58.33	0	2942972..2944003	+	343	39997763	-	GSU2669	-	sensor histidine kinase
2654	 61.64	0	2944089..2945381	-	430	39997764	-	GSU2670	-	LuxR family transcriptional regulator
2655	 62.50	0	2945693..2947300	+	535	39997765	-	GSU2671	-	hypothetical protein
2656	 62.68	0	2947371..2947847	+	158	39997766	-	GSU2672	-	hypothetical protein
2657	 59.81	0	2947883..2949223	+	446	39997767	-	GSU2673	-	hypothetical protein
2658	 62.99	0	2949285..2953013	+	1242	39997768	-	GSU2674	-	hypothetical protein
2659	 64.15	0	2953225..2955291	-	688	39997769	-	GSU2675	-	hypothetical protein
2660	 69.78	+1	2955391..2956290	-	299	39997770	-	GSU2676	-	hypothetical protein
2661	 68.98	+1	2956339..2957247	-	302	39997771	-	GSU2677	-	hypothetical protein
2662	 57.02	0	2957582..2958037	+	151	39997772	-	GSU2678	-	HSP20 family protein
2663	 68.26	+1	2958166..2958603	+	145	39997773	-	GSU2679	-	hypothetical protein
2664	 65.80	0	2958626..2959087	+	153	39997774	-	GSU2680	-	hypothetical protein
2665	 66.35	+1	2959099..2960655	-	518	39997775	-	GSU2681	-	iron-sulfur cluster-binding protein
2666	 65.76	0	2960670..2961551	-	293	39997776	-	GSU2682	-	hypothetical protein
2667	 64.69	0	2961626..2962534	-	302	39997777	panE	GSU2683	-	2-dehydropantoate 2-reductase
2668	 67.38	+1	2962534..2962815	-	93	39997778	-	GSU2684	-	hypothetical protein
2669	 62.39	0	2962866..2963987	-	373	39997779	-	GSU2685	-	hypothetical protein
2670	 66.02	0	2963990..2966782	-	930	39997780	-	GSU2686	-	ABC transporter, ATP-binding protein
2671	 65.74	0	2966779..2967852	-	357	39997781	-	GSU2687	-	HlyD family secretion protein
2672	 56.06	0	2967889..2968020	-	43	39997782	-	GSU2688	-	hypothetical protein
2673	 61.62	0	2968017..2968115	-	32	39997783	-	GSU2689	-	hypothetical protein
2674	 62.88	0	2968161..2968925	-	254	39997784	-	GSU2690	-	hypothetical protein
2675	 60.06	0	2968929..2970215	-	428	39997785	-	GSU2691	-	hypothetical protein
2676	 63.03	0	2970258..2971247	-	329	39997786	-	GSU2692	-	immunogenic protein family protein
2677	 51.42	-1	2971392..2971778	-	128	39997787	-	GSU2693	-	response regulator
2678	 54.76	-1	2972203..2972328	+	41	39997788	-	GSU2694	-	hypothetical protein
2679	 63.09	0	2972298..2973836	-	512	39997789	-	GSU2695	-	outer membrane efflux protein
2680	 60.30	0	2973838..2976996	-	1052	39997790	-	GSU2696	-	AcrB/AcrD/AcrF family protein
2681	 63.34	0	2977070..2978272	-	400	39997791	-	GSU2697	-	multidrug resistance protein
2682	 56.37	0	2978501..2979112	-	203	39997792	-	GSU2698	-	TetR family transcriptional regulator
2683	 58.85	0	2979466..2979849	+	127	39997793	-	GSU2699	-	molybdopterin converting factor, subunit 2
2684	 57.90	0	2979878..2980687	+	269	39997794	-	GSU2700	-	tungstate ABC transporter, periplasmic tungstate-binding protein, putative
2685	 65.65	0	2980760..2981446	+	228	39997795	-	GSU2701	-	ABC transporter, permease protein
2686	 63.16	0	2981454..2982194	+	246	39997796	-	GSU2702	-	ABC transporter, ATP-binding protein
2687	 65.44	0	2982149..2983366	+	405	39997797	moeA	GSU2703	-	molybdopterin biosynthesis protein MoeA
2688	 64.80	0	2983379..2983861	+	160	39997798	moaC	GSU2704	-	molybdenum cofactor biosynthesis protein MoaC
2689	 66.87	+1	2983858..2984349	+	163	39997799	moaB	GSU2705	-	molybdenum cofactor biosynthesis protein B
2690	 61.98	0	2984470..2985471	+	333	39997800	-	GSU2706	-	phosphate acetyltransferase
2691	 57.35	0	2985616..2986881	-	421	39997801	ackA-1	GSU2707	-	acetate kinase
2692	 59.06	0	2987136..2987306	+	56	39997802	-	GSU2708	-	ferredoxin family protein
2693	 52.03	-1	2987293..2987415	-	40	39997803	-	GSU2709	-	hypothetical protein
2694	 61.18	0	2987509..2988765	-	418	39997804	-	GSU2710	-	hypothetical protein
2695	 54.42	-1	2988923..2989069	-	48	39997805	-	GSU2711	-	hypothetical protein
2696	 49.21	-2	2989086..2989211	+	41	39997806	-	GSU2712	-	hypothetical protein
2697	 57.25	0	2989184..2989873	+	229	39997807	-	GSU2713	-	hypothetical protein
2698	 57.06	0	2989839..2990816	-	325	39997808	-	GSU2714	-	metallo-beta-lactamase family protein
2699	 60.92	0	2991035..2993629	-	864	39997809	-	GSU2715	-	fibronectin type III domain-containing protein
2700	 66.52	+1	2993769..2994467	+	232	39997810	sfsA	GSU2716	-	sugar fermentation stimulation protein
2701	 69.96	+1	2994472..2994927	-	151	39997811	-	GSU2717	-	hypothetical protein
2702	 66.88	+1	2994943..2996379	-	478	39997812	hoxH	GSU2718	-	NAD-reducing hydrogenase, beta subunit
2703	 65.99	0	2996388..2996975	-	195	39997813	hoxY	GSU2719	-	NAD-reducing hydrogenase, delta subunit
2704	 64.57	0	2996972..2997688	-	238	39997814	hoxU	GSU2720	-	bidirectional hydrogenase complex protein HoxU
2705	 69.06	+1	2997688..2999400	-	570	39997815	hoxF	GSU2721	-	NAD-reducing hydrogenase, alpha subunit
2706	 65.97	0	2999397..2999972	-	191	39997816	-	GSU2722	-	bidirectional hydrogenase complex protein HoxE
2707	 62.68	0	3000077..3001054	-	325	39997817	-	GSU2723	-	putative sulfite oxidase subunit YedY
2708	 66.05	0	3001124..3003238	-	704	39997818	-	GSU2724	-	cytochrome c family protein
2709	 63.08	0	3003210..3003683	-	157	39997819	-	GSU2725	-	cytochrome c family protein
2710	 63.58	0	3003680..3004975	-	431	39997820	-	GSU2726	-	hypothetical protein
2711	 52.76	-1	3005347..3005799	+	150	39997821	-	GSU2727	-	hypothetical protein
2712	 63.41	0	3005820..3006956	-	378	39997822	-	GSU2728	-	hypothetical protein
2713	 70.11	+1	3007014..3007187	+	57	39997823	-	GSU2729	-	hypothetical protein
2714	 58.23	0	3007184..3007645	-	153	39997824	-	GSU2730	-	hypothetical protein
2715	 63.11	0	3007851..3010157	-	768	39997825	ferA	GSU2731	-	polyheme membrane-associated cytochrome c
2716	 61.49	0	3010192..3010887	-	231	39997826	-	GSU2732	-	cytochrome c family protein
2717	 60.31	0	3010903..3012114	-	403	39997827	-	GSU2733	-	hypothetical protein
2718	 56.60	0	3012118..3012276	+	52	39997828	-	GSU2734	-	hypothetical protein
2719	 60.56	0	3012258..3012863	-	201	39997829	-	GSU2735	-	TetR family transcriptional regulator
2720	 53.90	-1	3012855..3012995	+	46	39997830	-	GSU2736	-	hypothetical protein
2721	 62.77	0	3013390..3015624	-	744	39997831	-	GSU2737	-	polyheme membrane-associated cytochrome c
2722	 61.49	0	3015659..3016354	-	231	39997832	-	GSU2738	-	cytochrome c family protein
2723	 60.23	0	3016370..3017581	-	403	39997833	-	GSU2739	-	hypothetical protein
2724	 56.60	0	3017585..3017743	+	52	39997834	-	GSU2740	-	hypothetical protein
2725	 59.72	0	3017725..3018372	-	215	39997835	-	GSU2741	-	TetR family transcriptional regulator
2726	 59.44	0	3018809..3019237	-	142	39997836	-	GSU2742	-	hypothetical protein
2727	 58.93	0	3019271..3019606	-	111	39997837	-	GSU2743	-	cytochrome c family protein
2728	 68.44	+1	3019720..3020901	-	393	39997838	-	GSU2744	-	major facilitator family transporter
2729	 67.94	+1	3020923..3022410	-	495	39997839	-	GSU2745	-	AAA family ATPase
2730	 63.89	0	3022635..3023714	+	359	39997840	-	GSU2746	-	hypothetical protein
2731	 60.32	0	3023798..3023986	-	62	39997841	-	GSU2747	-	hypothetical protein
2732	 66.48	+1	3024100..3024645	+	181	39997842	-	GSU2748	-	cytochrome c family protein, putative
2733	 68.33	+1	3024642..3025601	+	319	39997843	-	GSU2749	-	NOL1/NOP2/sun family protein
2734	 66.13	+1	3025675..3026046	-	123	39997844	-	GSU2750	-	hypothetical protein
2735	 63.05	0	3026124..3027452	-	442	39997845	dcuB	GSU2751	-	anaerobic C4-dicarboxylate transporter
2736	 43.14	-2	3027517..3027618	+	33	39997846	-	GSU2752	-	hypothetical protein
60.71	MEAN

5.38	STD DEV
